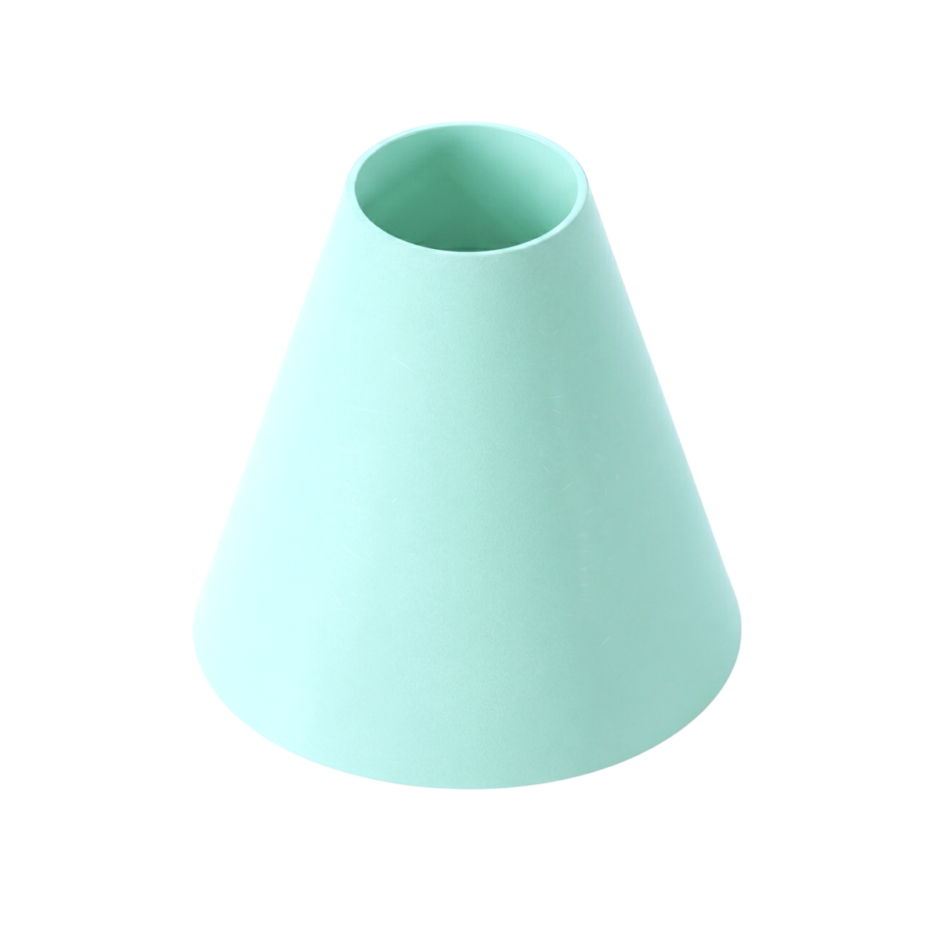

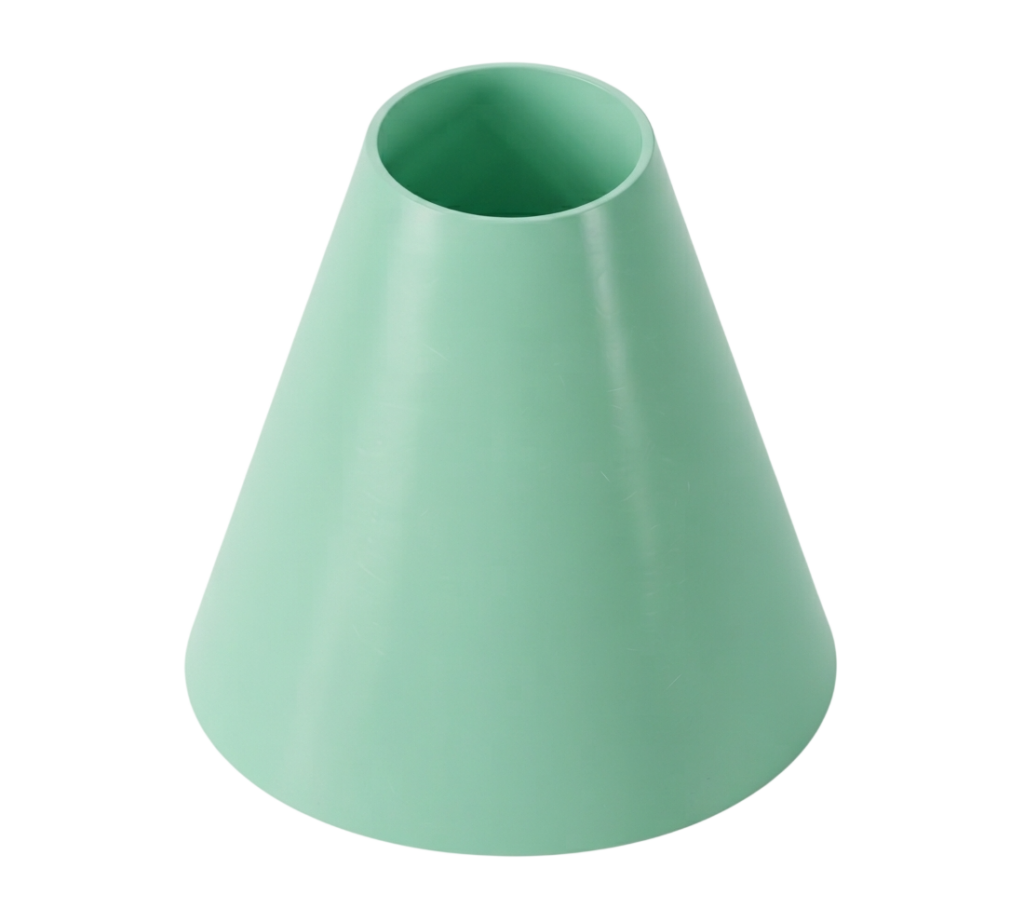

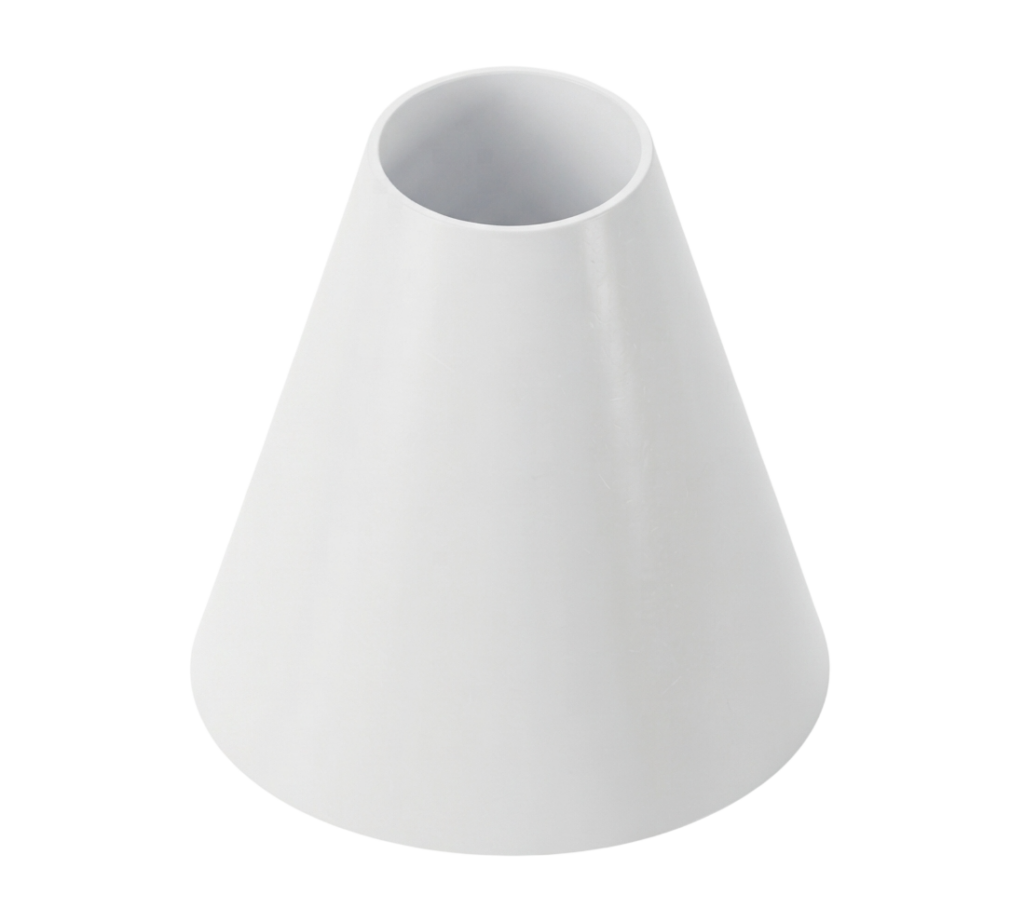

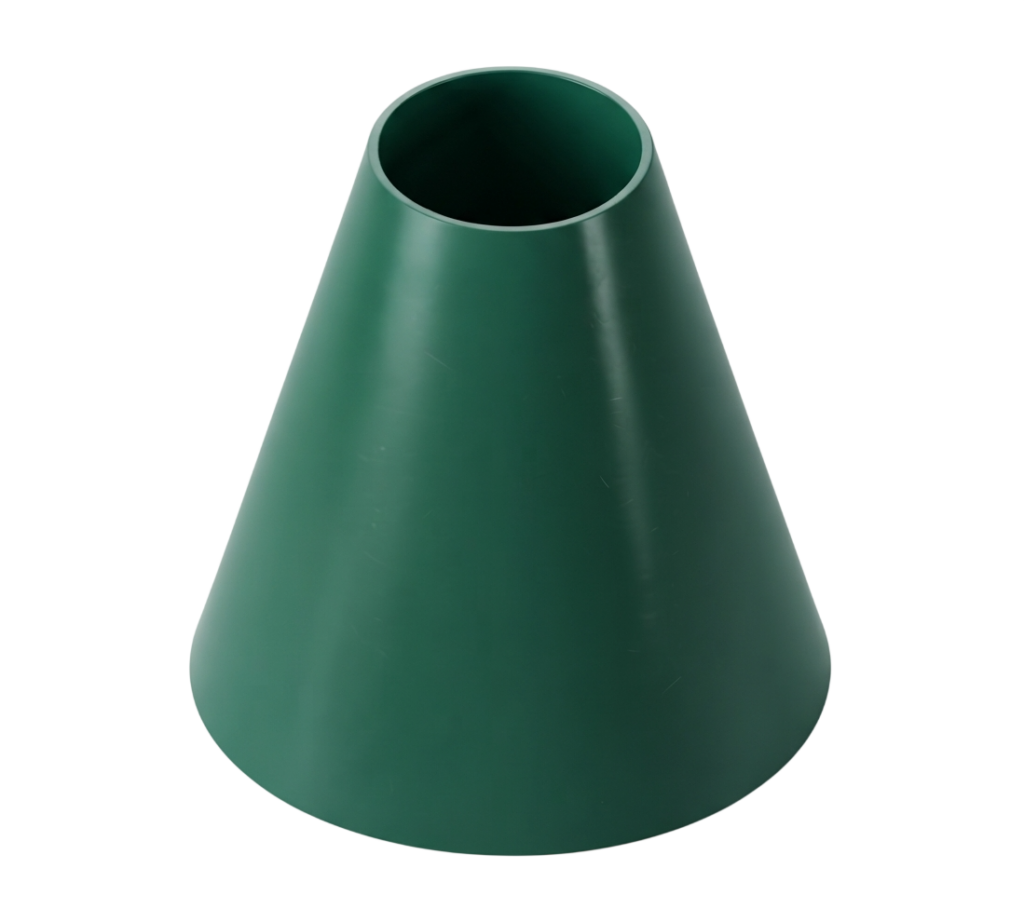

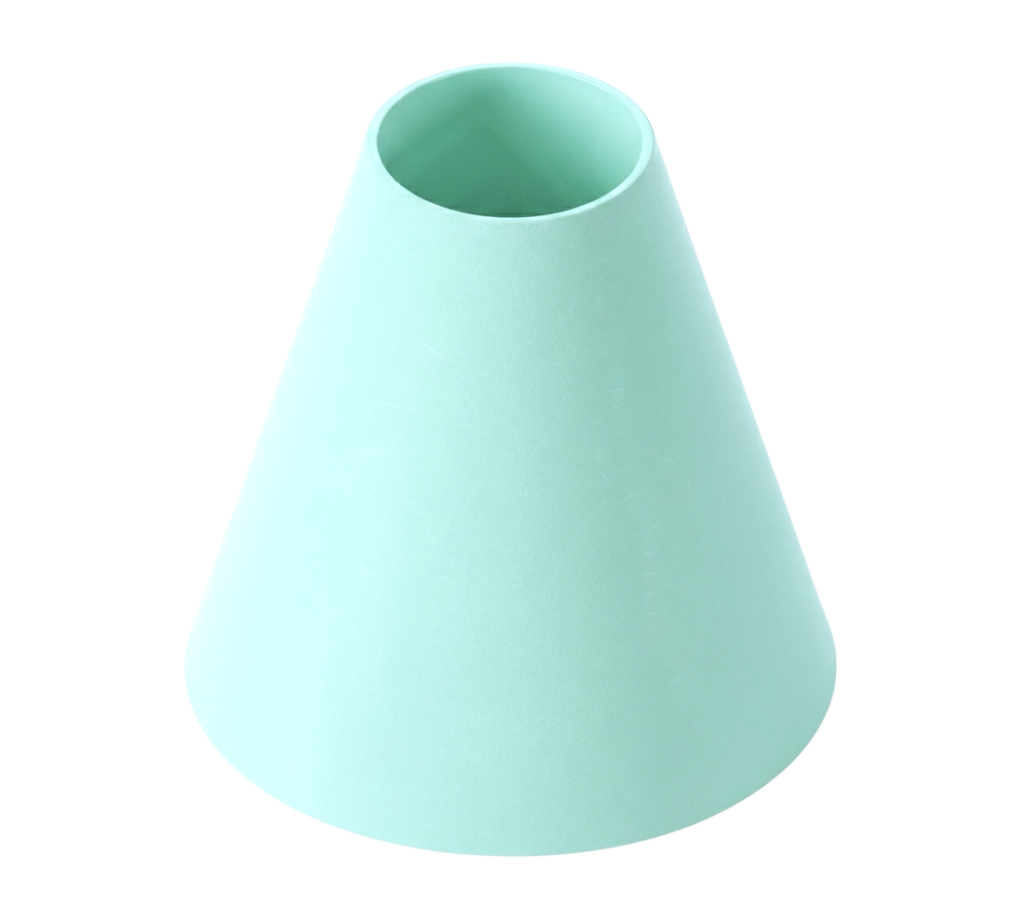

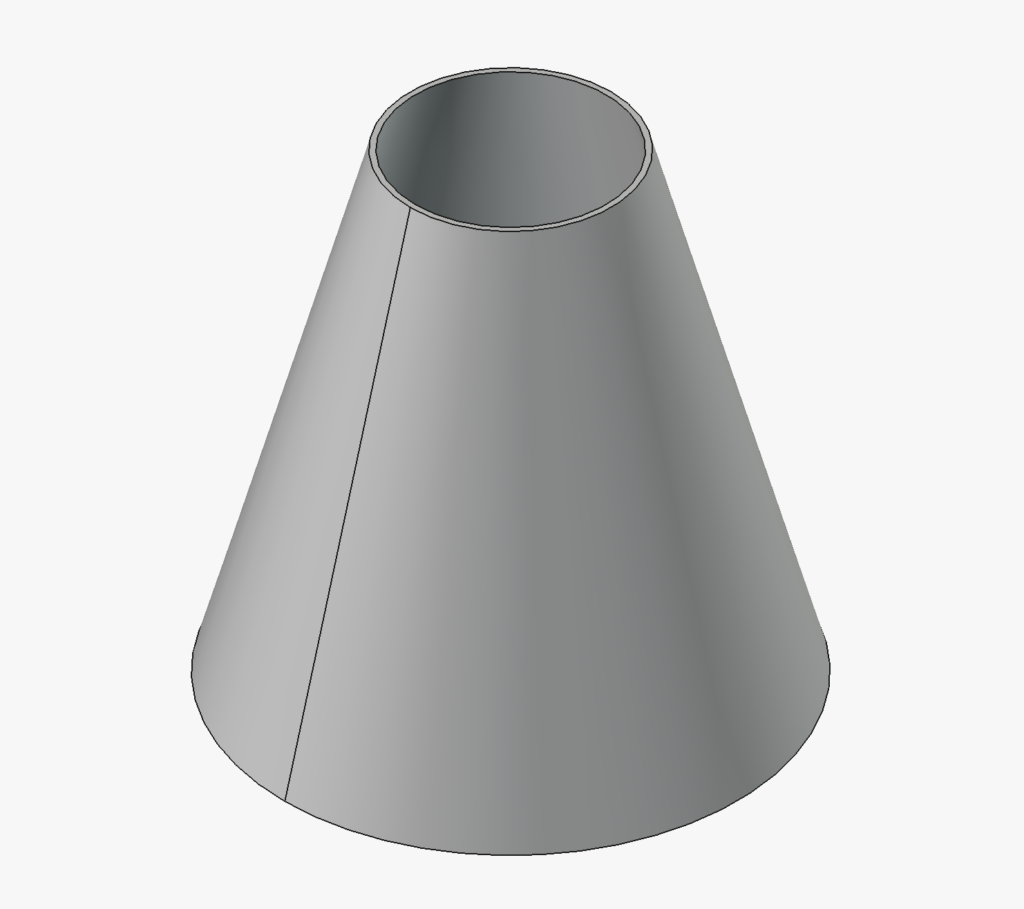

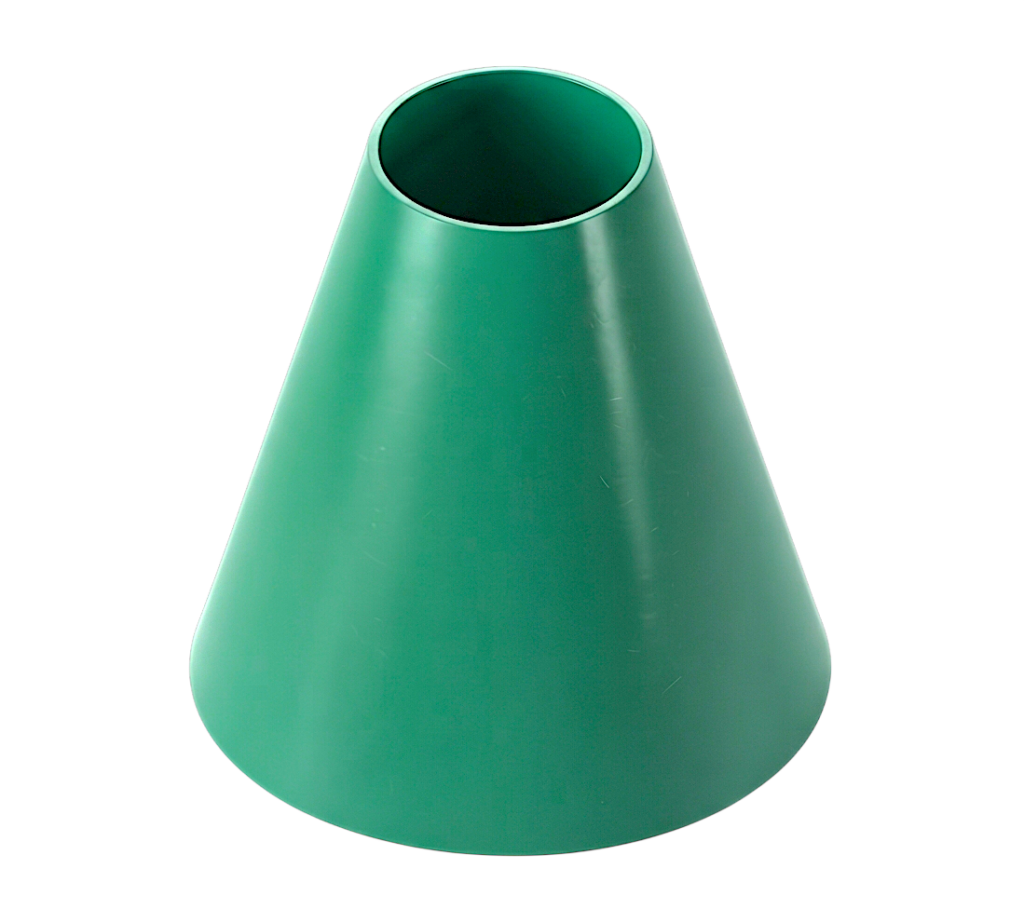

056.1 – “Lamp shade” cone

Basic info

• What is it: A cone
• Material: strong | standard tolerance (but the wall thickness is low. Therefore the part is not very strong)
• Dimensions: The lamp shade is:
  • 90mm high
  • The wall thickness is 1mm (but subject to the standard tolerance)
  • The outer diameter at the top is 40mm (! fixed), the inner diameter therefore 38mm but subject to standard tolerance
  • The outer diameter of the bottom circle is 90mm (! fixed), the inner diameter therefore 38mm but subject to standard tolerance

Buy this part

• Local make: Available as local make.
• Add your store: Want to make and sell this part? Reach out.

Make this part

• Instructions: This part is perfect for 3d printing
• Downloads:  Design and manufacturing files are available in the download portal.

Meta

• Introduced by: Lars Zimmermann via Wire Lamp
• Open: Shared under IPP 1.0
