Image captions

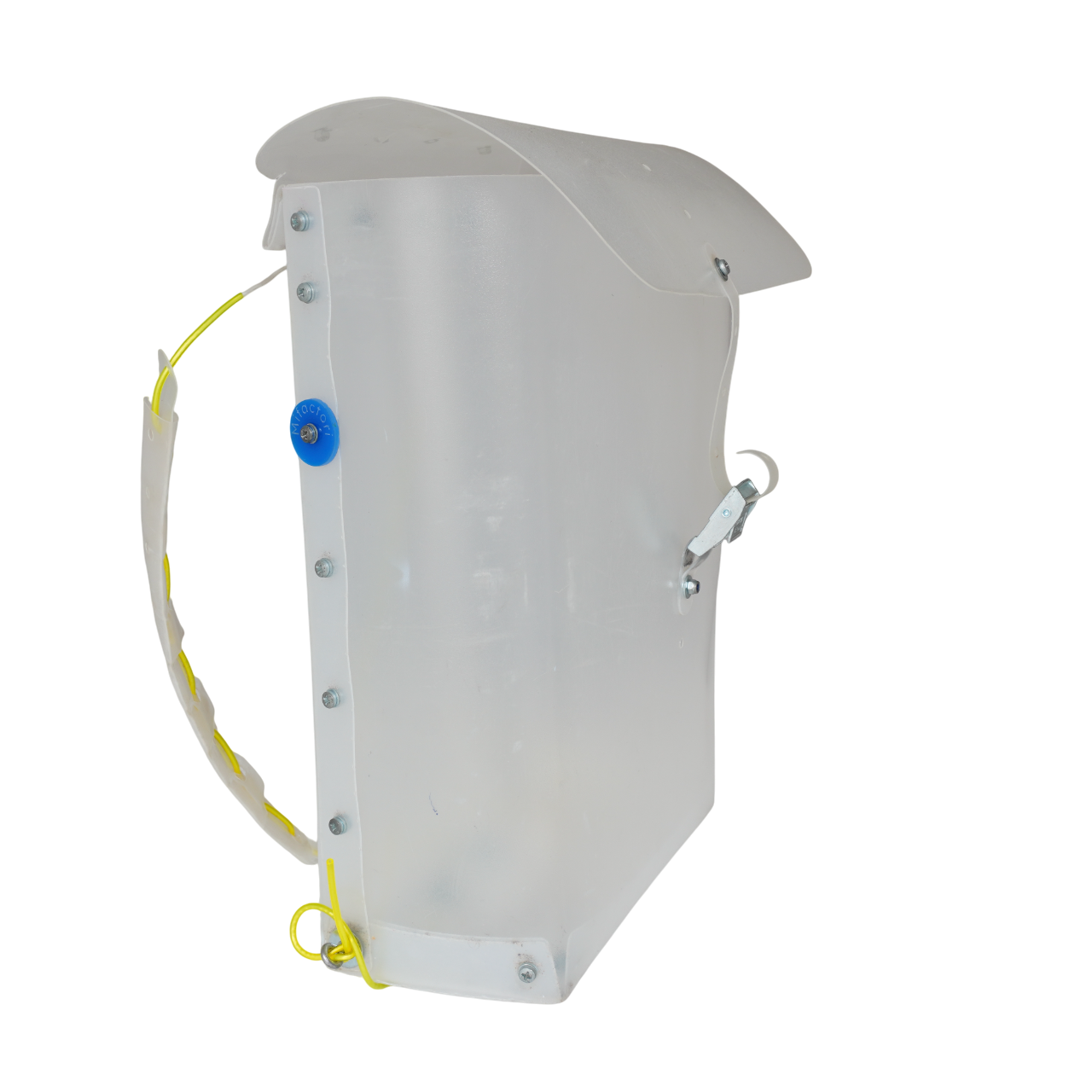

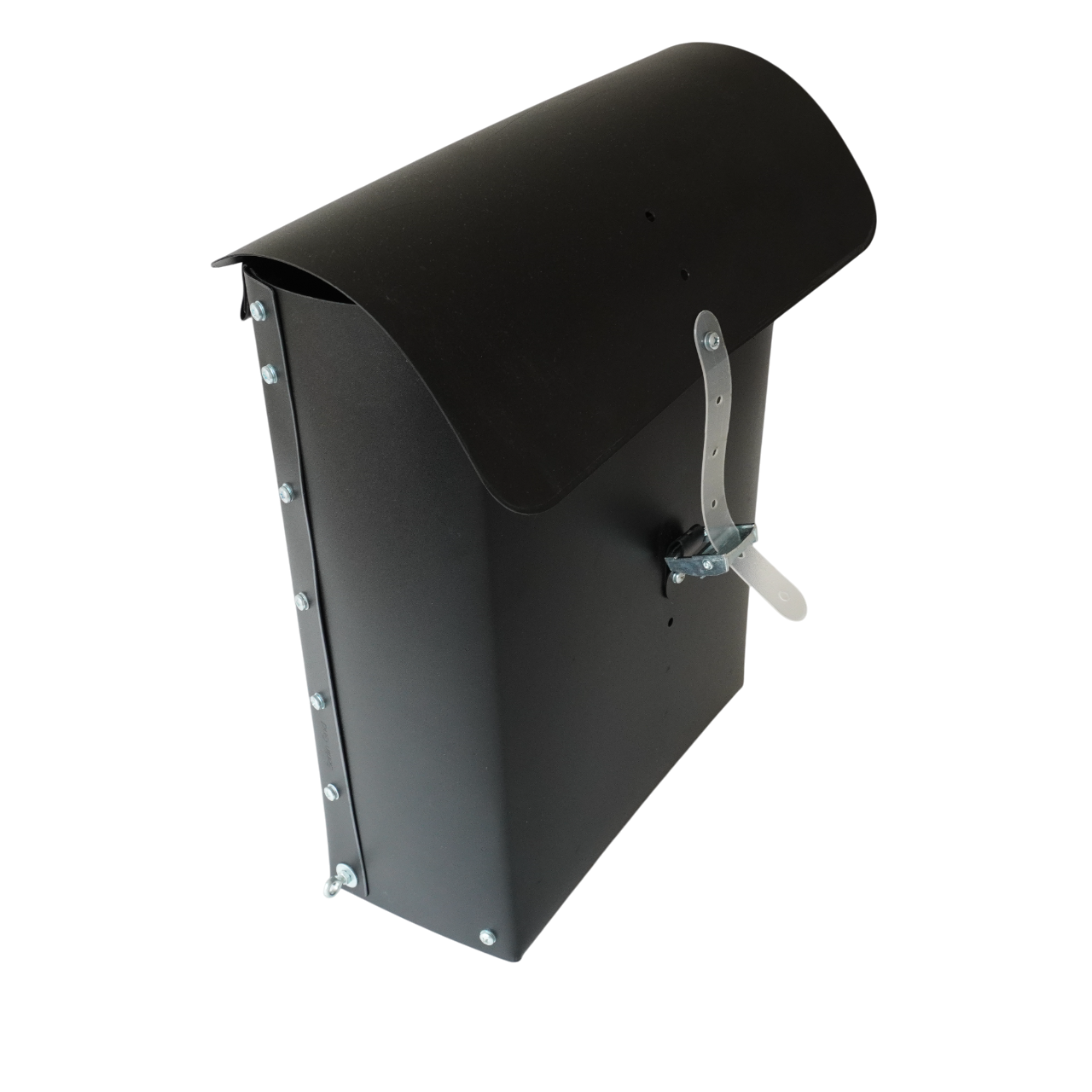

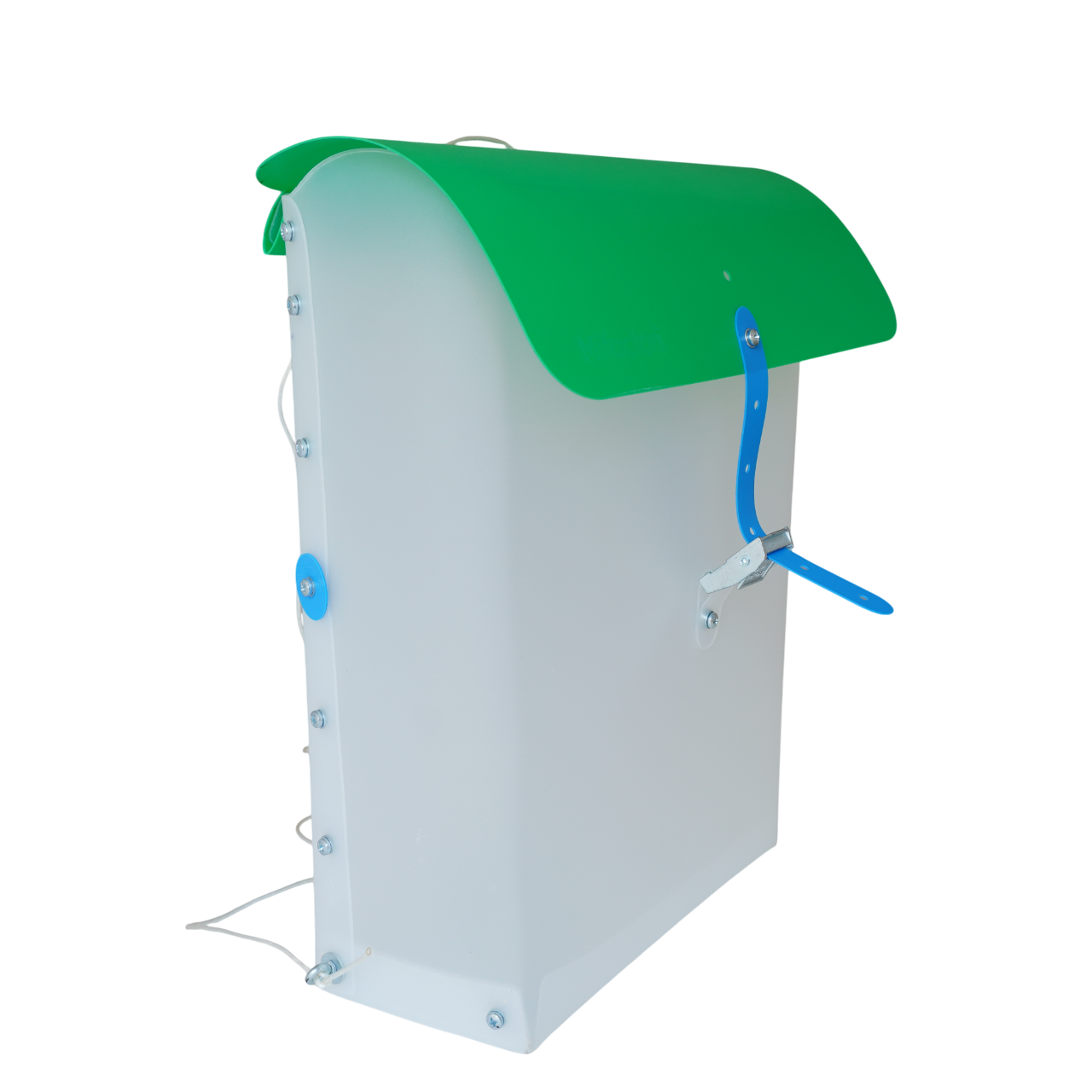

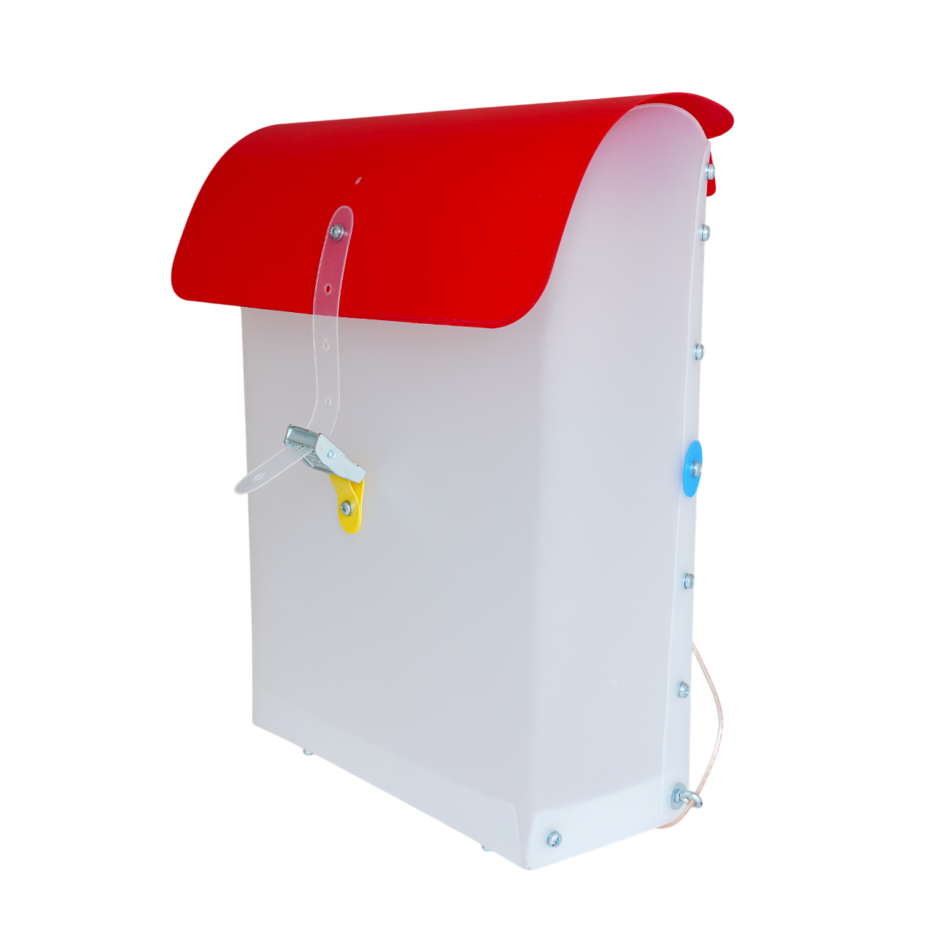

– 39cm x 12cm x 27cm

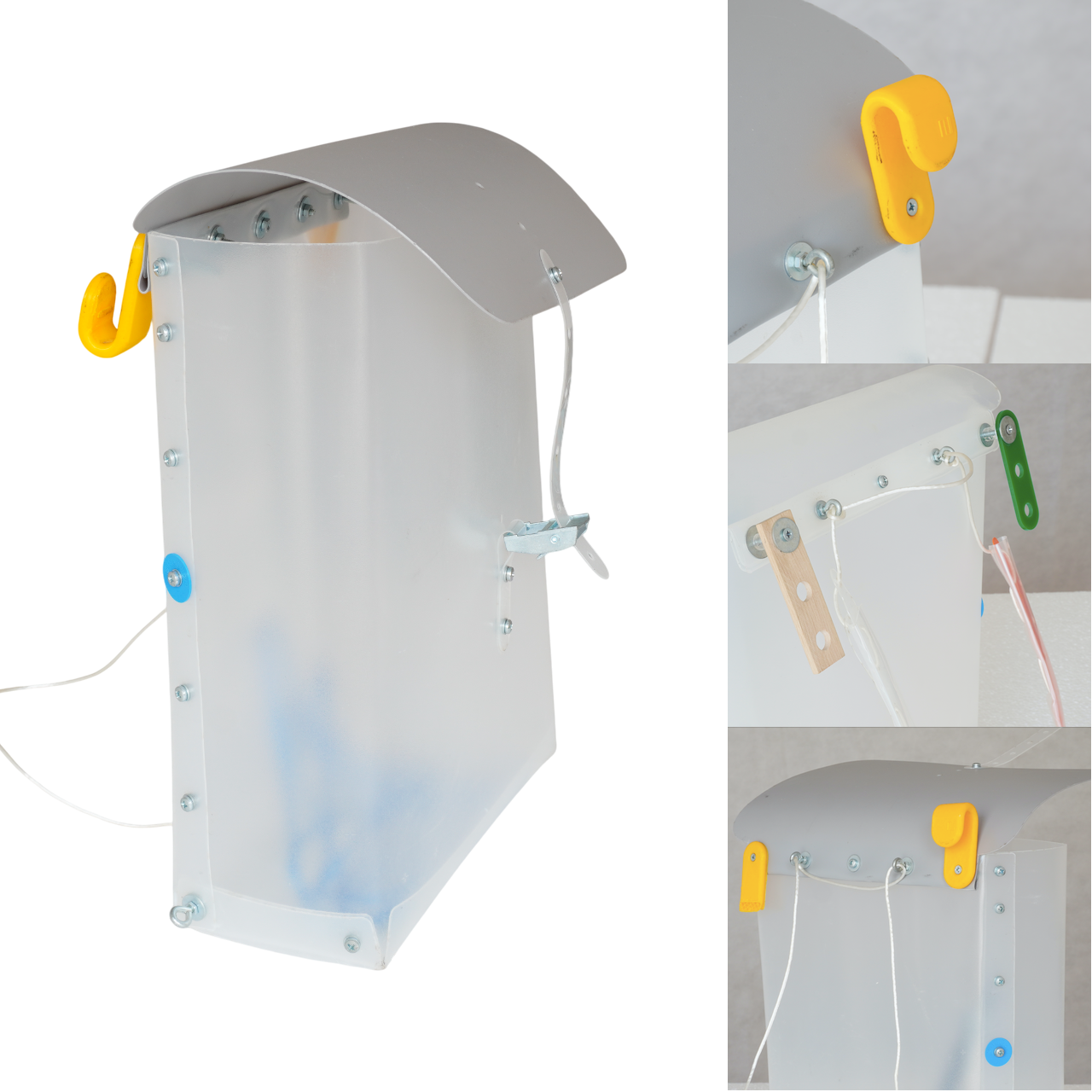

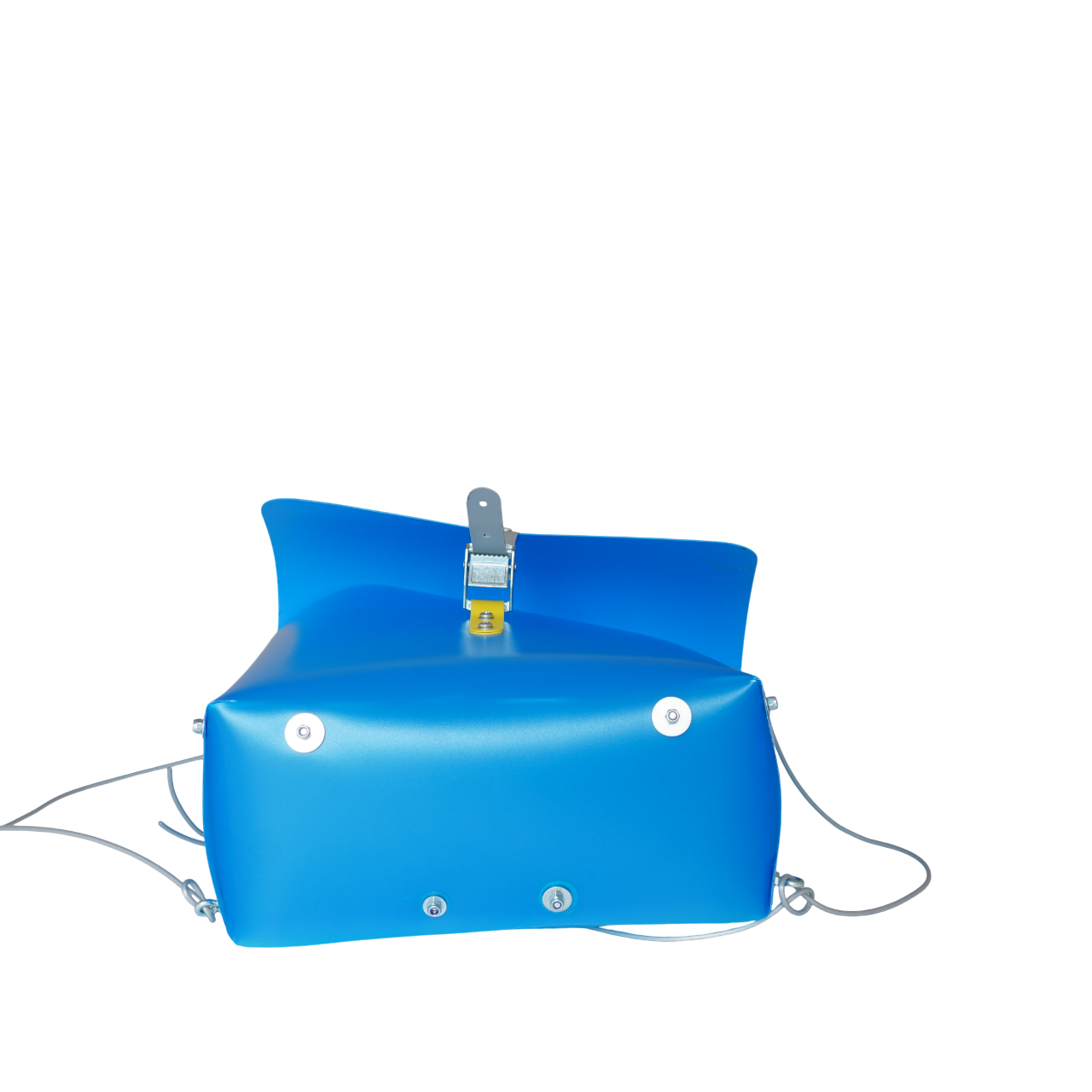

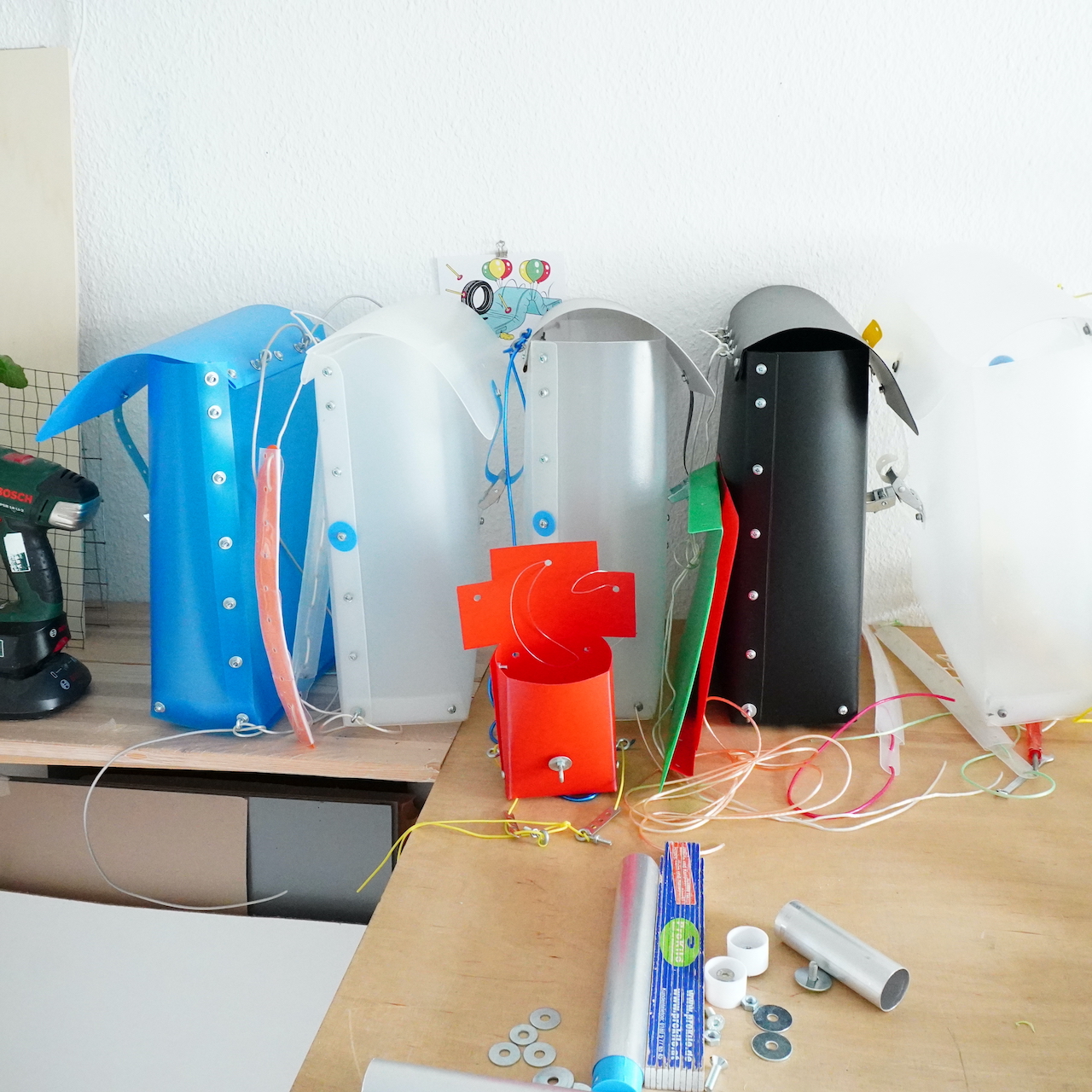

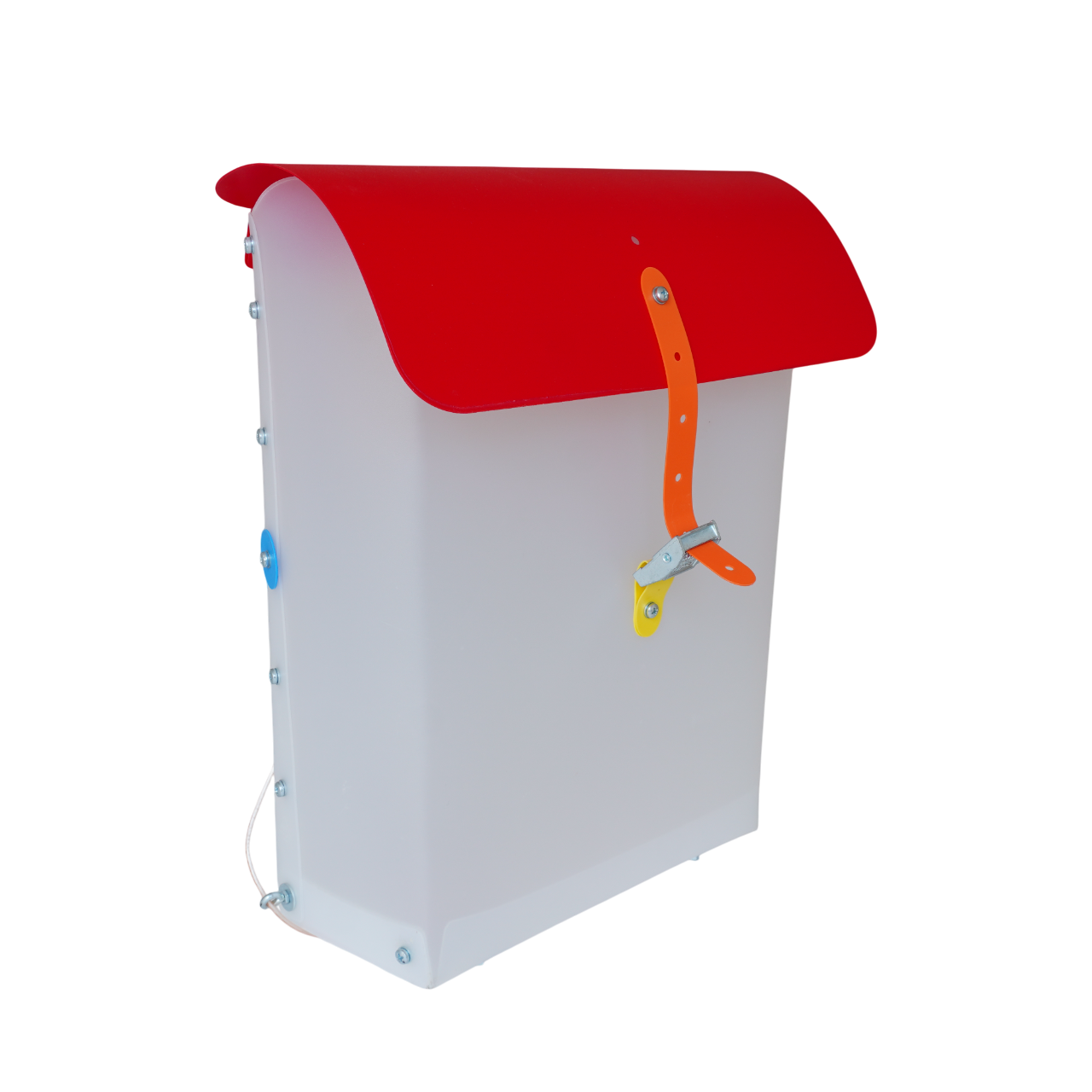

– Biballi is a platform. It is based on the Ikego Grid. This allows additional modules to be bolted on and functions to be enabled.

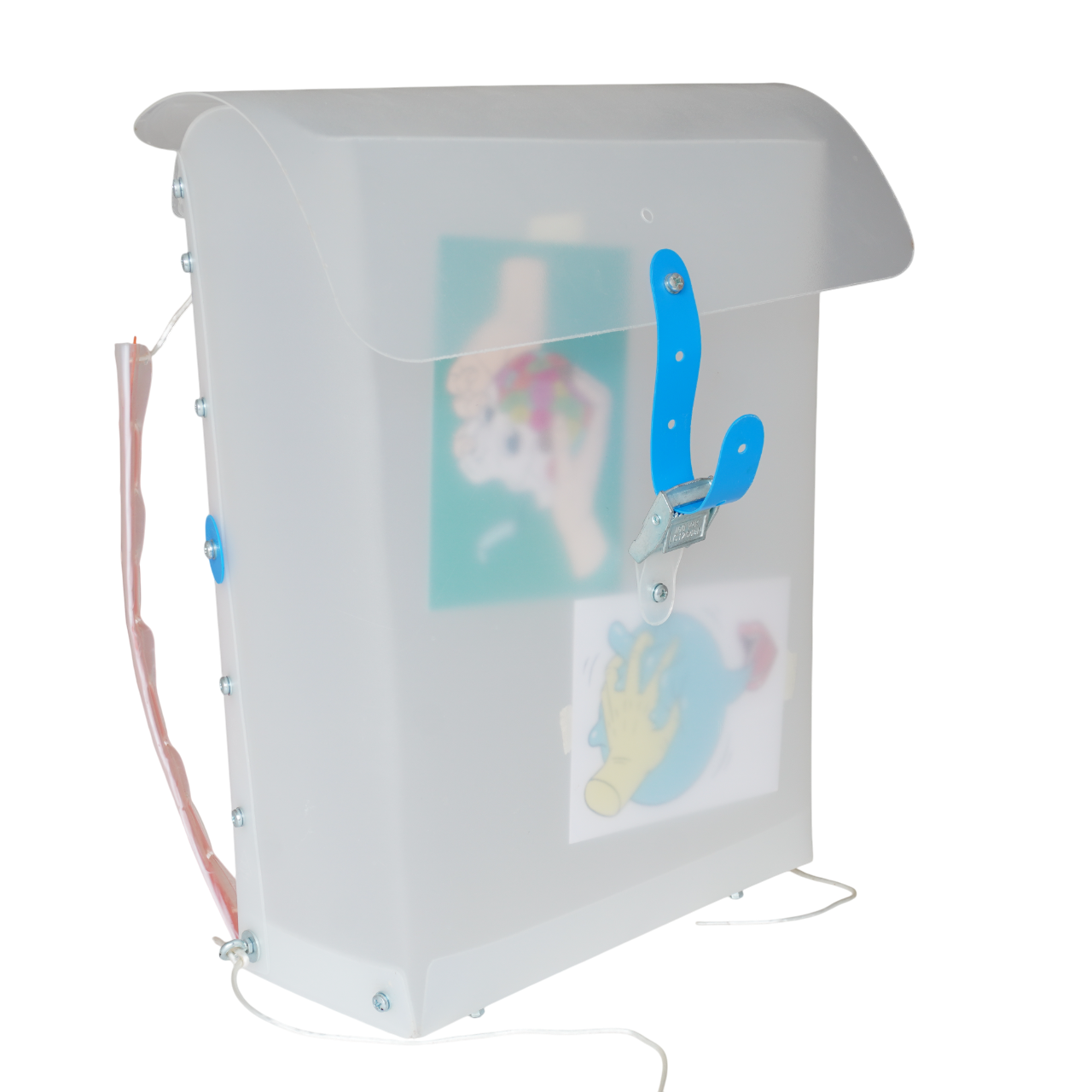

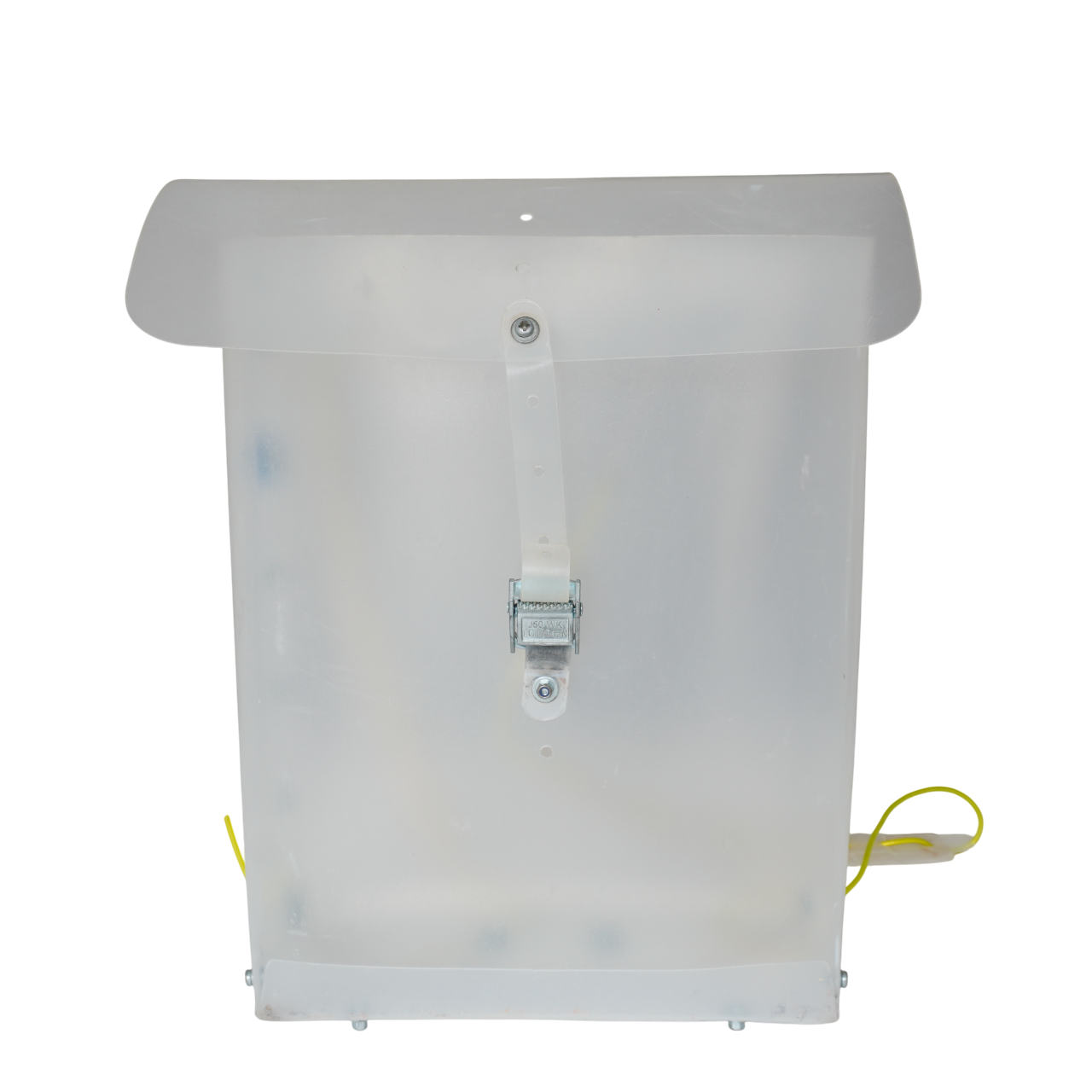

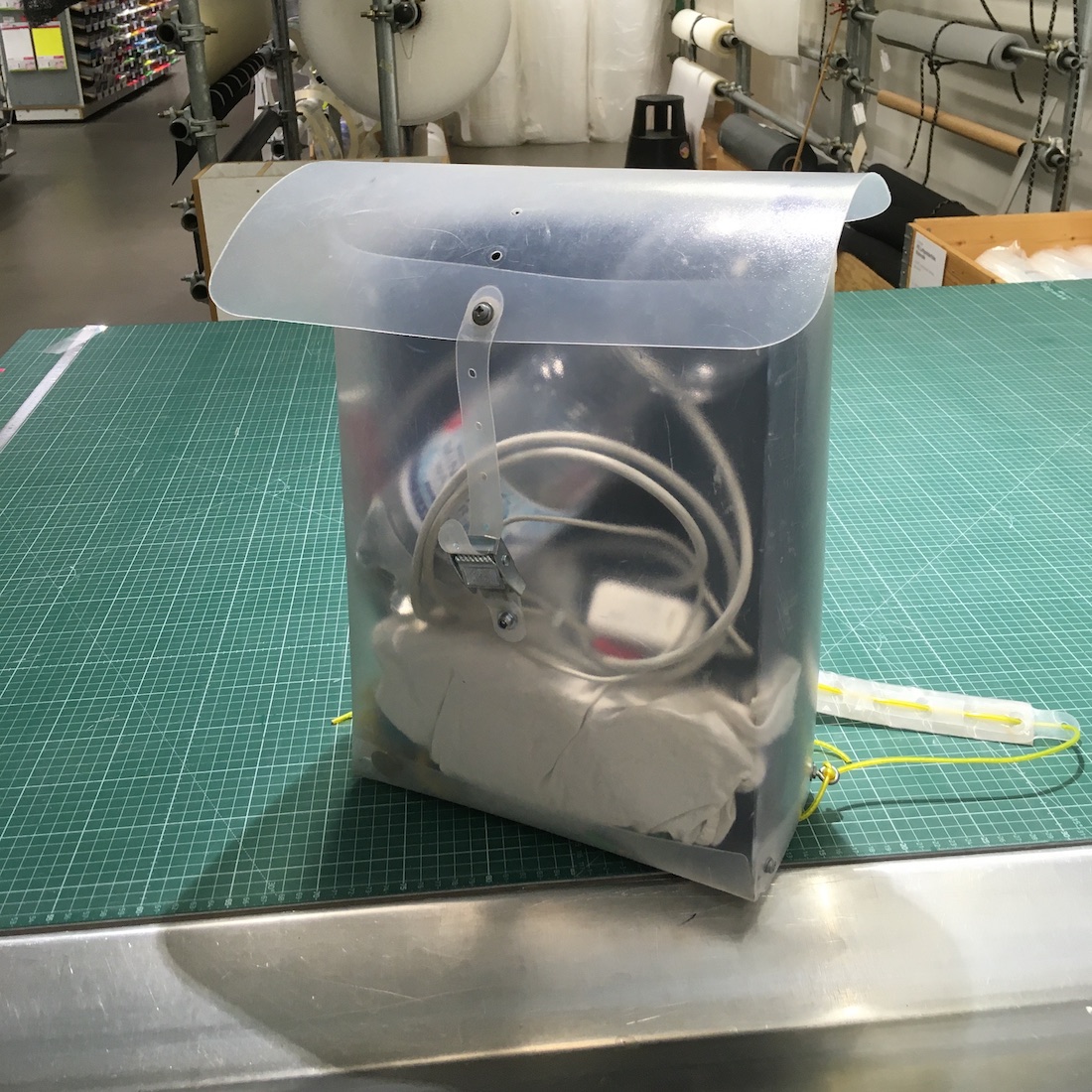

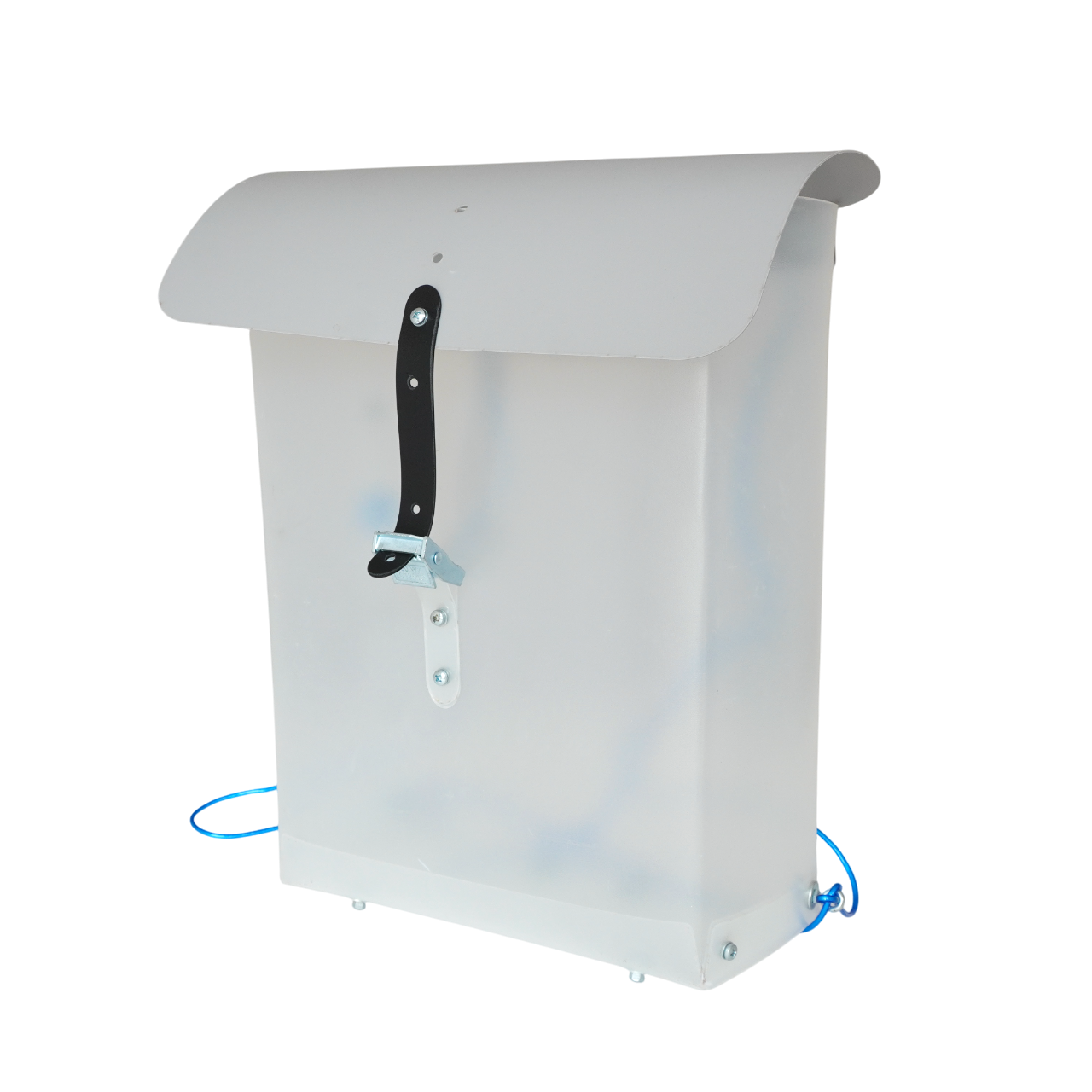

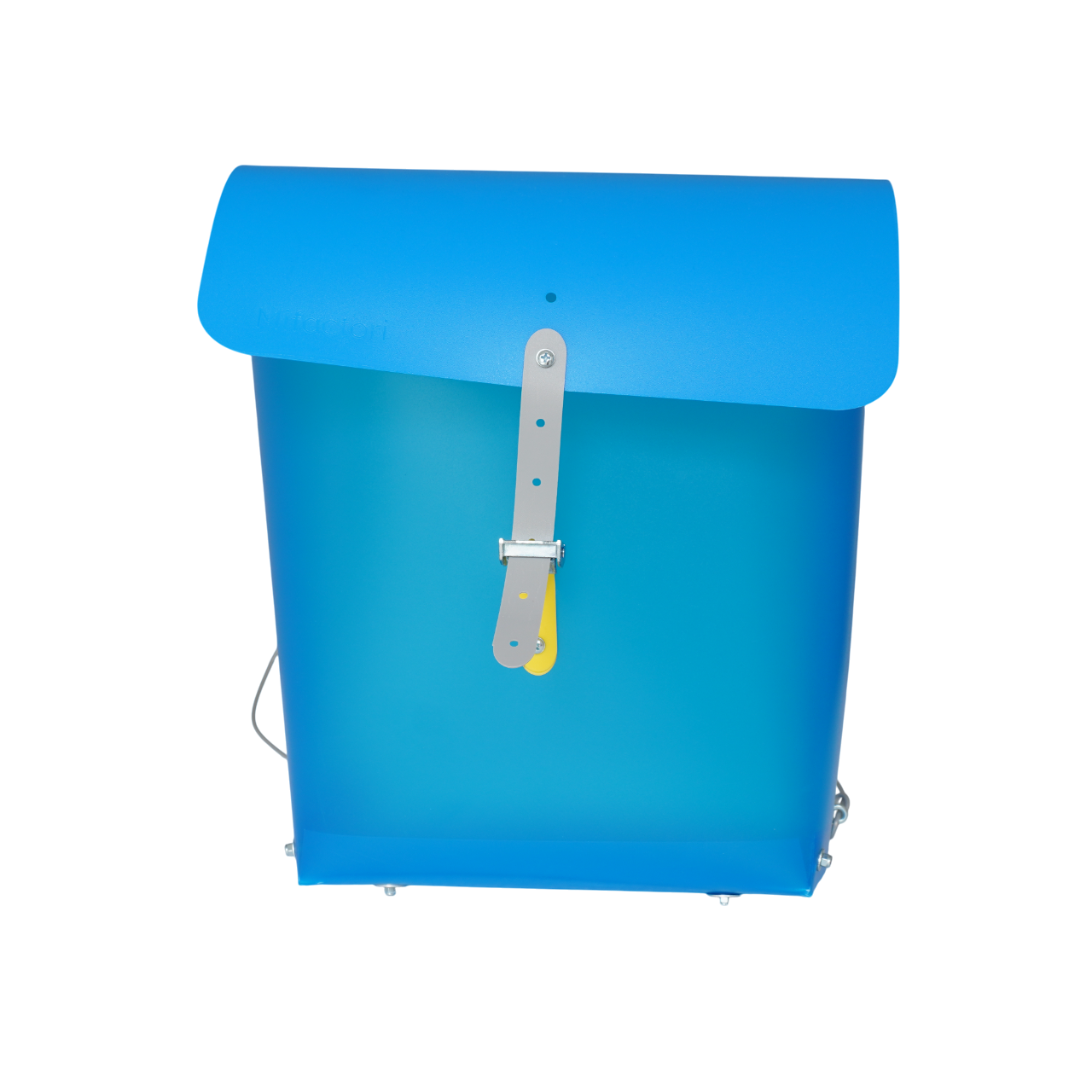

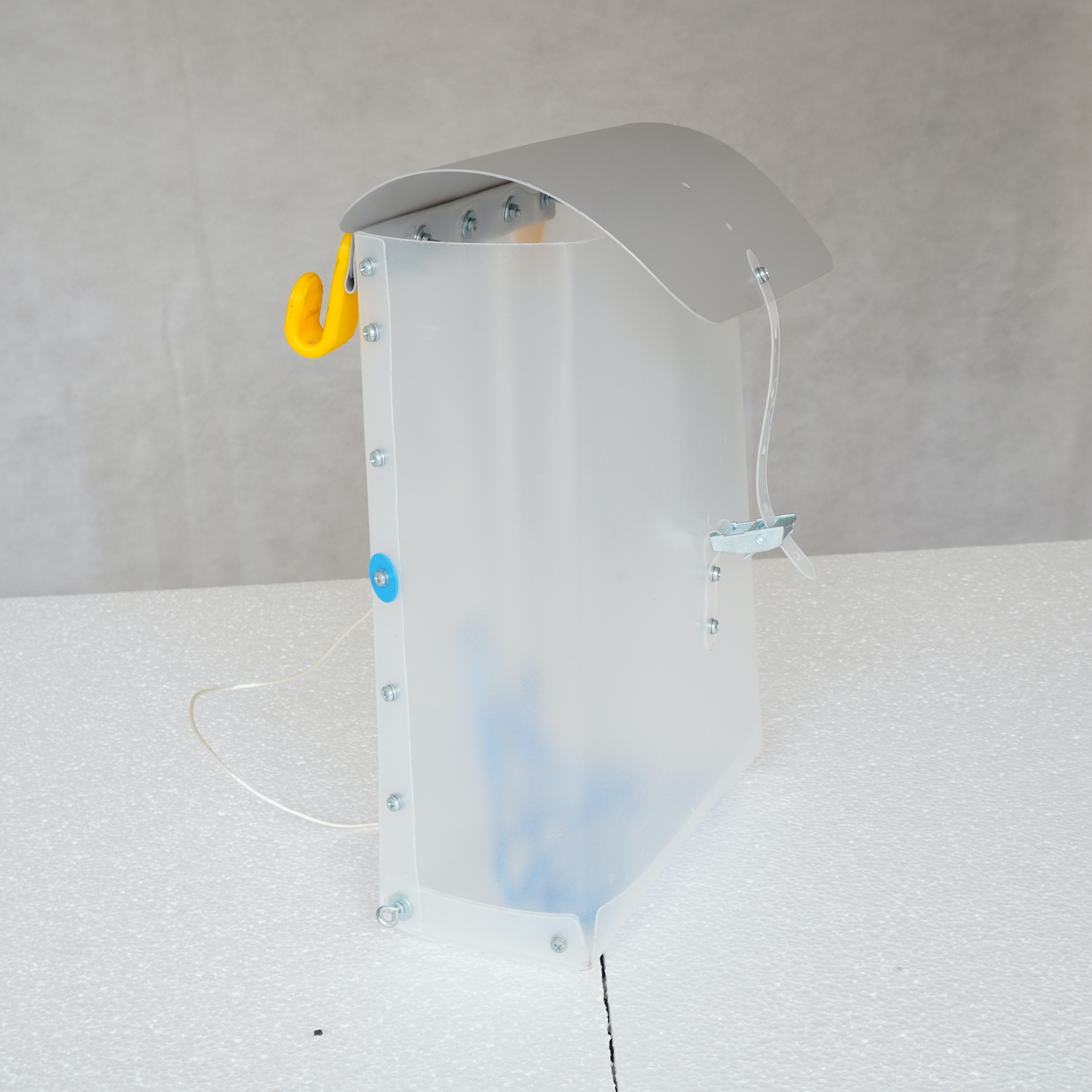

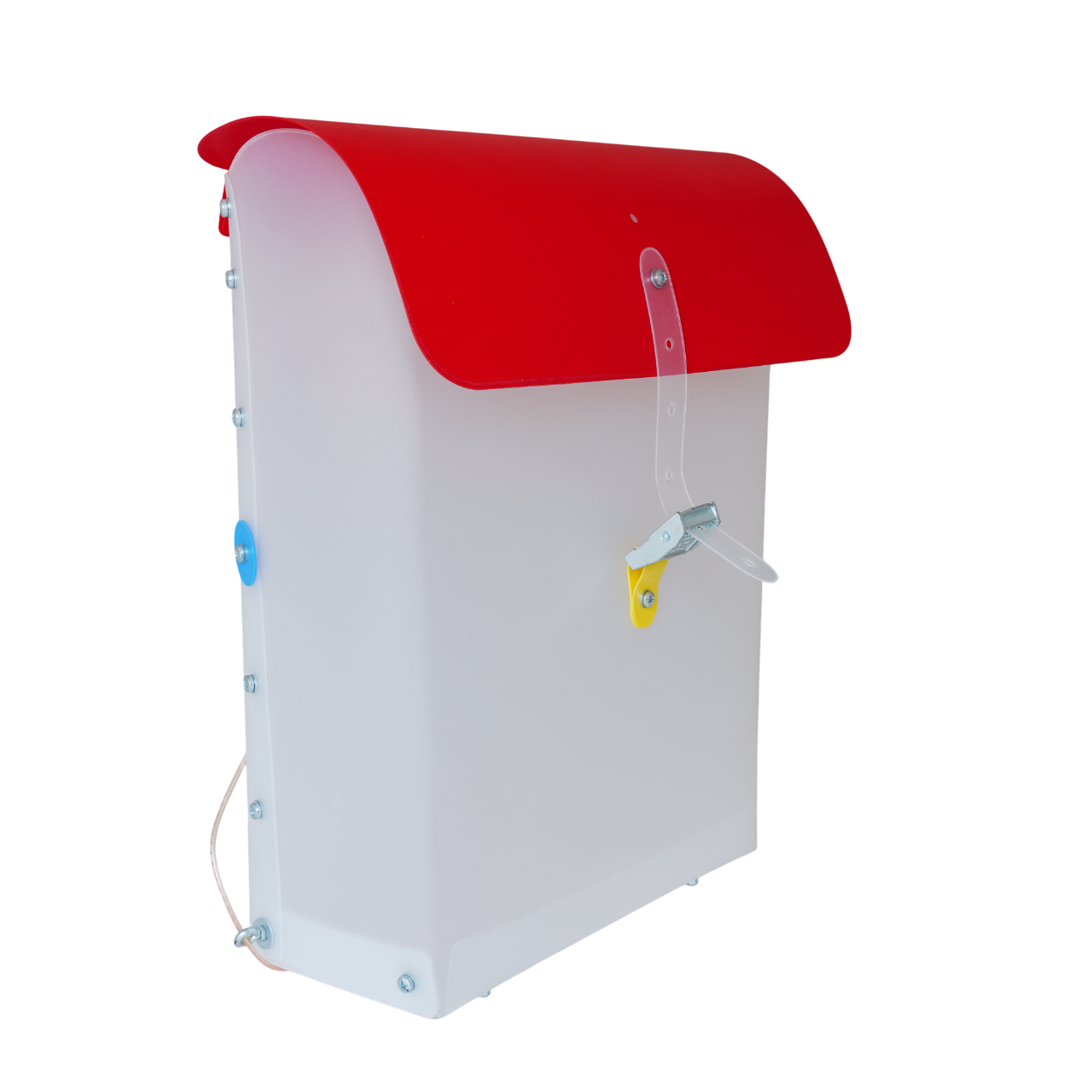

– The transparent version can be used to signal things to your environment. Light can also be installed for fun or transparency simply helps to find things quickly.

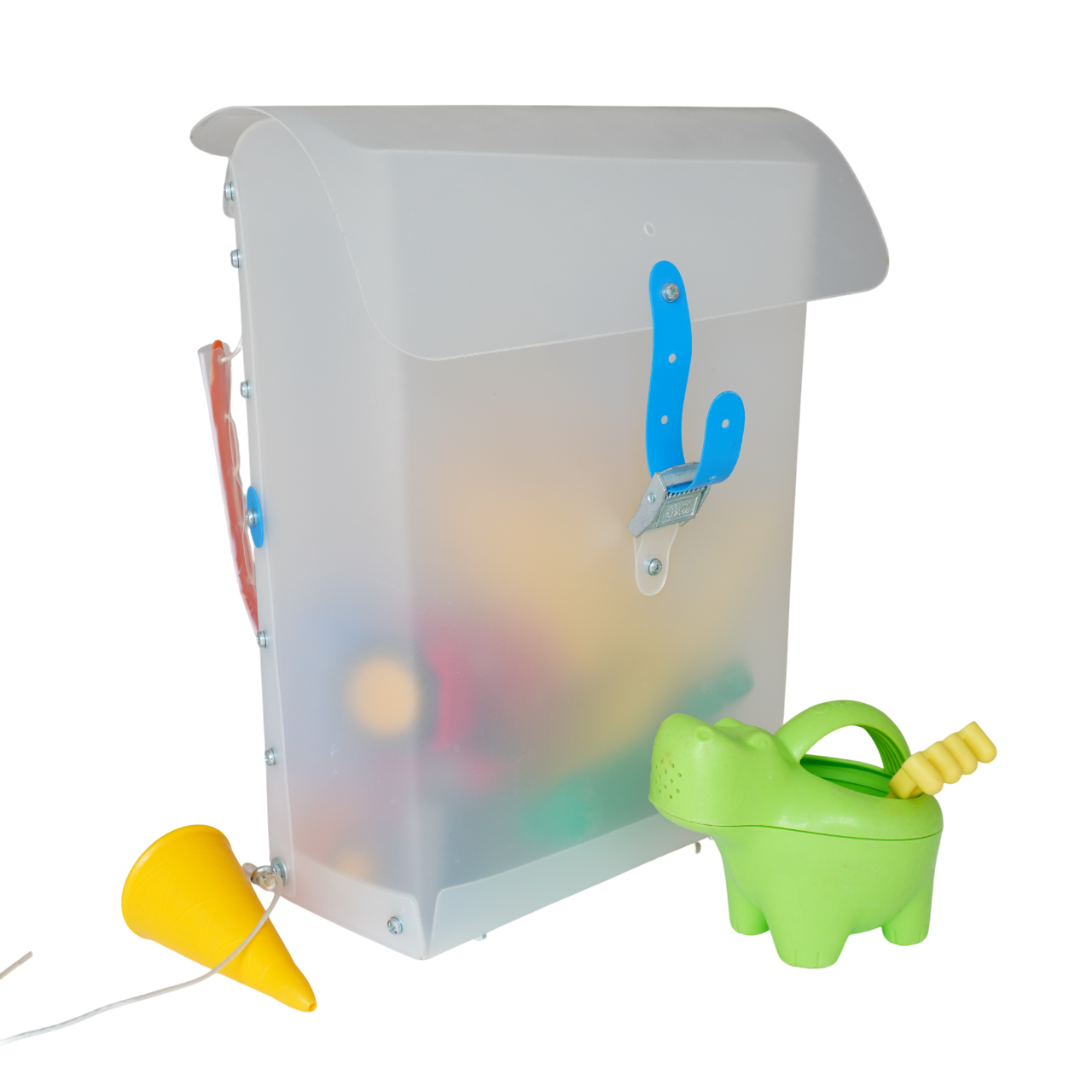

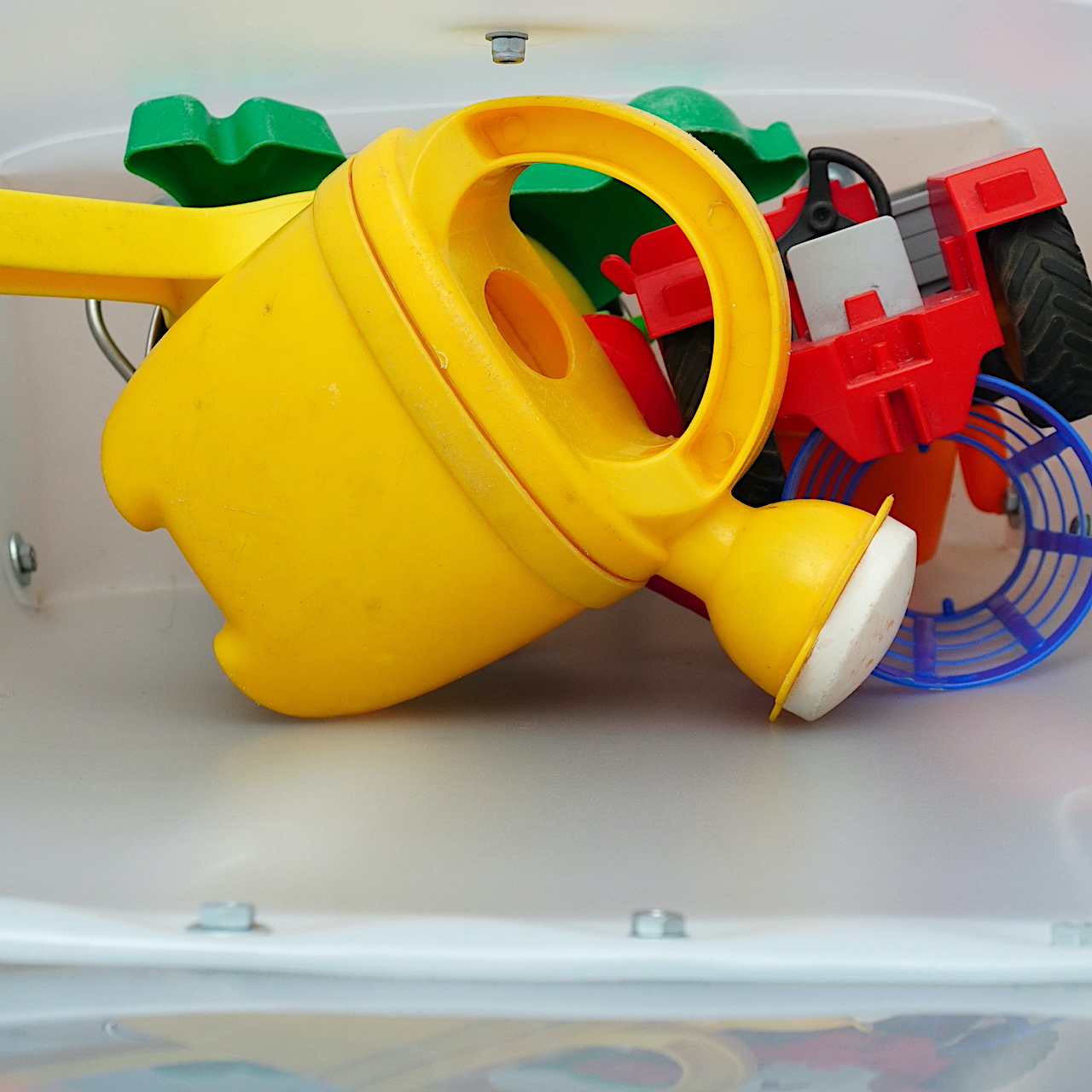

– Very easy to clean and not susceptible to water. This makes it well suited for playground toys, for example.

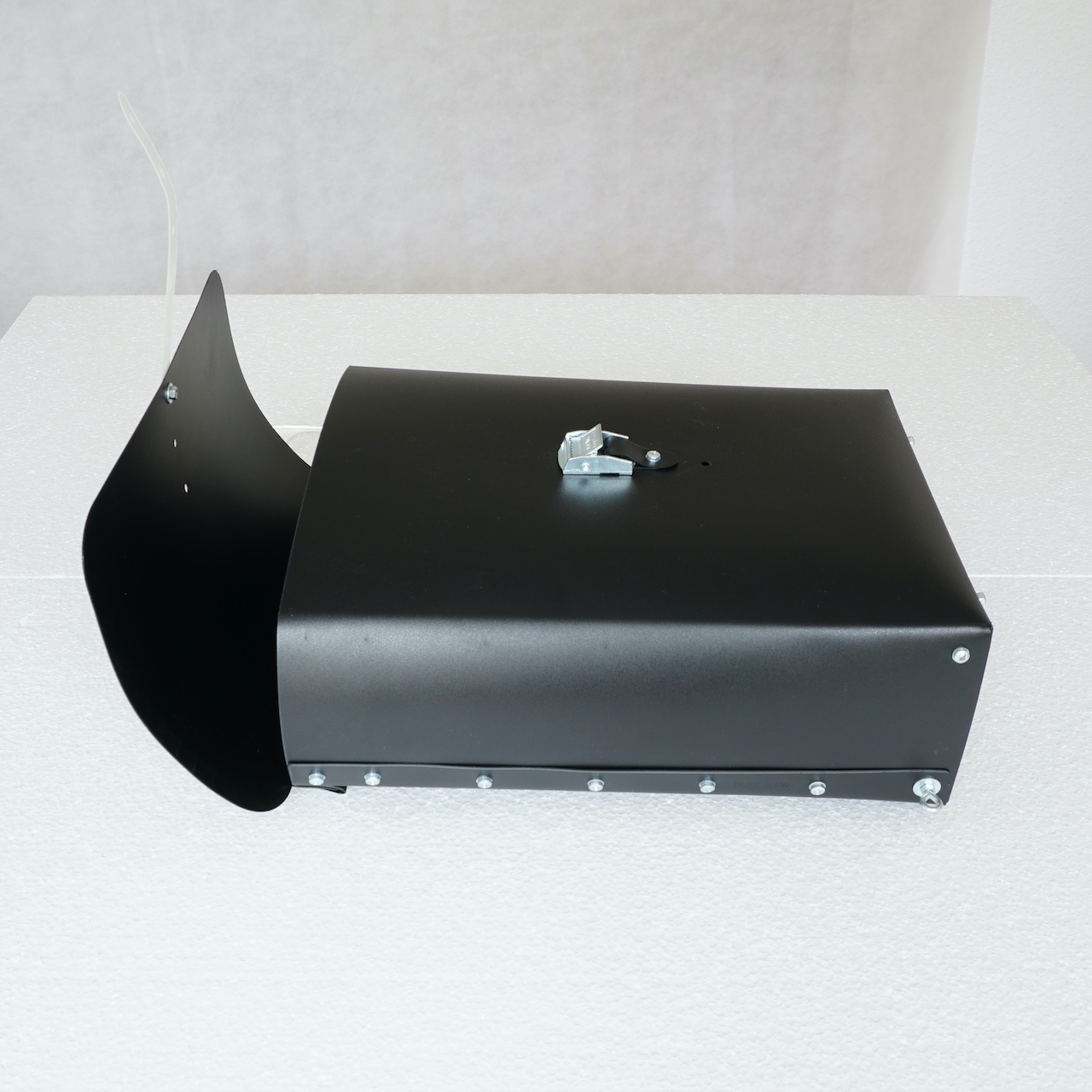

– Beach and Water? The first prototype undergoing extreme stress testing. It also shows another way of assembling the backpack (closure).

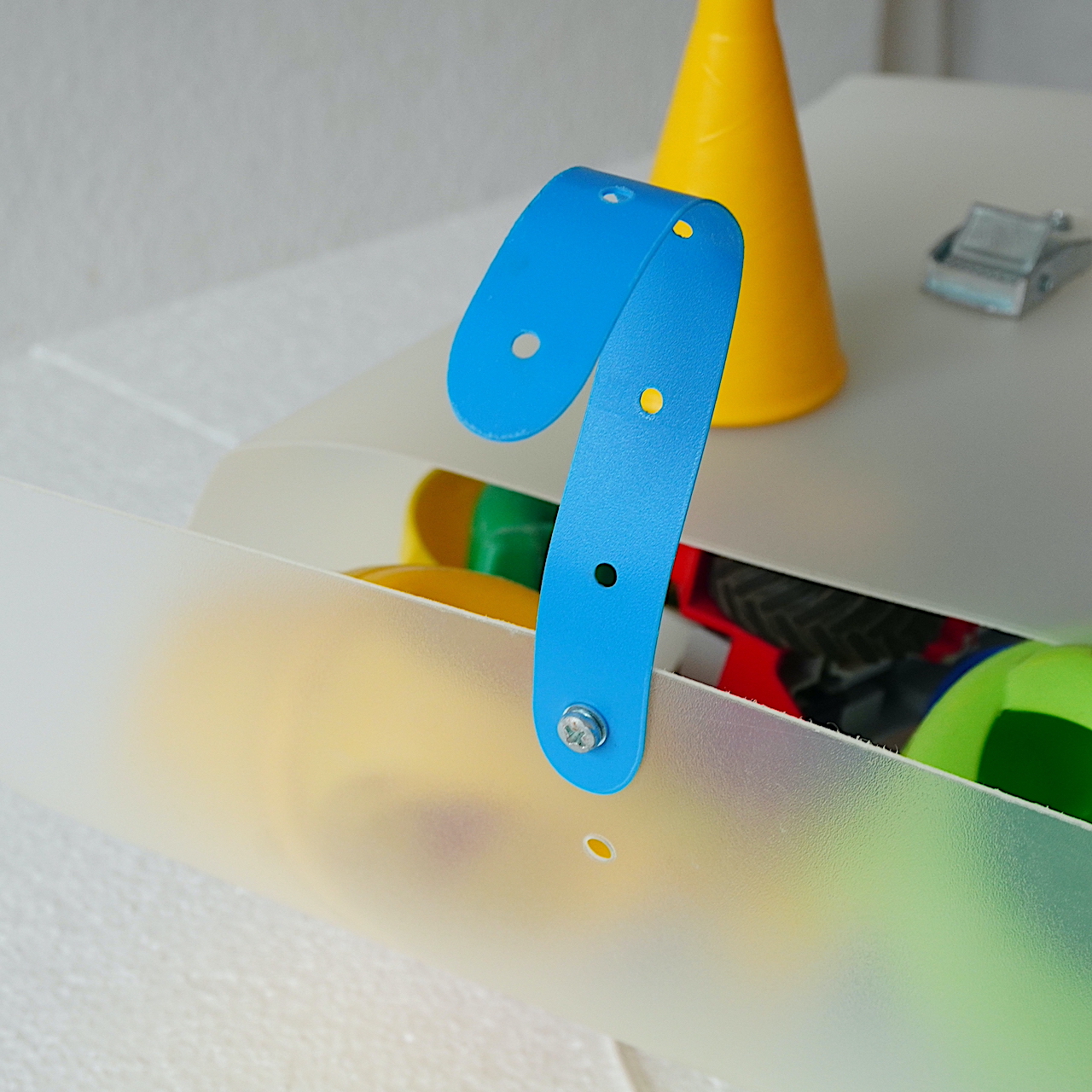

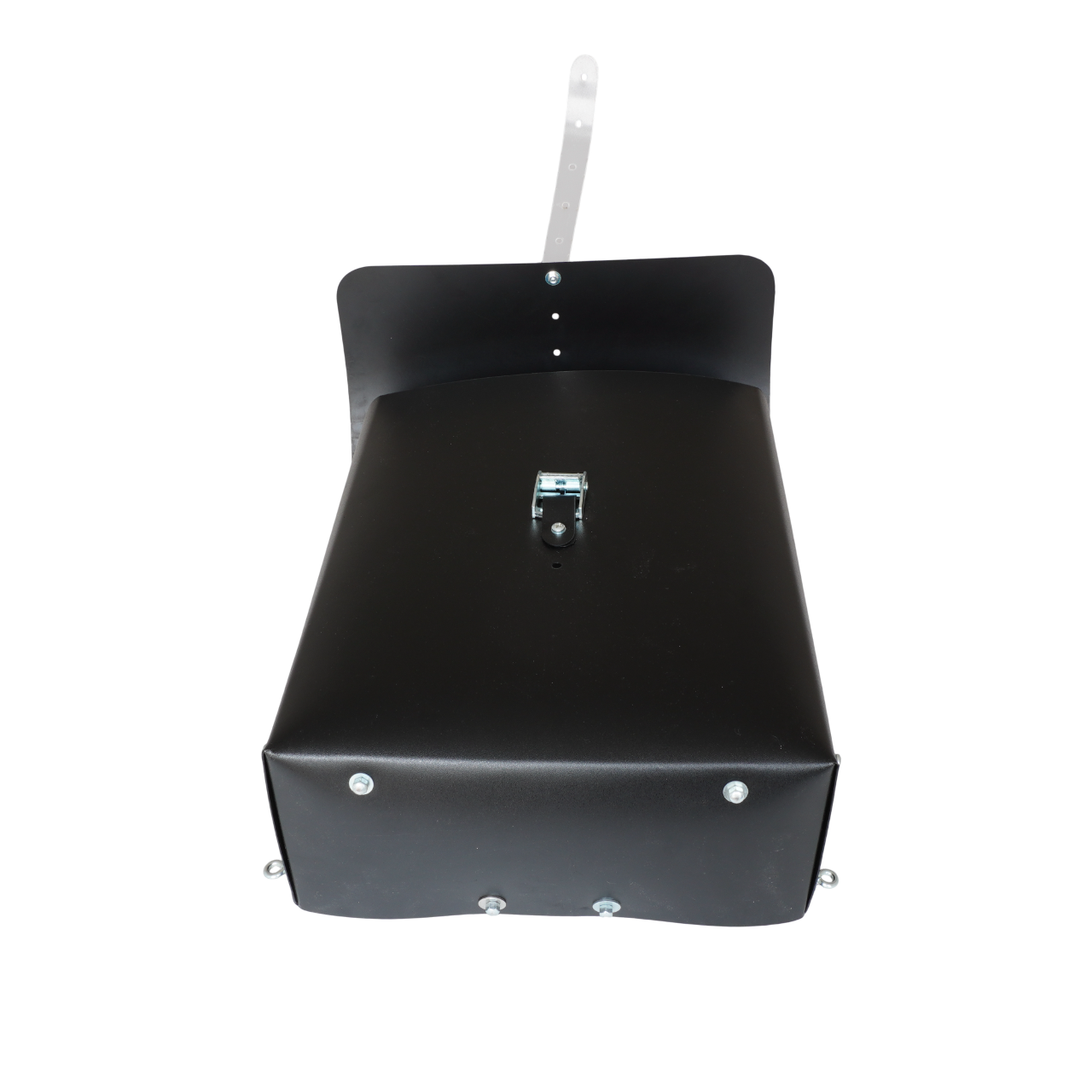

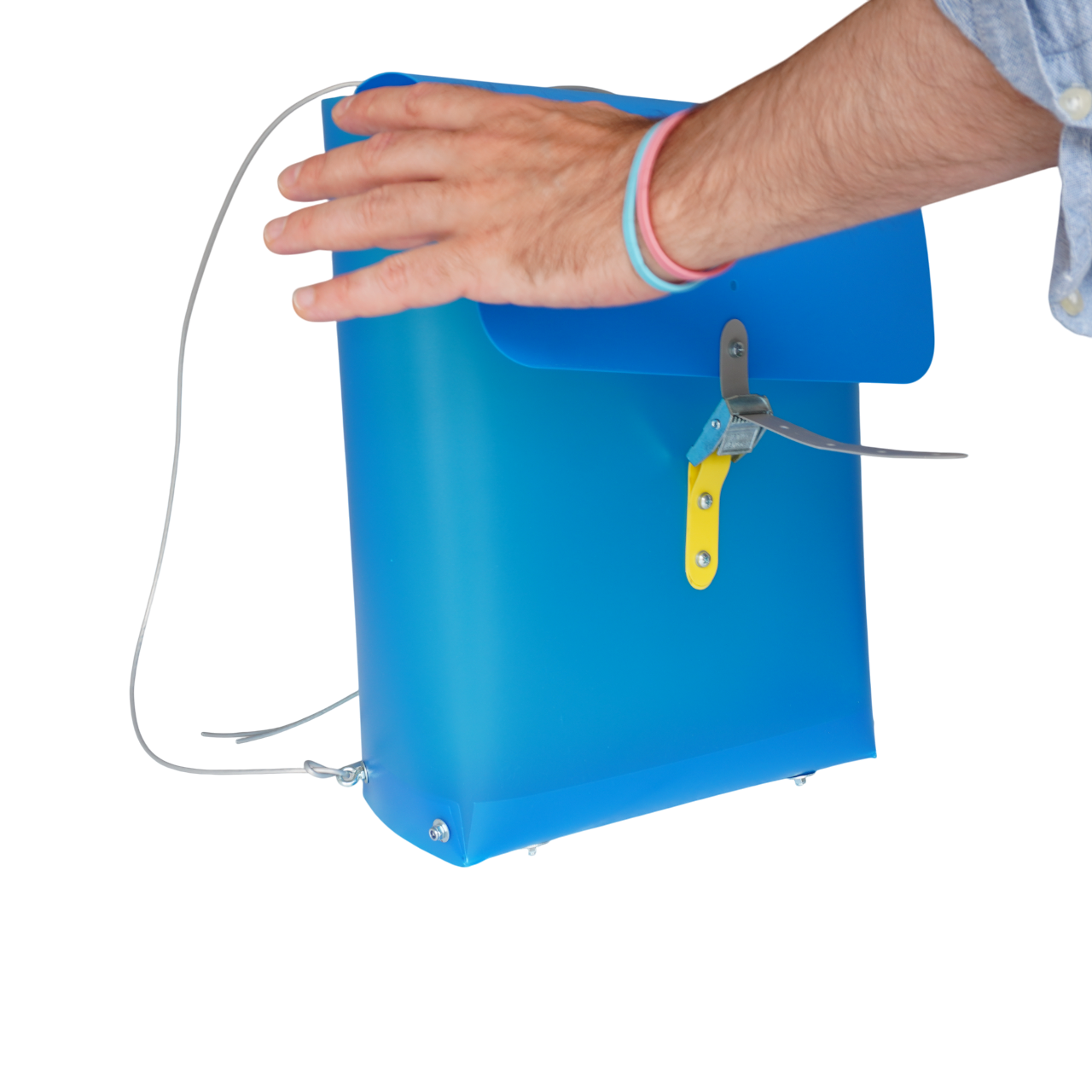

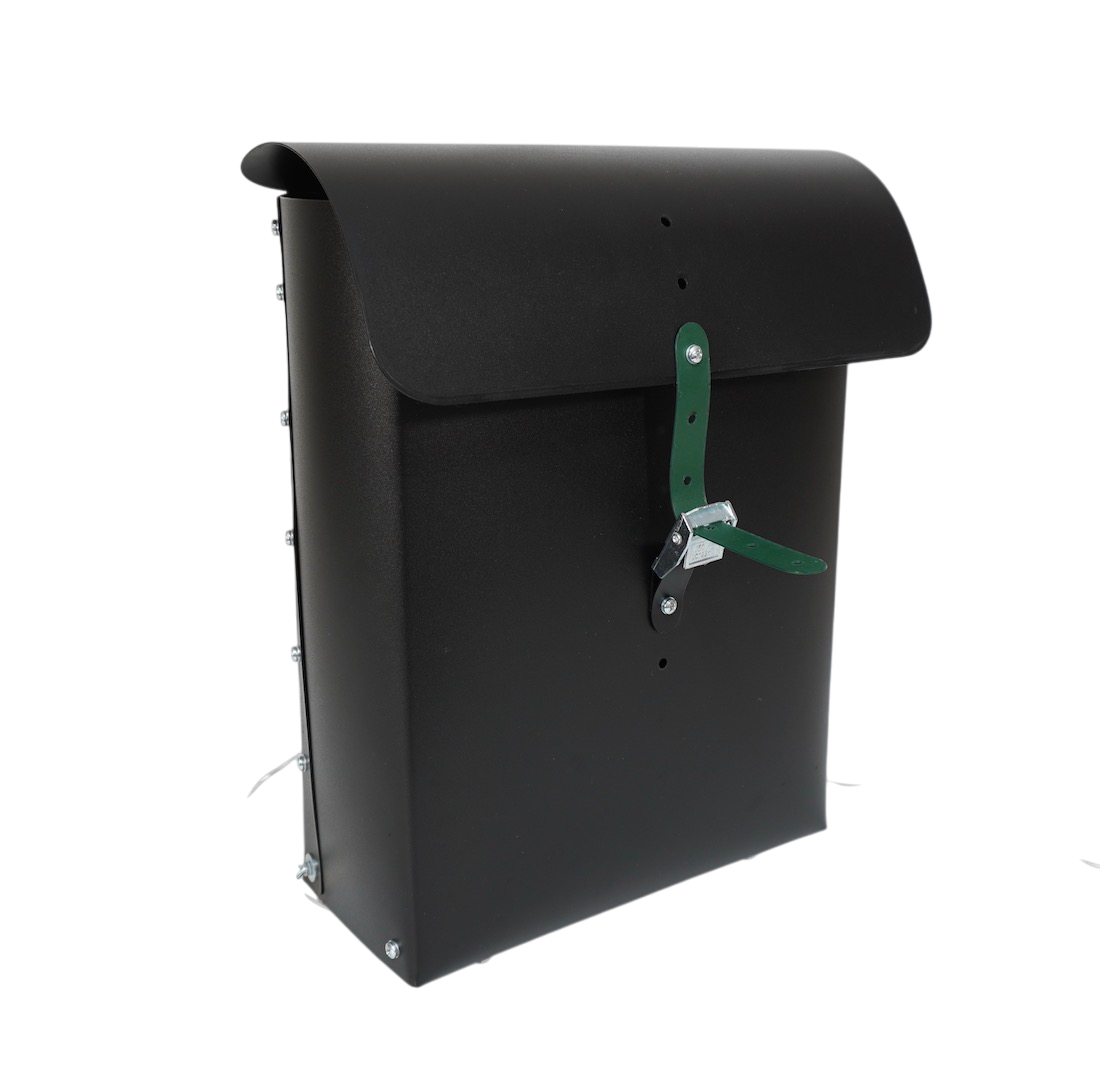

– The closure strap retains this shape, giving the backpack character.

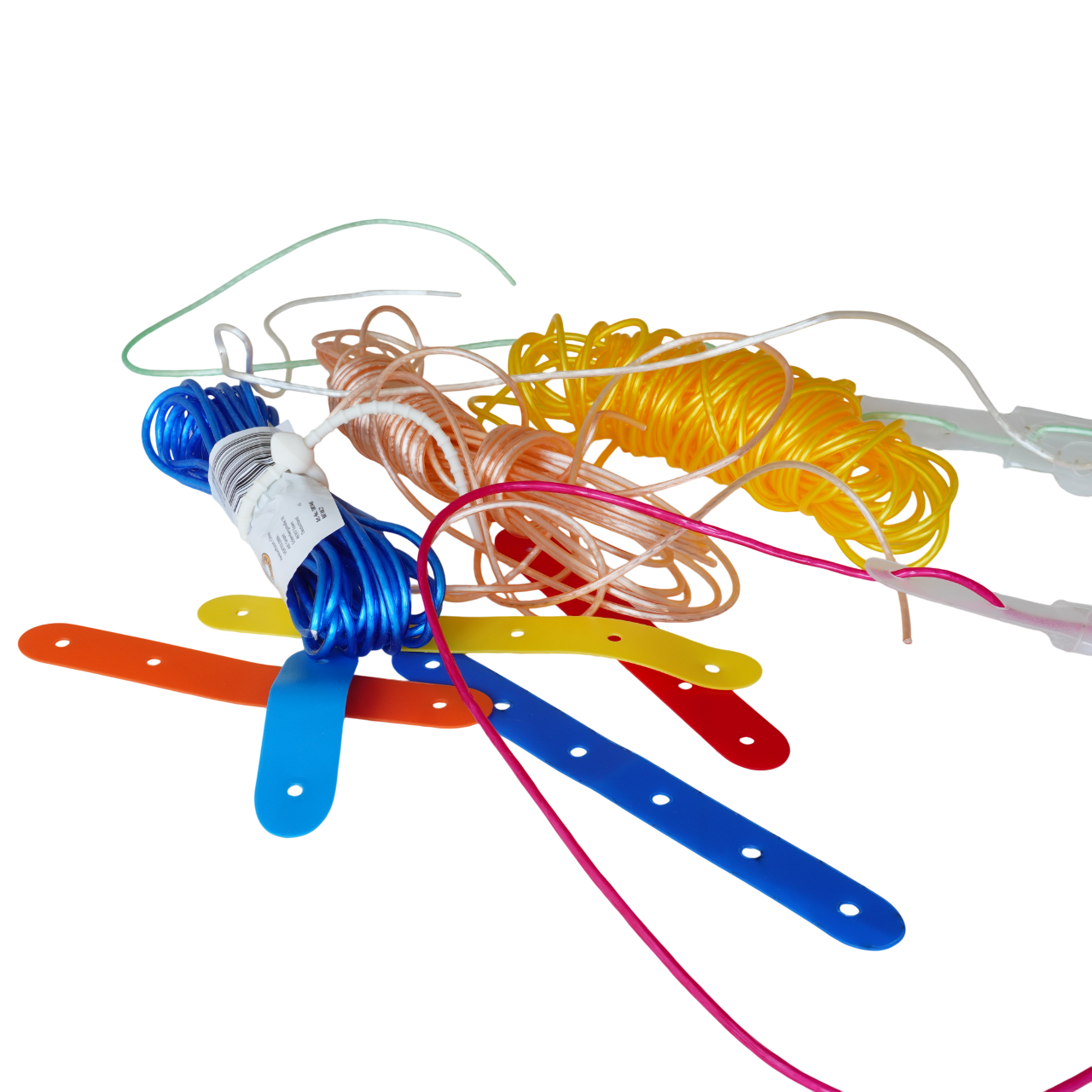

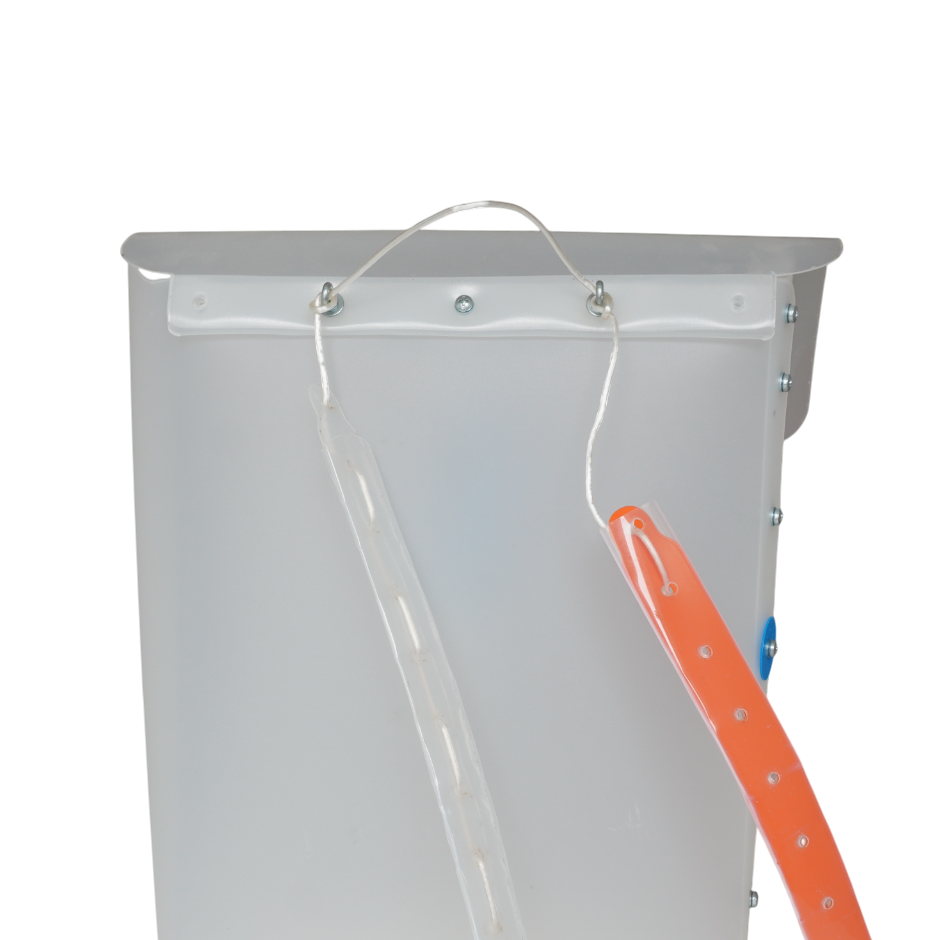

– The cord is knotted. The right cord (e.g., clothesline with polypropylene core) allows you to make stable knots that can still be easily loosened and moved by hand without tools. Clothesline is also extremely durable.

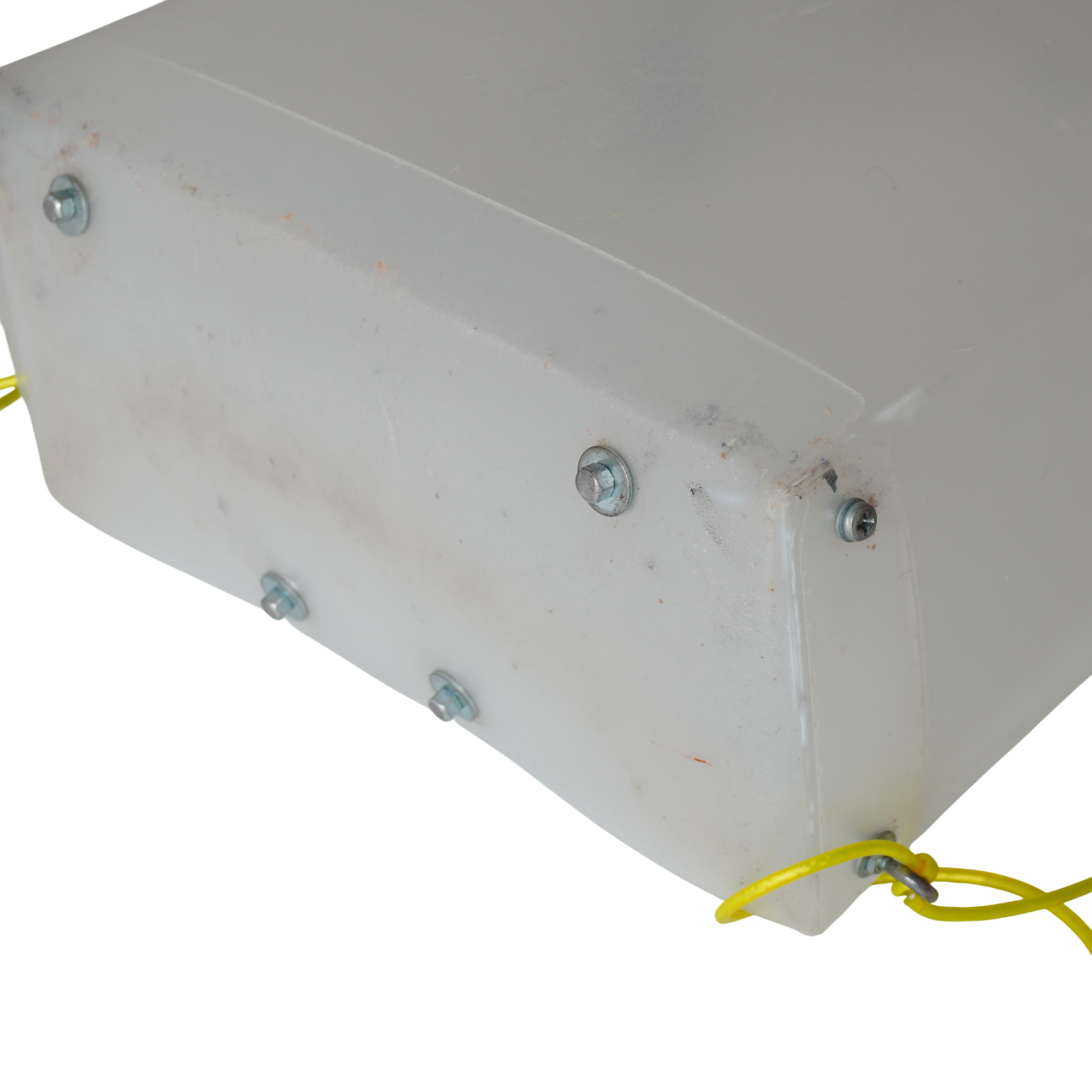

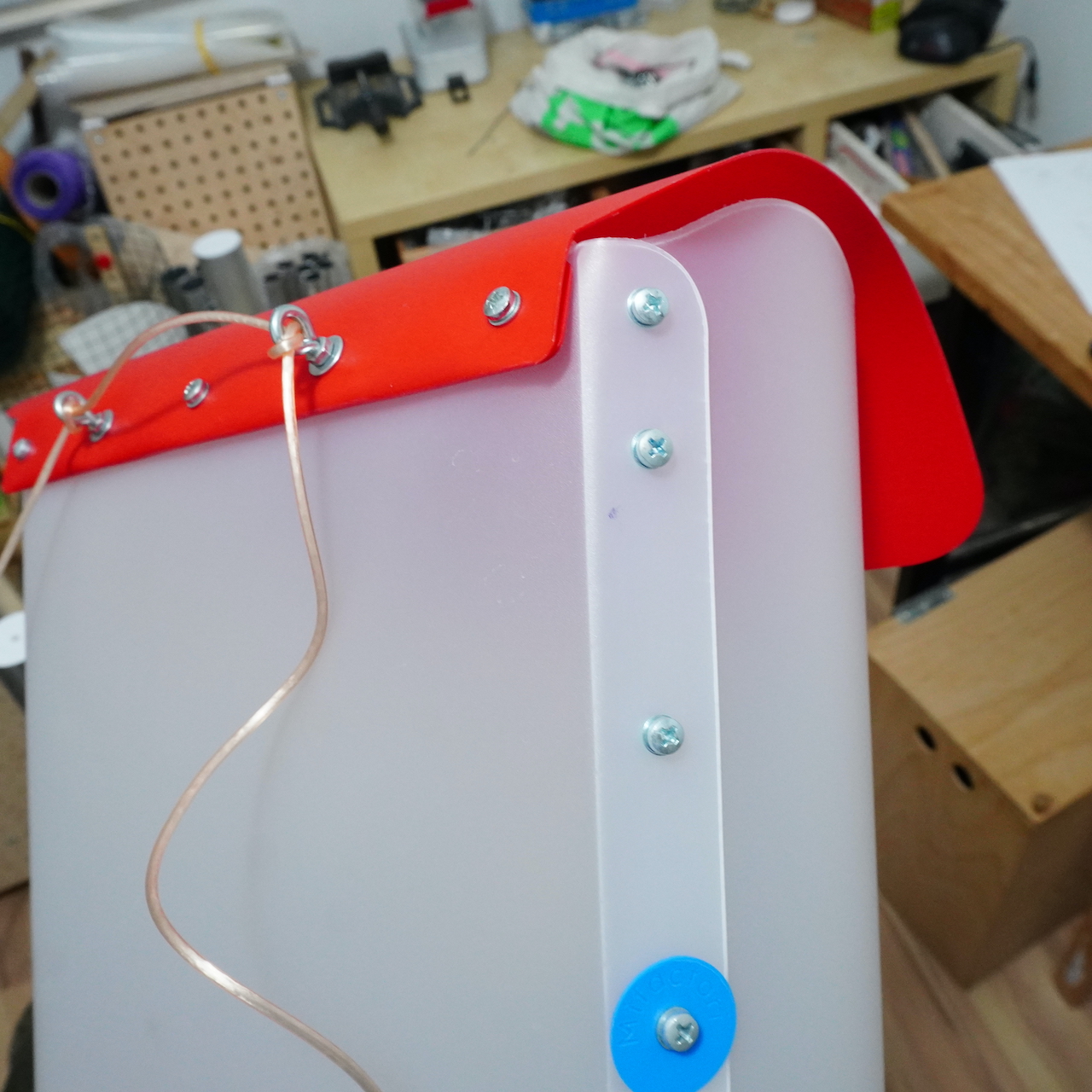

– The backpack after 3 years of intensive use. It holds up perfectly and retains its shape. No other backpack can do that. The nuts and bolts can still be loosened (for reuse or backpack modification).

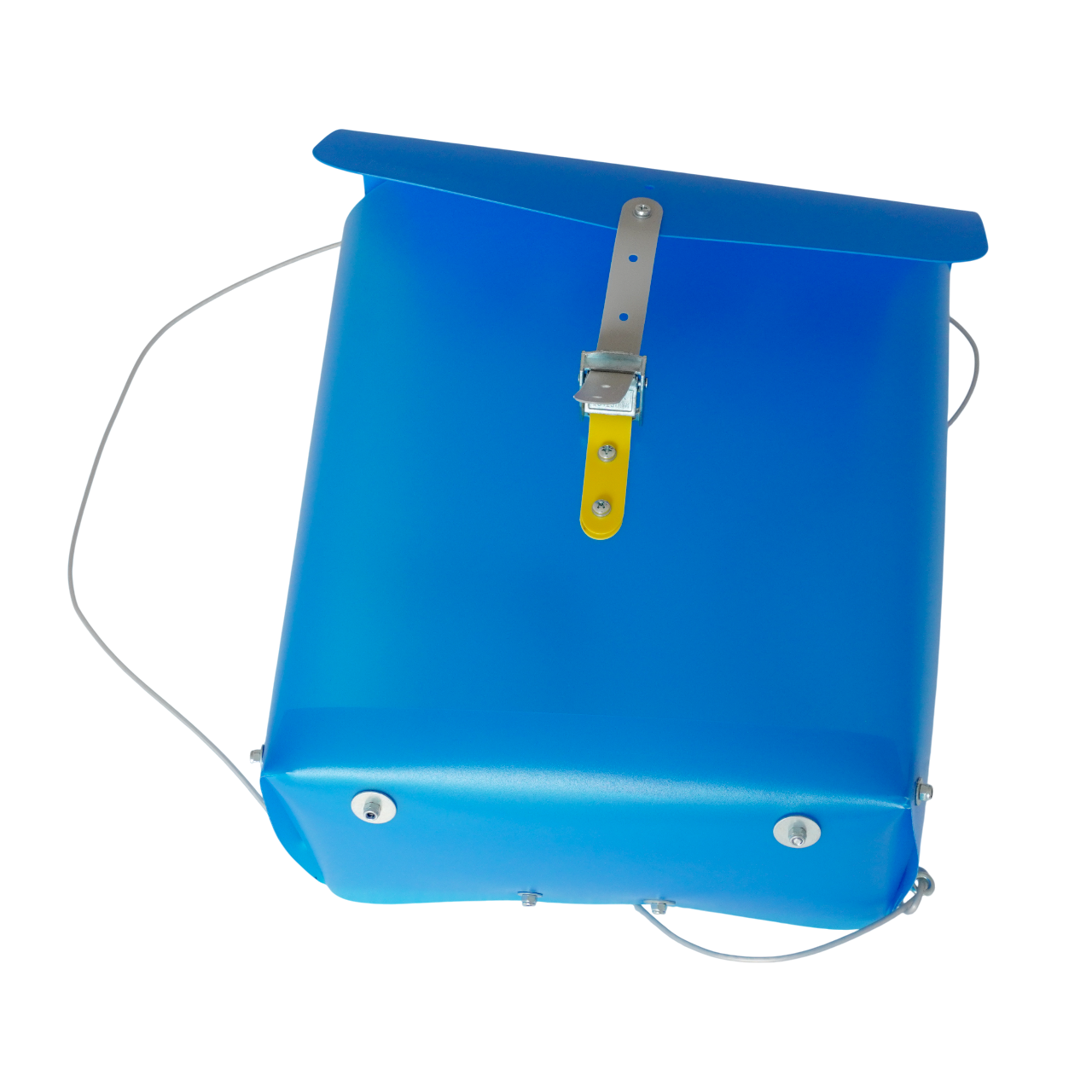

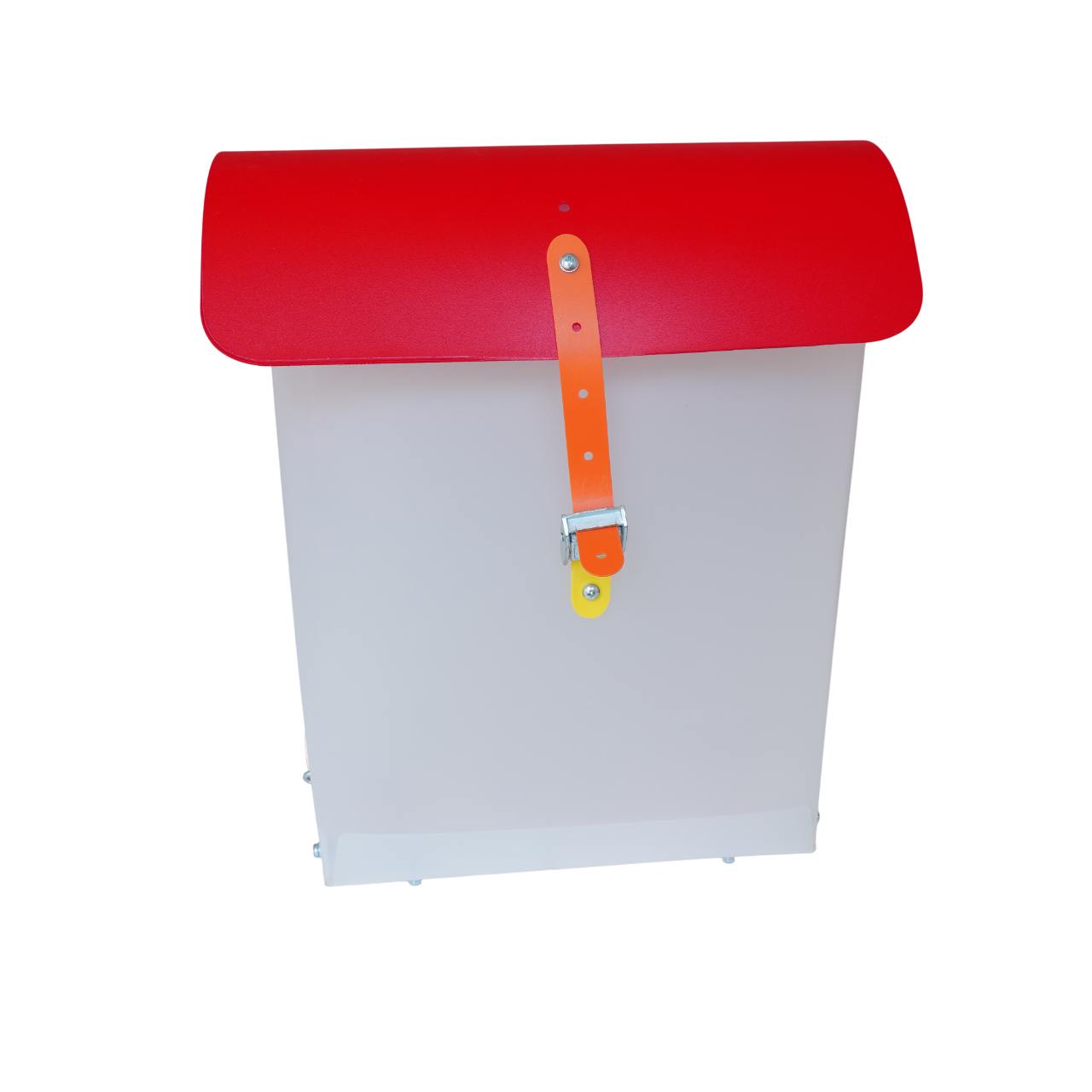

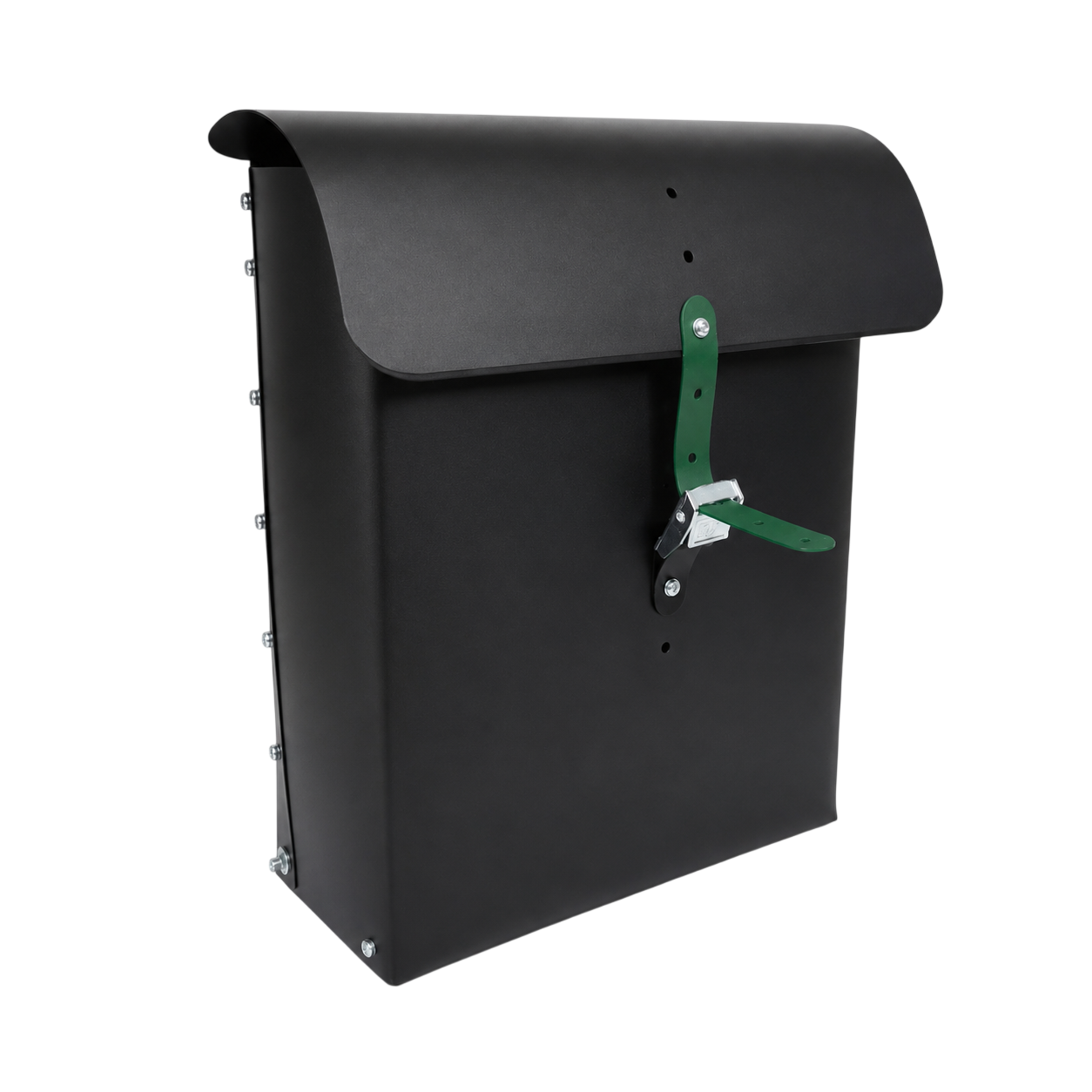

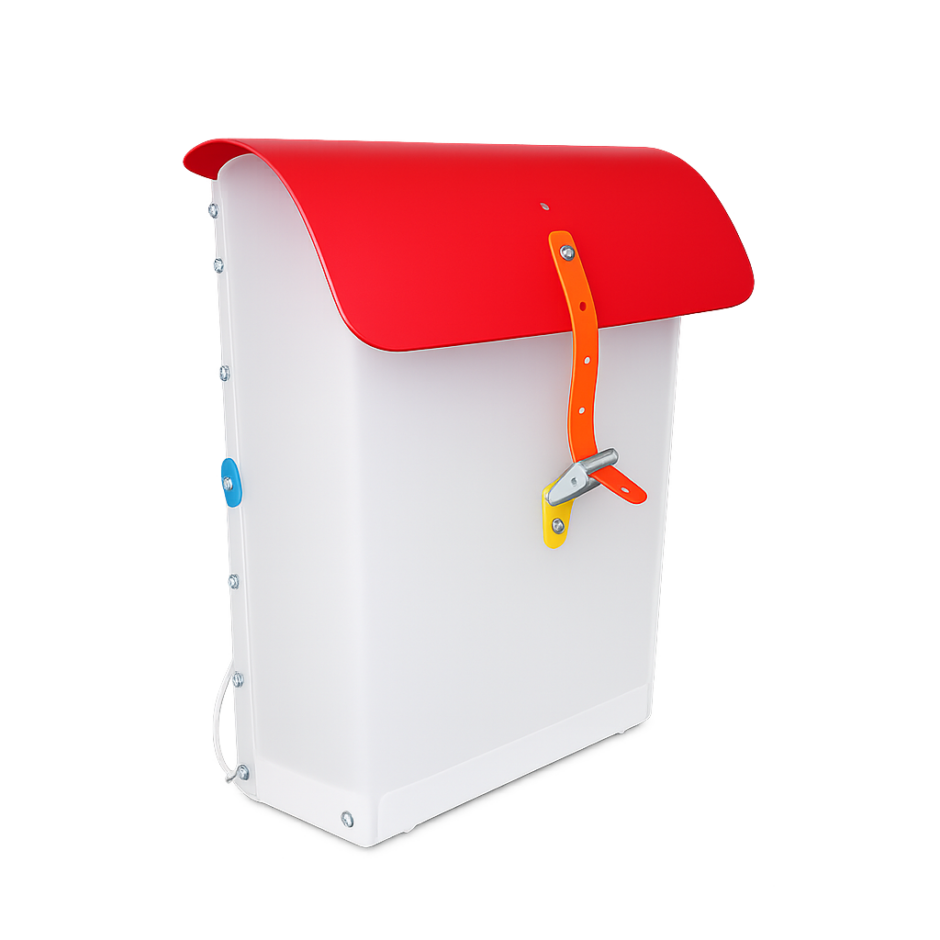

‘Biballi‘ is a modular, durable, super lightweight and upgradable backpack ready to carry supplies for the sustainability revolution.
By Studio Mifactori/Lars Zimmermann
STATUS: Functional Prototype | Sell this
Design info
Meta info
- This backpack was created quite some time ago. It is a precursor to Ikego. The backpack was a major inspiration for the development of Ikego. That’s why, to be honest, it’s not 100% made up of multipurpose parts. But it is for the most part. Can you find a use for the backpack body?
- The backpack follows the Ikego grid.
- The backpack is designed to be assembled from polypropylene (0.8 mm sheets). Polypropylene is a fully recyclable plastic. This allows for a truly circular backpack. Transparent polypropylene can be recycled into all colors. Black polypropylene allows the use of previously used (formerly colored) polypropylene.
- Created by studio Mifactori
- Disclaimer
Universal parts
in this set
071.1 – Tension strap buckle
070.1 – Rope clip 2mm
069.2 – M4 washer 8mm
069.1 – M4 washer 15mm
068.1 – ° M4 ring bolt 10mm
067.1 – Backpack body
066.1 – Strap 180mm
060.1 – Strap 60mm
058.1 – Strap 90mm, 3 holes
054.1 – Bendable “lid” 330x270mm
052.1 – Bendable sheet 300x85mm
040.1 – M4 cap nut
032.2 – Strap 420mm, 14 holes
020.1 – M4 bolt 4-9mm
018.1 – String 2000-2500mm
Biballi .Backpack
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
