Set #030
Parts list
Parts appearing in this set
096.1 – 180x630mm bendable surface
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
094.3 – M6 threaded rod 100mm
094.2 – M6 threaded rod 80mm
094.1 – M6 threaded rod 50mm

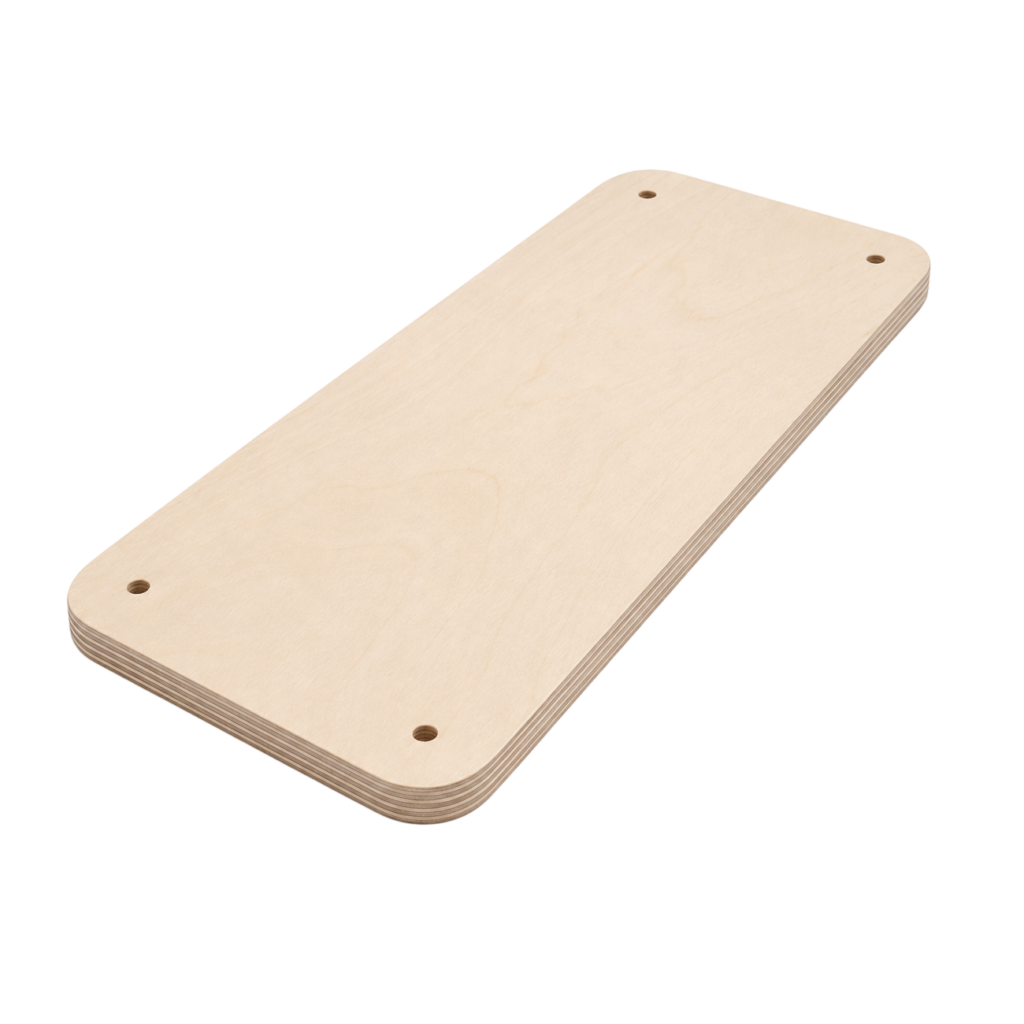

093.1 – “Elephant board” 180x480mm
092.1 – board 180x240mm “elephant ear”
072.1 – Spacer ~15mm high
070.1 – Rope clip 2mm
018.1 – String 2000-2500mm
The Elephant Shelf
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
The ‘Elephant Shelf’ introduces a very flexible building system for all kinds of shelving to Ikego. And look! It includes elephant ears.
Status: Functional Prototype
Set info
Set No #030
On parts & builds
- For all makes above you need threaded rods of 50mm (094.1) or 80mm (094.2). If you stack several boards onto each other you might need a longer threaded rod such as 094.3.
Meta info
- Visit the original post by the designer for more pics and infos. Original post backup (html)
- All makes shown in this post were created by Parker Haynes → Add your make.
- Pictures by Parker Haynes, cc-by-4.0
