Basic info

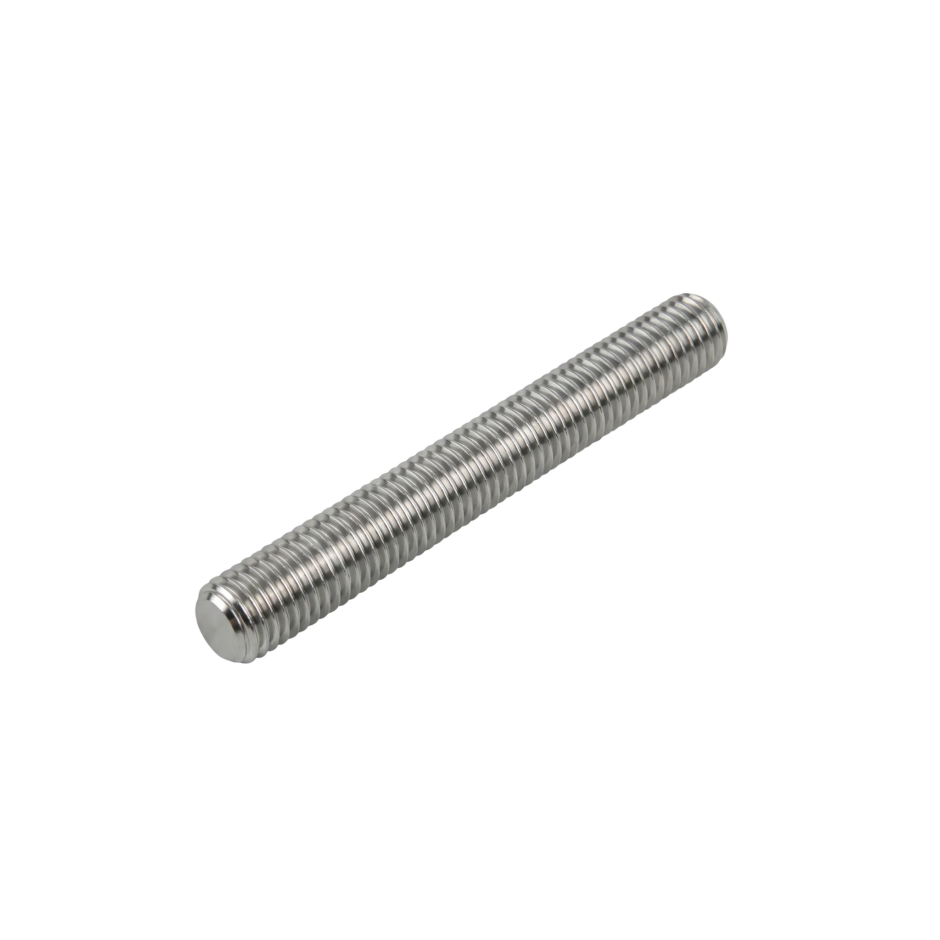

- Threaded rod M6
- material: strong
- measures: ~80mm long
Tolerance
- Size: standard tolerance (length)
- Material: standard tolerance
Get the part
- Buy: Readily available in stores, search for: “M6 threaded rod 80mm”
- Make: No instructions available.
Introduced by
- Designer: Parker Haynes
- Original post, original post backup (html)
- Open: Prior art (most likely)
