Basic info

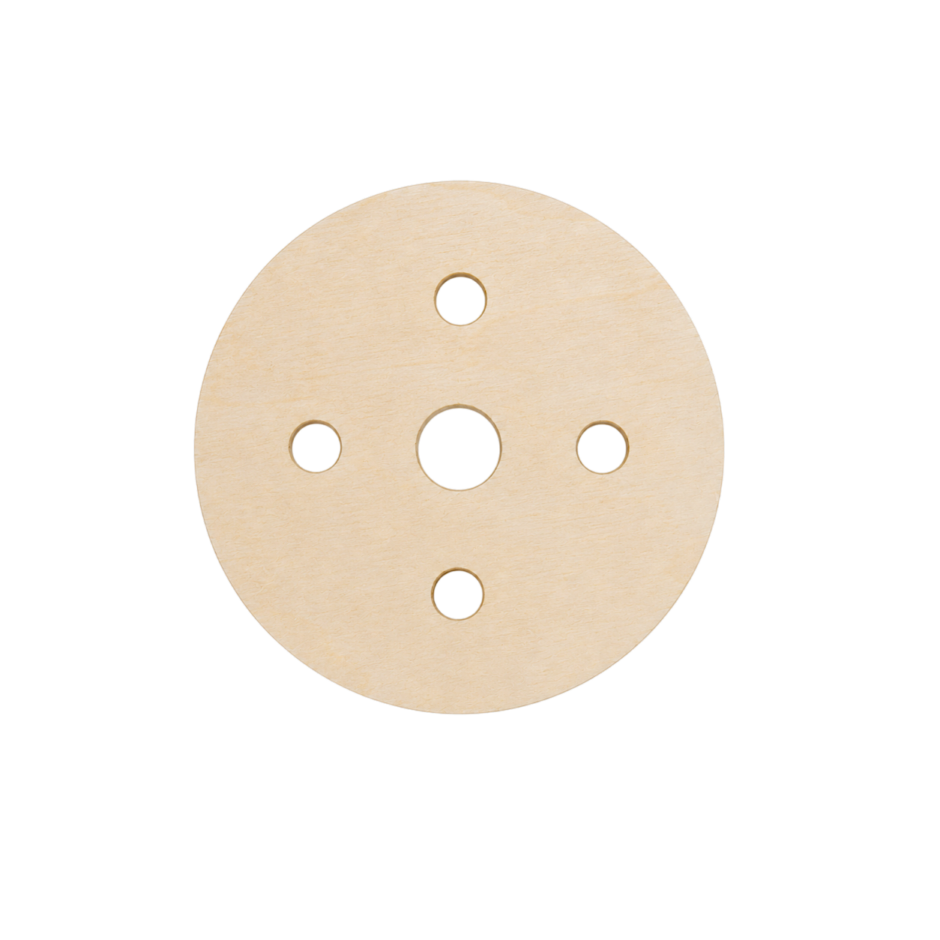

- A disk
- material: strong
- measures: ⌀ ~120mm, thickness ~16mm
- holes: Ikego grid, center hole ⌀ 16mm, the other four ⌀ 10mm, It is two lines with holes the cross in the center hole (16mm) at 90° to each other
Tolerance
- Size: standard tolerance
- Material: standard tolerance
Get this part
- BUY
- Globally ↓
- Available as local make.
- From Max of Materialogic (made on demand, shipping from Germany)
- Locally ↓
- None so far
- Want to make and sell this part? Add your store
- Make: No instructions available
Introduced by
- Lars Zimmermann via KRH 12
- Original post (2), original post backup pdf (2)
- Open: Shared under TPP 1.0
- Disclaimer
