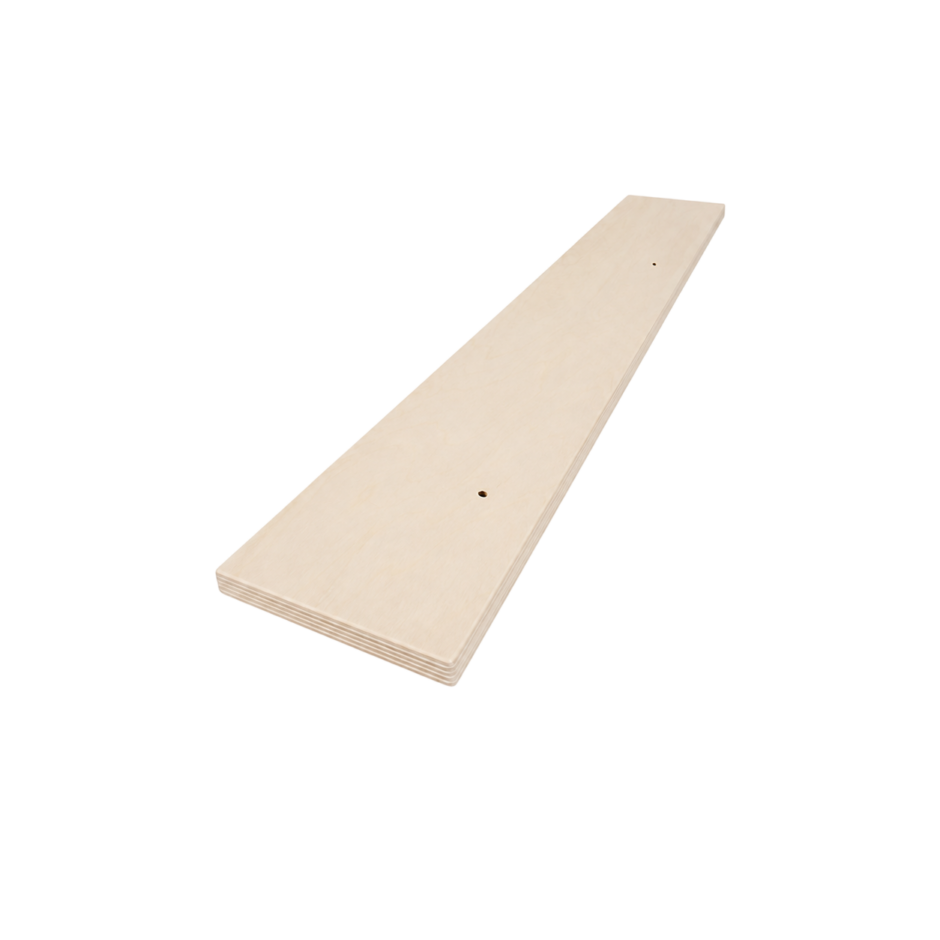

049.2 – Board 135x1020x16mm

Basic info

• A board
• material: strong
• measures: ~ 1020mm x 135mm x 16mm
• holes: 2 holes, Ikego Grid, ⌀ 6mm, Location See Drawing →

Tolerance

• Size: standard tolerance
• Material: standard tolerance

Get this part

• BUY
• Globally ↓
  • Available as local make.
  • From Max of Materialogic (made on demand, shipping from Germany)
• Locally ↓
  • None so far
  • Want to make and sell this part? Add your store
• Make: This is very easy to source and make. Get a board and cut it to size.

Introduced by

• Lars Zimmermann via OuOu boards
• Original post, original post backup.pdf
• Open: Prior art (most likely)
• Disclaimer

Download Portal

Most parts have open design and manufacturing files you can download and work with.

0P3N portal
