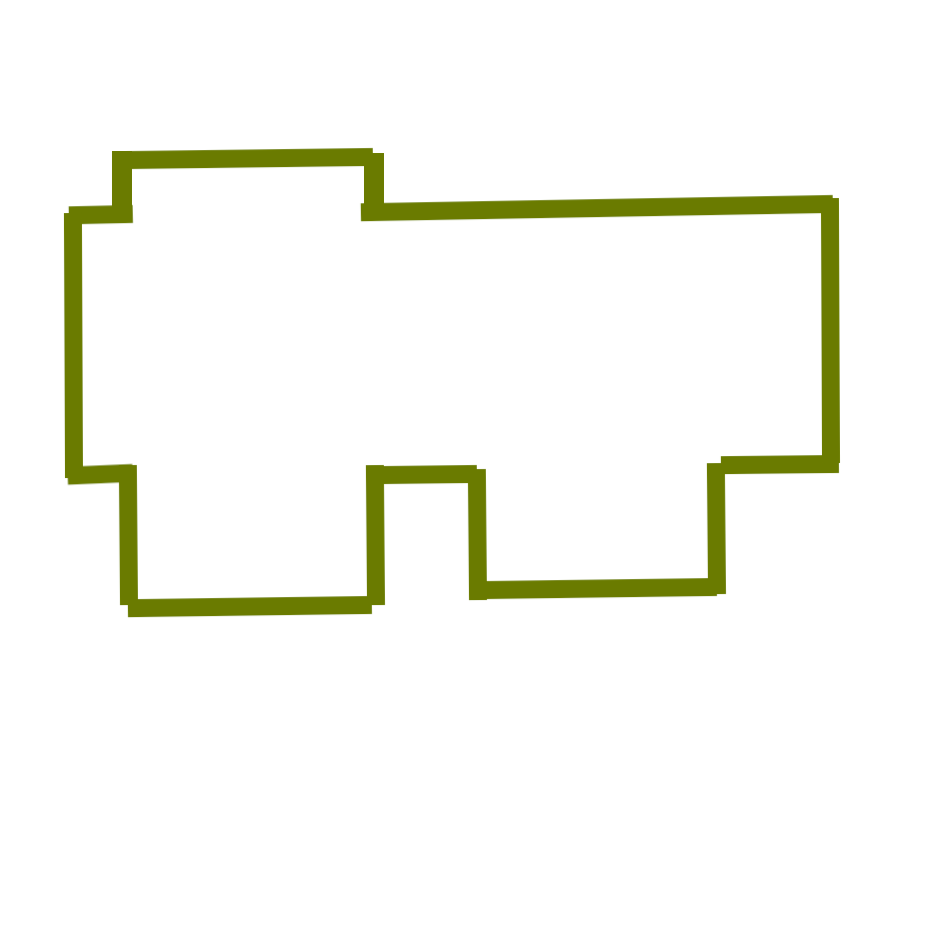

067.1 – Backpack body

Basic Info

• What is it: A large flexible sheet (“backpack body”)
• Material: strong but bendable | standard tolerance
• Dimensions: see drawing | standard tolerance
• Holes: Ikego Grid, ⌀ 5 mm holes. See drawing and download Vector file for exact locations:

Get the part

• Buy: available as local make
• Make: You can cut it by hand or use a laser cutter (for example from 0,8mm thick Polypropylen-Sheets. Download and use this lasercutter-ready SVG-file

Meta

• Introduced by: Lars Zimmermann / Mifactori via Mifactori Backpack
• Initial post, initial post backup.pdf
• Open: Shared under IPP 1.0
• Disclaimer

Got a new idea for this part? Share it. Become an Ikego designer!
