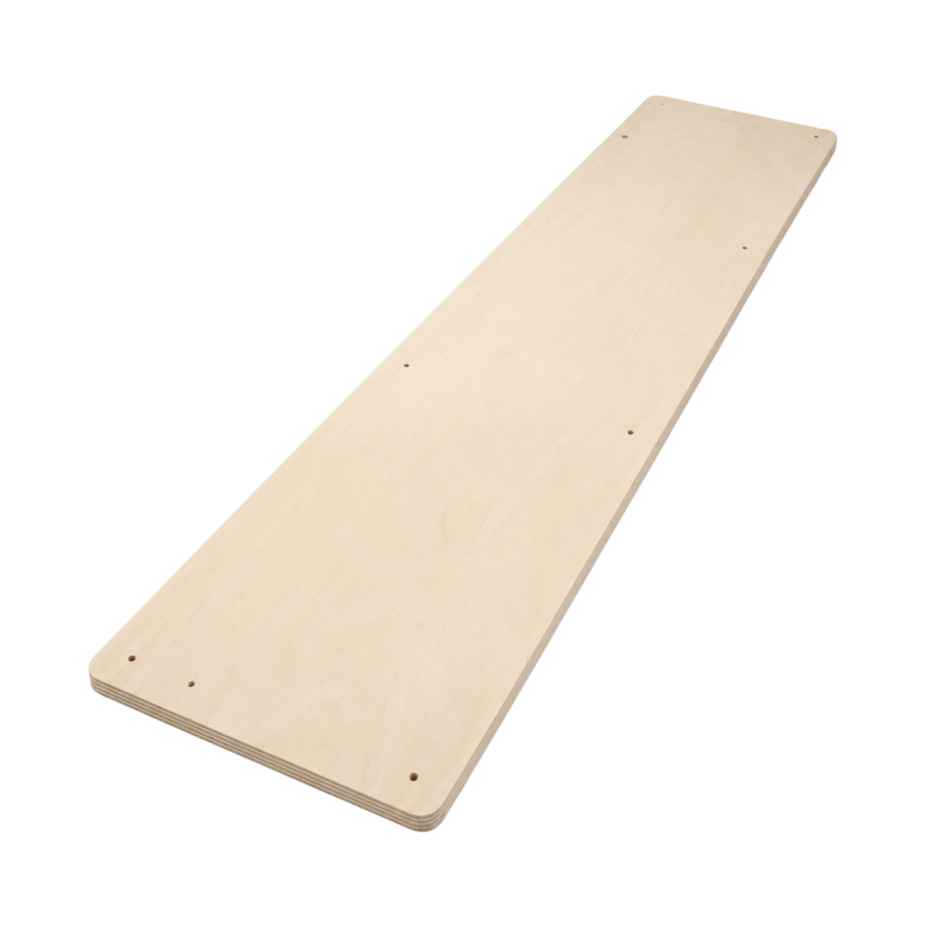

- What is it: a board
- Material: strong | standard tolerance
- Dimensions: ~1590x330x16mm | standard tolerance
- Holes: Ikego grid, 10 holes ⌀ 6mm, for hole distribution see drawing
Get the part
- Buy: available as local make
- Make: no instructions available
Meta
- Introduced by: Lars Zimmermann, via “Midlinging”
- Original Post, Original Post Backup.pdf
- Open: Shared under IPP 1.0
- Disclaimer
Download Portal
Most parts have open design and manufacturing files you can download and work with.
