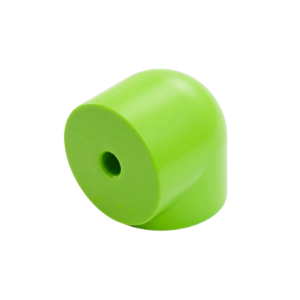

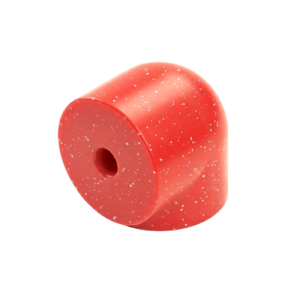

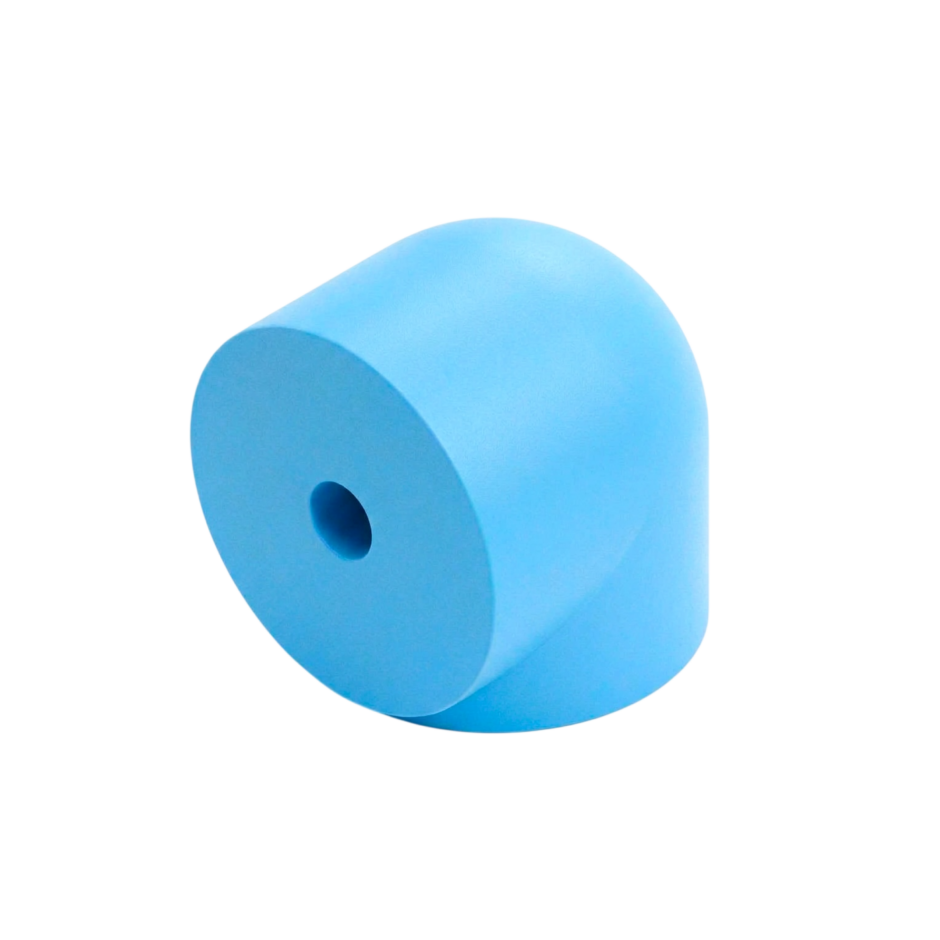

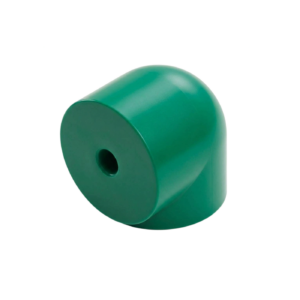

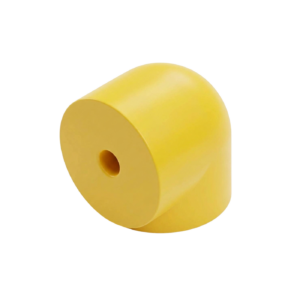

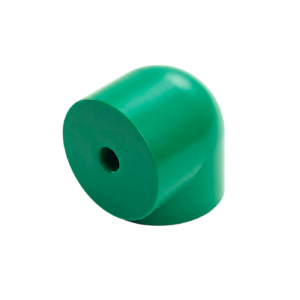

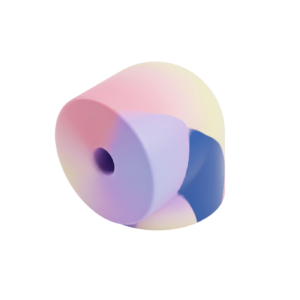

115.2 – 2 corner bracket modified Round, M6, 15mm to edge

Basic info

• What is it: A bracket
• Material: strong | standard tolerance
• Dimensions: 30x30x30mm. The distance between the center of the holes and the edge is fixed to 15mm. The curve is designed to fit perfectly onto round rods with a diameter of 30 mm. This bracket is a modification of a Tetri bracket (114.1 and 115.1). The Tetri brackets have proven to be extremely useful in combination with the Elephant Rods (095._). For reasons of stability and aesthetics, the regular Tetri brackets have been further developed for this shape and even more perfect interaction with the Elephant Rods.
• Holes: 2 with M6 insert nuts

This distance (centre of hole to edge) is fixed at 15mm.

Get the part

• Buy:
  • Available as local make
  • from Berlin: Studio Mifactori offers sometimes makes of this part to buy
• Make: Download design and manufacturing files (STL) from the Download Portal

Meta

• Introduced by: by Jonathan Jany and Lars Zimmermann via Node World building on the work of Birte Hartmann
• Original post, Original post backup
• Open: Shared under IPP 1.0
• Disclaimer
