Basic Info

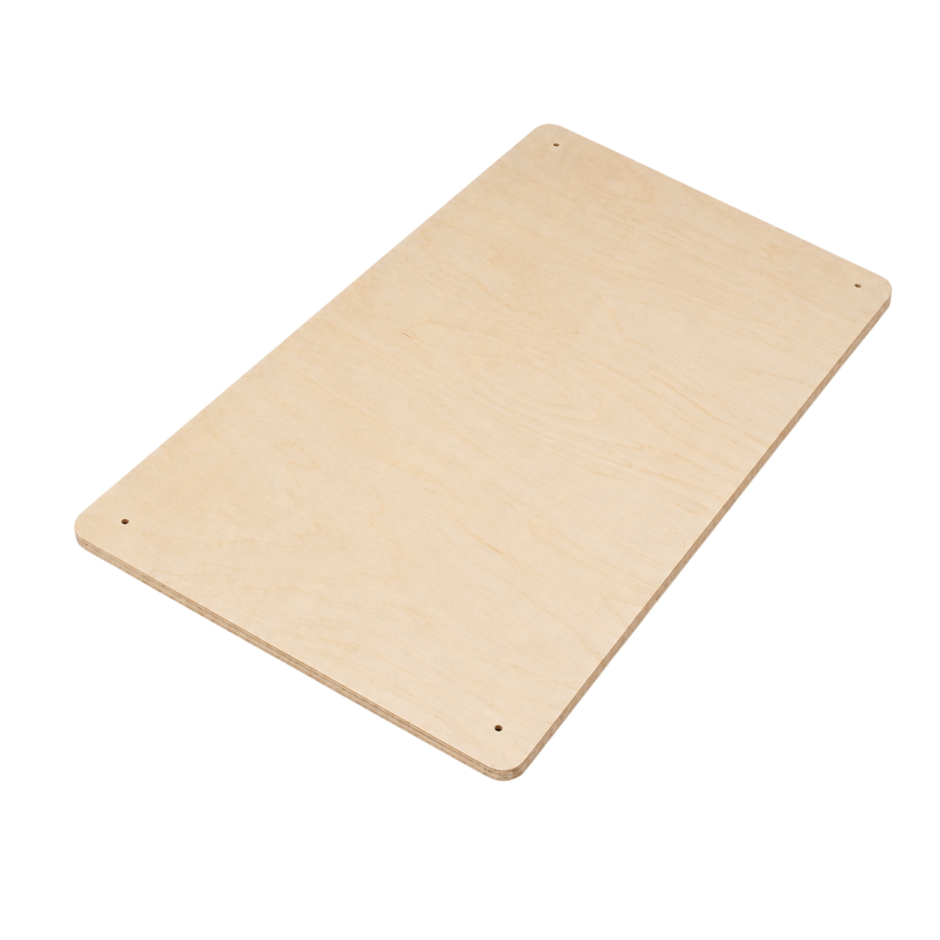

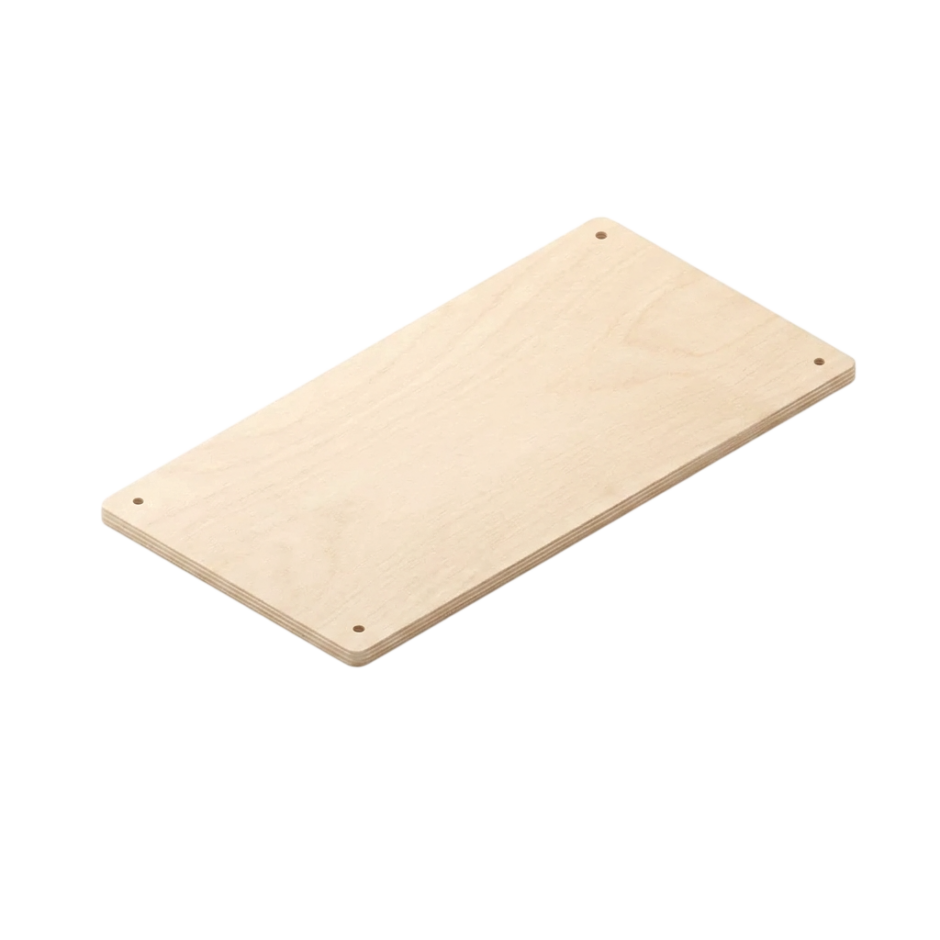

- What is it: a board
- Material: strong | standard tolerance
- Dimensions: ~990 x ~510mm x ~21mm | standard tolerance
- Holes: 4 holes, Ikego Grid, diameter 6mm, location see drawing
Get the part
- Buy: Available as local make
- Make: The dimensions have been chosen so that you can use regular boards measuring 1000×500 mm, which are available everywhere in DIY stores. 990x510mm is specified to remain within the Ikego grid. However, the tolerance allows the use of 1000x500mm.
Meta
- Introduced by: Lars Zimmermann via Flappy Table | Initial Post | Initial post backup.pdf
- Open: Shared under IPP 1.0
- Disclaimer: This part is just a concept and not fully tested. You should not assume that it works as indicated and I am not saying that it does. I disclaim any responsibility or liability for any damage caused during the construction and use of products based in whole or in part on the concept shown here. All information is provided for your use at your own risk.
