Basic info

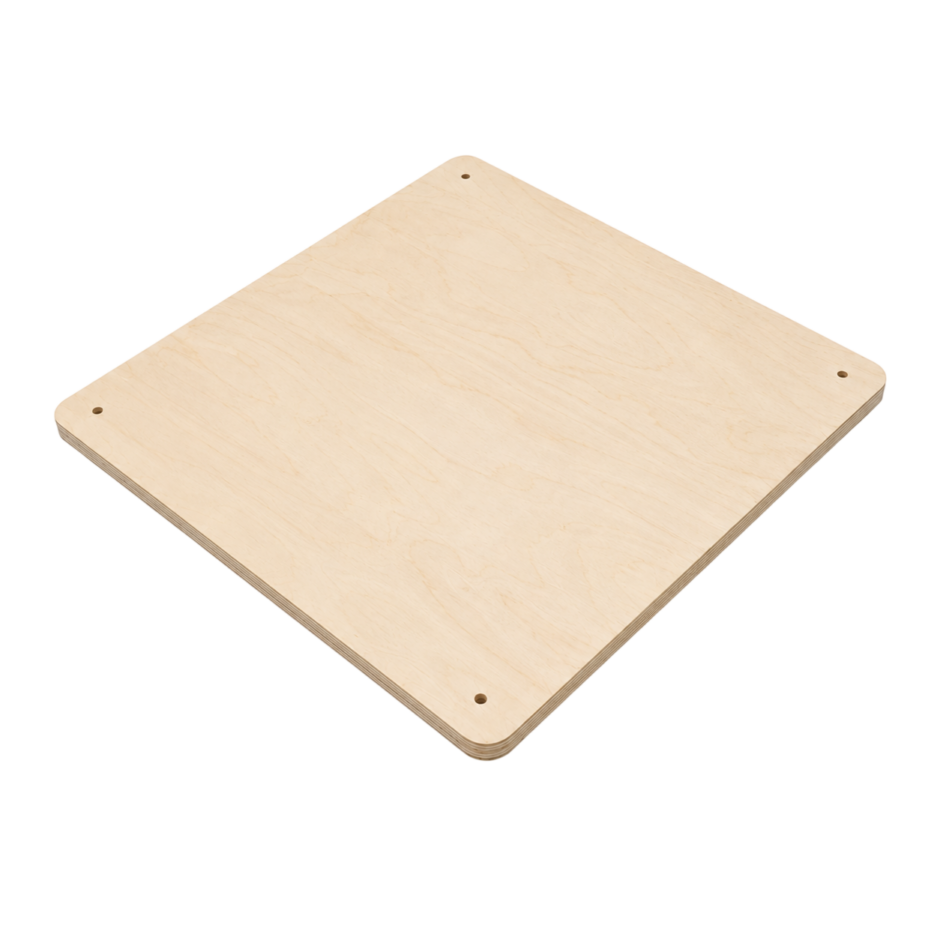

- What is it: a board
- Material: strong | standard tolerance
- Dimensions: 330x330mm | standard tolerance
- Holes: 4, diameter of 6mm, all in Ikego Grid. For location see drawing.
Get the part
- Buy: Available as local make
- Make: No instructions available
Meta
- Introduced by: Rinaldoo Boom via ToyStoreStool | Initial post | Initial post backup.pdf
- Open: Shared under IPP 1.0
- Disclaimer: This part is just a concept and not fully tested. You should not assume that it works as indicated and I am not saying that it does. I disclaim any responsibility or liability for any damage caused during the construction and use of products based in whole or in part on the concept shown here. All information is provided for your use at your own risk.
