Basic info

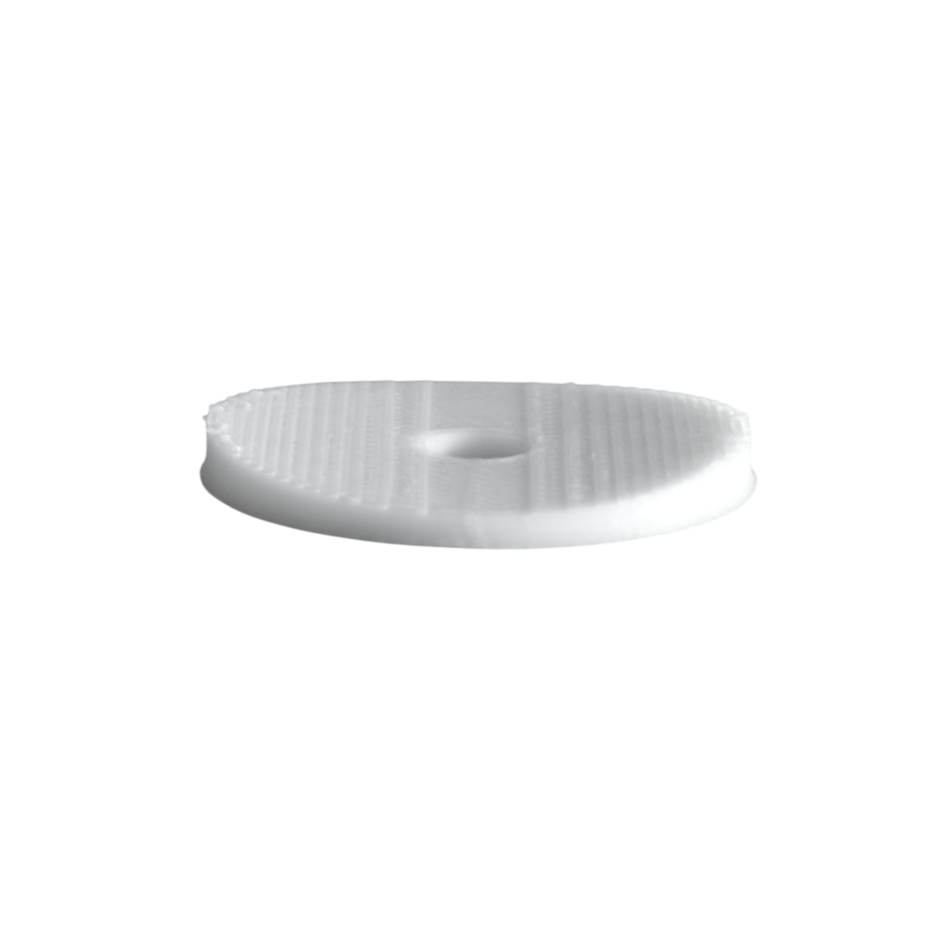

- What is it: A saddle washer
- Material: strong | standard tolerance
- Dimensions: The curve is fixed, all other dimensions are subject to the standard tolerance. This part was created to build a connection between the elephant rods (095.x) and the Tube shaped parts in the system that have the same dimensions as KG pipes (012.1, 015.1, 016.1, 036.1, 048.1, 048.2). See image below. This explains the radius of the saddle.
- Holes: 1 β10mm
Buy this part
- Local make: Available as local make
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: No instructions available
- Downloads: Design and manufacturing files are available in the download portal
Meta
- Introduced by: Lars Zimmermann via Ten Friends
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
Download Portal
Most parts have open design and manufacturing files you can download and work with.
0P3N Portal
More Parts
026.1 – Branch
025.1 β M4 hook ~40mm

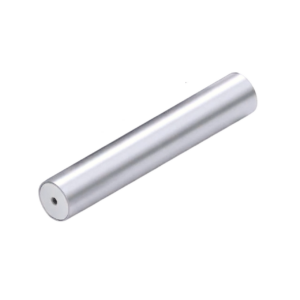

129.4 – Rod, M6 insert threads, 300mm, β ~50mm
100.1 β Eurobox 400x300x270 mm

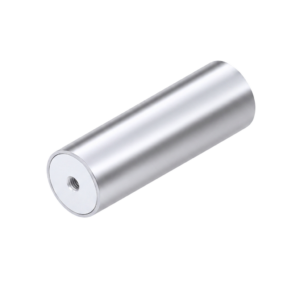

095.6 – 330mm rod with M6 insert threads, β ~30mm, “elephant rod”

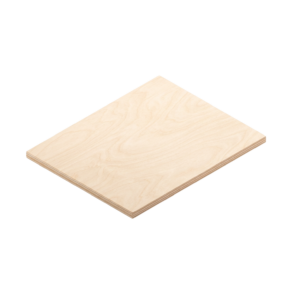

111.1 βΒ Board 450x360mm
