Basic info

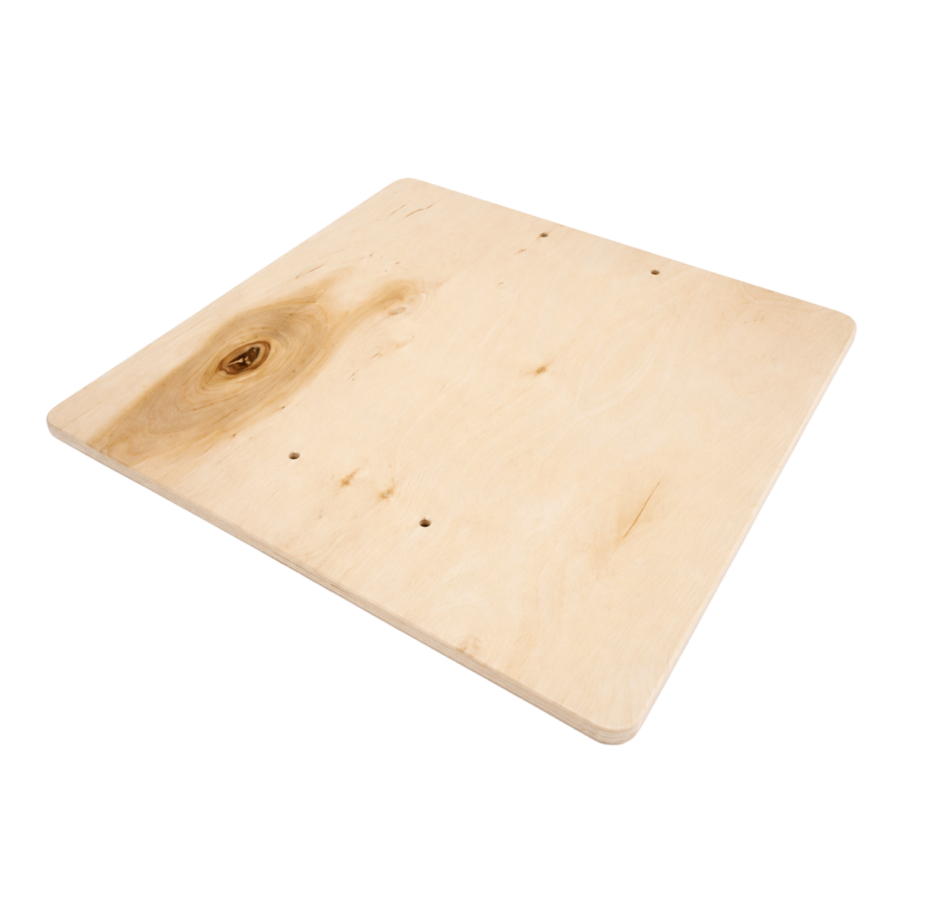

- A plate
- material: strong
- measures: ~ 390 x 390 x 16 mm
- holes: 4 holes ⌀ 6mm, Ikego grid, see drawing for exact locations
.
Tolerance
- Size: standard tolerance. You can for example use this for a chair and have a butt pattern milled in.
- Material: standard tolerance
.
Get this part
- BUY
- Globally ↓
- Available as local make.
- From Max of Materialogic (made on demand, shipping from Germany)
- Locally ↓
- None so far
- Want to make and sell this part? Add your store
- Make: No instructions available
Introduced by
- Lars Zimmermann via Addi One
- Original post, original post backup.pdf
- Open: Shared under TPP 1.0
- Disclaimer
