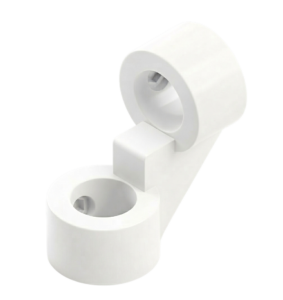

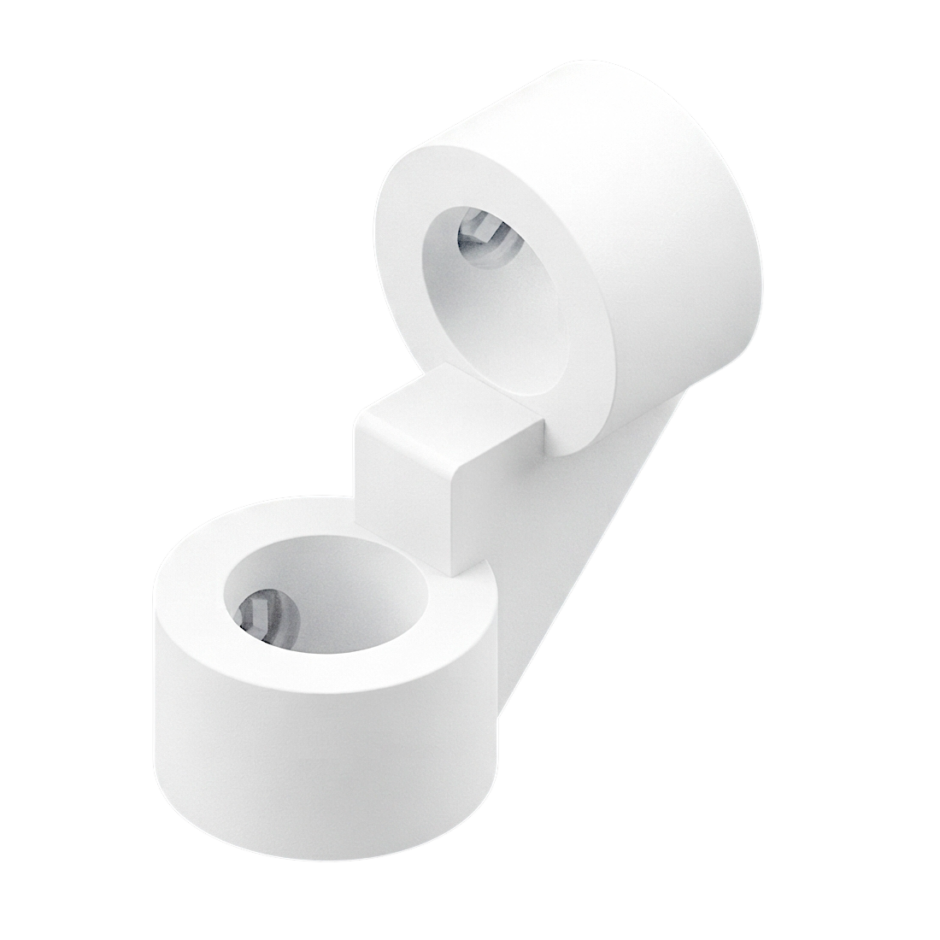

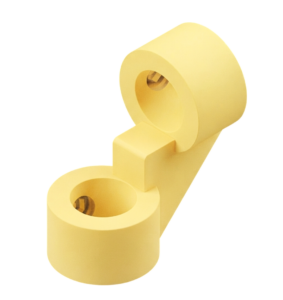

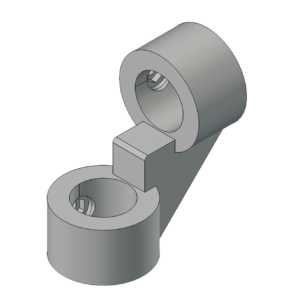

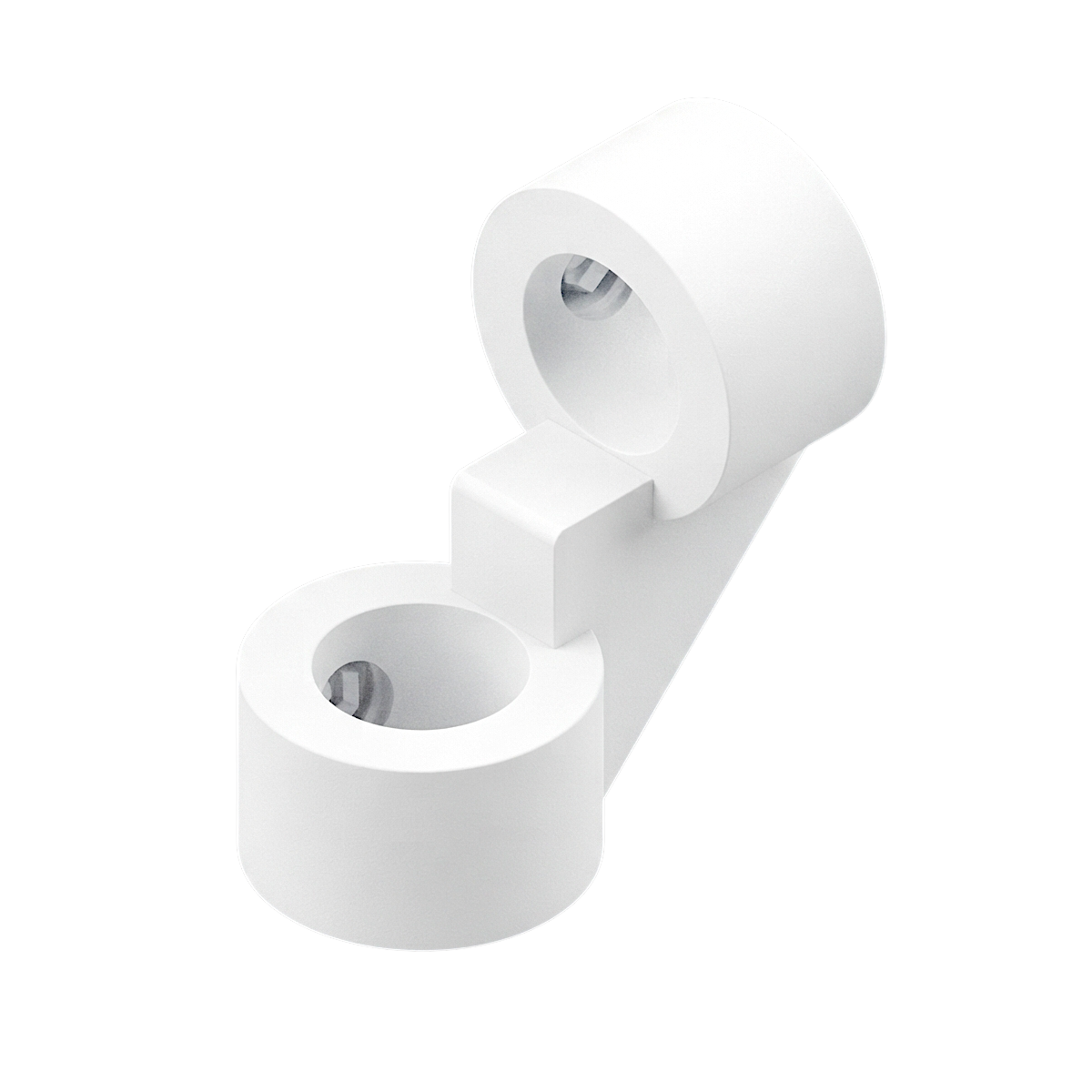

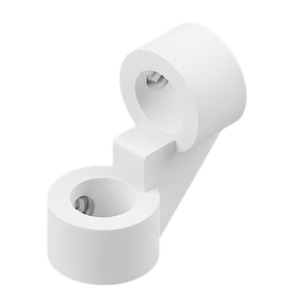

151.1 – Node World Triangle Creator for ⌀30mm rods

Basic info

• What is it: A triangle creator
• Material: strong | standard tolerance
• Dimensions: The diameters of the two round holes are approximately 30.15 mm so that 30 mm elephant rods can fit through. Both passages feature internal pockets for M6 nuts on the inside, which are 5.5 mm deep. This allows the connector to be secured/forced on from the outside using an M6 bolt. Aside from these specifications, the component is subject to standard tolerances. The triangular connection, the size of the rings, or the overall appearance of the component can therefore be modified and improved. For now, this is merely the functional minimal version.

Buy this part

• Local make: Available as local make.
• Add your store: Want to make and sell this part? Reach out.

Make this part

• Instructions: No instructions available.
• Downloads:  Design and manufacturing files are available in the download portal.

Meta

• Introduced by: Louis Handschack in collaboration with Lars Zimmermann for Node World
• Open: Shared under IPP 1.0
