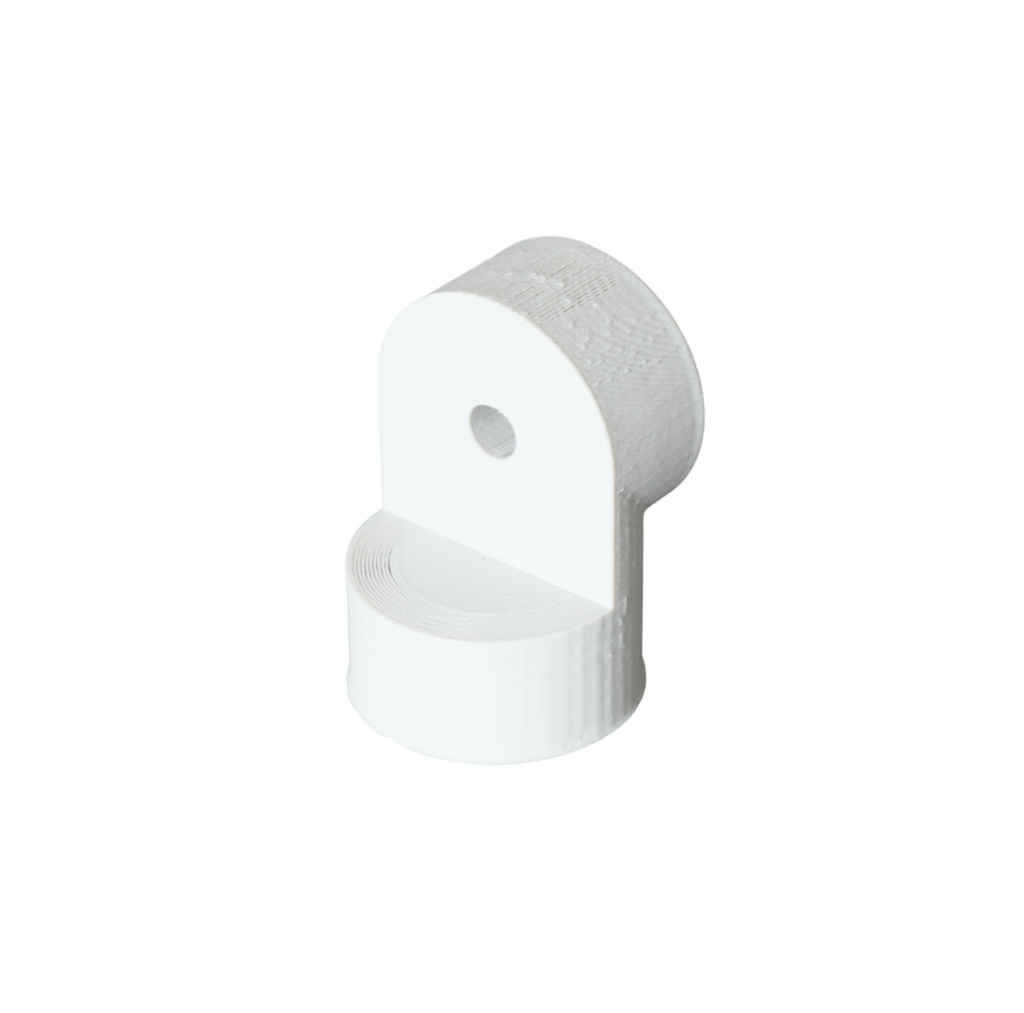

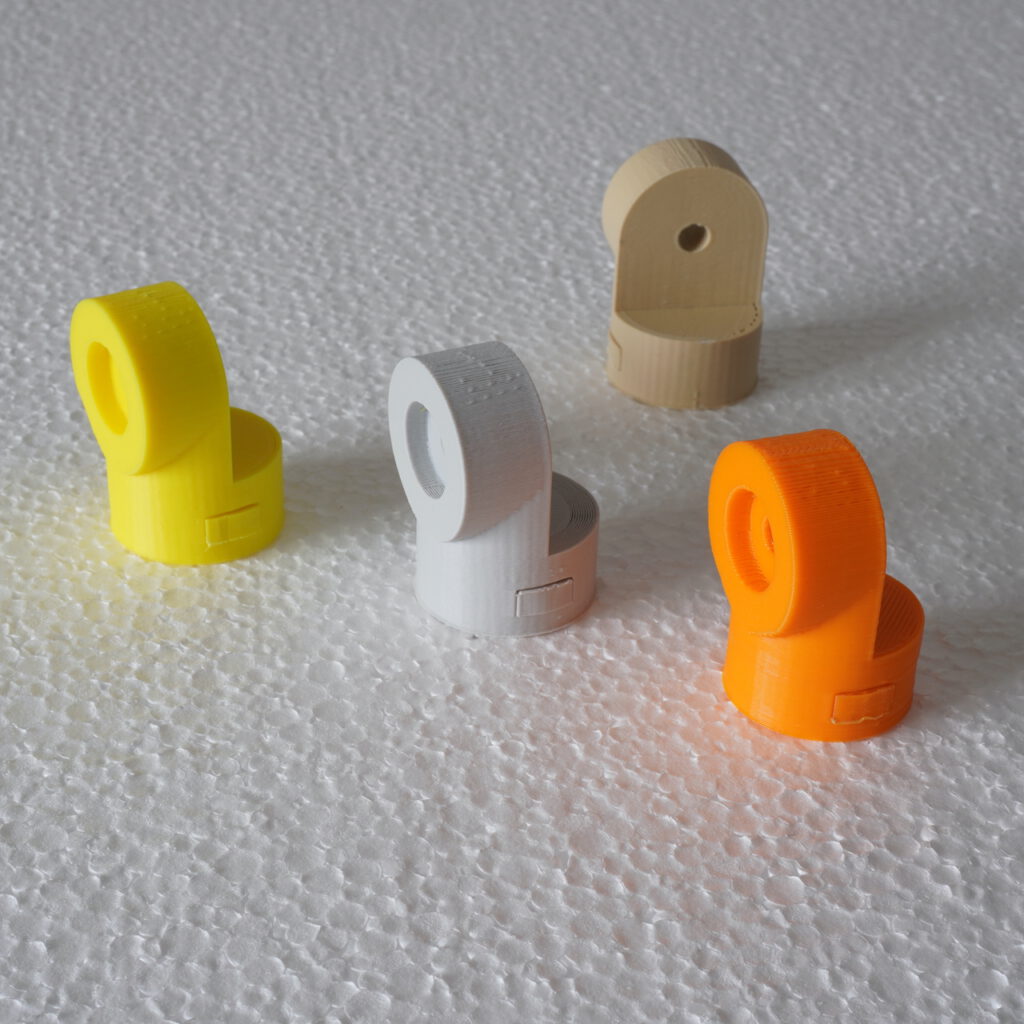

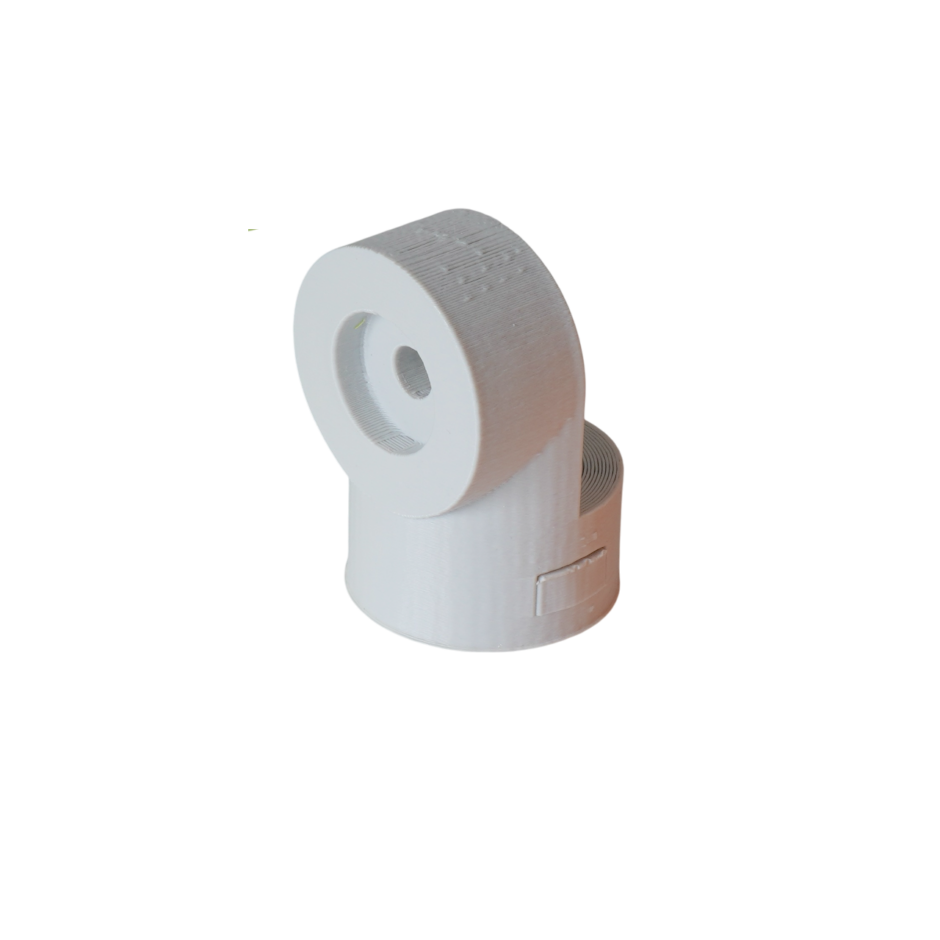

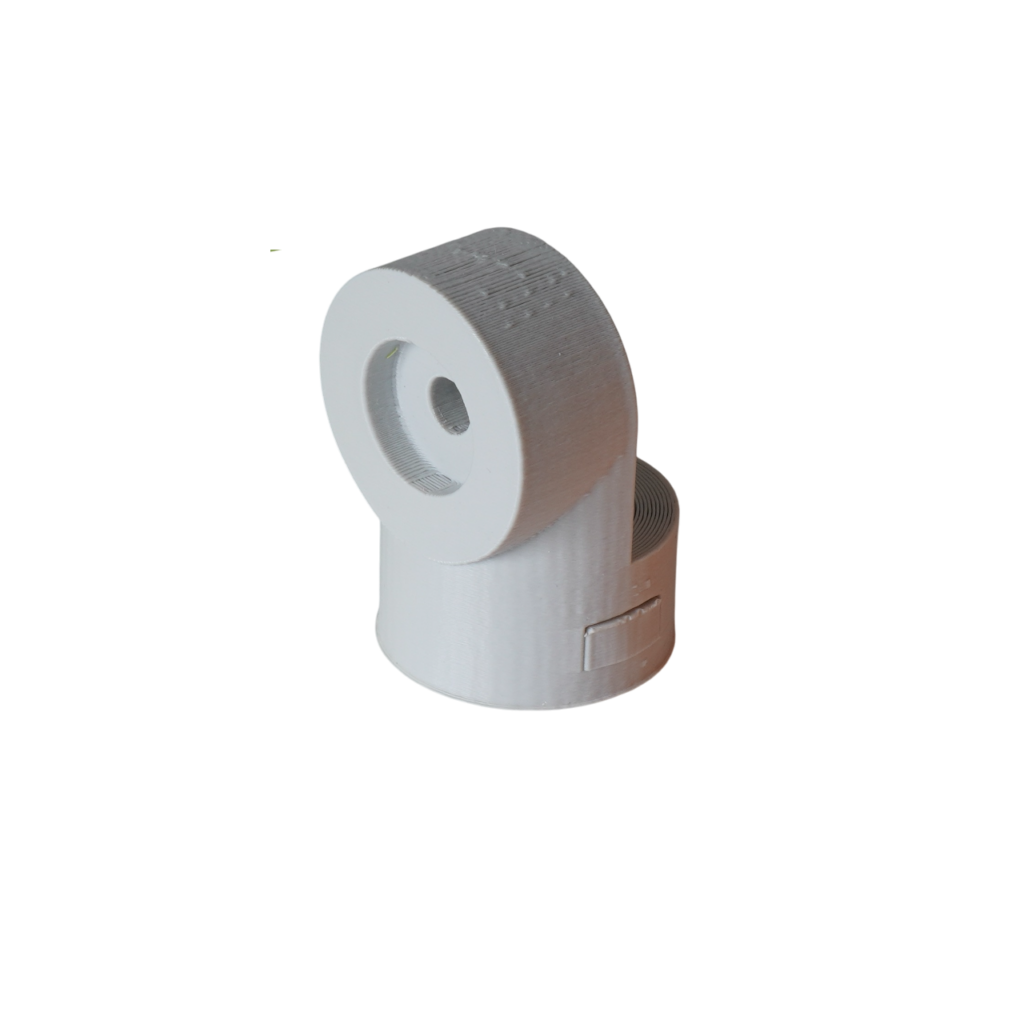

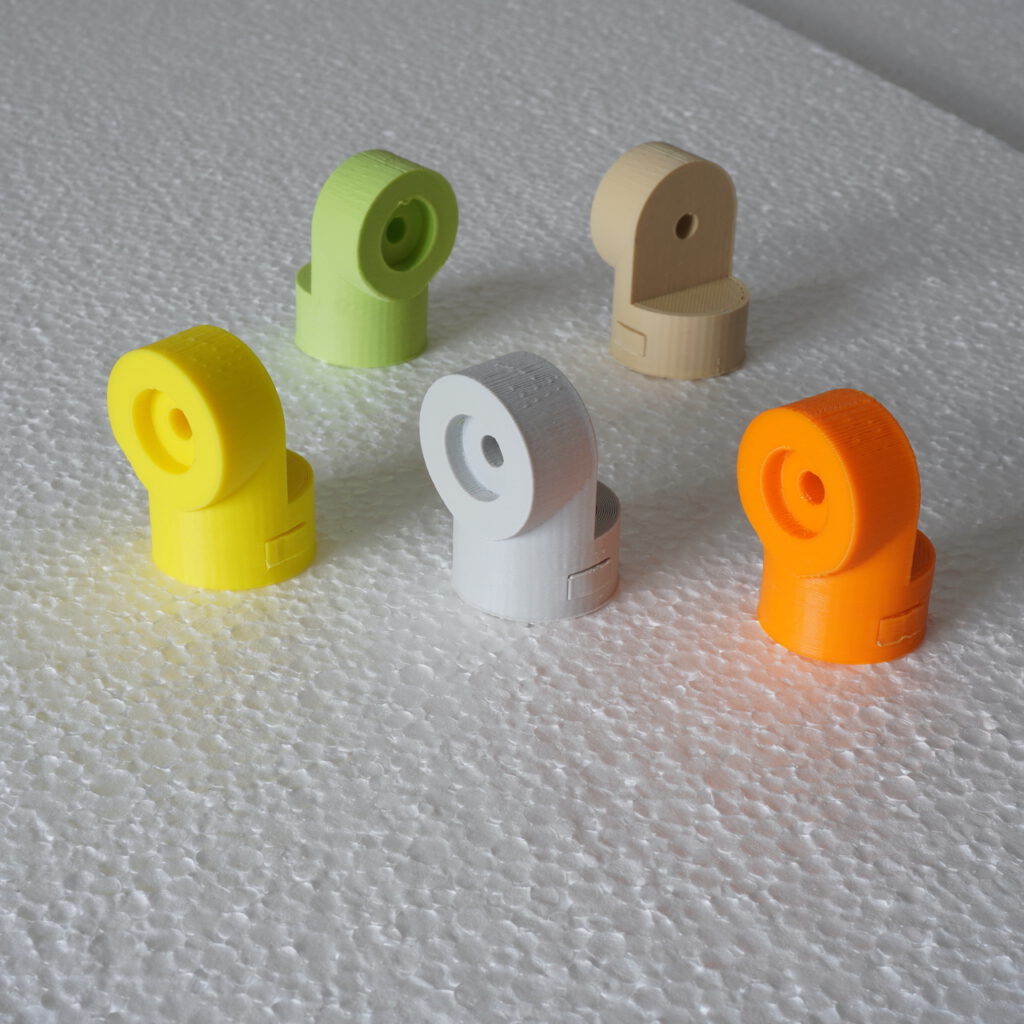

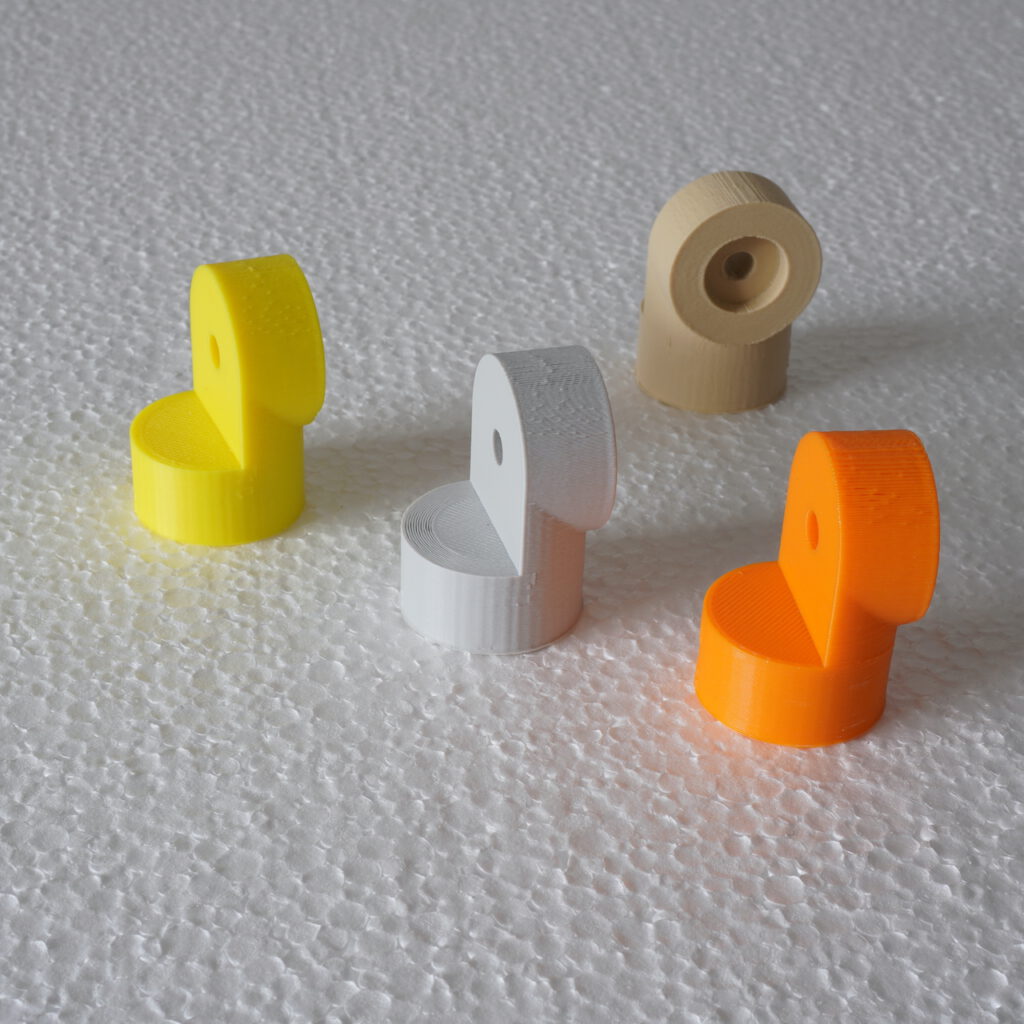

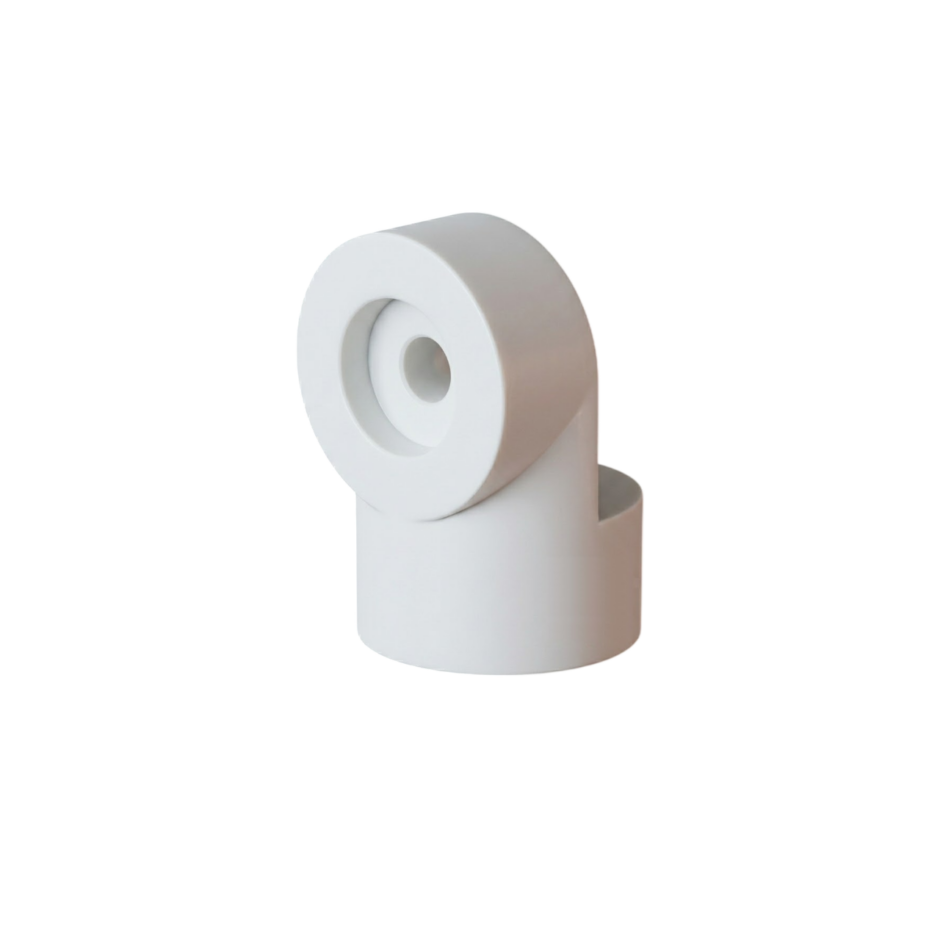

145.1 – Hinge/corner bracket, ⌀ 30mm, 6mm holes and insert thread

Basic info

  • What is it: A hinge/corner bracket
  • Material: strong  | standard tolerance
  • Dimensions: See files in the download portal. This part is designed to perfectly match with the elephant rods (095.X). You should not change any parameters because the part is made to work perfectly within the Ikego Grid. Changes in any dimension will result in a part that does not support all documented use cases.
    • Diameter of tube shaped parts 30mm
    • Height of the part 45mm
    • The upper thinner part is exactly 15mm – so 50 percent of the diameter of the whole part.
  • Holes: 2, 1 ⌀ 6mm and 1 with an M6 internal thread

Buy this part

Make this part

  • Instructions: No instructions available
  • Downloads:  Design and manufacturing files are available in the download portal
