Basic info

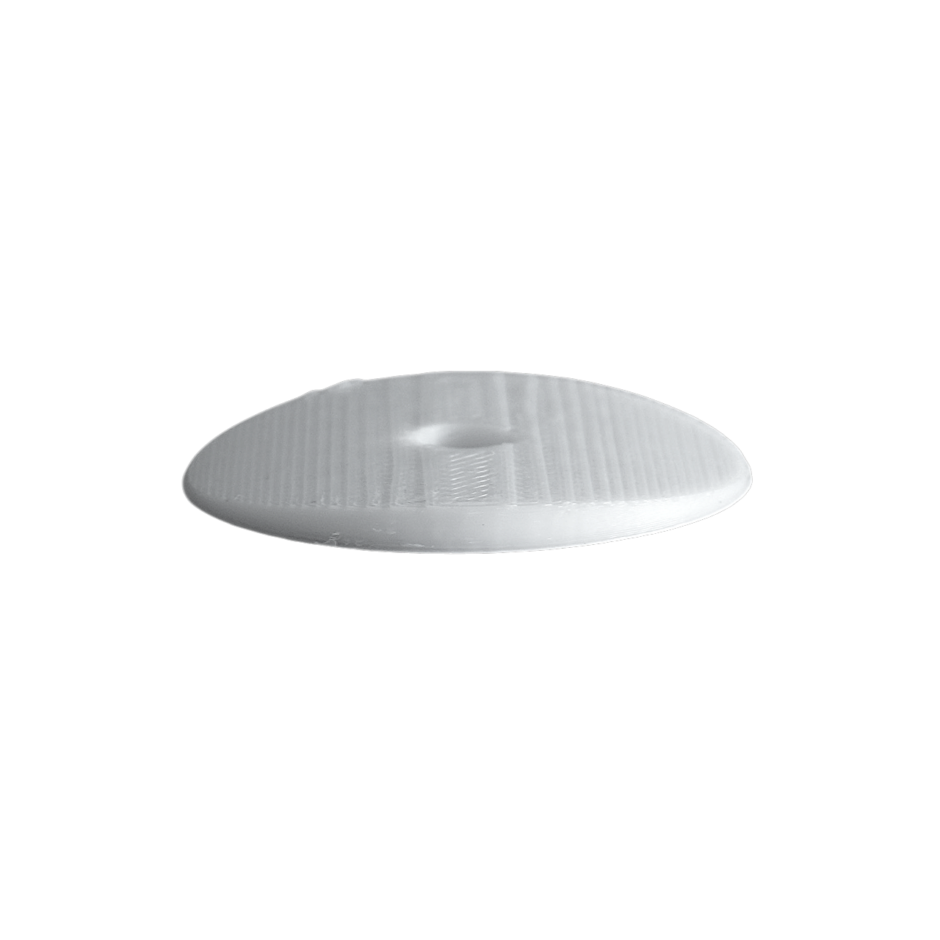

- What is it: A domed washer
- Material: strong | standard tolerance
- Dimensions: The curve is fixed, all other dimensions are subject to the standard tolerance. This part was created to build a connection between the elephant rods (095.x) and the Tube shaped parts in the system that have the same dimensions as KG pipes (012.1, 015.1, 016.1, 036.1, 048.1, 048.2). See image below. This explains the radius of the dome.
- Holes: 1 β10mm
Buy this part
- Local make: Available as local make
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: No instructions available
- Downloads: Design and manufacturing files are available in the download portal
Meta
- Introduced by: Lars Zimmermann via Ten Friends
- Original post, Original post backup
- Open: Shared under IPP 1.0
