Basic info
- What is it: A bracket/connector
- Material: strong | standard tolerance

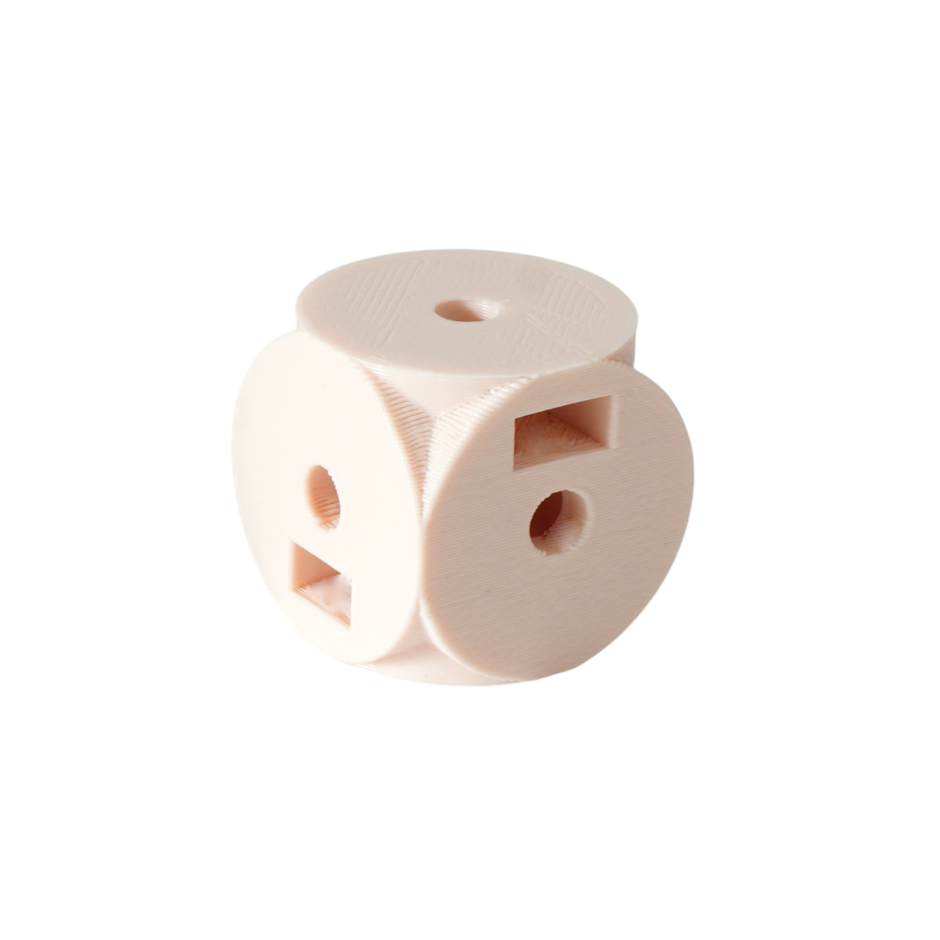

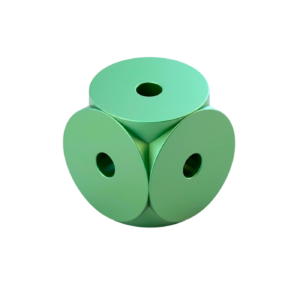

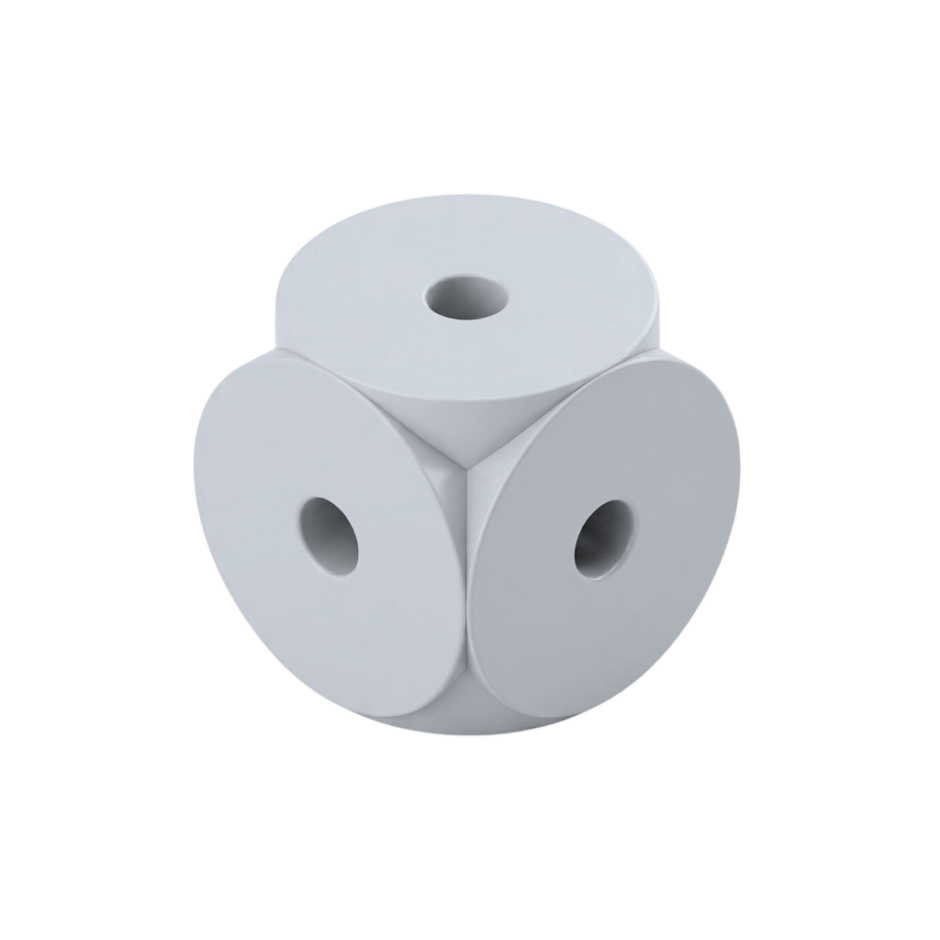

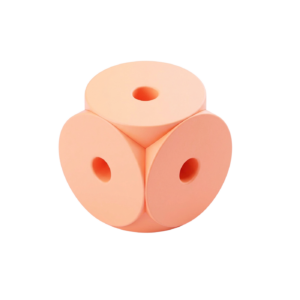

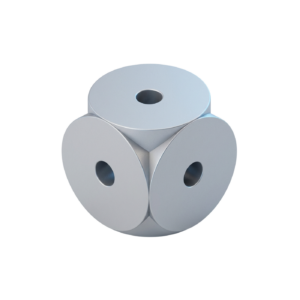

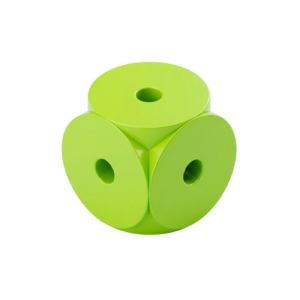

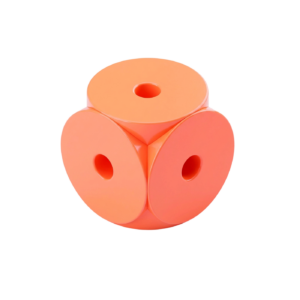

- Dimensions: 30x30x30mm. The distance between the center of the holes and the edge is fixed to 15mm. The curve is designed to fit perfectly onto round rods with a diameter of 30 mm. This bracket is a modification of a Tetri bracket (114.1 and 115.1). The Tetri brackets have proven to be extremely useful in combination with the Elephant Rods (095._). For reasons of stability and aesthetics, the regular Tetri brackets have been further developed for this shape and even more perfect interaction with the Elephant Rods.
- Holes: 3, 2 with M6 insert nuts, 1 β6mm all the way through
This distance (centre of hole to edge) is fixed at 15mm.
Get the part
- Buy:
- Available as local make
- from Berlin: Studio Mifactori offers sometimes makes of this part to buy
- Make: Download design and manufacturing files (STL) from the Download Portal
Meta
- Introduced by: by Jonathan Jany and Lars Zimmermann via Node World building on the work of Birte Hartmann
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
