Basic info

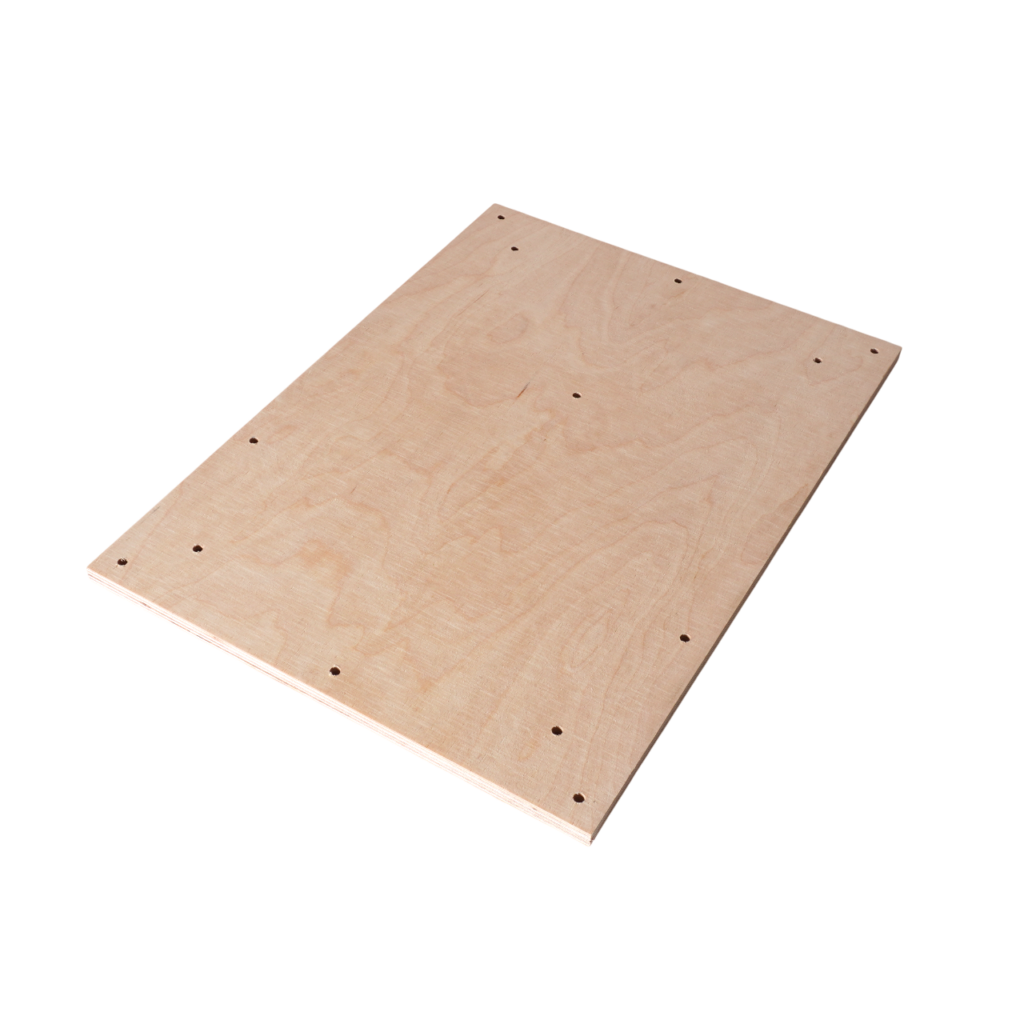

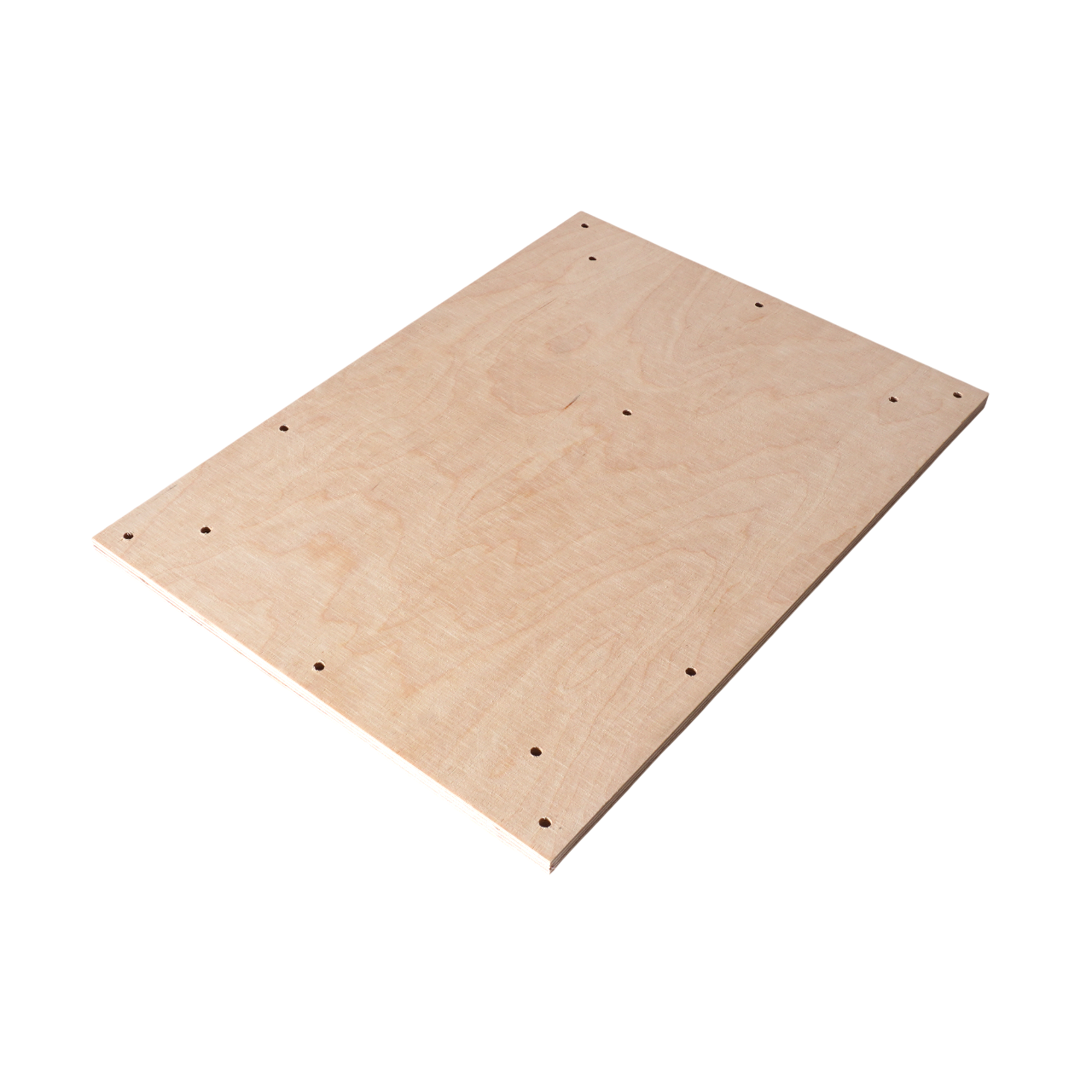

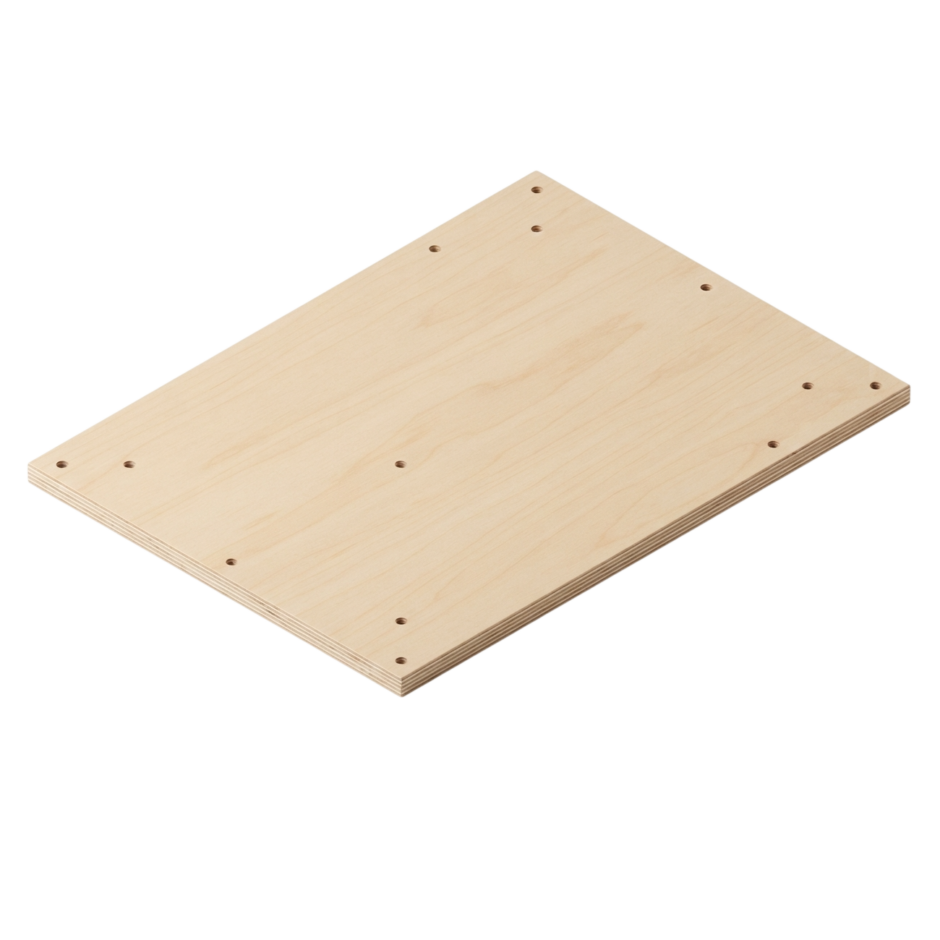

- What is it: A board
- Material: strong | standard tolerance
- Dimensions: 450x330x16mm | standard tolerance (but it is recommended to keep it at 450x330mm)
- Holes: 11 holes, ⌀6mm, Ikego Grid, for locations see the sketch of this part in the download portal
Buy this part
- Local make: Available as local make
- Germany: On demand by studio Mifactori
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: No instructions available
- Downloads: Design and manufacturing files are available in the download portal
Meta
- Introduced by: Lars Zimmermann via Node World
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
