Basic info
- A set collar rail
- material: strong
- measures: outer ⌀ ~32mm, thickness ~16mm
- holes: a large center hole ⌀ 16mm, a hole on the set for the Locking bolt ⌀ 4mm. The smaller hole next to the large one is ⌀ 10mm. The spacing between the centers of the two large holes is 30mm (Ikego grid). For more info download the files below.
Tolerance
- Size: standard tolerance
- Material: standard tolerance
Get this part
- Buy: Available as local make.
- Make: The part you see in the picture is made with a laser cutter. We cut 10mm acrylic (8mm also works) and then drilled the small hole from the side using a cordless screwdriver. If you draw this yourself make sure you have measures for the hole for the M4 nut right (3,2x7mm) – the trick is that the nut is held by the shape of the part. A wrench is not necessary. → Download Laser Files. One last hint: Acrylic seems stronger than it is. A component made of acrylic should not be subjected to too much stress. Even thick acrylic breaks quickly. If you get the chance to use other materials for this part (like 3d printing or recycled plastic) great.
Introduced by
- Lars Zimmermann via Lift Lamp
- Open: Shared under TPP 1.0
- Original post (5), original post backup.pdf (5)
- Disclaimer
Download Portal
Most parts have open design and manufacturing files you can download and work with.
0P3N Portal
More Parts
113.1 – Hinge 1, ⌀ 6mm holes

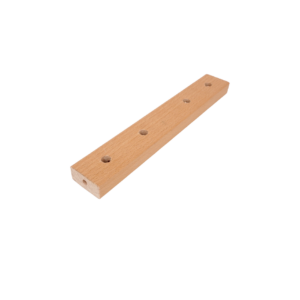

079.1 – Beam 270mm
059.1 – Plate 390x270mm
014.1 – Hook small
032.1 – Strap 300mm, 10 holes
086.2 – M4 bolt 50mm
018.1 – String 2000-2500mm
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
129.7 – Rod, M6 insert threads, 690mm, ⌀ ~50mm
115.3 – 2 corner bracket modified Round +
049.4 – board 135x390x16mm

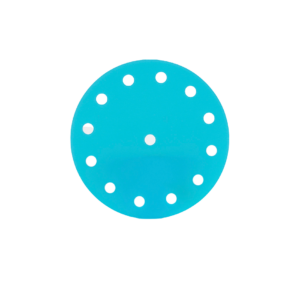

021.2 – disk ⌀ ~75mm, 6mm holes
