Basic info
- What is it: A board
- Material: strong | standard tolerance
- Dimensions: max 690x330mm, but it can be a bit smaller within the standard tolerance, the thickness is 16mm and subject to the standard tolerance

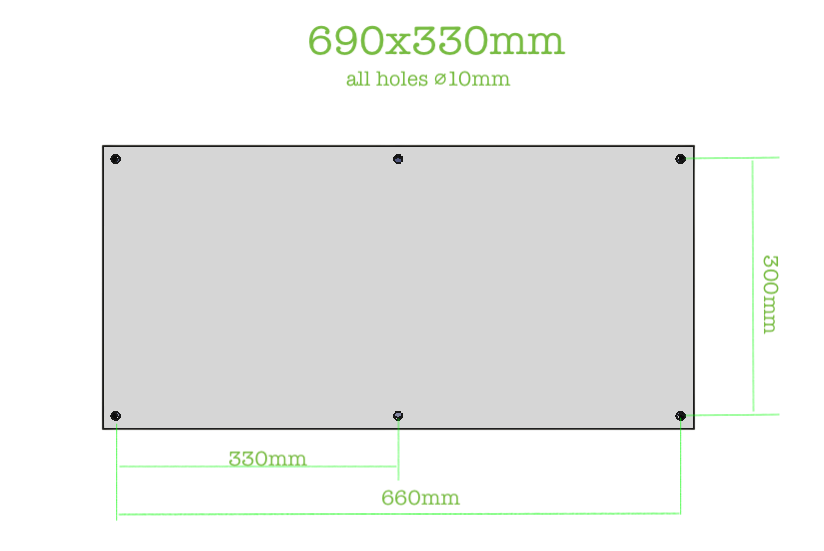

- Holes: 6 holes, diameter 10mm, Ikego Grid, Location see drawing:
Buy this part
- Local make: Available as local make
- Germany: On demand by studio Mifactori
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: No instructions available
- Downloads: Design and manufacturing files are available in the download portal
Meta
- Introduced by: Lars Zimmermann via Node World
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
