Basic info

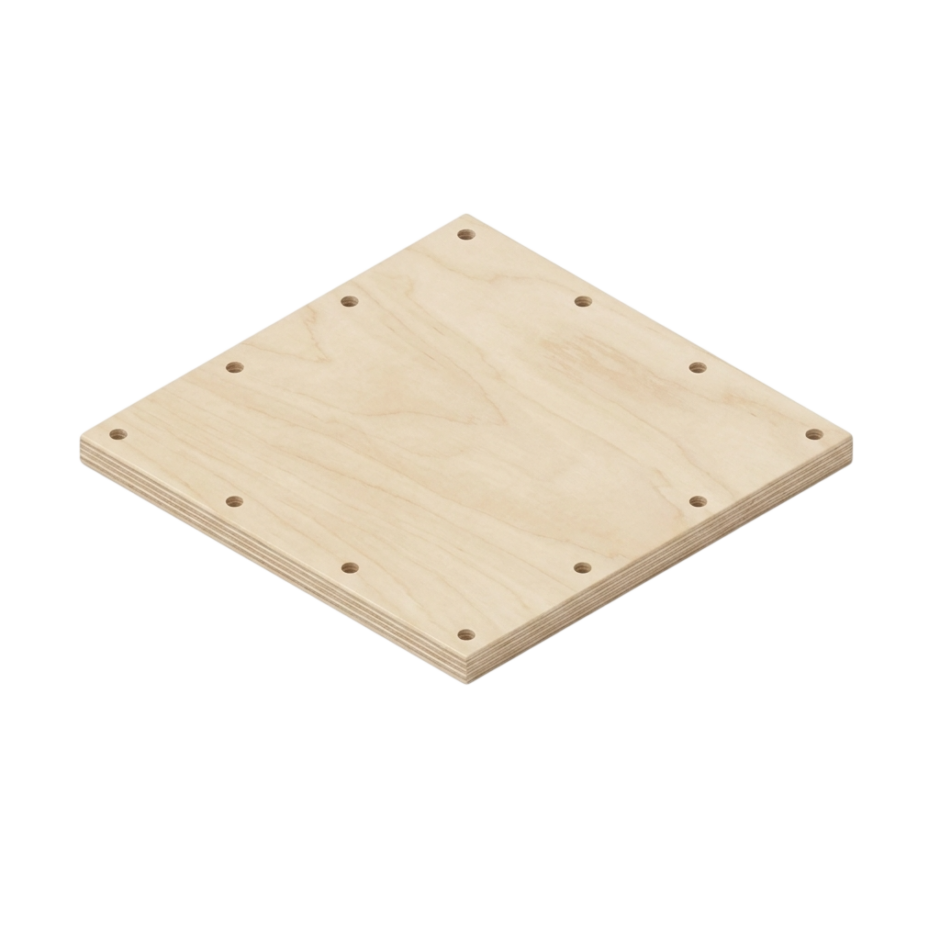

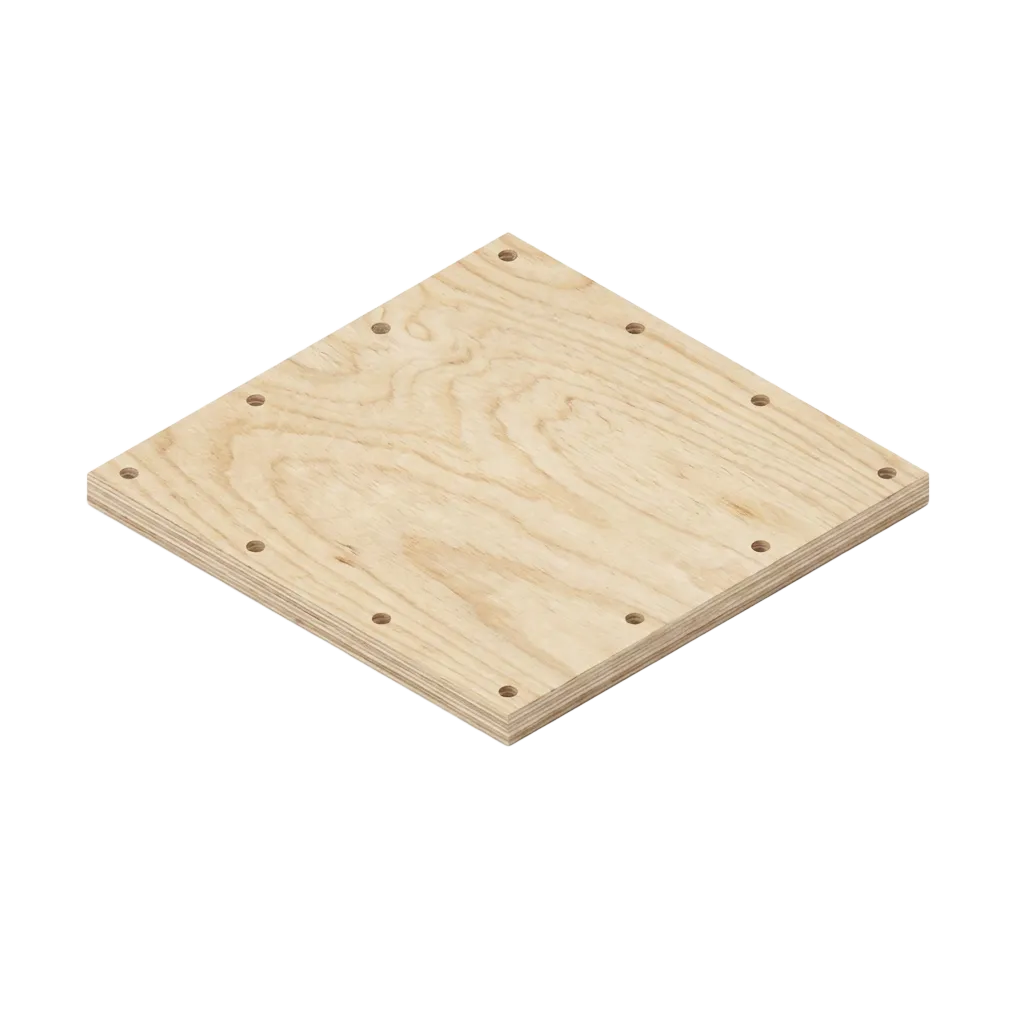

- What is it: A board
- Material: strong | standard tolerance
- Dimensions: ~300x300x16mm | standard tolerance
- Holes: 12 holes ⌀10mm Ikego Grid, distance 90mm
Get the part
- Buy globally:
- Available as local make.
- Buy locally:
- None so far
- Want to make and sell this part? Add your store
- Make: No instructions available
Meta
- Introduced by: Birte Hartmann via Tetri Box
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
