Basic Info

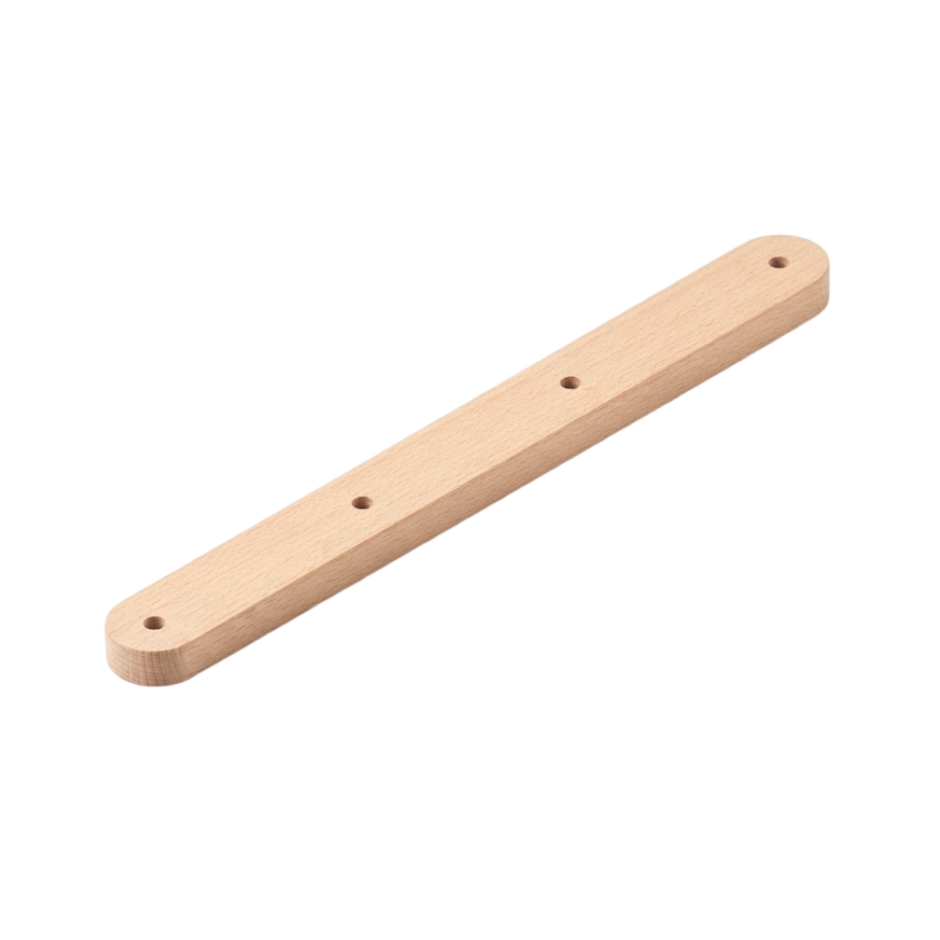

- What is it: a rail
- Material: strong | standard tolerance
- Dimensions: ~300mm x ~30mm x ~16mm | standard tolerance
- Holes: 4 holes, Ikego Grid, diameter 6mm, location see drawing above
Get the part
- Buy: Available as local make.
- Make: No instructions
Meta
- Introduced by: Béla Raketa via “Bank Konfigurator“
- Original post, Original post backup.pdf
- Open: Shared under IPP 1.0
- Disclaimer
