Parts list
Parts appearing in this set
129.4 – Rod, M6 insert threads, 300mm, ⌀ ~50mm
129.3 – Rod, M6 insert threads, 120mm, ⌀ ~50mm
120.1 – Rail ~300mm
094.2 – M6 threaded rod 80mm
082.3 – M6 bolt 90mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm
076.1 – Rail 600mm
050.1 – Board 780x300x16mm
004.1 – Washer disk ⌀ 40mm
Bank Konfigurator
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
‘Bank Konfigurator’ is a collection of multipurpose parts that can be put together in various ways to form a bench.
By Belá Raketa
Status: Functional Prototype
Set info
Set No #048
There are 12 ways to assemble a bench, whether they all work depends on how well the parts are manufactured.
On parts & builds

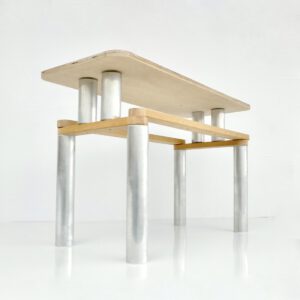

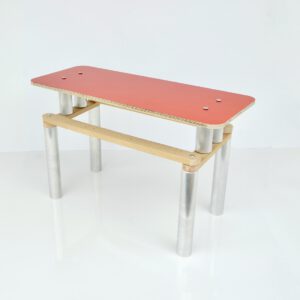

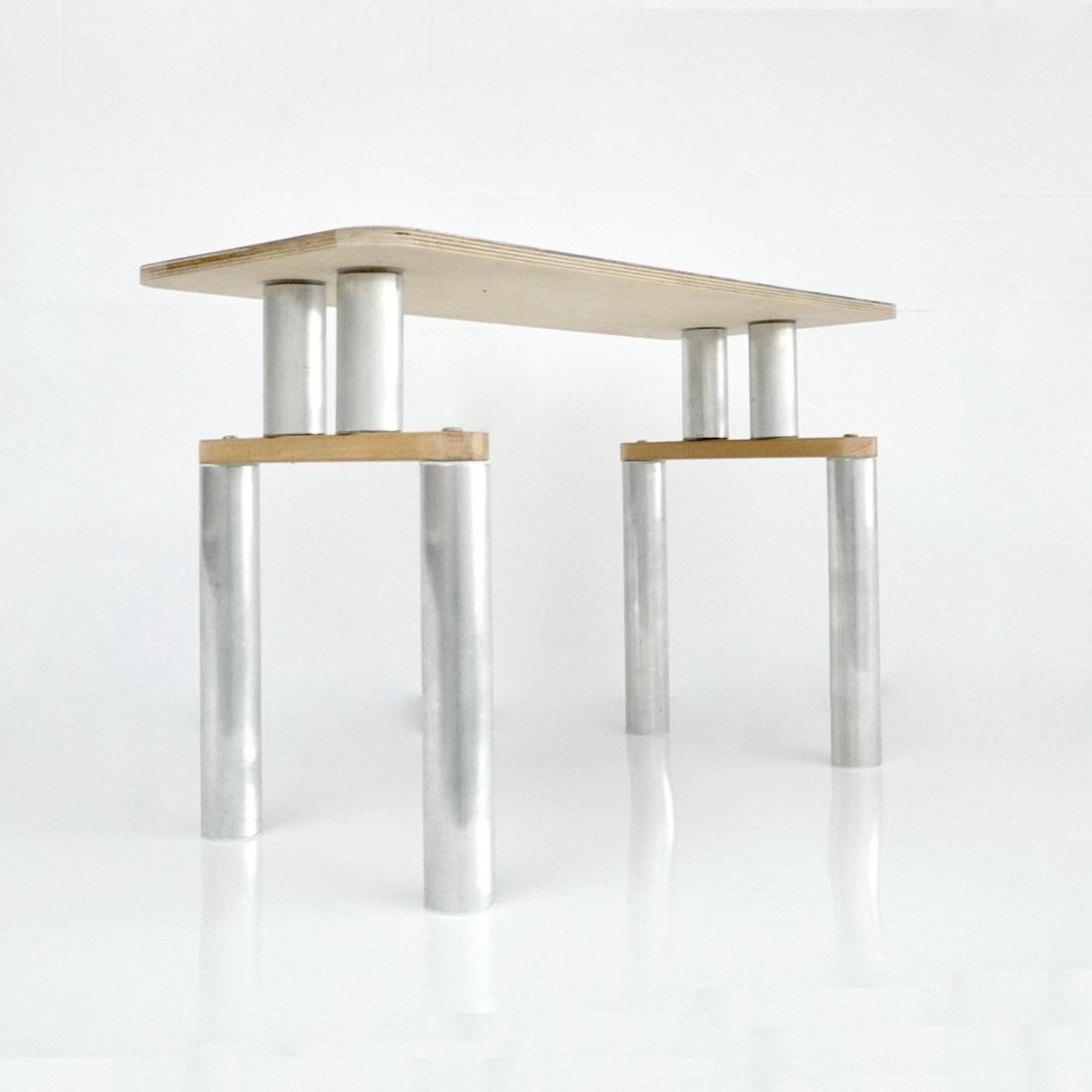

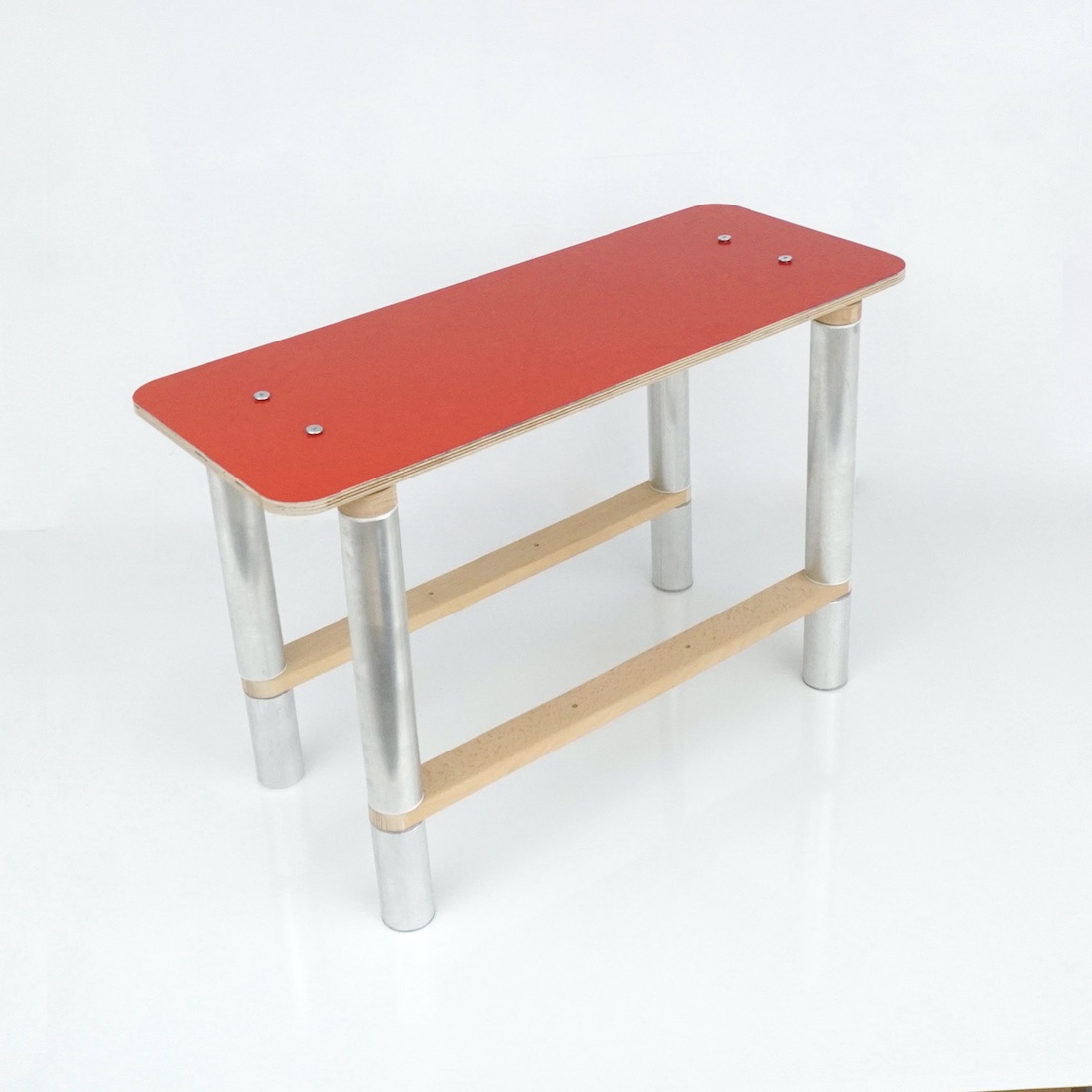

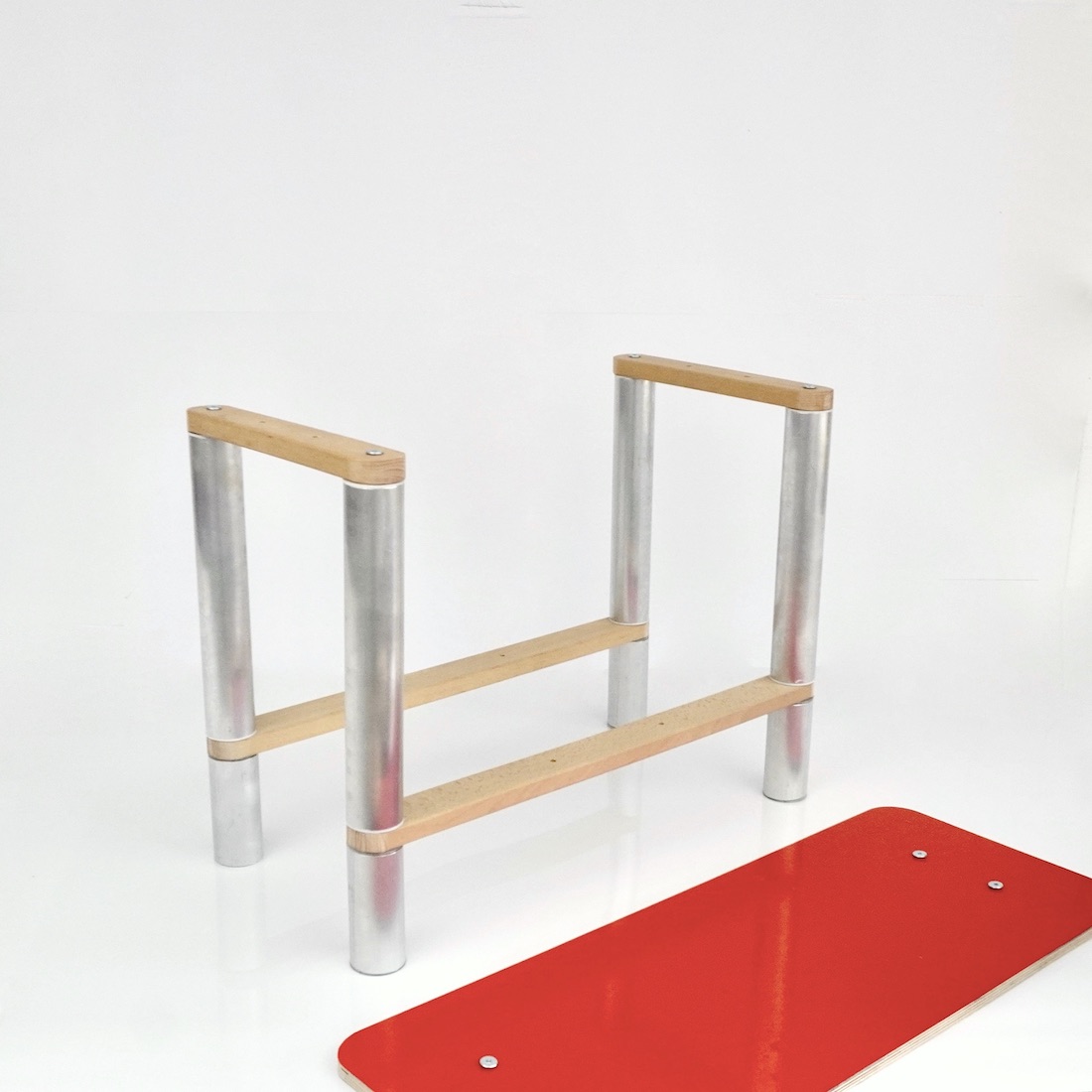

- About the prototypes shown: “In our prototypes we used the full tolerance with the elphant rods (095.3 & 095.4) – they have a diameter of 50mm. To match this up we also used the tolerance for the rail part (120.1) and extended it on each side 10mm so that the final part is 320mm long and 50mm wide.”
Meta info
- Please visit the original post by the designer for more info. | initial post backup.pdf
- The prototype-makes shown in this post were created by Mifactori. → Add your make.
