Basic Info

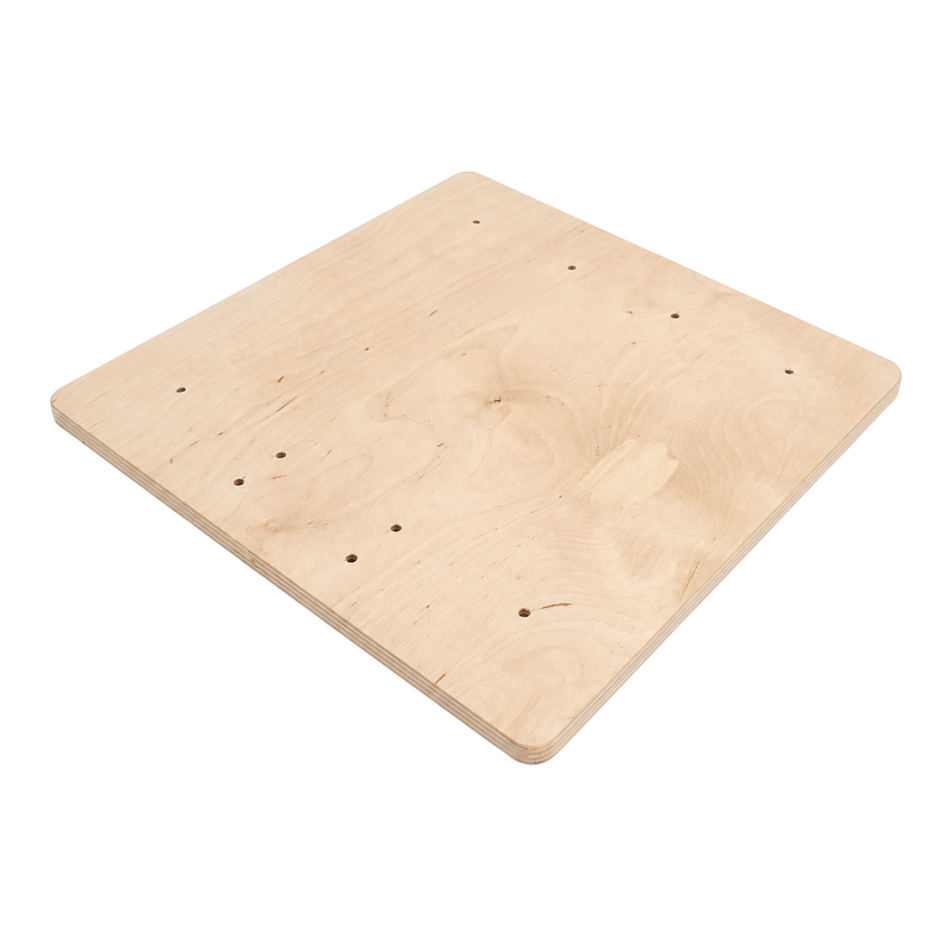

- What is it: a board
- Material: strong | standard tolerance
- Dimensions: ~390mm x ~390mm x ~16mm | standard tolerance
- Holes: several holes, Ikego Grid, diameter 6mm, location see drawing
Get the part
- Buy: Available as local make
- Make: No instructions available
Meta
- Introduced by: Arlie Lambright via Think | Original Post, Original Post Backup (Safari webarchive)
- Open: IPP 1.0
- Disclaimer
