Basic Info
- What is it: a board
- Material: strong | standard tolerance
- Dimensions: ~750x80x18mm all subject to standard tolerance

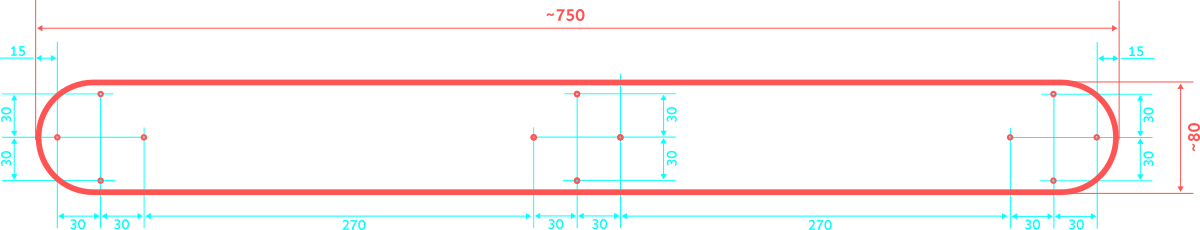

- Holes: Several, all in Ikego Grid and with a diameter of 6mm. See drawing for locations.
Get the part
- Buy: Available as local make
- Make: No instructions available
Meta
- Introduced by: Rinaldoo Boom via Bench 08 | initial post | initial post backup pdf
- Open: Shared under IPP 1.0
- Disclaimer: This part is just a concept and not fully tested. You should not assume that it works as indicated and I am not saying that it does. I disclaim any responsibility or liability for any damage caused during the construction and use of products based in whole or in part on the concept shown here. All information is provided for your use at your own risk.
