Basic info

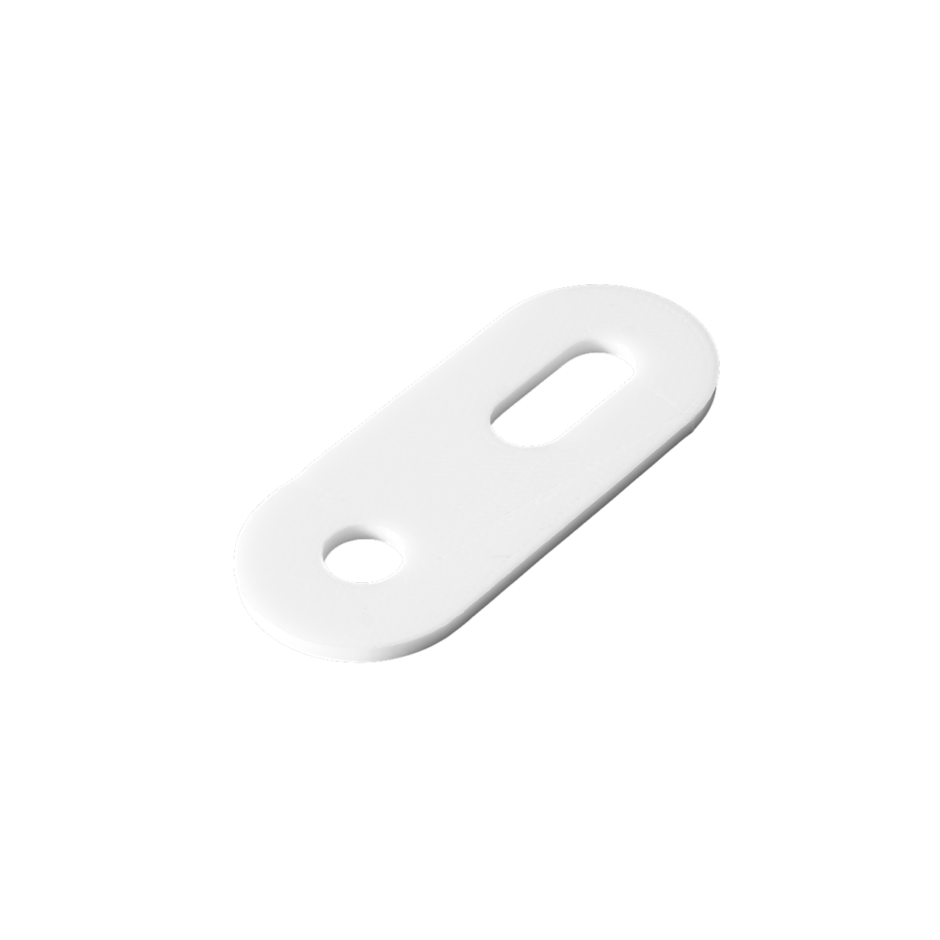

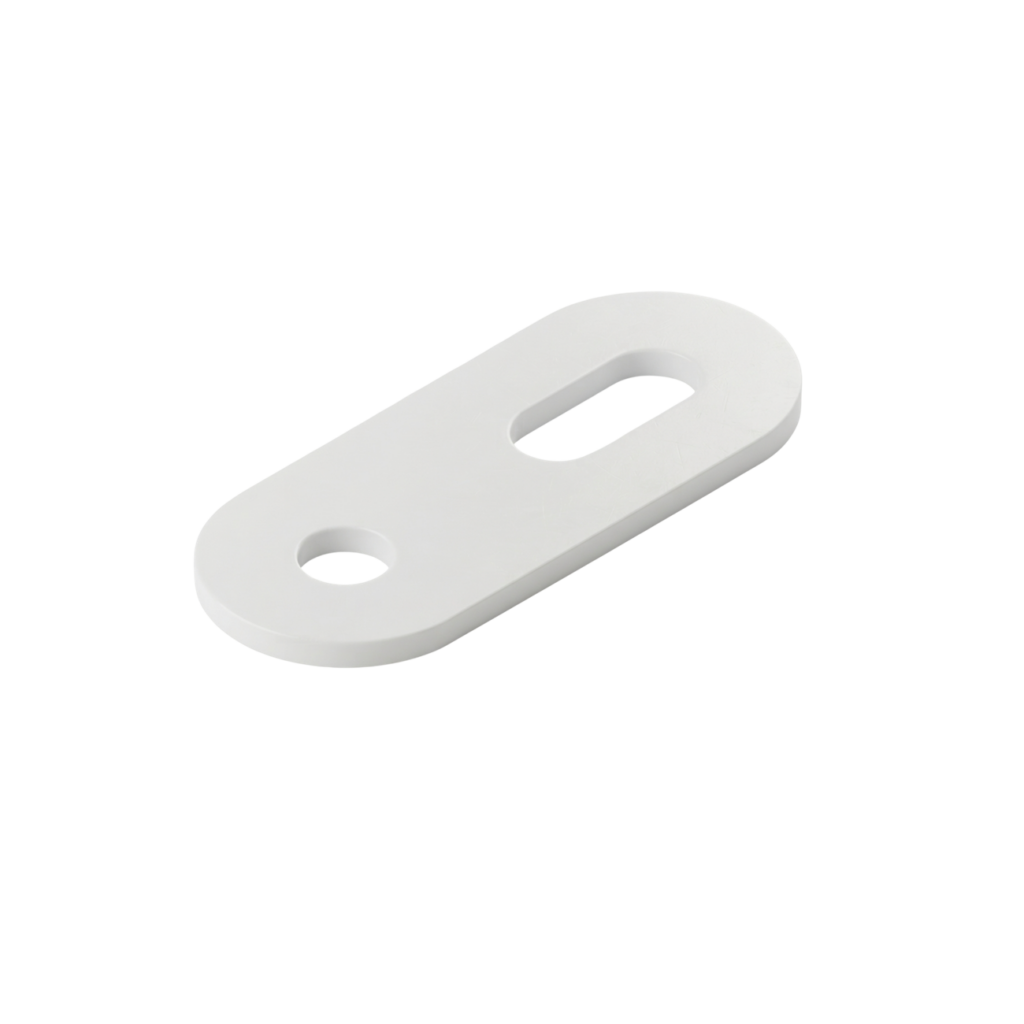

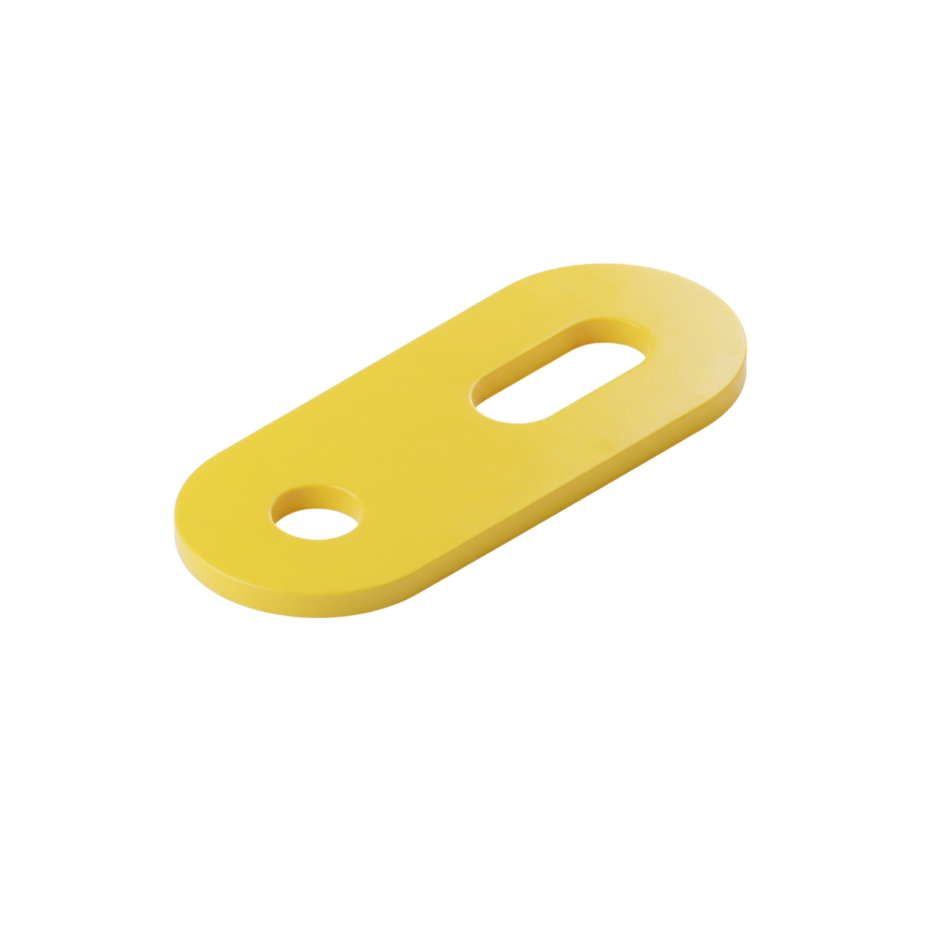

- What is it: A rail
- Material: strong | standard tolerance (ideally really strong)
- Dimensions: ~73x30x2mm | standard tolerance (But of course the size and locations of the holes relative to each other have to stay)
- Holes: ⌀10mm, Ikego Grid in a way, see drawing below to understand why the long hole has the shape and size it has:
Made to achieve a 45° angle in the Ikego Grid
Buy this part
- Local make: Available as local make
- Germany: On demand by studio Mifactori
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: You can 3d print this part, but it won’t be super strong. Depending on your use case it is recommended to print it thicker (maybe 5mm ore 10mm). For a really strong part though we recommend to make it from metal.
- Downloads: Design and manufacturing files are available in the download portal
Meta
- Introduced by: Lars Zimmermann via Node World
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
