Basic info

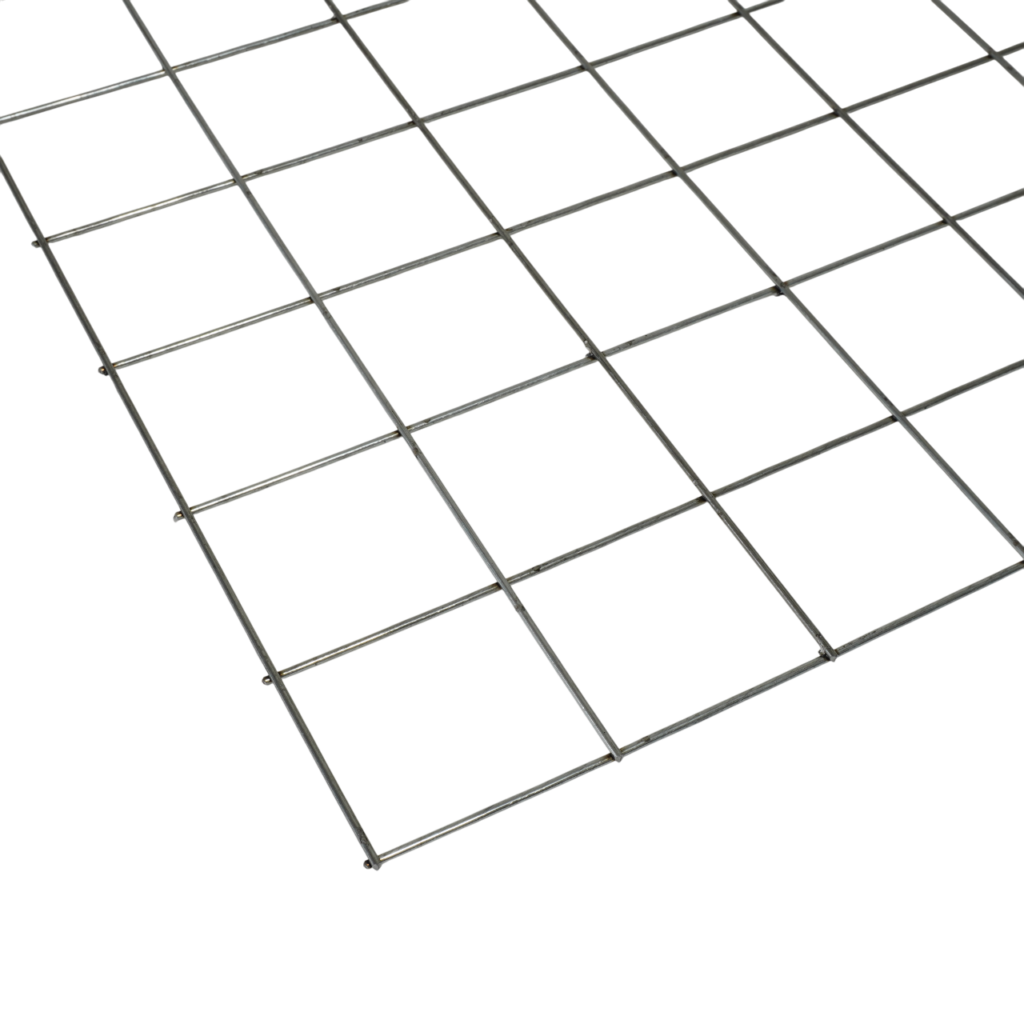

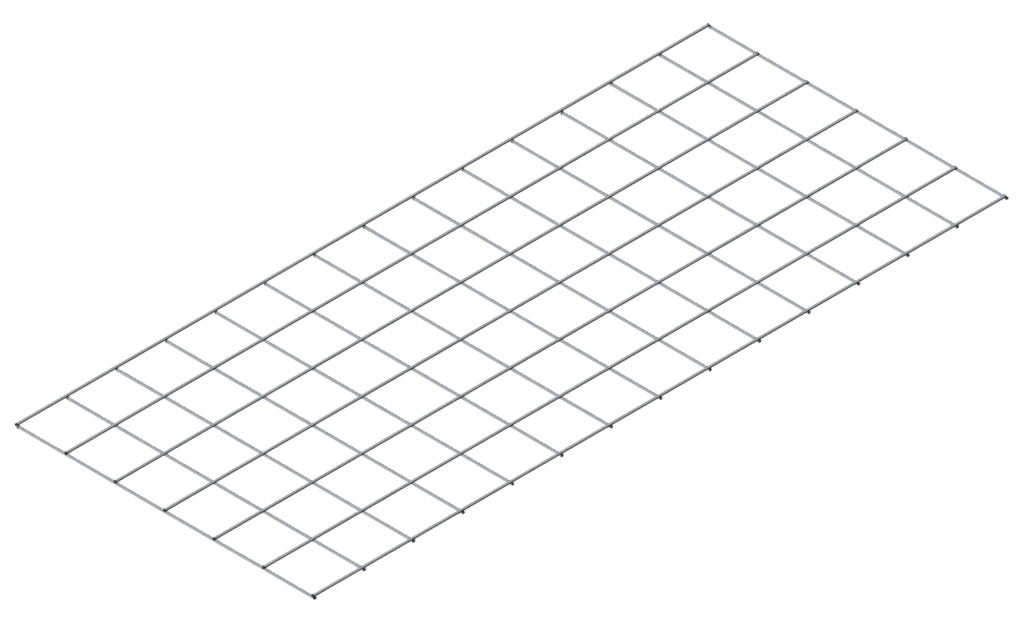

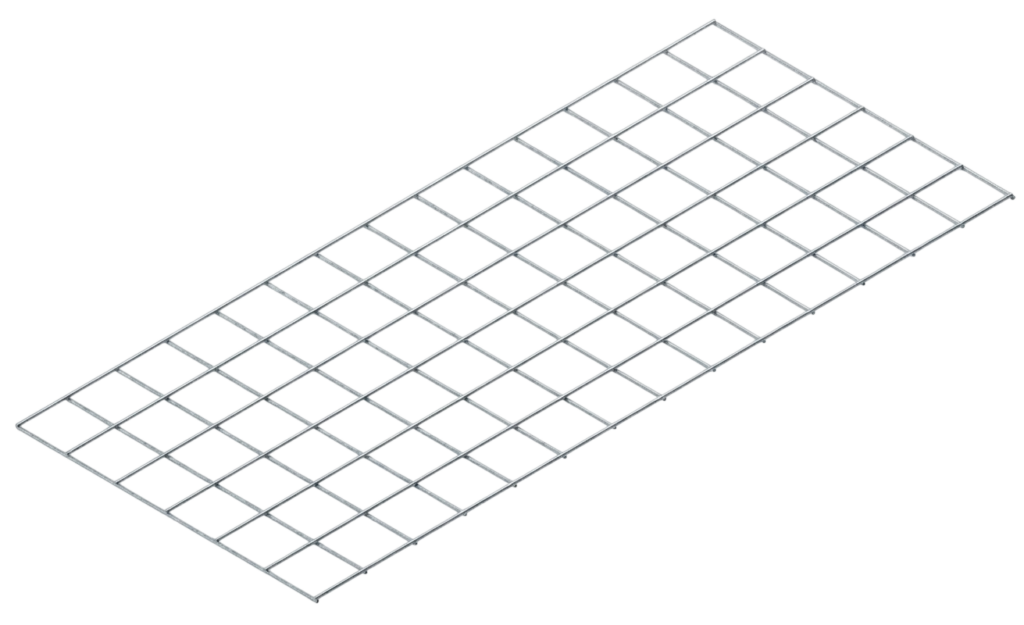

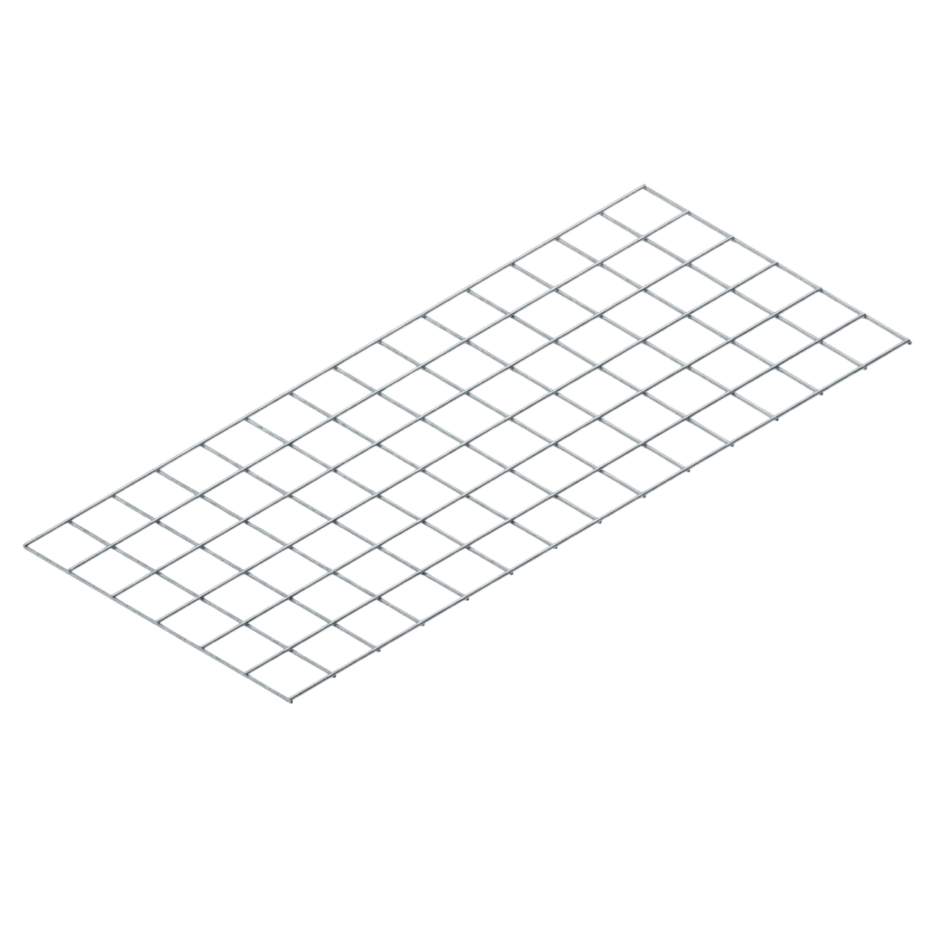

- What is it: A wire mesh “sheet”
- Material: strong, not easy to bend | standard tolerance
- Dimensions: ~690x300mm | standard tolerance
Buy this part
- Local make: Available as local make
- Germany: On demand by studio Mifactori
- Add your store: Want to make and sell this part? It is possible. Reach out and we’ll add you here as local seller
Make this part
- Instructions: Go to your local hardware store, find a mesh like this, cut it to size and use it.
- Downloads: To model this part go to the download portal and find the parts 143.X. They are similar.
Meta
- Introduced by: Lars Zimmermann via Node World
- Original post, Original post backup
- Open: Shared under IPP 1.0
- Disclaimer
