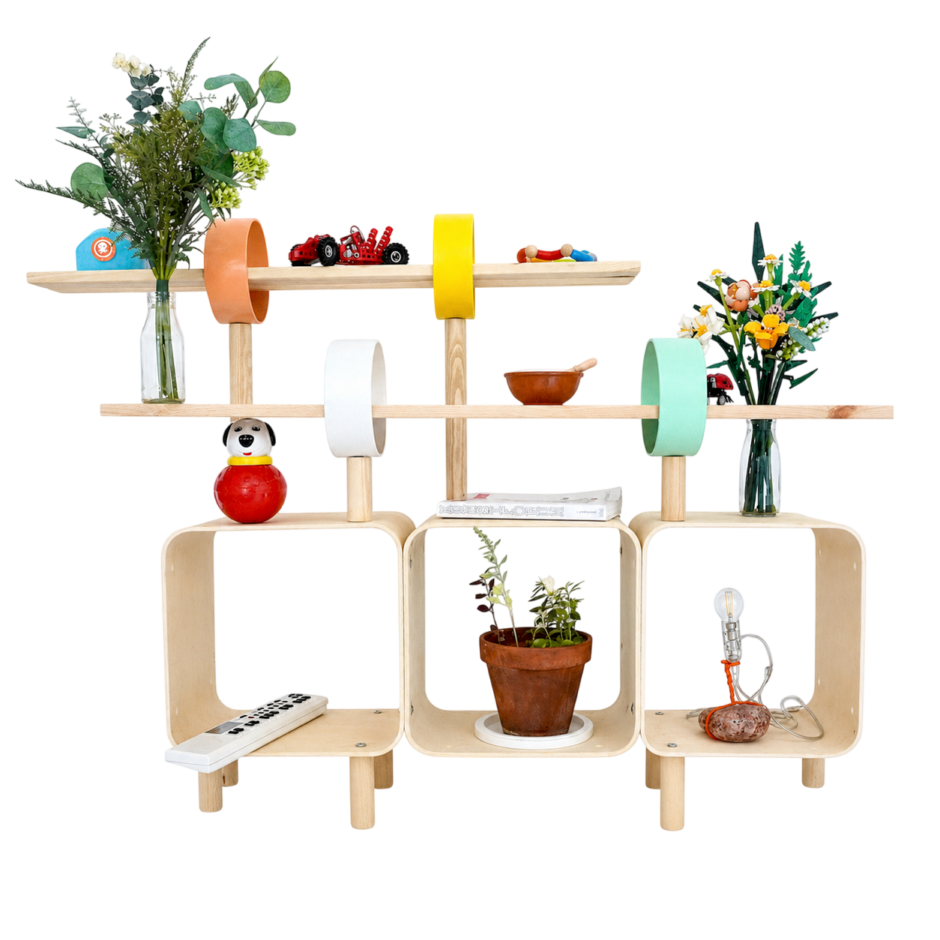

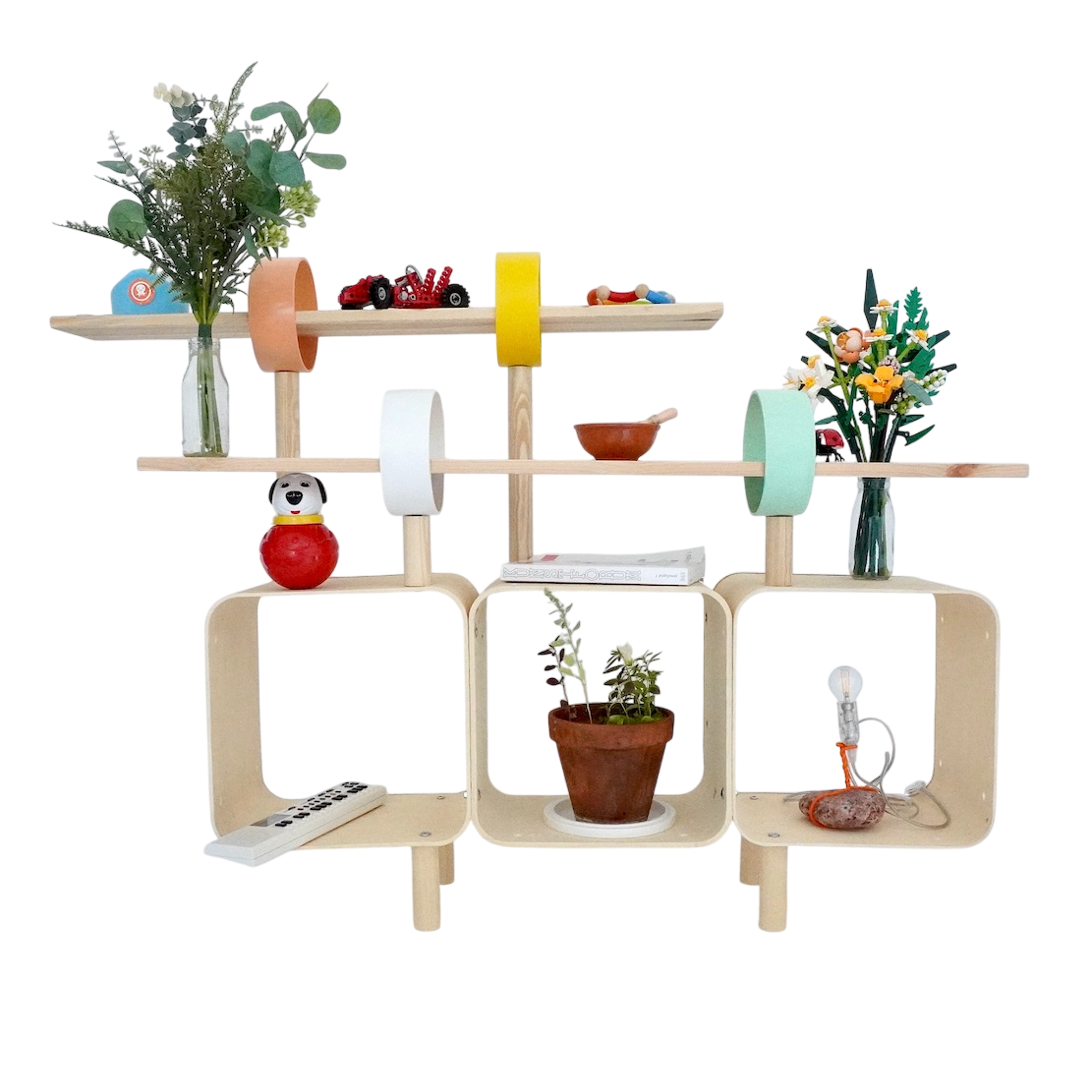

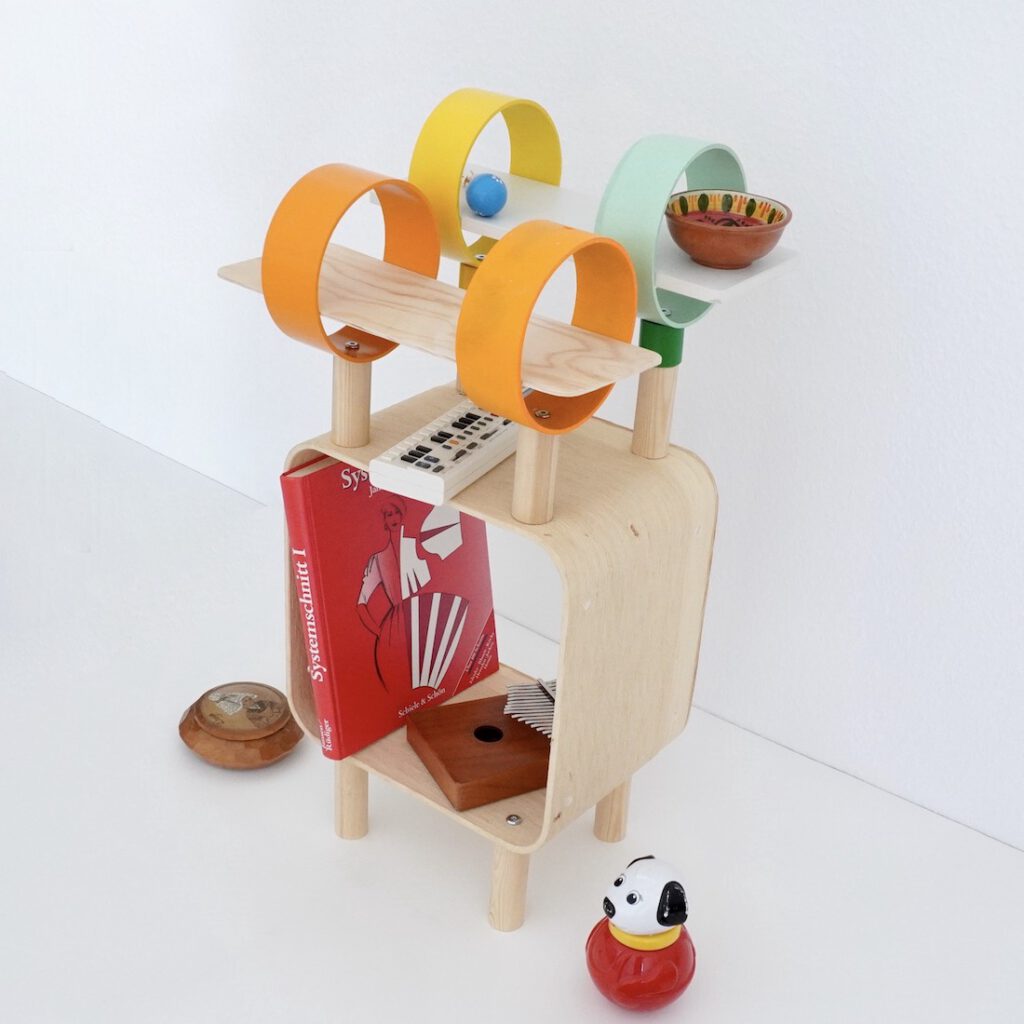

‘Ten friends‘ is a collection of shelving solutions that use the same set of parts, and demand free education!
Status: Rough prototype/concept
Make it for others
All parts in this set are open source and the set itself can be made and sold by anyone. Make it and sell it in your store. Co-invent the circular design revolution with us. Learn more.
Scroll down ↓ for the parts list.
Design info
Set stats: 10 prototypes, 0 makes, 0 products info
Meta info
- Visit the original post by the designer for more pics and infos. Original post backup (pdf)
- All makes shown in this post were created by Mifactori in collaboration with Materialogic → Add a make.
- Pictures by Mifactori, cc-by-4.0
- Disclaimer
Universal parts
Ten Friends
112.4 – 300mm rod with M4 insert threads

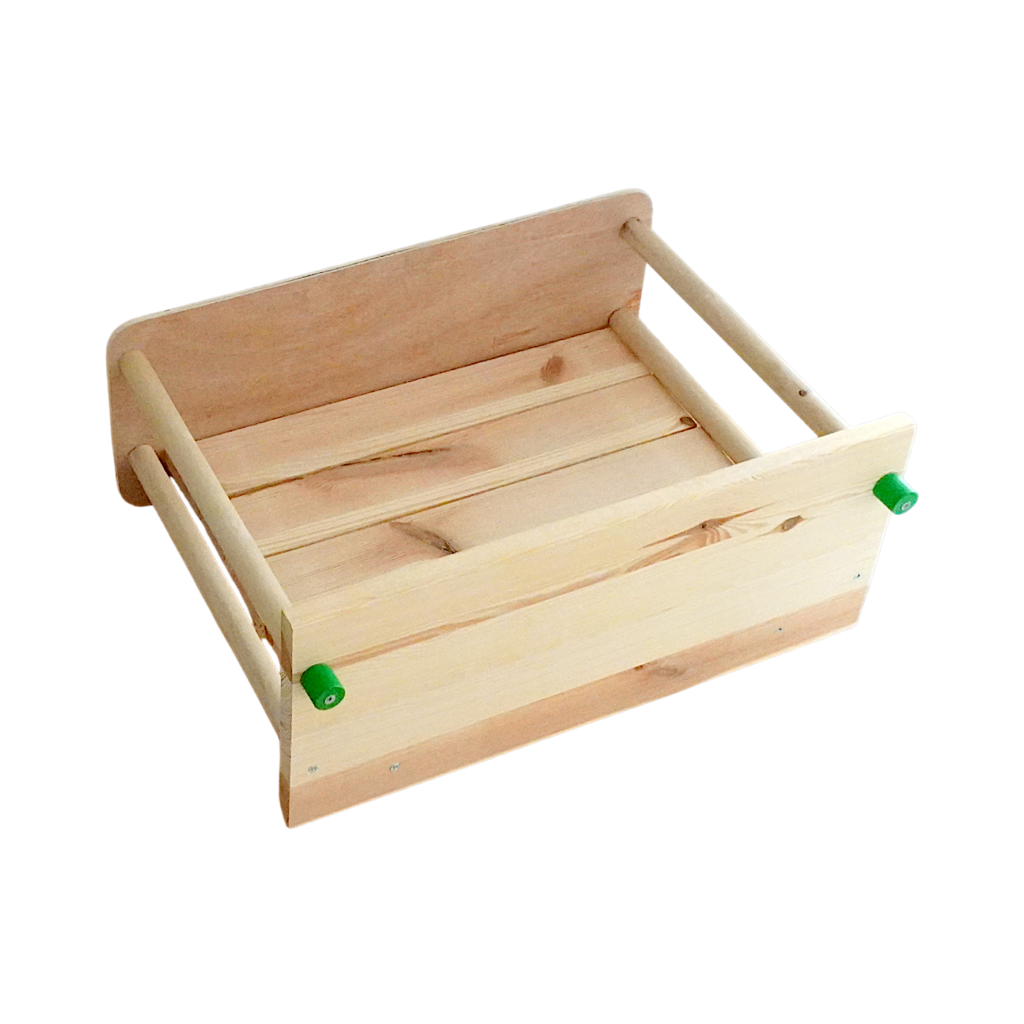

098.1 – VITO box

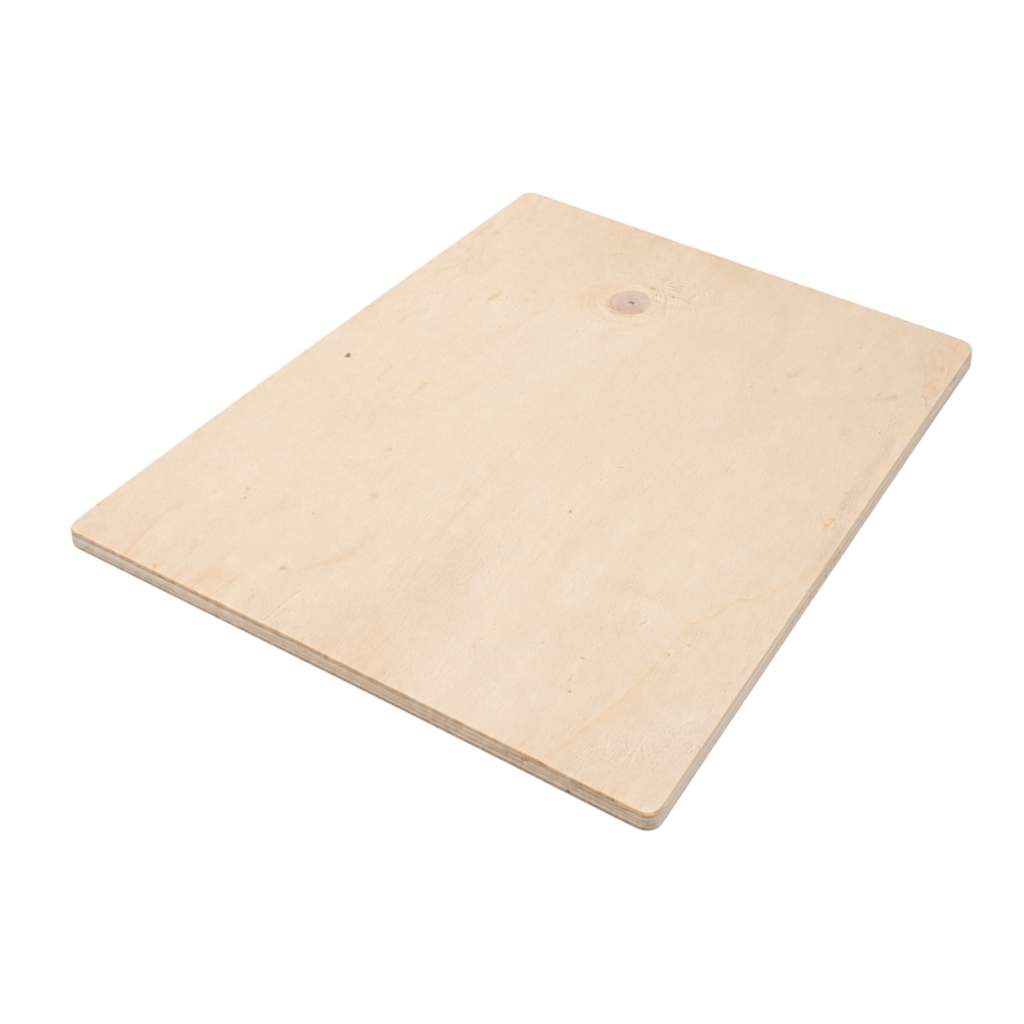

097.1 – board 240x300mm
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
089.1 – M6 nut
088.2 – M6 sleeve nut ~16mm
087.1 – M6 washer 20mm
082.2 – M6 bolt 70mm
075.1 – “Addi rail” 420mm
051.2 – Domed washer for KG pipes, ⌀30mm
049.4 – board 135x390x16mm
051.1 – Saddle washer for KG pipes, ⌀30mm
049.3 – Board 135x240x16mm
049.2 – Board 135x1020x16mm
049.1 – Board 135x750x16mm
048.2 – Tube 60mm ⌀152mm
048.1 – Tube 60mm ⌀152mm
034.1 – Spacer ~40mm high
030.1 – M6 bolt ~30mm
018.1 – String 2000-2500mm
003.1 – Disk ⌀ 270mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
