Set #004
Available to buy from
📍 LOCAL MAKE
- You can order this set from a local workshop ✔️
💚 BUILD IN A WORKSHOP
- Make this set from scratch. Book or create a workshop.
🛒 OFF THE SHELF
- No seller yet. Sign up for updates. | Become a seller.
Parts list
Parts appearing in this set
129.5 – Rod, M6 insert threads, 210mm, ⌀ ~50mm
129.4 – Rod, M6 insert threads, 300mm, ⌀ ~50mm
129.3 – Rod, M6 insert threads, 120mm, ⌀ ~50mm
129.2 – Rod, M6 insert threads, 90mm, ⌀ ~50mm
129.1 – Rod, M6 insert threads, 30mm, ⌀ ~50mm
123.1 – spacer with 5° angle
122.1 – board ~360x150mm
121.1 – board ~420x360mm
119.1 – Spacer, 60mm high, ⌀ ~50mm
117.3 – 15° bend, 90mm high
117.2 – 15° bend, 120mm high
117.1 – 15° bend, 120mm high
094.3 – M6 threaded rod 100mm
094.2 – M6 threaded rod 80mm
094.1 – M6 threaded rod 50mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm
030.1 – M6 bolt ~30mm
004.1 – Washer disk ⌀ 40mm
WORMS
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

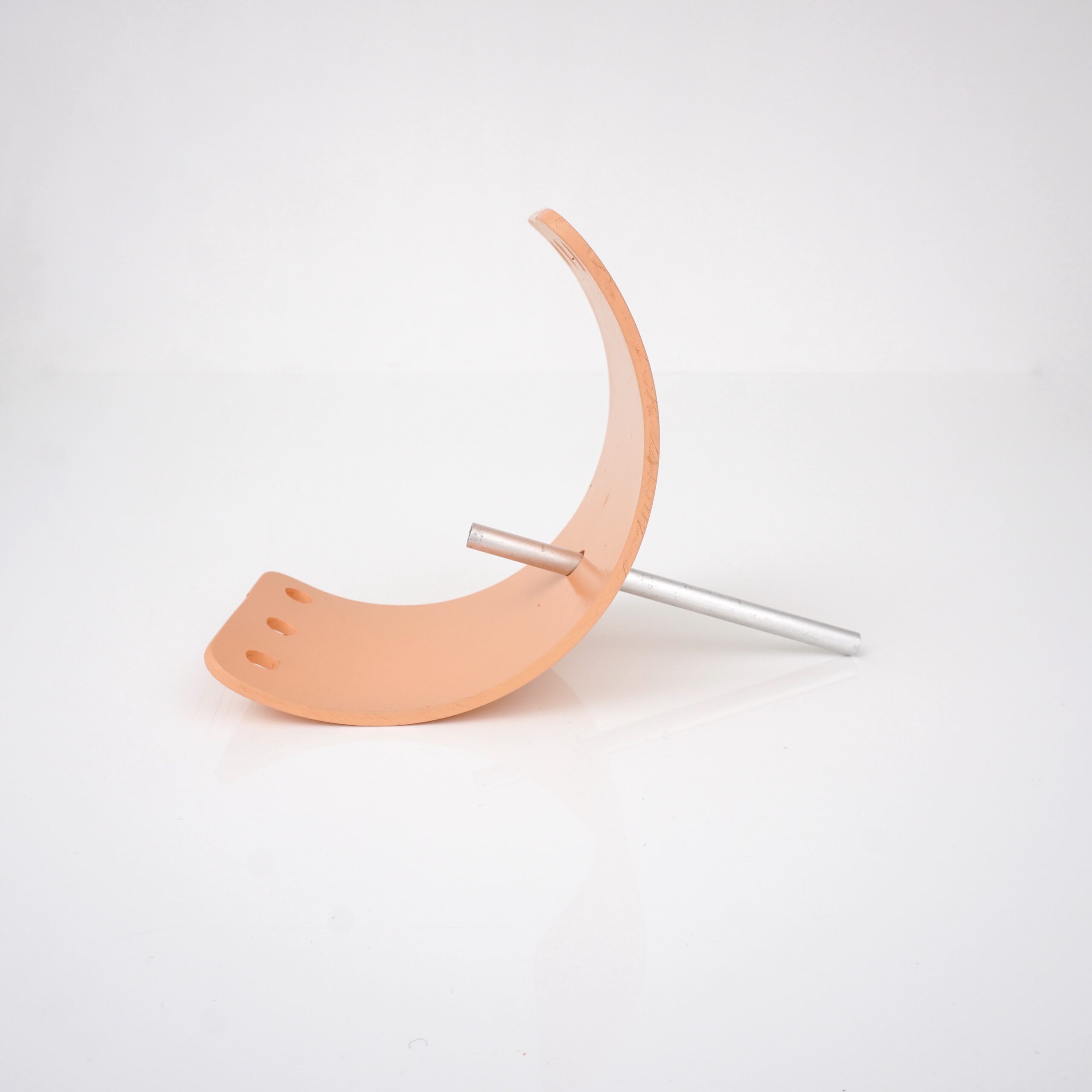

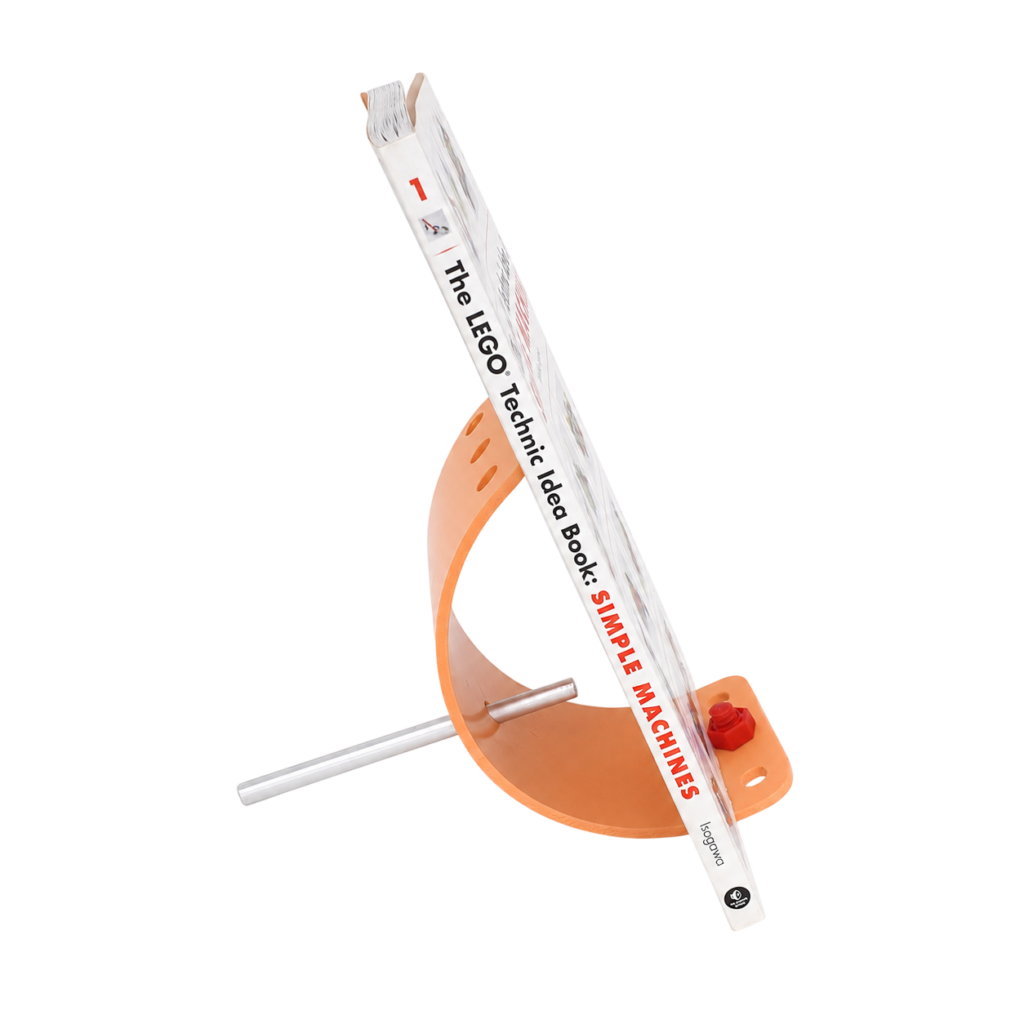

‘Bocoi‘ is a quick hack to create a stand for tablets or to display books and images and it spends the night painting posters demanding a right to repair!
Status: Functional Prototype
Set info
Set No #004
On parts & builds
- One of the images above shows a combination with the part 043.1 (red plastic bolt and nut). This functions as a stop – the book or tablet can’t slide out at all.
Meta info
- Visit the original post by the designer to learn more. Initial post backup.pdf
- All makes and variations shown in this post were created by Mifactori. → Add your make.
- Pics by Mifactori, cc-by 4.0
