Set #083
Parts list
Parts appearing in this set
147.2 – Board 690x330x16mm
142.6 – Board 330x330mm, ⌀10mm holes
141.1 – Rail ~73x30x2mm
135.1 – 5 corner bracket Round
095.7 – 690mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
088.2 – M6 sleeve nut ~16mm
082.1 – M6 bolt 50mm
030.2 – M6 bolt 15mm

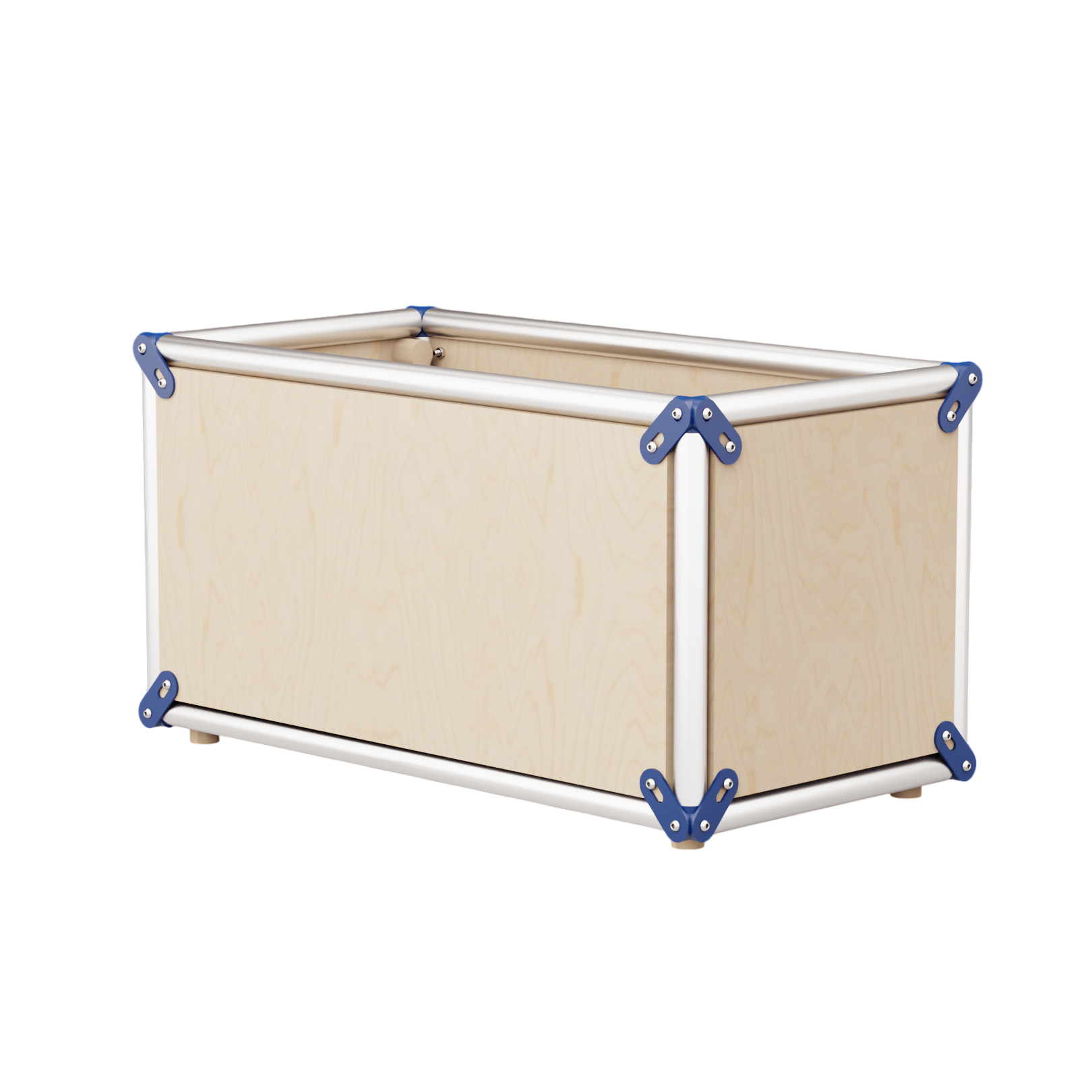

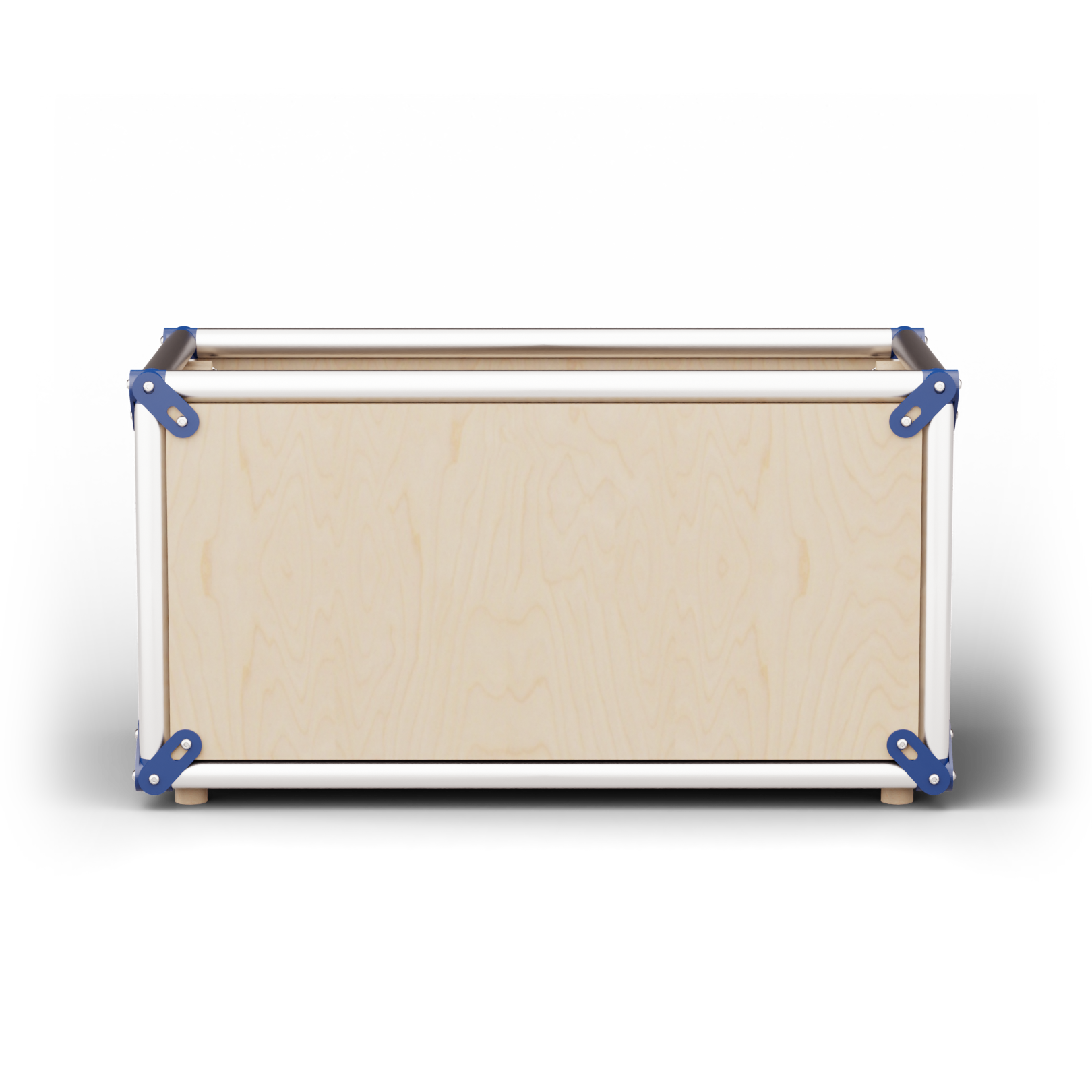

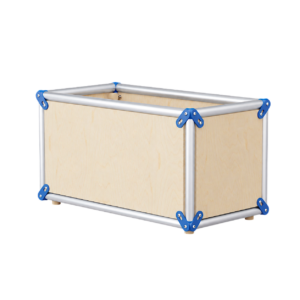

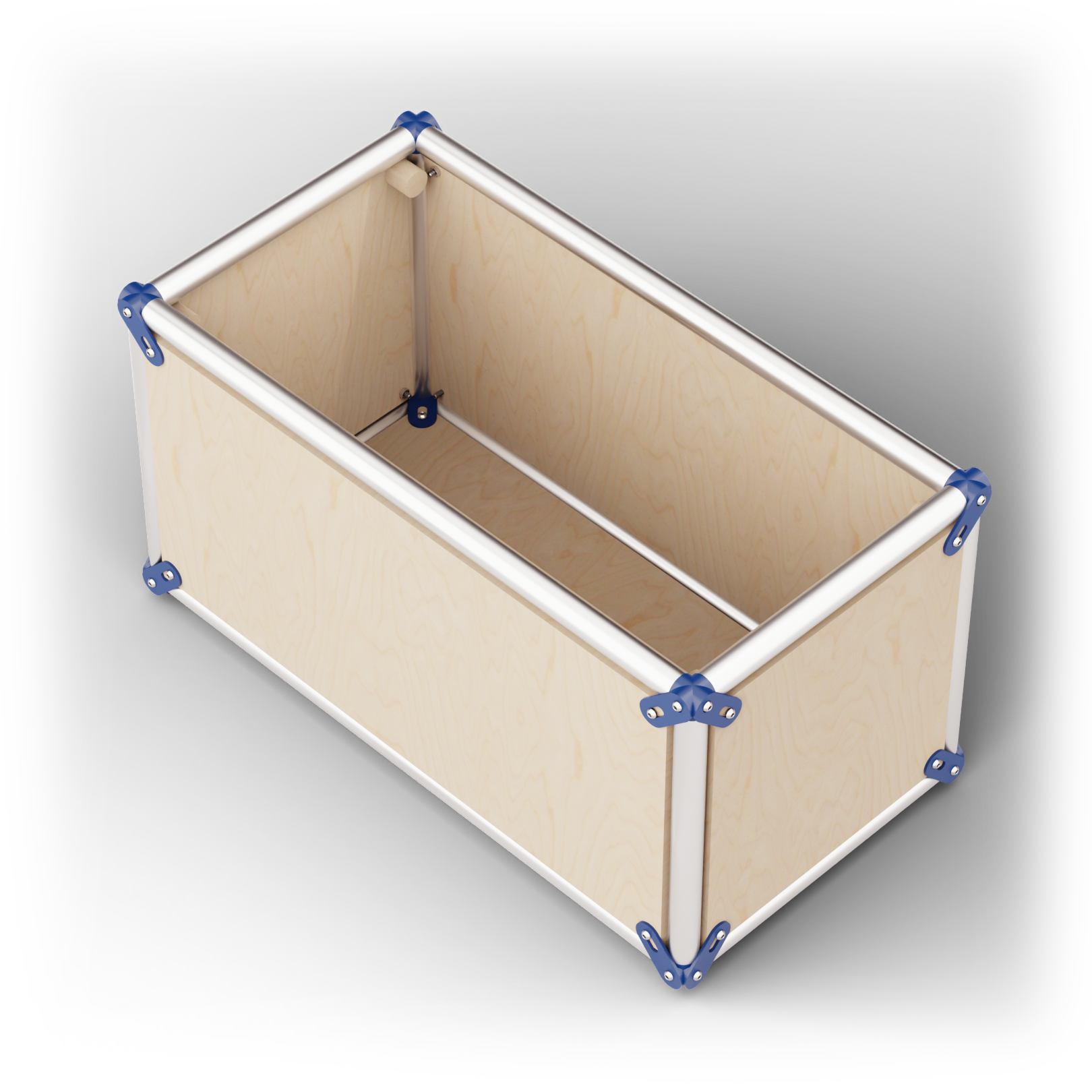

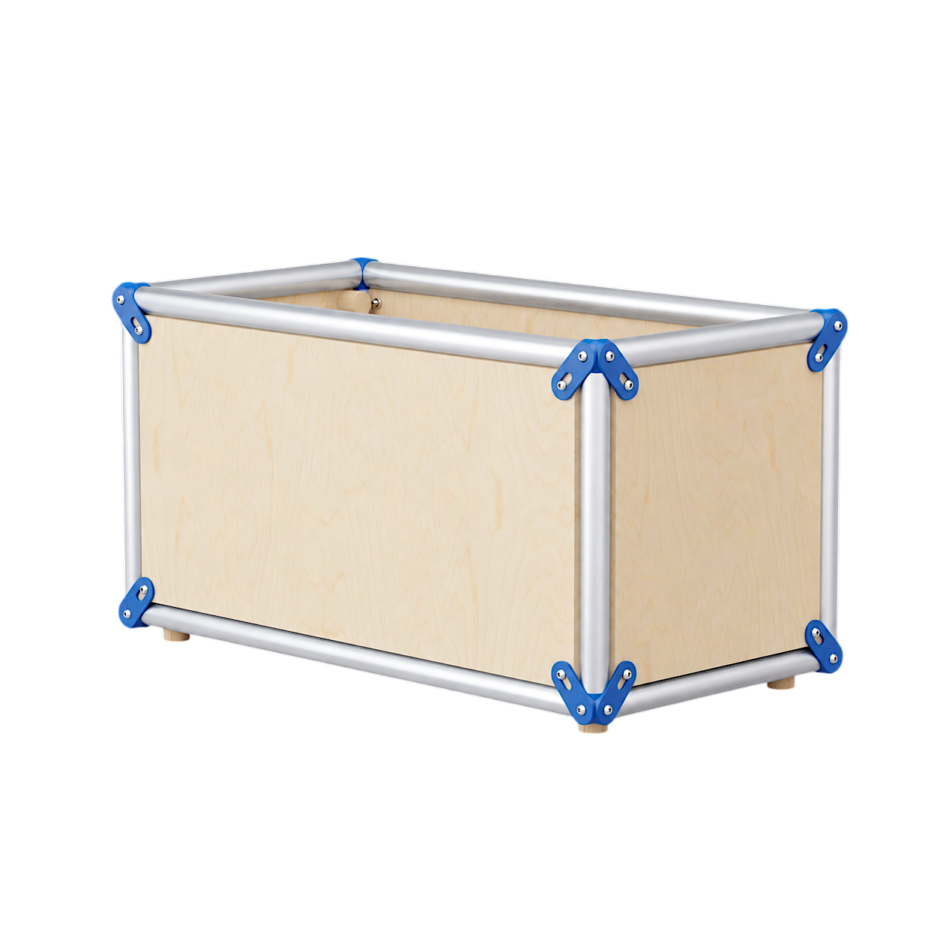

Large Node Box .nd56_
‘Large Node Box‘ „Large Node Box“ is a stackable box to store everything you need in a n3w0rld.
Status: Digital Prototype.
Set info
Set No #083
Context Info
- This is a Node World set
Meta info
- This set was shared via Email
- Disclaimer
This set is part of Ikegos Node World. A subsystem within Ikego.
