Set #088
Parts list
Parts appearing in this set
Wall VAP

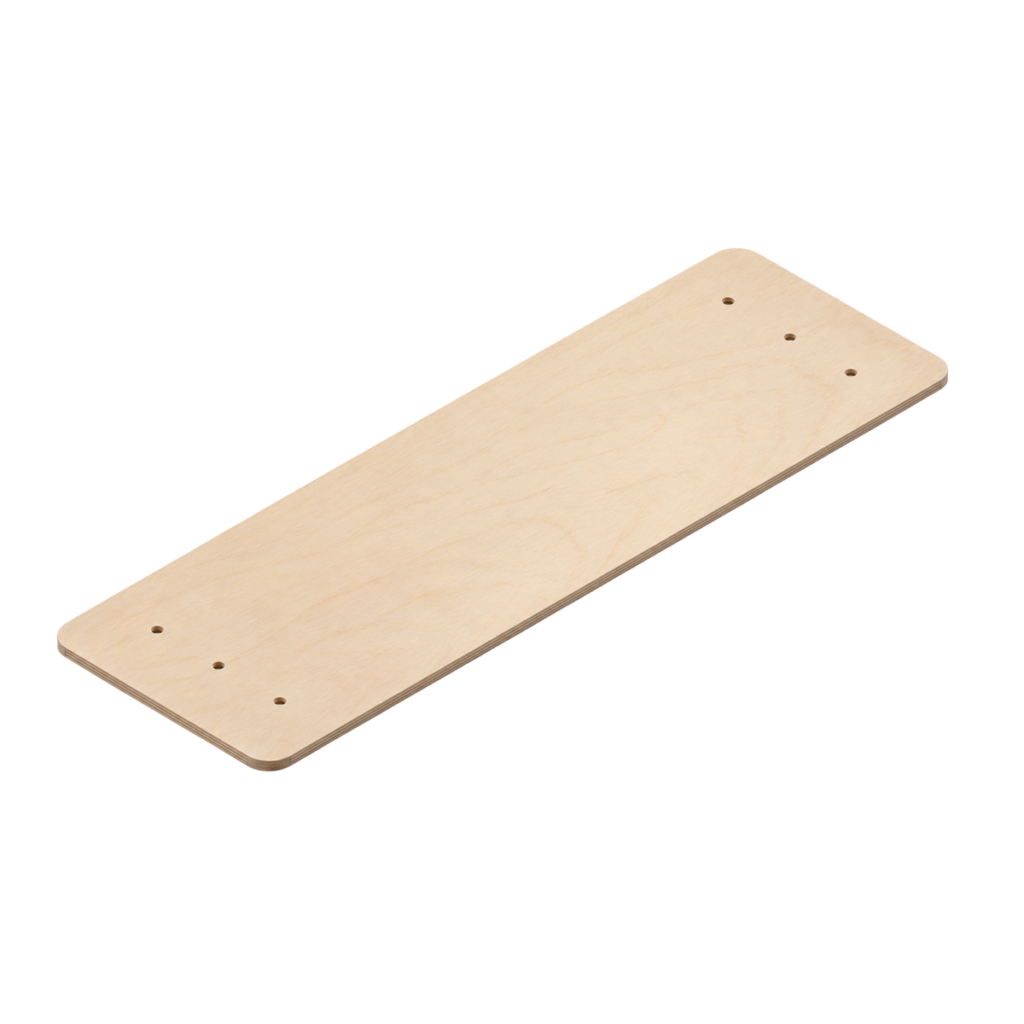

157.1 – Board 1020x330mm
155.1 – Tube 210mm, inner ⌀ 152mm
089.1 – M6 nut
087.1 – M6 washer 20mm
051.2 – Domed washer for KG pipes, ⌀30mm
051.1 – Saddle washer for KG pipes, ⌀30mm
038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
012.2 – Tube 300mm, inner ⌀ 152mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

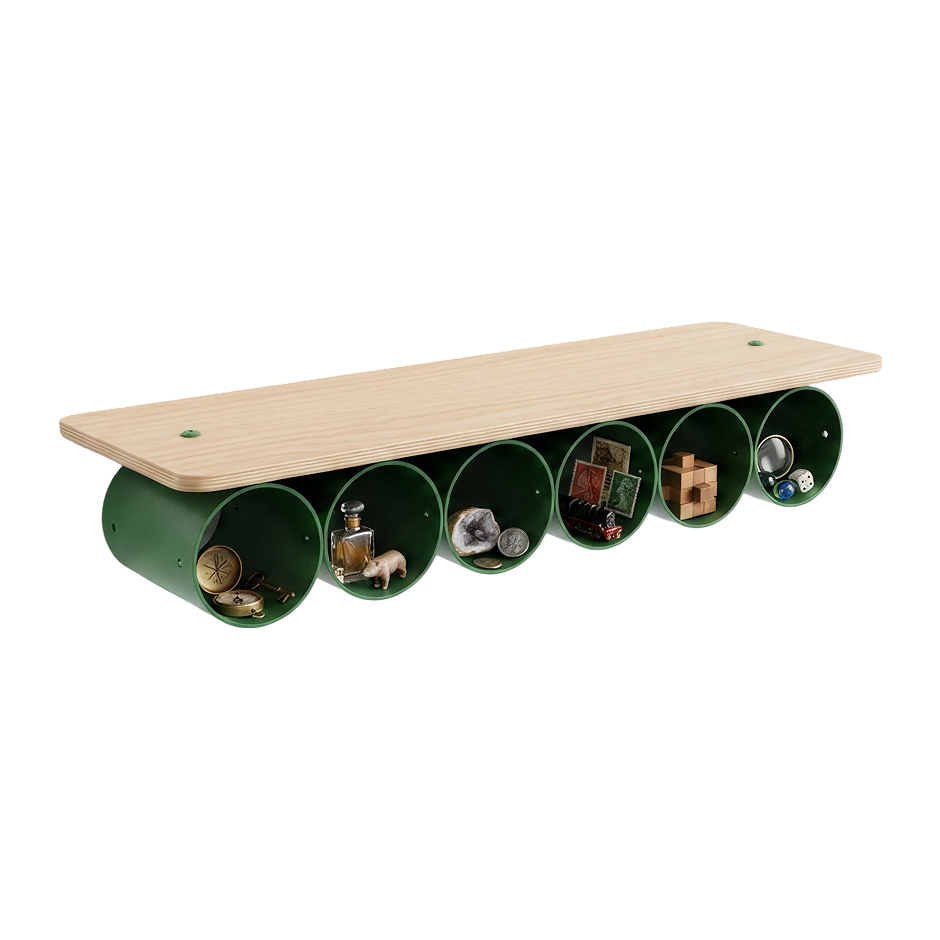

‘Wall VAP‘ is an accessible display that helps you keep things in sight and in reach.
Status: Digital Prototype.
Set info
Set No #088
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
Meta info
- This set was shared via Email, thank you Vageesha
