Set #091
Parts list
Parts appearing in this set

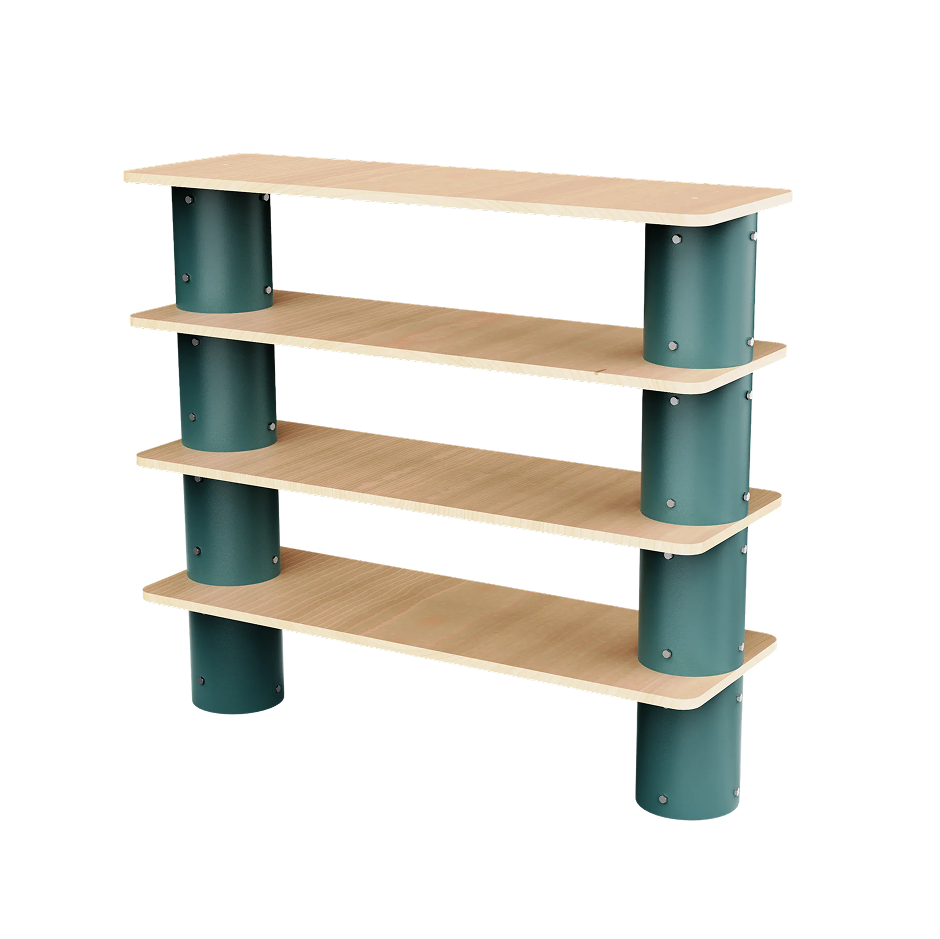

B-Rack
157.1 – Board 1020x330mm
156.1 – M6-M4 Rail Adapter/Nut Holder
155.1 – Tube 210mm, inner ⌀ 152mm
089.1 – M6 nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
048.2 – Tube 60mm ⌀152mm
038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
019.1 – M4 nut
012.2 – Tube 300mm, inner ⌀ 152mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
‘B-Rack‘ invites you to stack it or stack yourself on it! Stack or be stacked.
Status: Physical functional prototype.
Set info
Set No #091
Development status
- As you can see in the pictures, not all of these ideas were built physically. Some ideas were just shared as a digital prototype.
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
Meta info
- This set was shared via Email, thank you Vageesha
