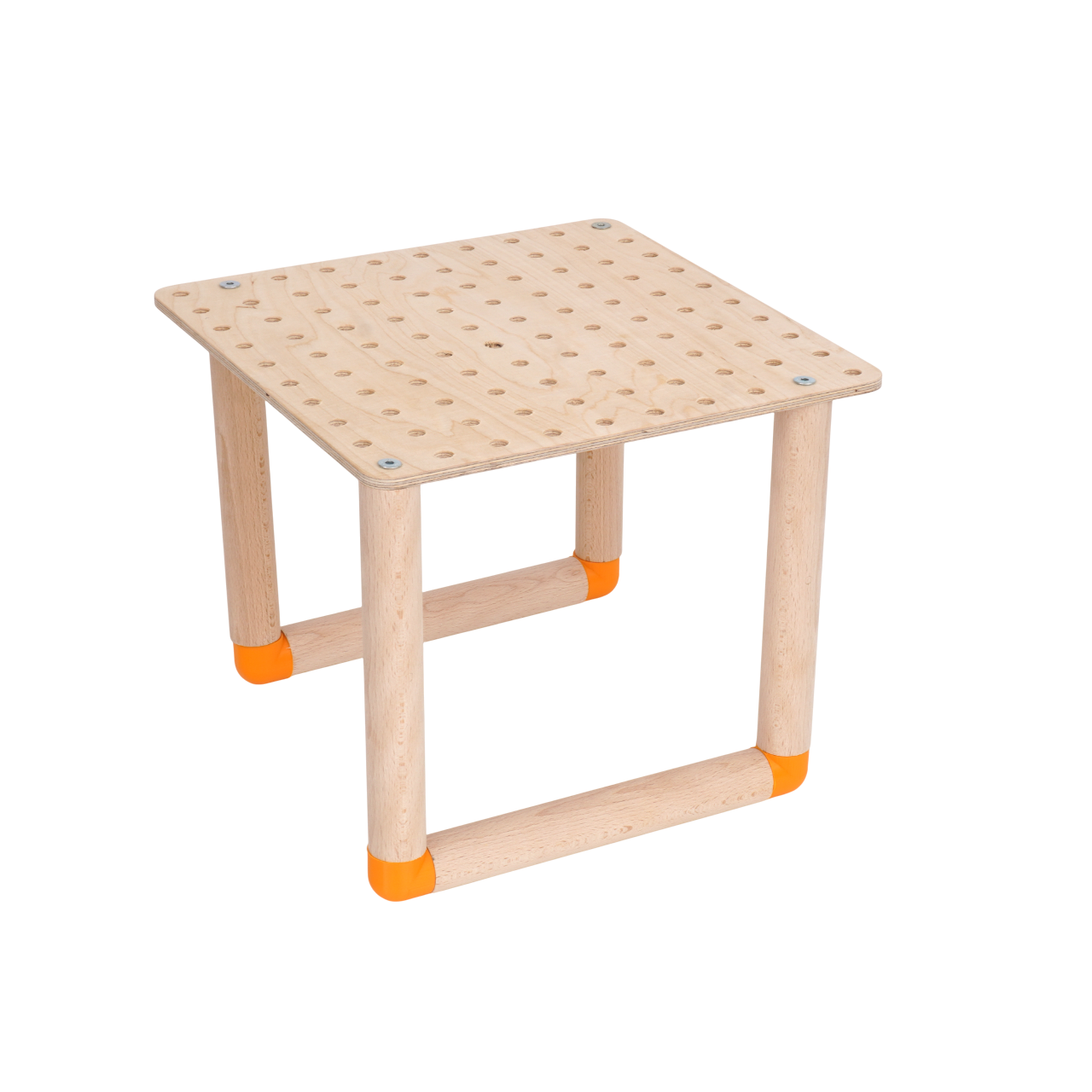

‘Tetribli‘ is a simple side table from the Tetri-World ⤤
By Béla Raketa
Status: Rough prototype/concept
Design info
Set stats: 1 prototype, 0 makes, 0 products info
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- All makes shown in this post were created by the designer. → Add your make.
- Disclaimer
Universal parts
Tetribli .nd02_

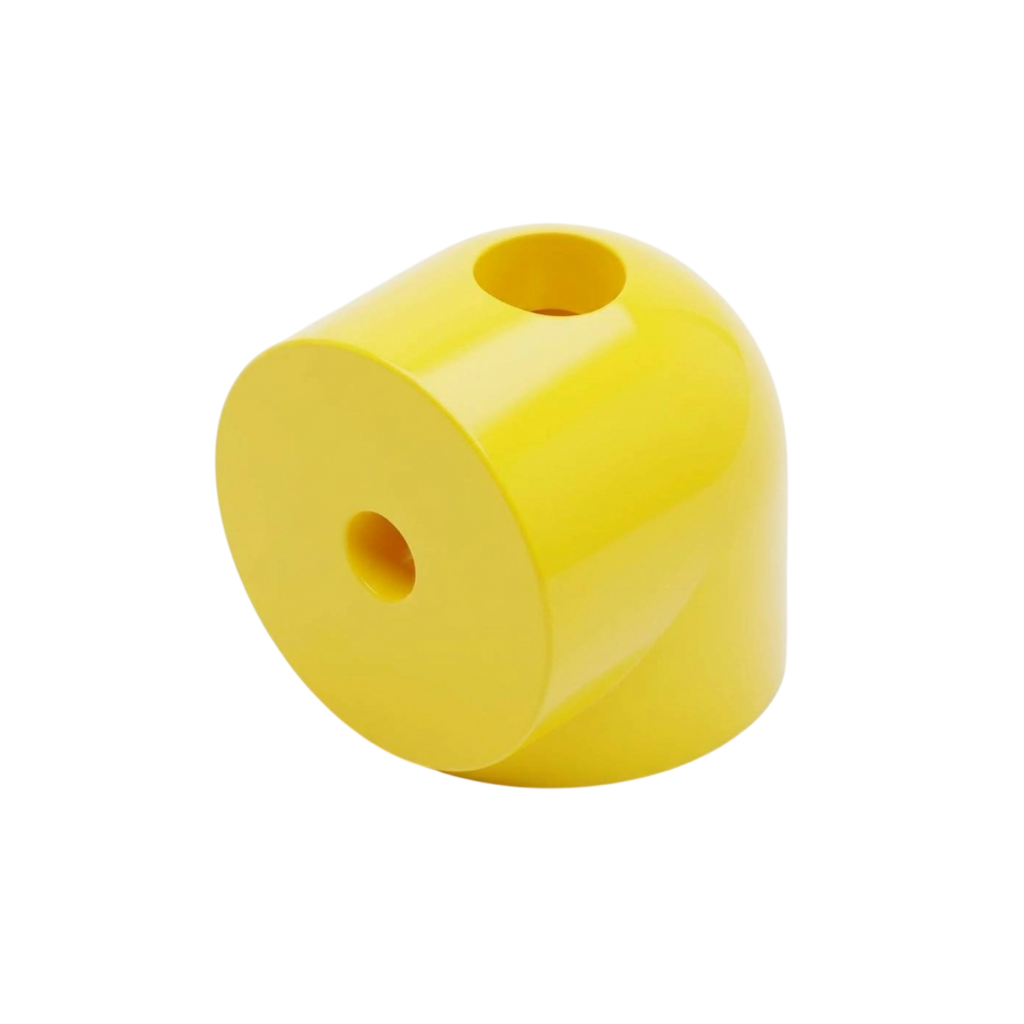

115.3 – 2 corner bracket modified Round +

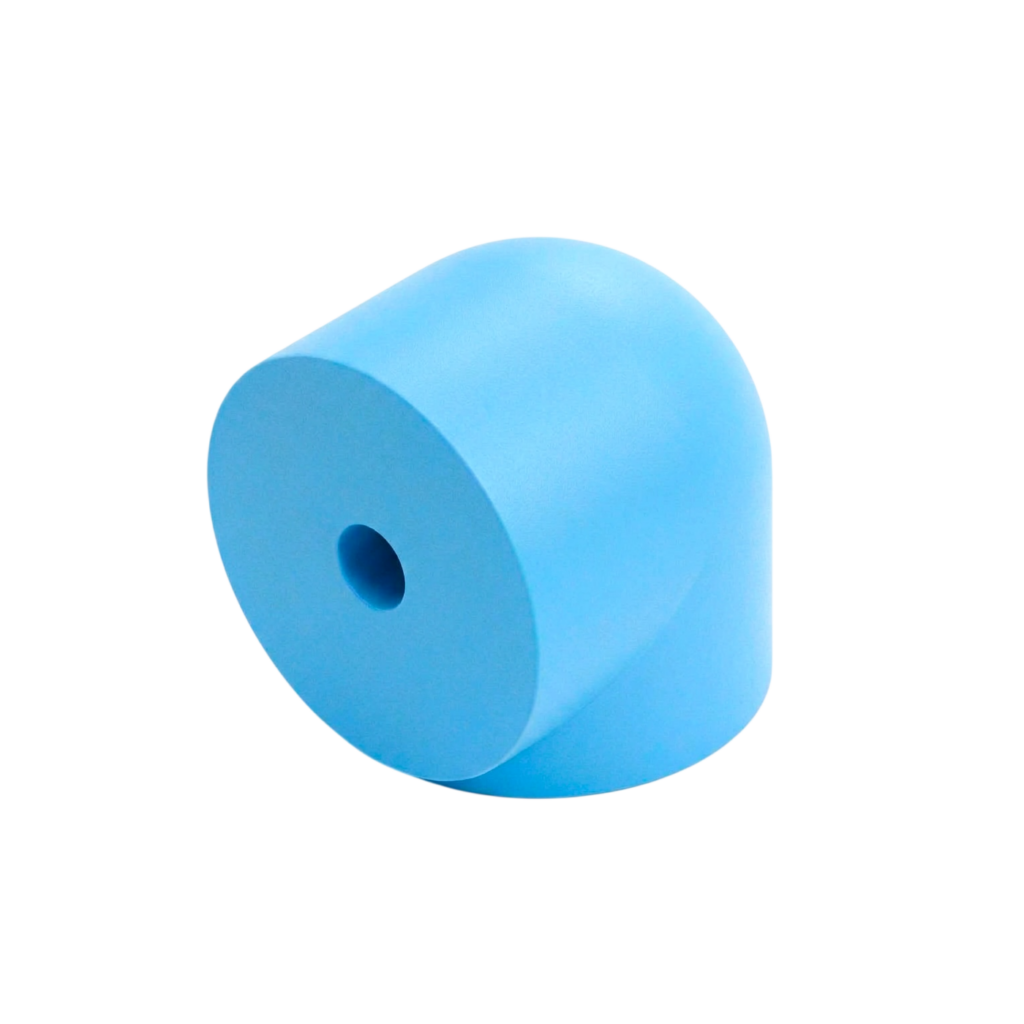

115.2 – 2 corner bracket modified Round, M6, 15mm to edge
115.1 – 2 corner bracket, M6, 15mm to edge
102.2 – Board ~300x300x16mm – “Tetri Board”
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.1 – M6 threaded rod 50mm
030.1 – M6 bolt ~30mm
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
