Set #013
Parts list
Parts appearing in this set
087.1 – M6 washer 20mm
077.1 – M6 eye bolt ~40mm
074.1 – M6 round socket
062.1 – Clockwork
051.2 – Domed washer for KG pipes, ⌀30mm
051.1 – Saddle washer for KG pipes, ⌀30mm
048.2 – Tube 60mm ⌀152mm
048.1 – Tube 60mm ⌀152mm
030.1 – M6 bolt ~30mm
019.1 – M4 nut
005.2 – Disk 151,5 mm 13 holes
004.1 – Washer disk ⌀ 40mm
Platform Clocks
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

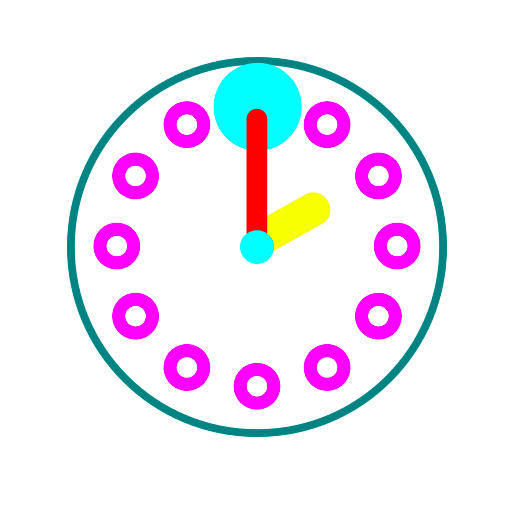

The 'Platform Clocks' give holes instead of numbers. It's a platform for your own 'view' of time. Attach what you like or let the light shine through. It's time for change.
Status. Functional Prototype
Set info
Set No #013
On parts & builds
- As visible in the images you can put it on the wall or on a stand.
- The holes allow you put as numbers whatever you like. Create your own time : – )
Meta info
- You can see above several versions and examples of the platform clocks. For more info about those and much more please visit the original post by the designer. Original post backup.pdf
- The fasteners for the platform clocks are not included in the parts list, because there are so many possibilities.
- All makes shown in this post were created by Mifactori → Add your make.
- This solution was added as part of the initial 44.
- Disclaimer
