Set #035
Parts list
Parts appearing in this set
111.1 – Board 450x360mm
110.1 – “Marii board” 450x180mm
109.1 – Board 480x360mm
108.1 – Beam ~660x30x30mm
107.1 – Beam 450x30x30mm
105.1 – Triangle ~70mm
101.2 – Bead ⌀ ~16mm, ⌀ 6mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
089.1 – M6 nut
088.2 – M6 sleeve nut ~16mm
088.1 – M6 wing nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm
074.1 – M6 round socket

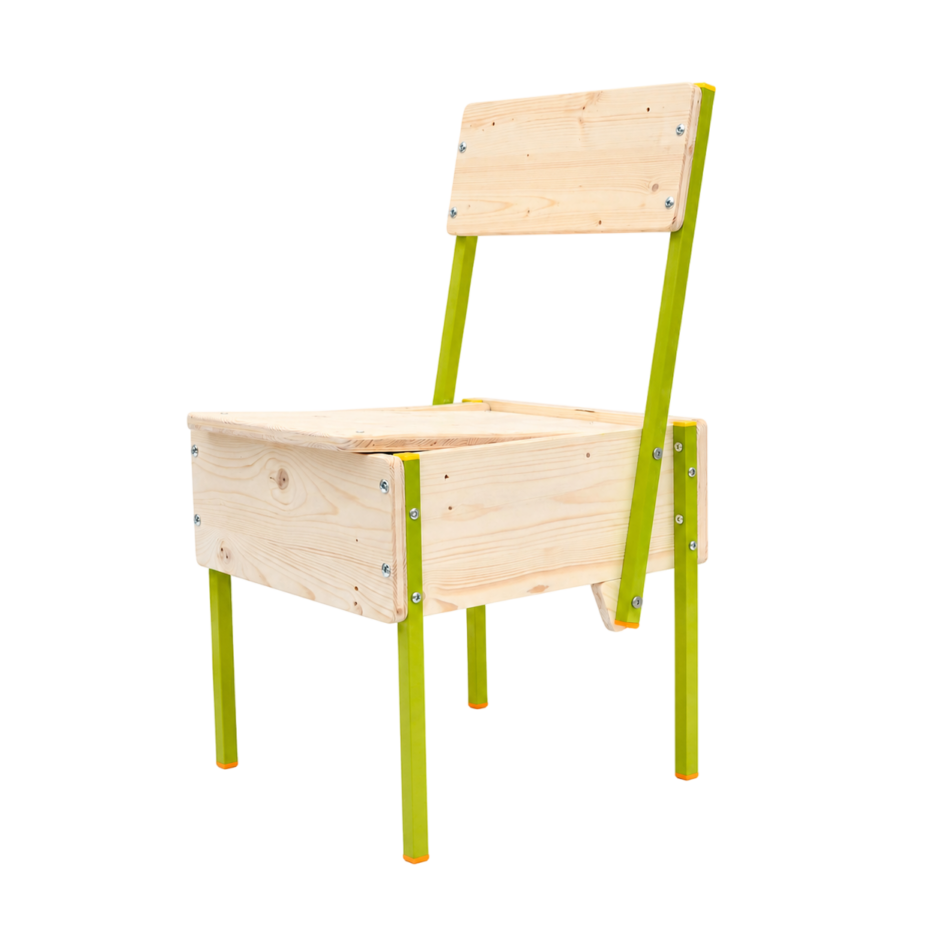

The Marii
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
‘The Marii‘ takes the famous open design chair by Enzo Mari († 2020) and upgrades it to an open circular design chair made from open multipurpose parts.
Status: Functional Prototype
Set info
Set No #035
On parts & builds

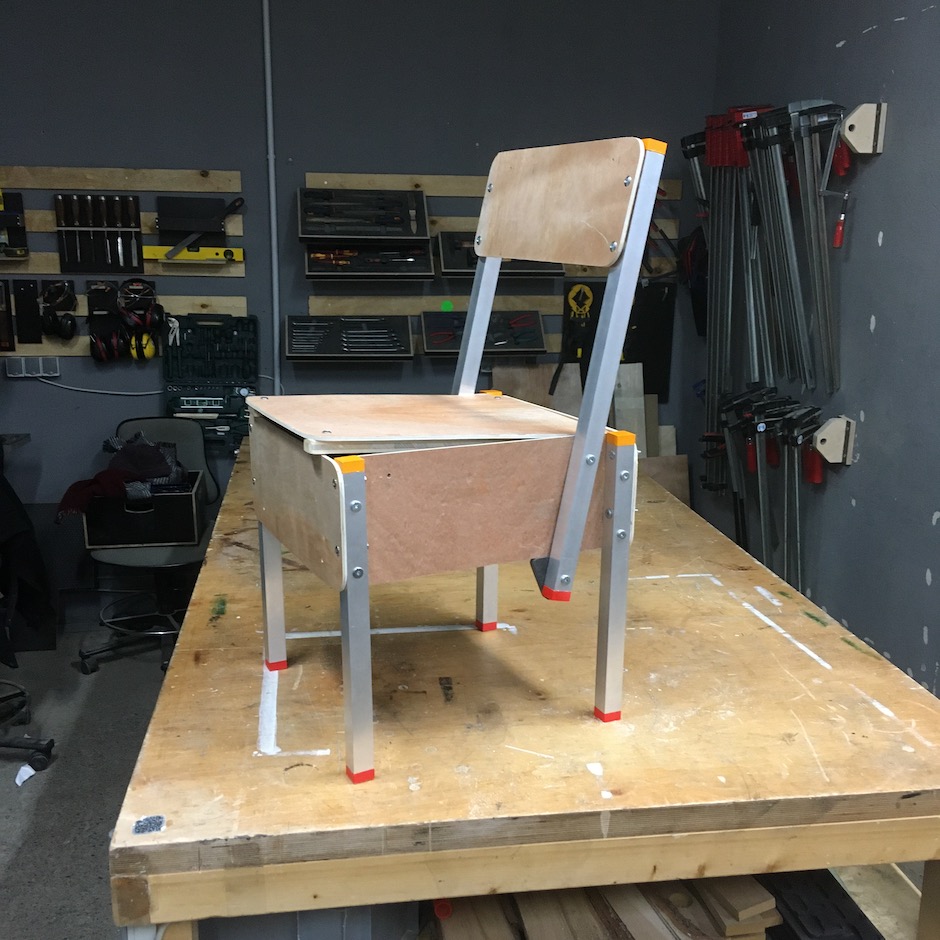

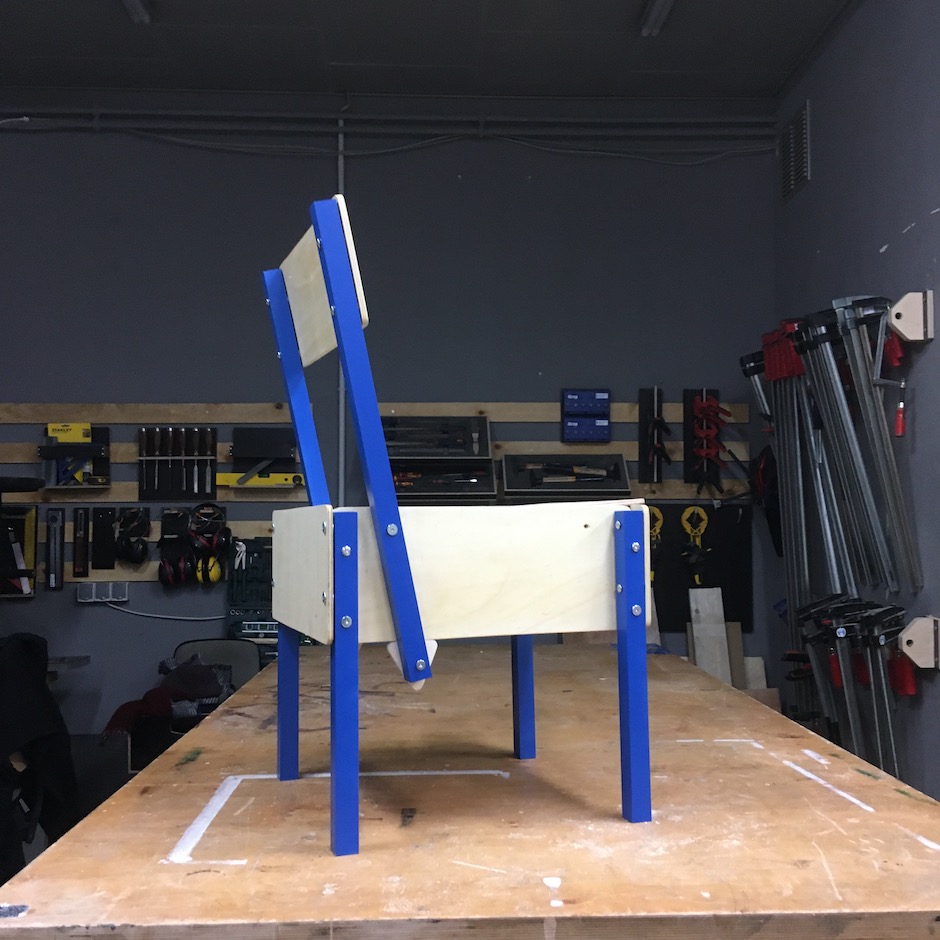

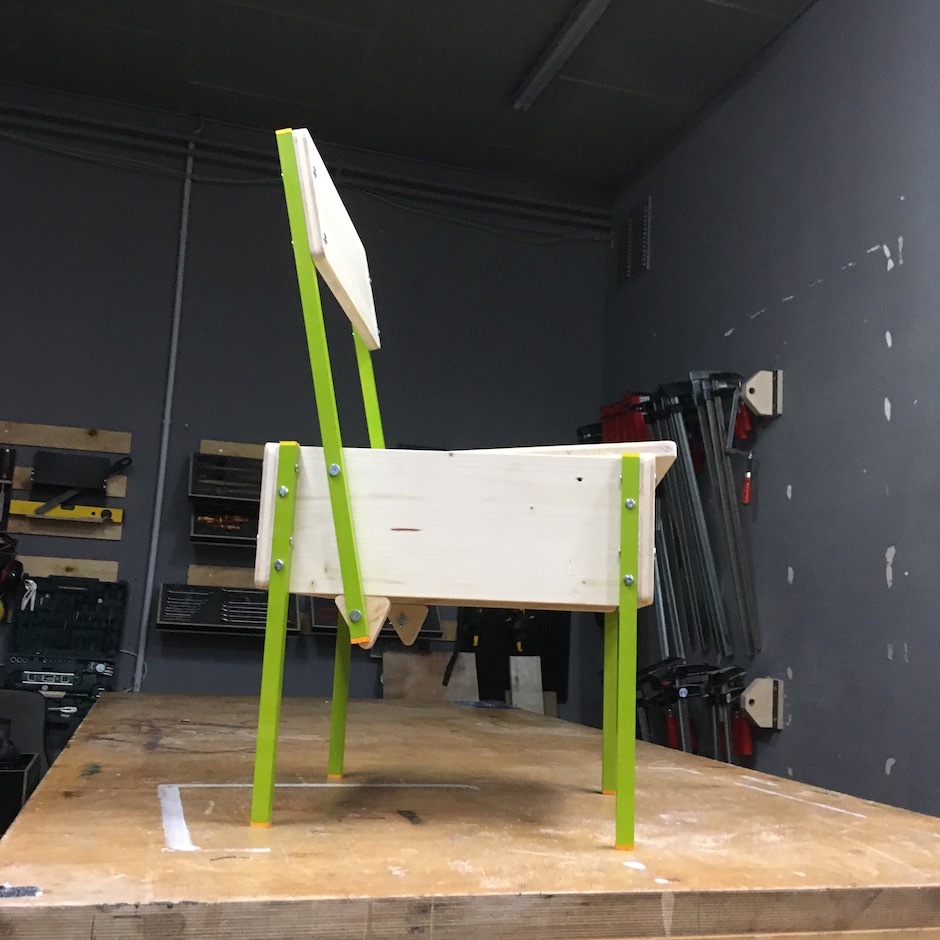

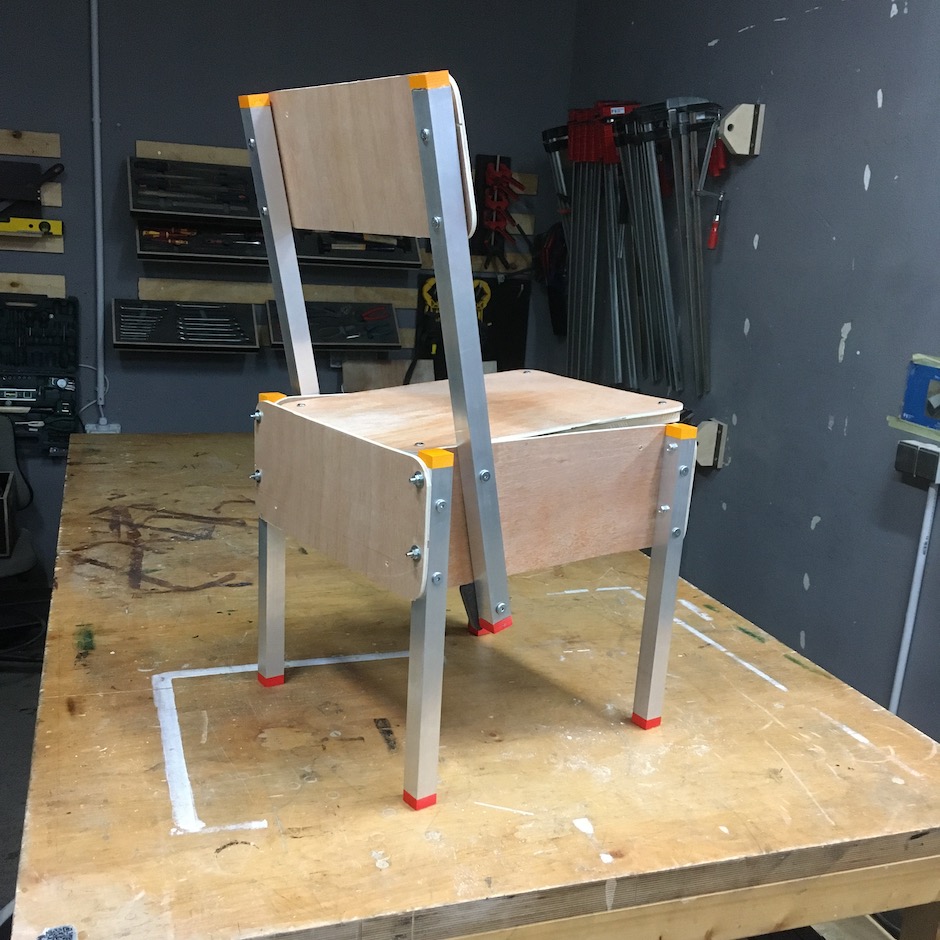

- As you can see from the pictures, Enzo Mari’s original design has been given two further upgrades in addition to the modular construction: The backrest can now be adjusted from relatively upright for concentrated work to relatively horizontal for relaxed sitting, and the body of the chair now has a storage function.
- Together with the Marii, other designs were submitted that show how the chair’s modular components can be used in other ways. Parallel entries were → Bork, → Badli, → The Marii Planter, → The Marii Box & → Plant Podest.
Meta info
- Visit the → original post by the designer for more pics and infos. (op_backup.pdf)
- All makes shown in this post were created by Audrey Burnard in collaboration with Mifactori → Add a make.
- Pictures by Audrey Burnard & Mifactori, cc-by-4.0
