Set #089
Parts list
Parts appearing in this set
Tripot
156.1 – M6-M4 Rail Adapter/Nut Holder
155.1 – Tube 210mm, inner ⌀ 152mm

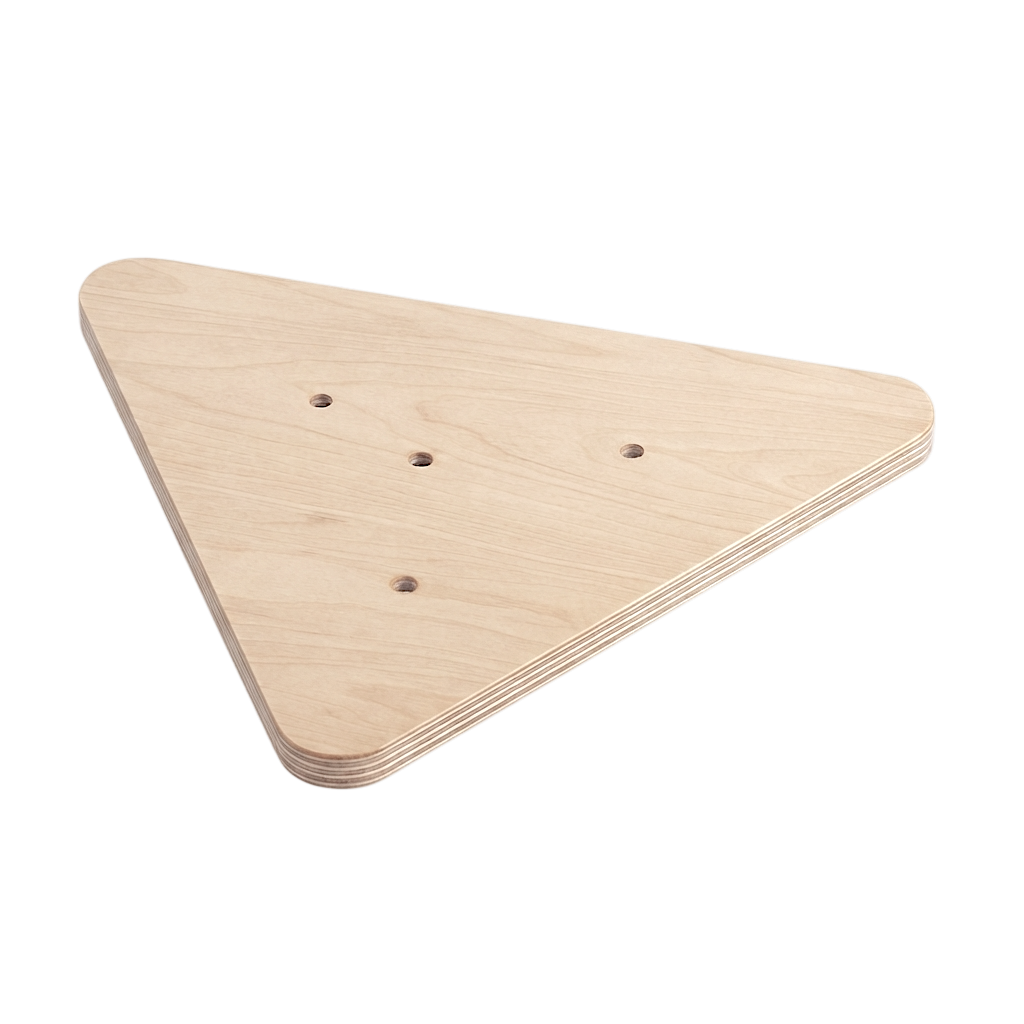

154.1 – Board, equilateral triangle, side length 450mm
089.1 – M6 nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
019.1 – M4 nut
012.2 – Tube 300mm, inner ⌀ 152mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

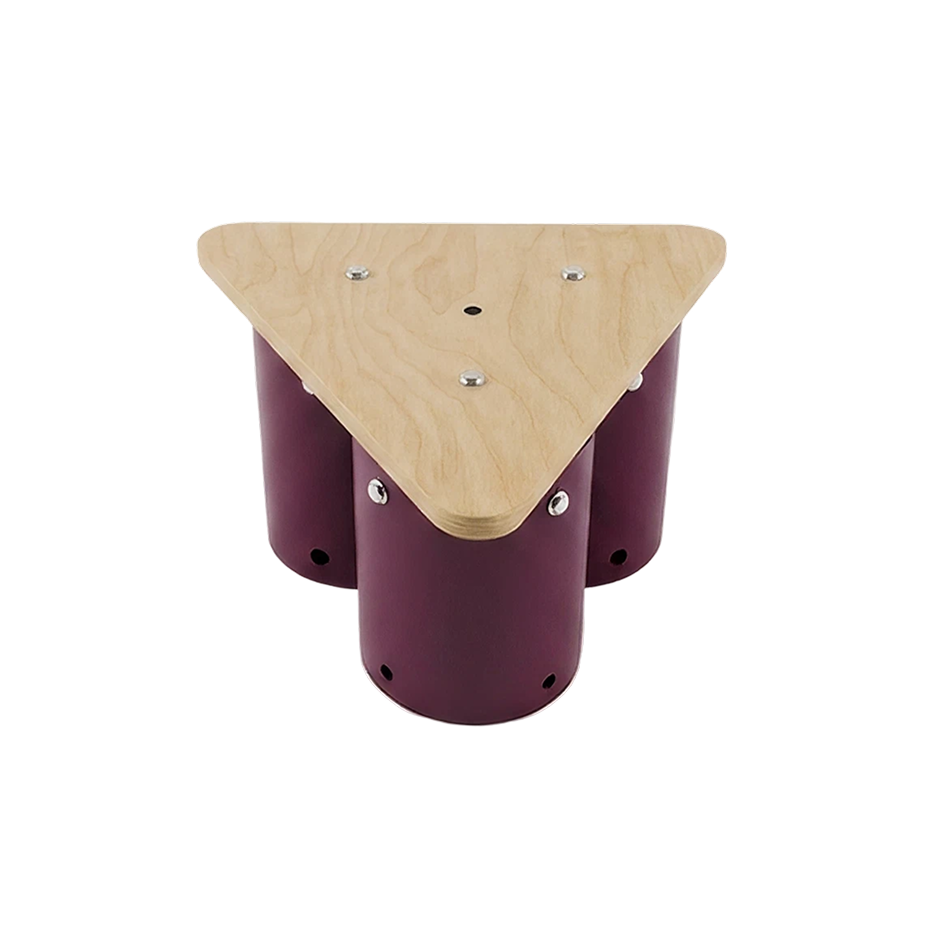

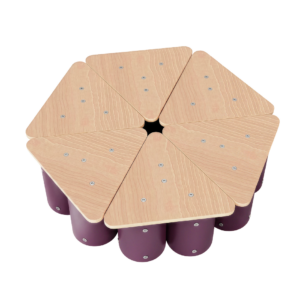

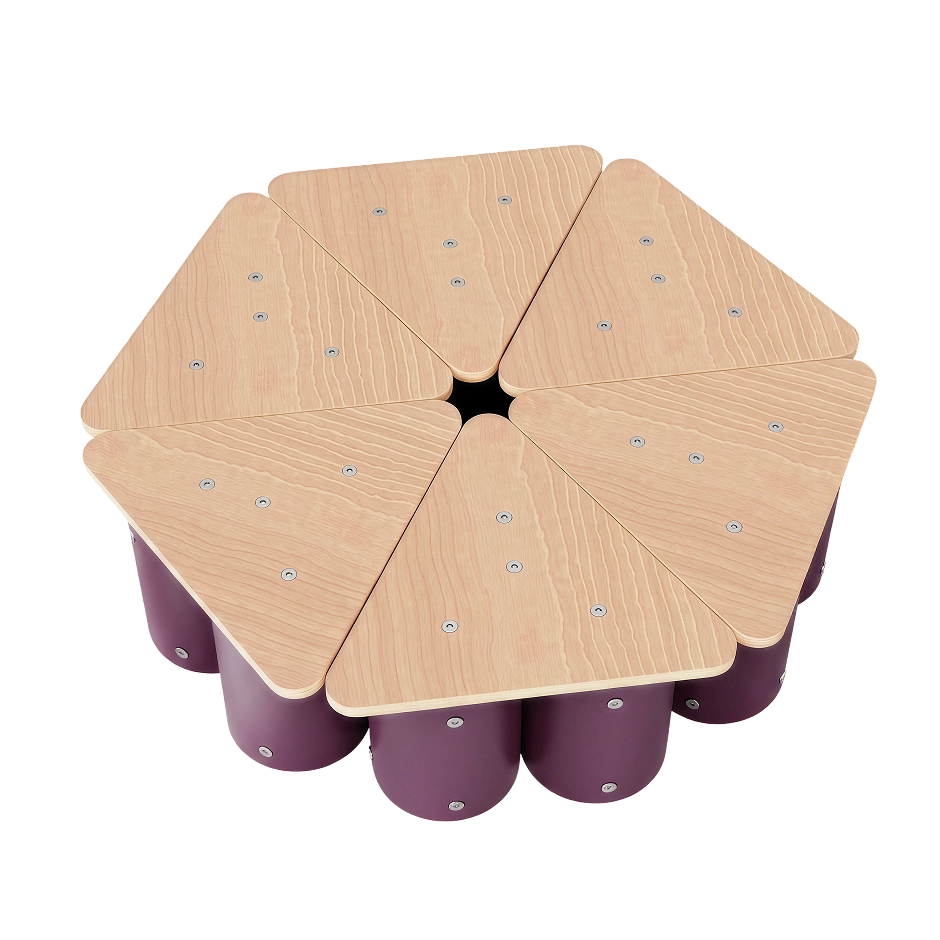

‘Tripot‘ brings triangles into the physical world, inviting you to build infinite landscapes. 🏞️
Status: Physical functional prototype.
Set info
Set No #089
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
Meta info
- This set was shared via Email, thank you Vageesha
