#066
146.1 – Key ring ⌀ 38mm
143.1 – Wire mesh, bendable, 330x330mm

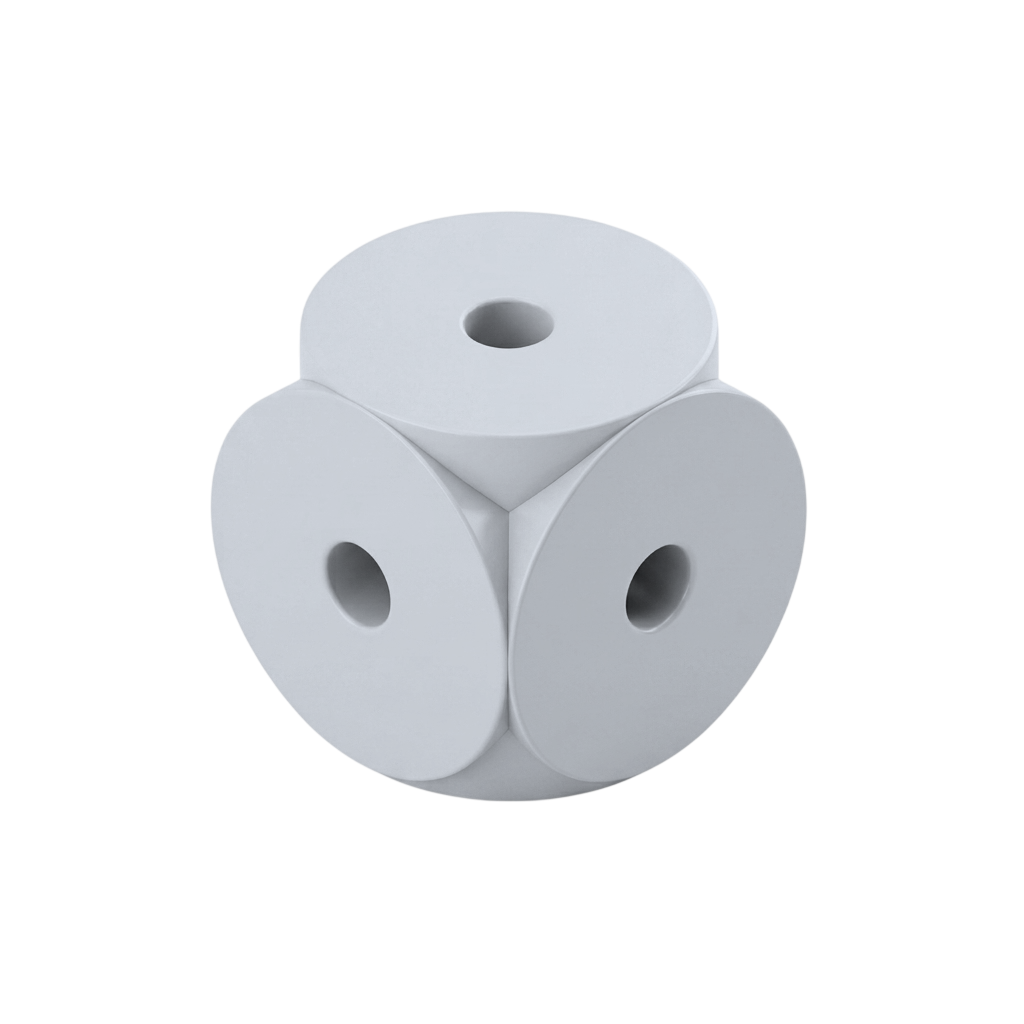

134.1 – 4 corner bracket Round
115.3 – 2 corner bracket modified Round +
115.2 – 2 corner bracket modified Round, M6, 15mm to edge
095.7 – 690mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
082.1 – M6 bolt 50mm
Upstart .nd16_

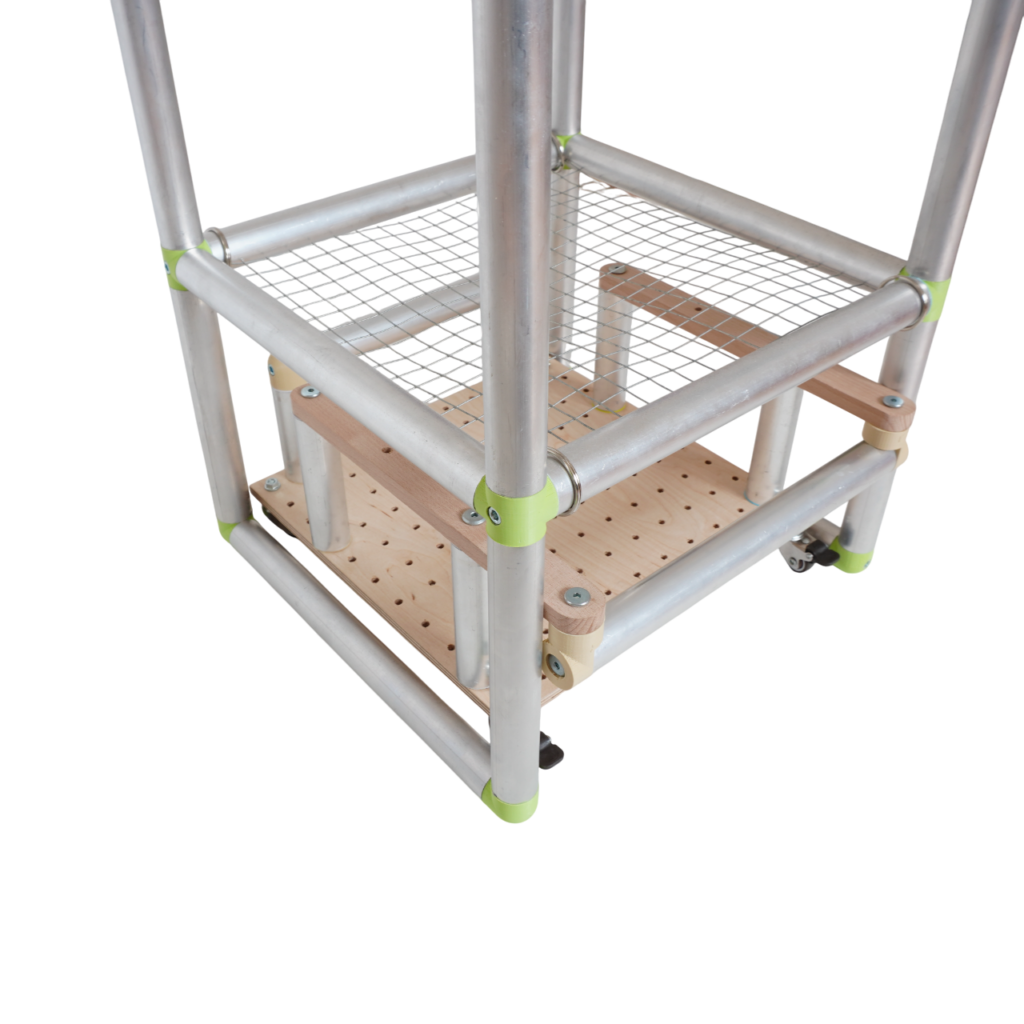

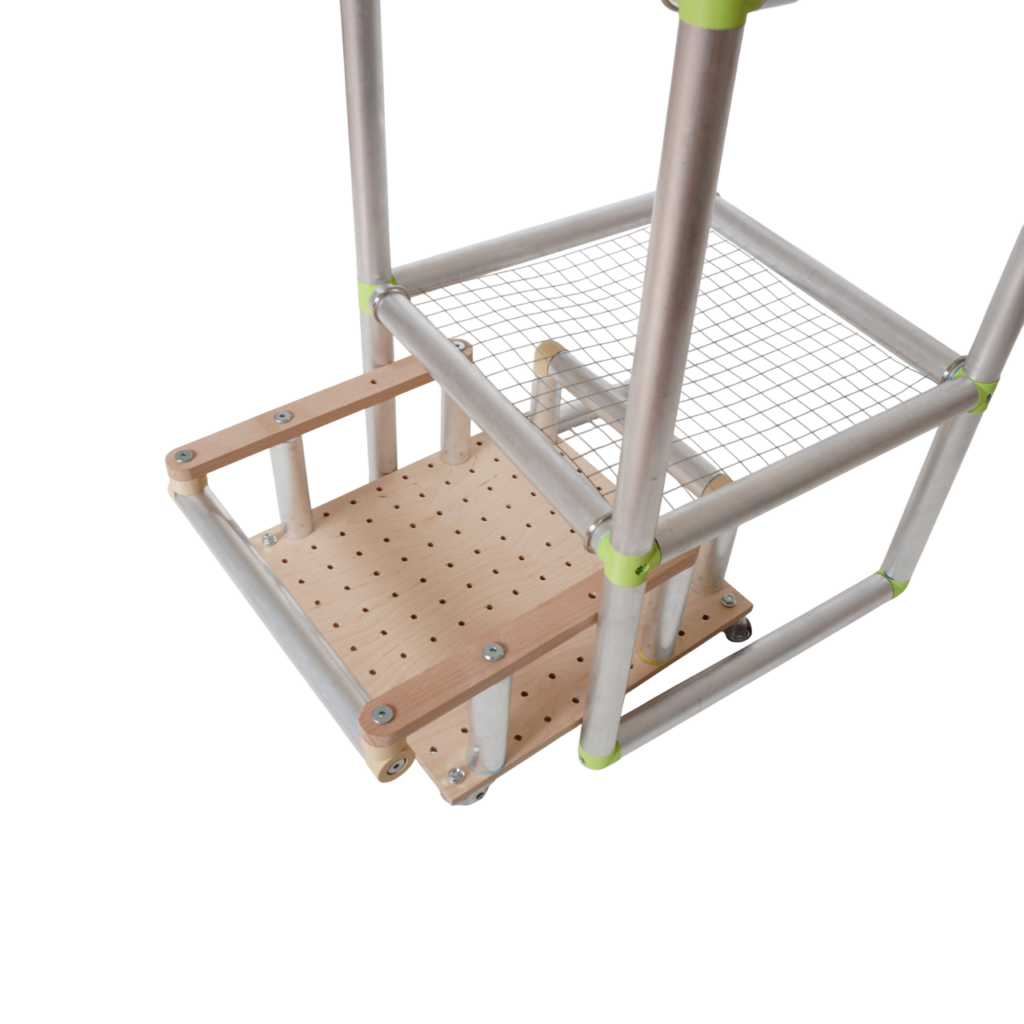

ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
📍 A LOCAL CRAFT BUSINESS
- You can order this set as a local make ✔️
💚 BUILD IN A WORKSHOP
- Make this set from scratch. Create or book a workshop.
🛒 OFF THE SHELF
- No manufacturer yet. Sign up for updates. | Become a seller.

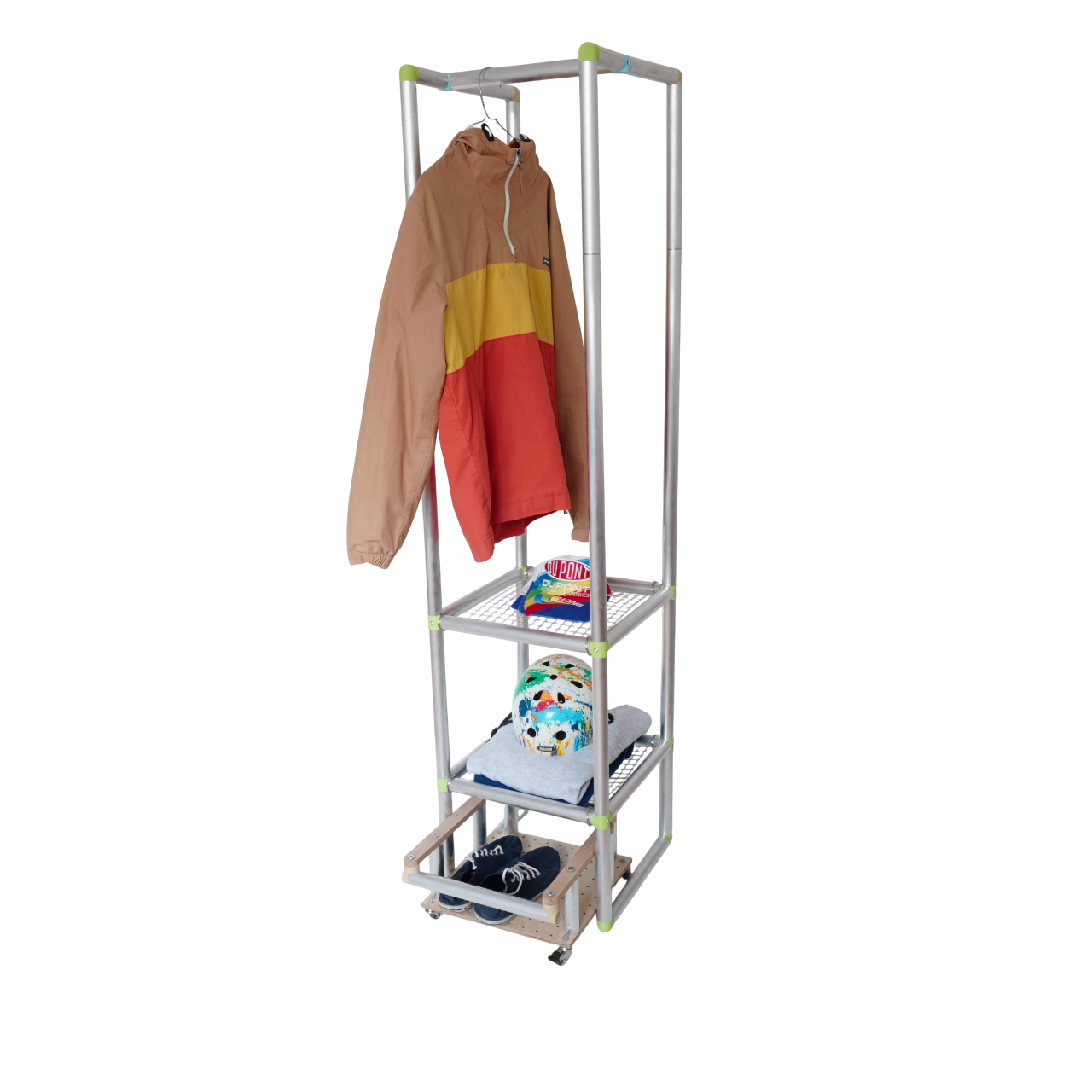

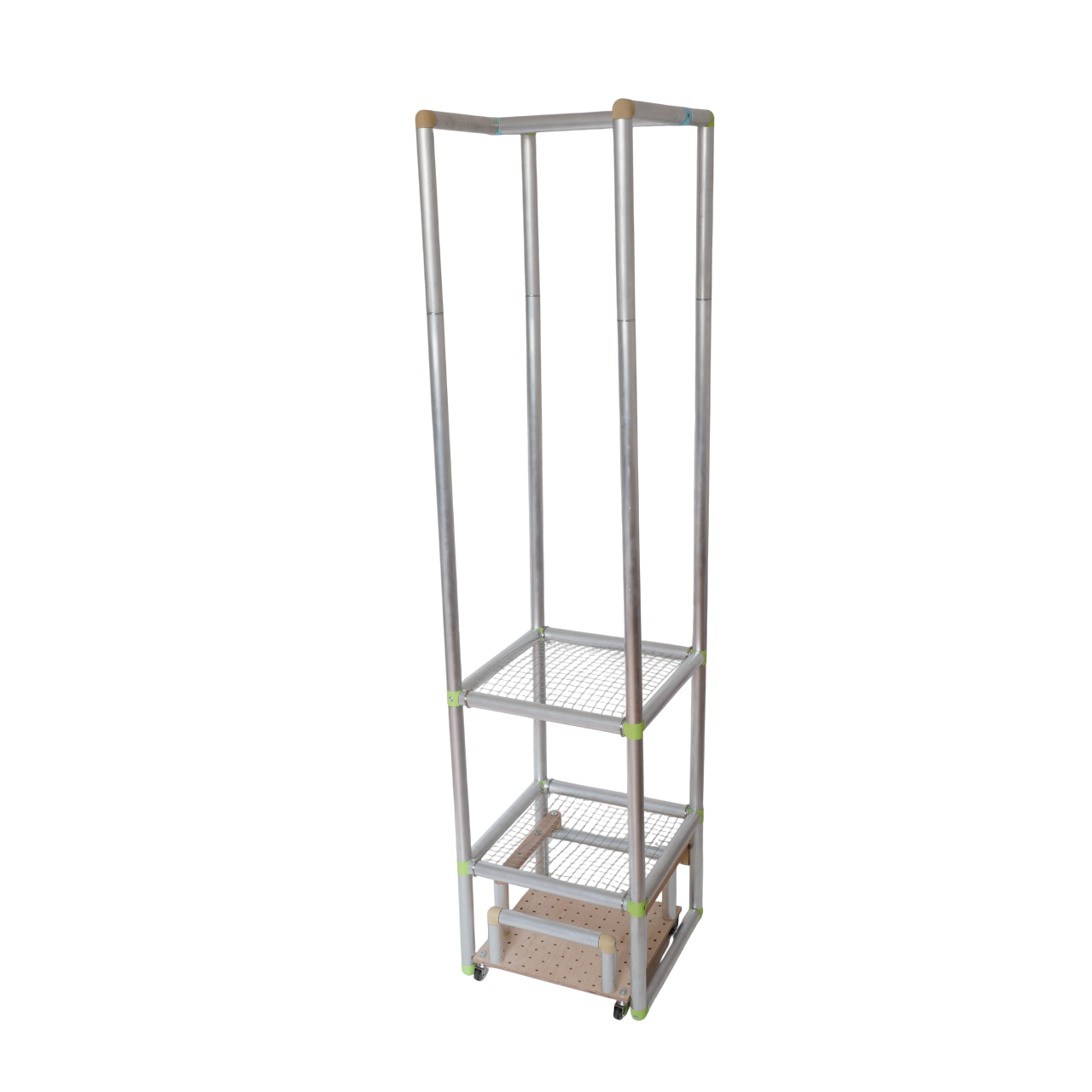

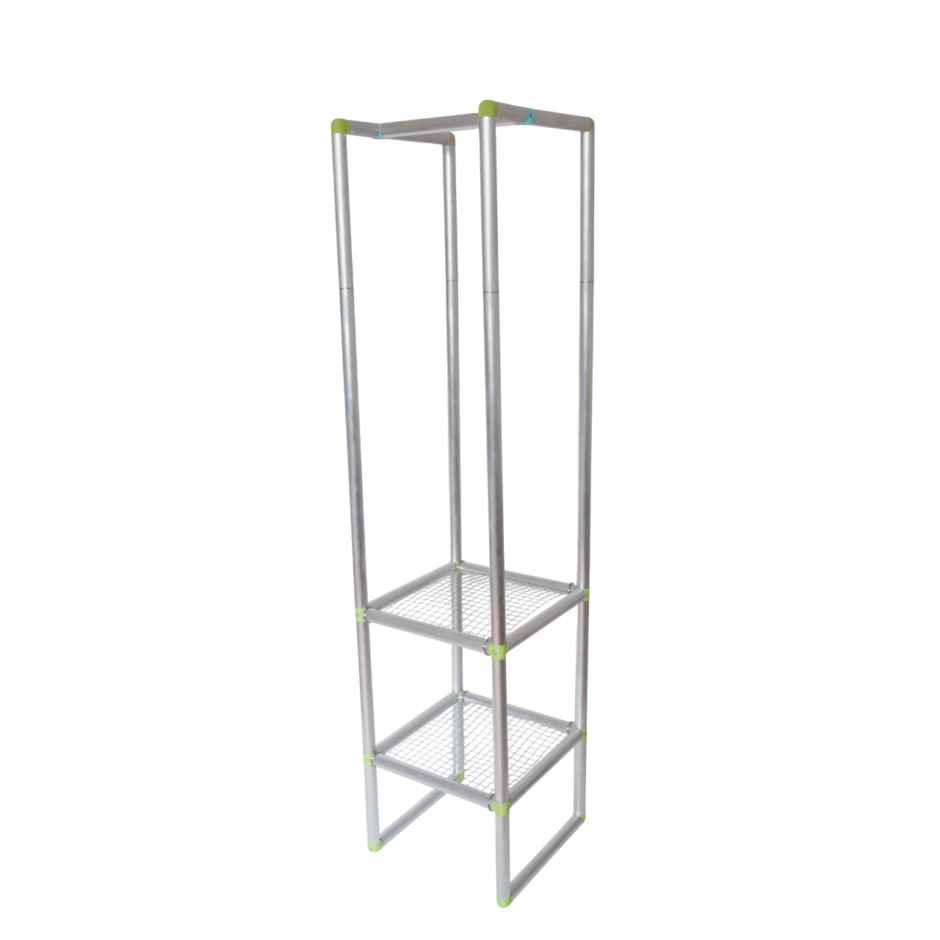

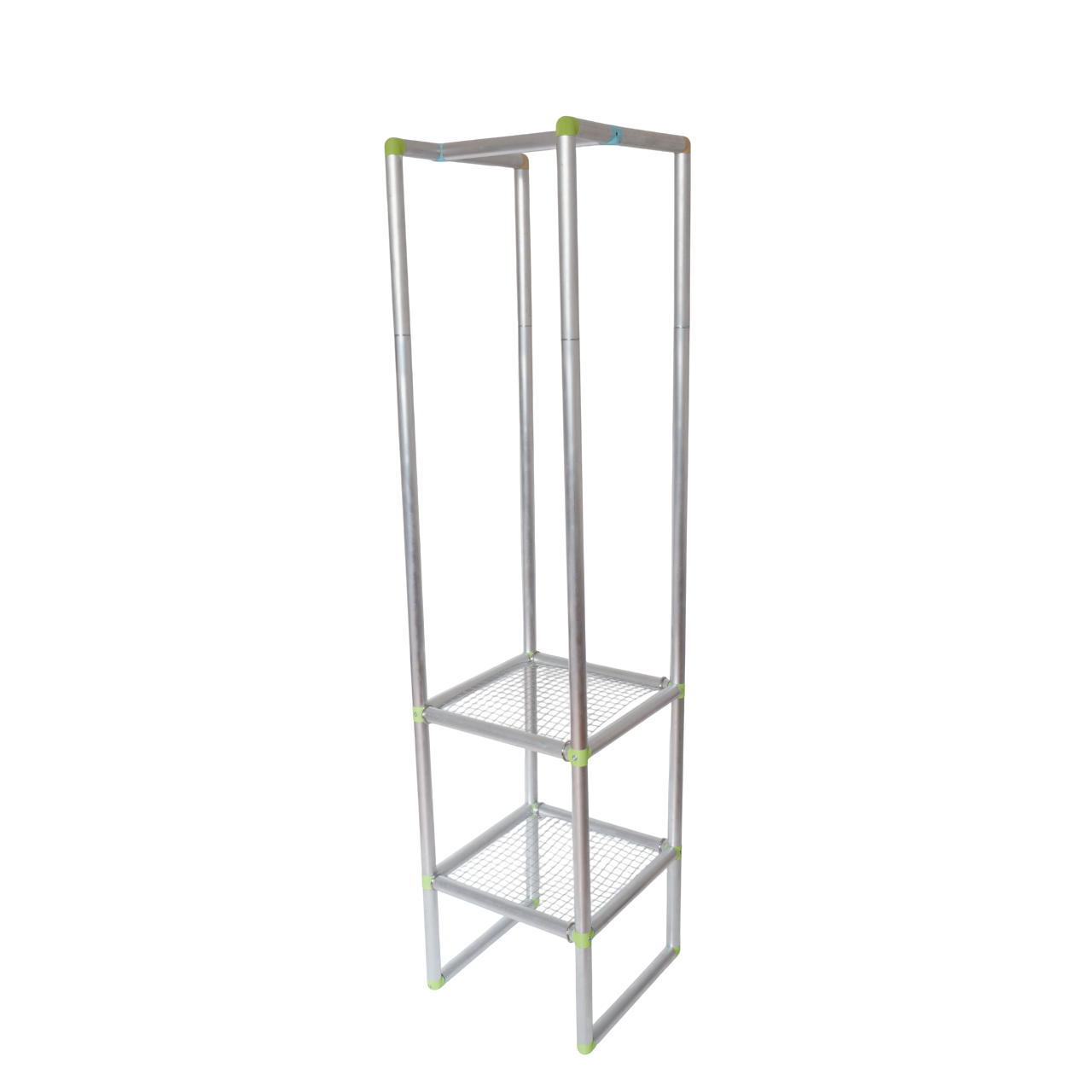

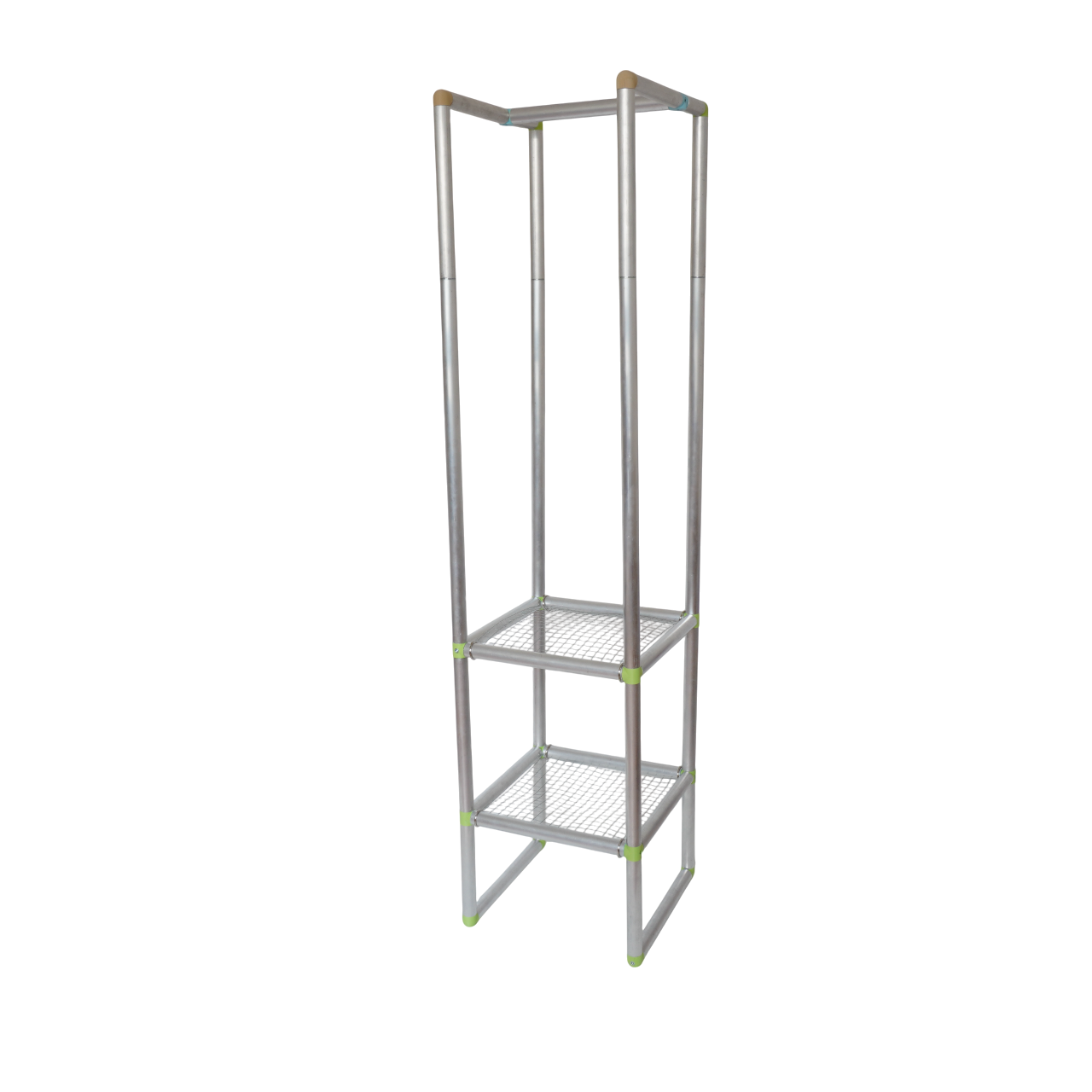

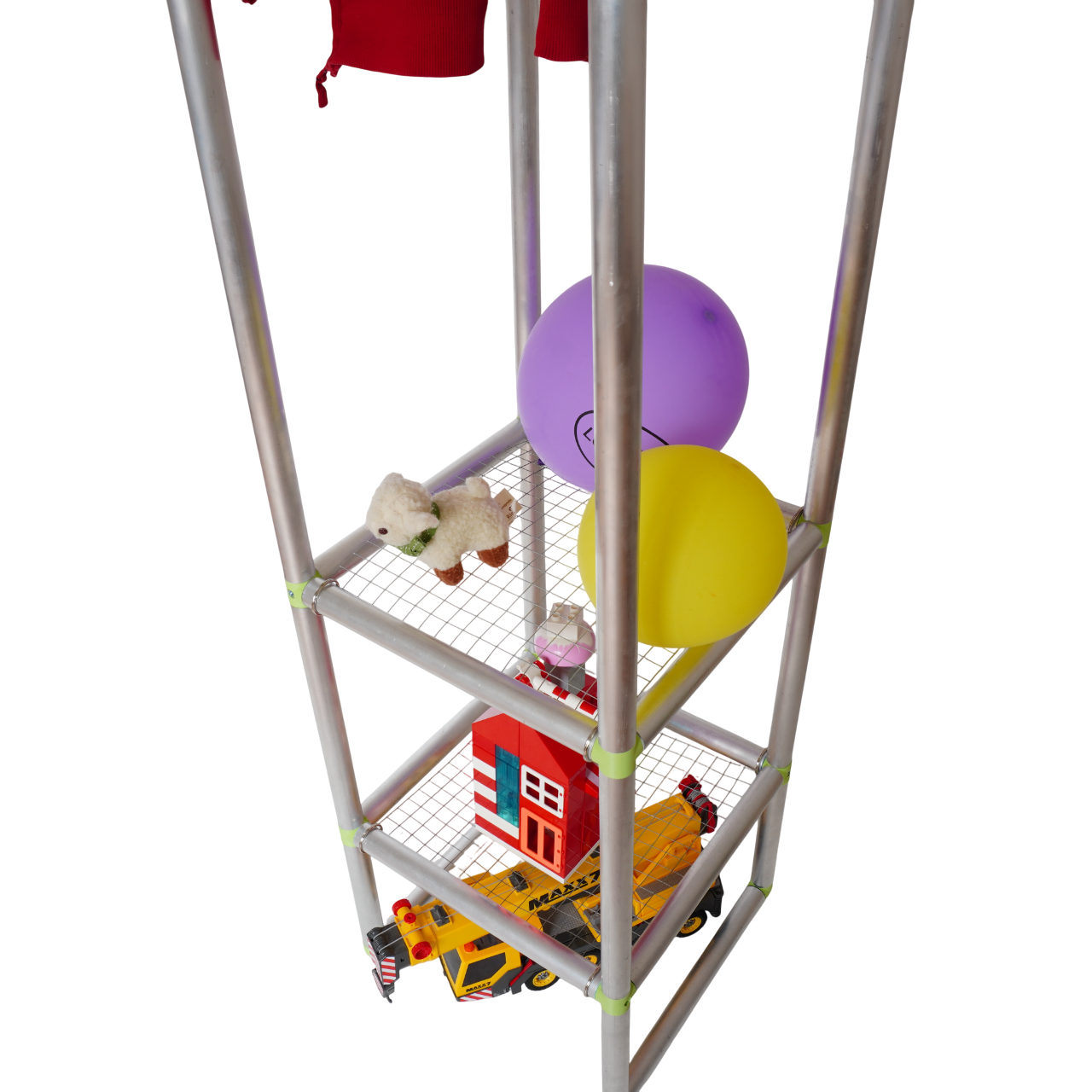

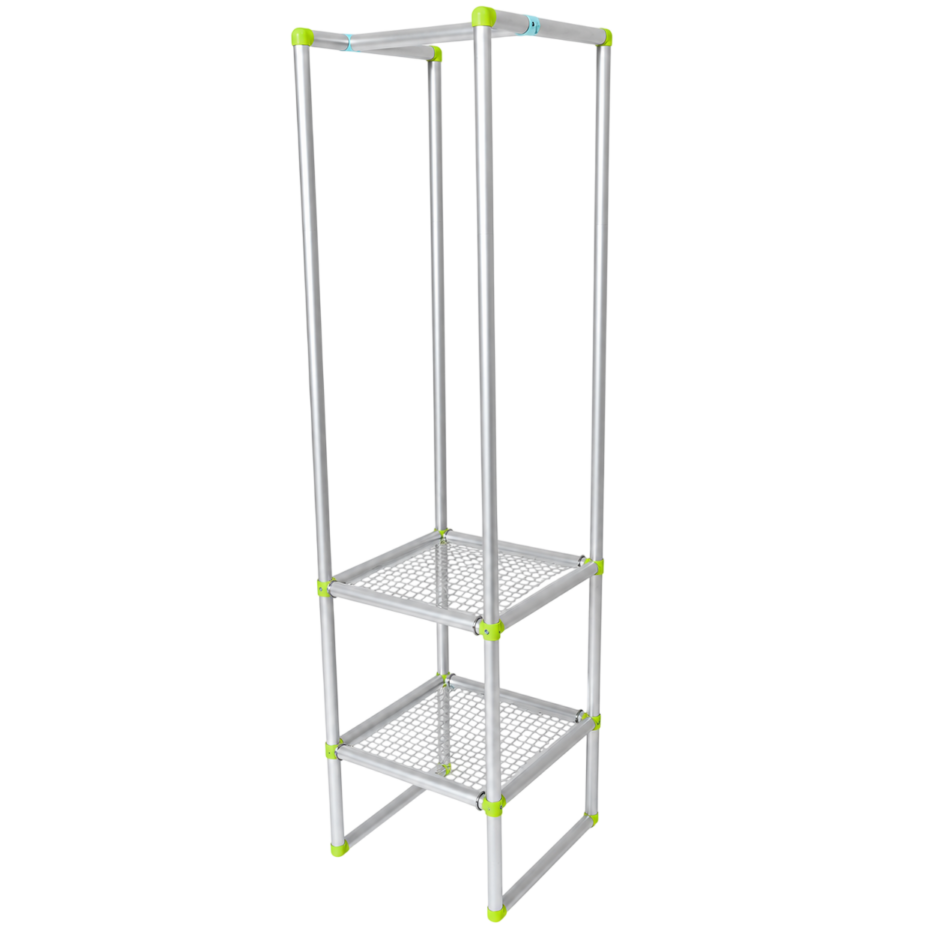

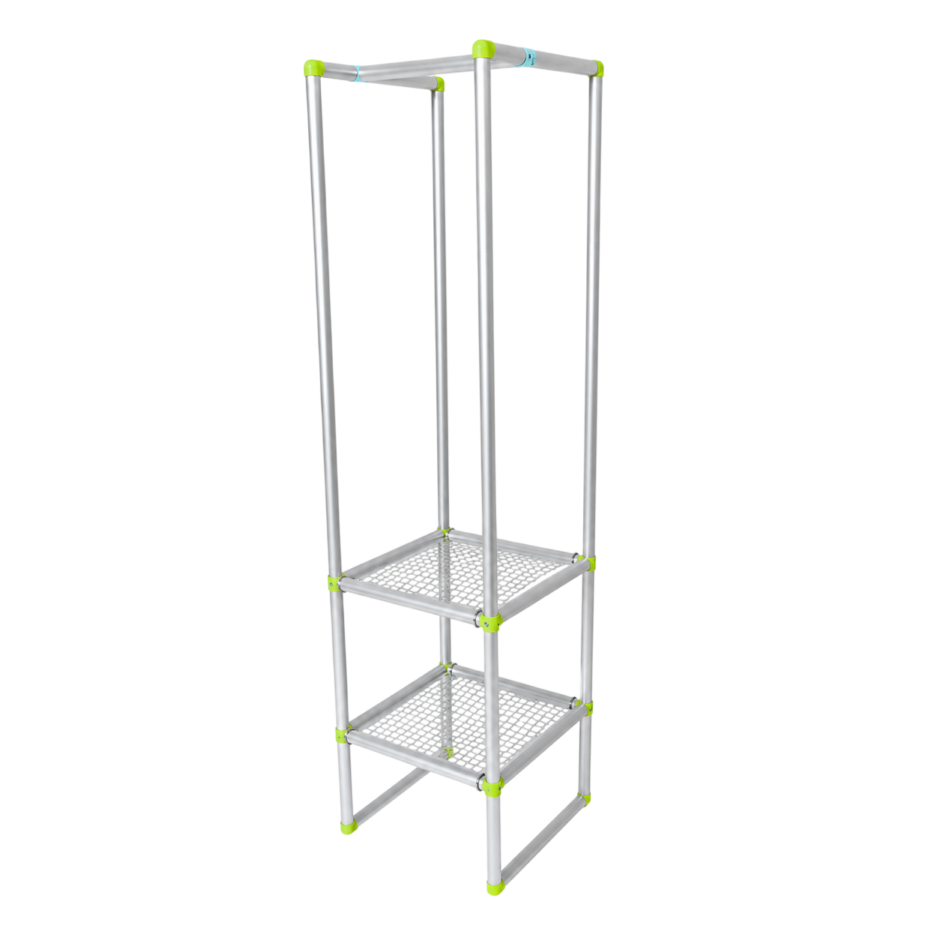

‘Upstart‘ is a shelf that doesn’t think someone like Mark Zuckerberg should decide what people see on their screens.
Status: functional prototype.
Assembly instructions 🔨🪛
- No instructions were created for this set. It should be possible to figure out the assembly just from the parts. If you get stuck, please reach out to Ikego.World for additional help.
Context info
- This is a Node World set
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- Disclaimer
This set is part of Ikegos Node World. A subsystem within Ikego.
