Set #096
Parts list
Parts appearing in this set

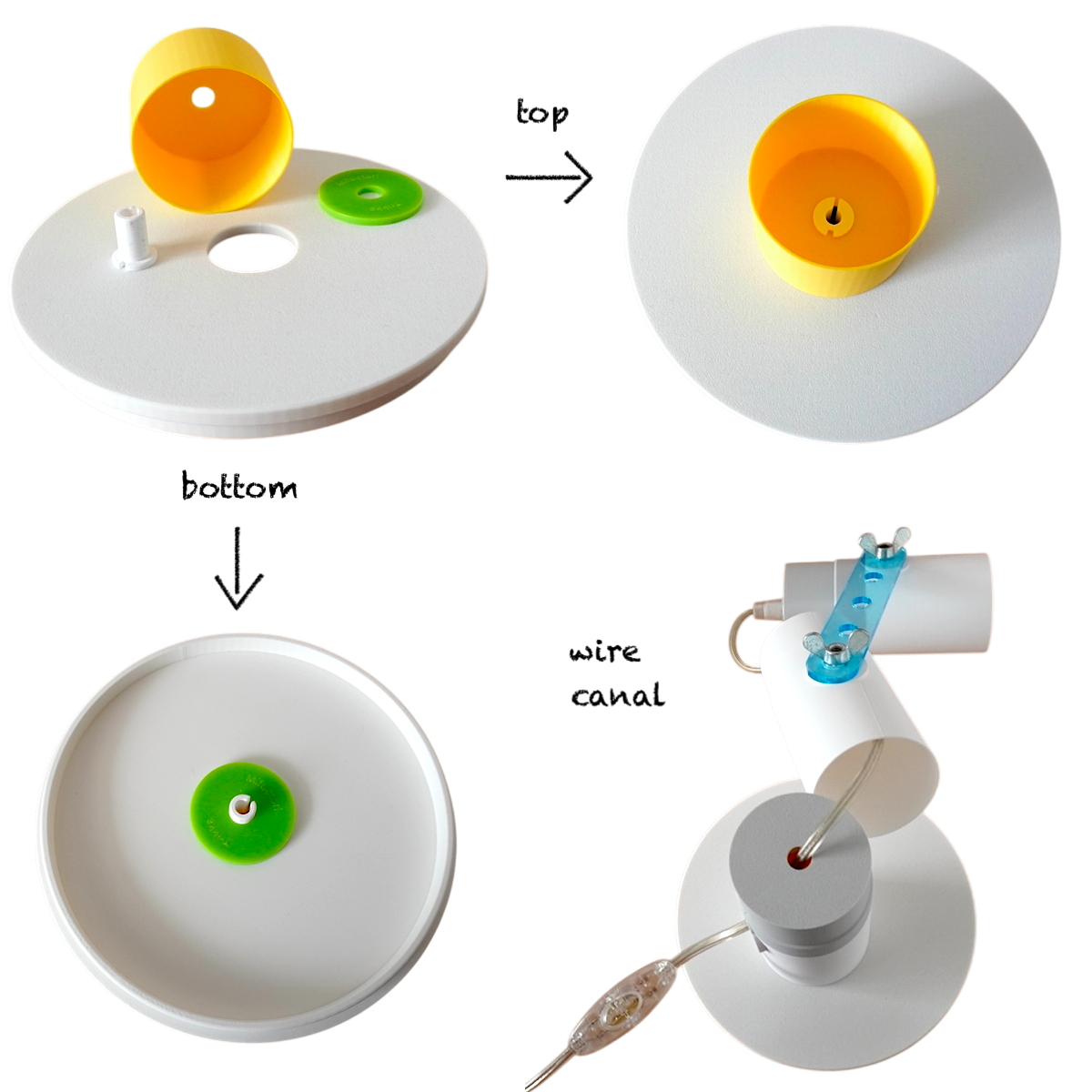

Duo Light
150.1 – Duo 90x60mm

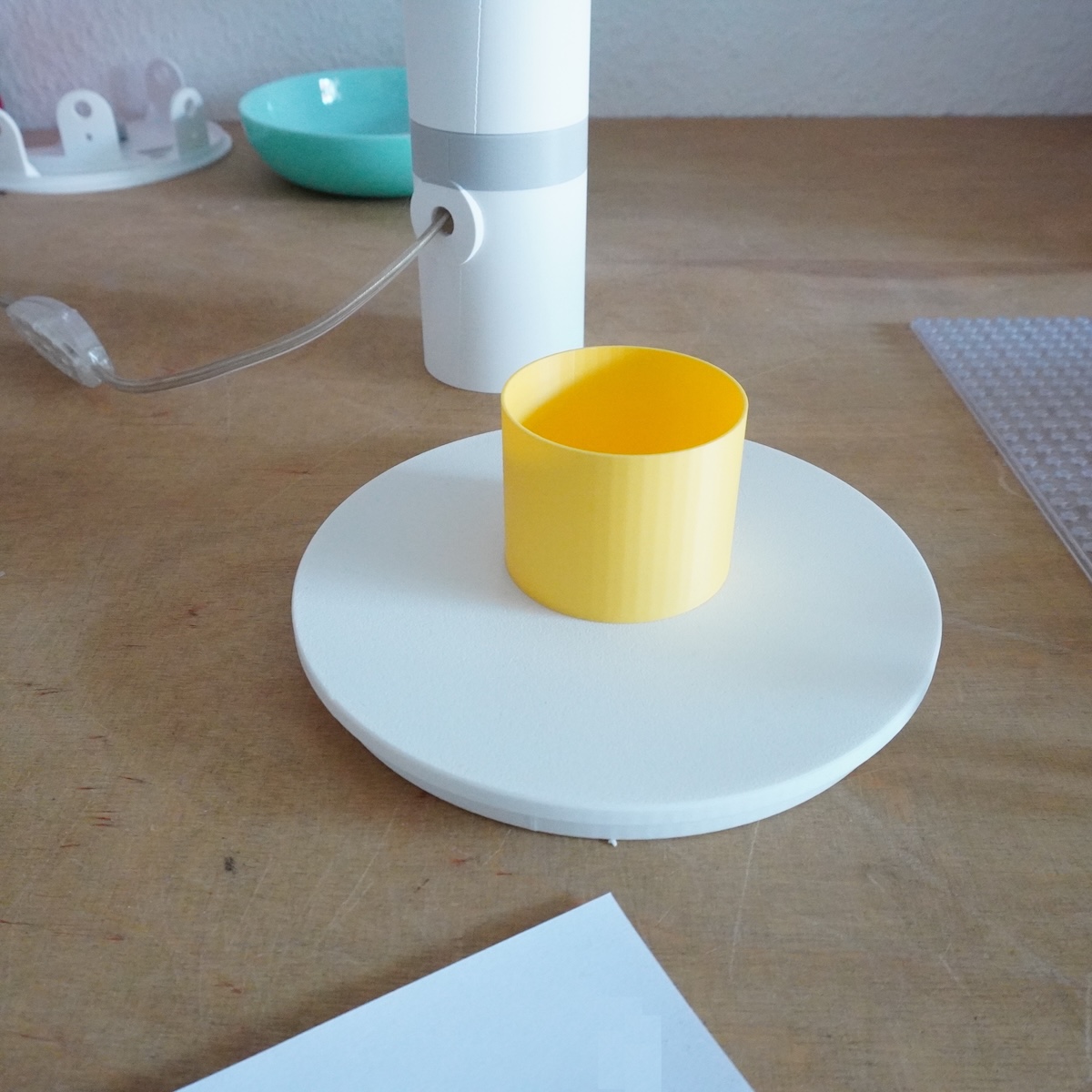

133.1 – “Duo cup”, 30mm high
088.1 – M6 wing nut
087.1 – M6 washer 20mm
085.1 – Thread insert M10

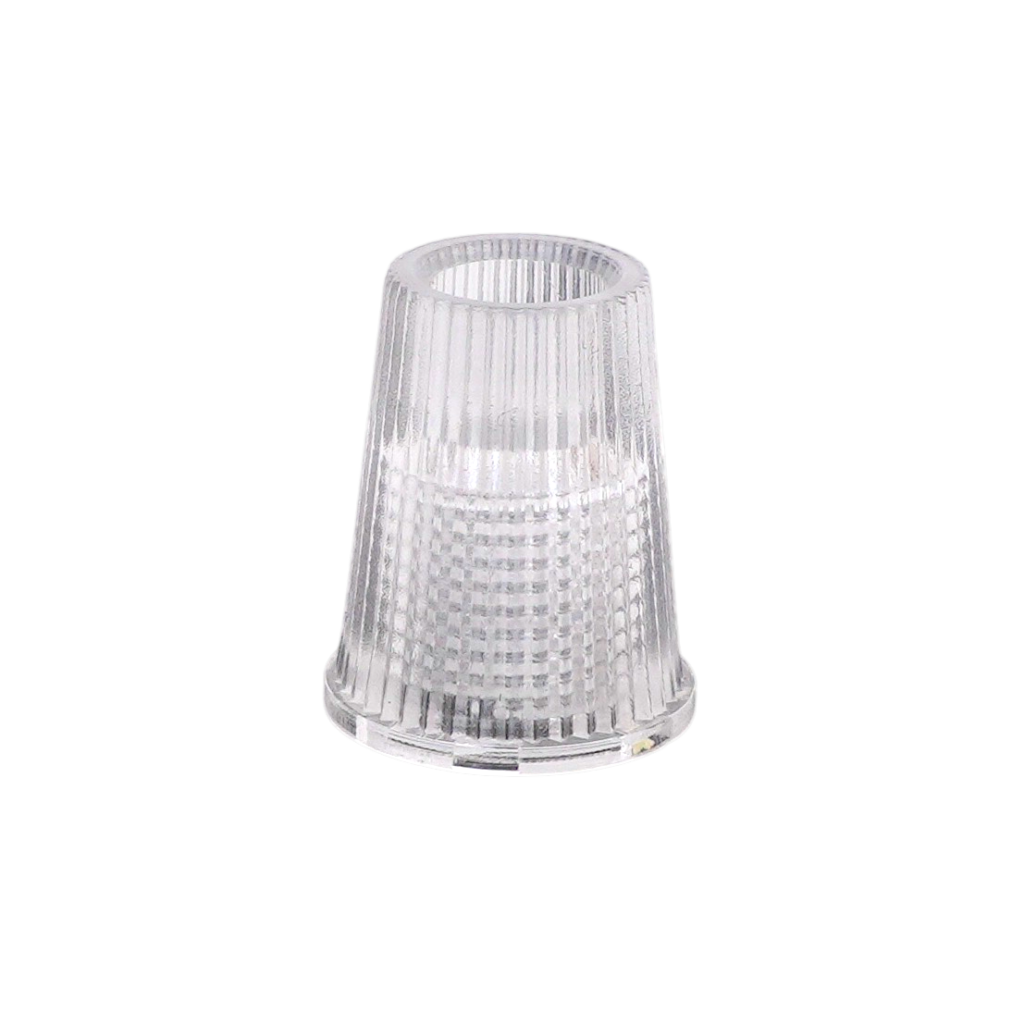

084.1 – Threaded cap M10
073.1 – Rail 150mm

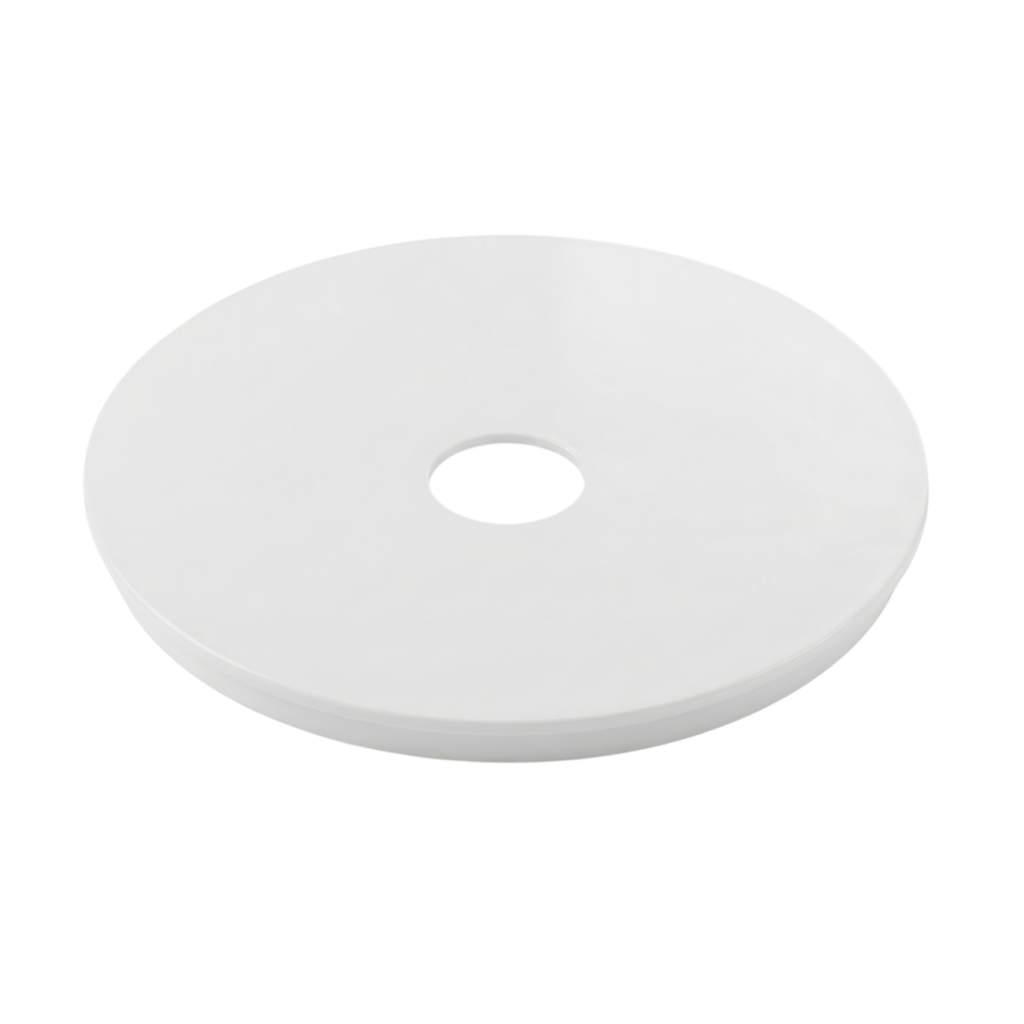

033.2 – Lid for ⌀ 152mm tubes – loose fit
030.2 – M6 bolt 15mm
013.1 – E14 bulb holder
010.1 – Cable with plug and switch
004.1 – Washer disk ⌀ 40mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

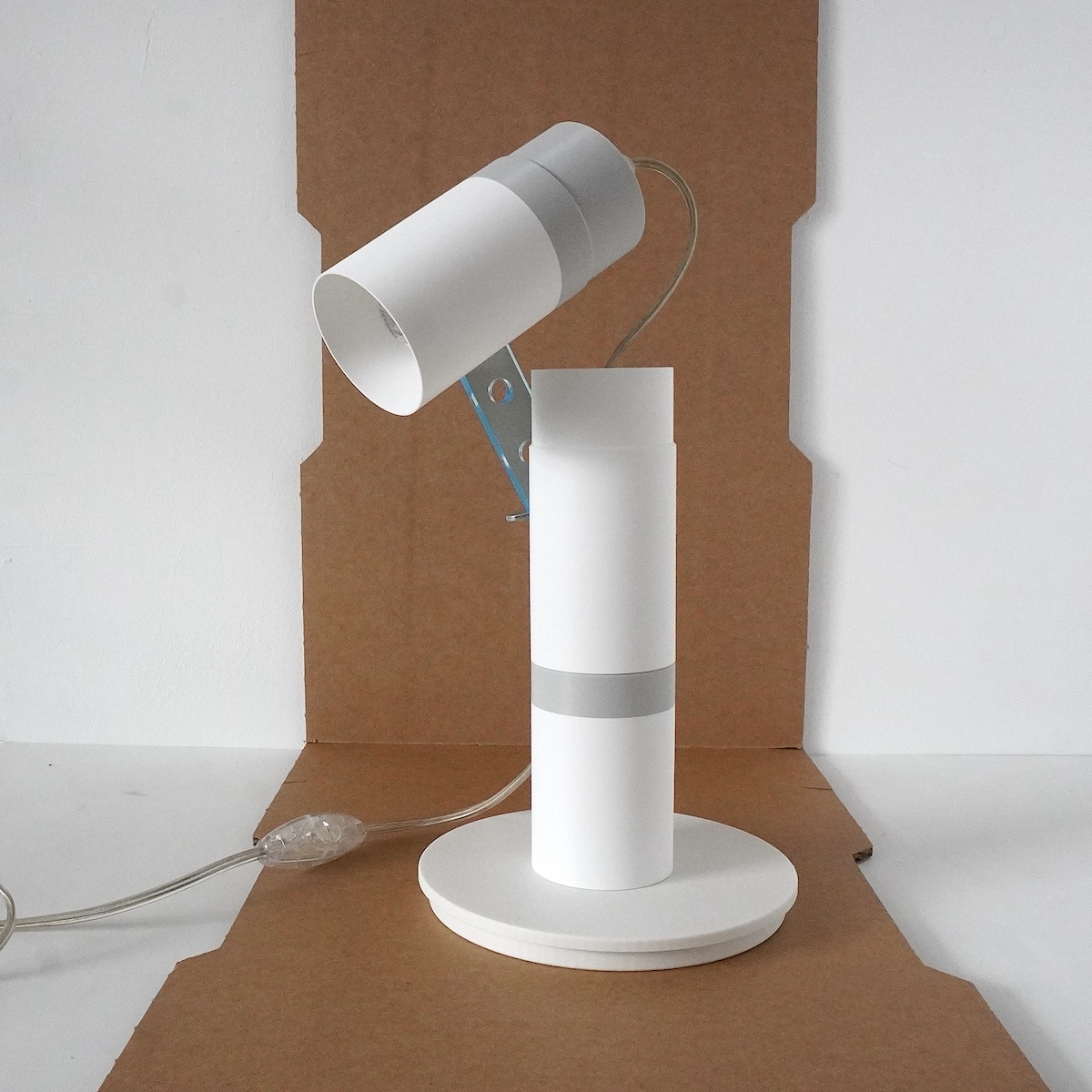

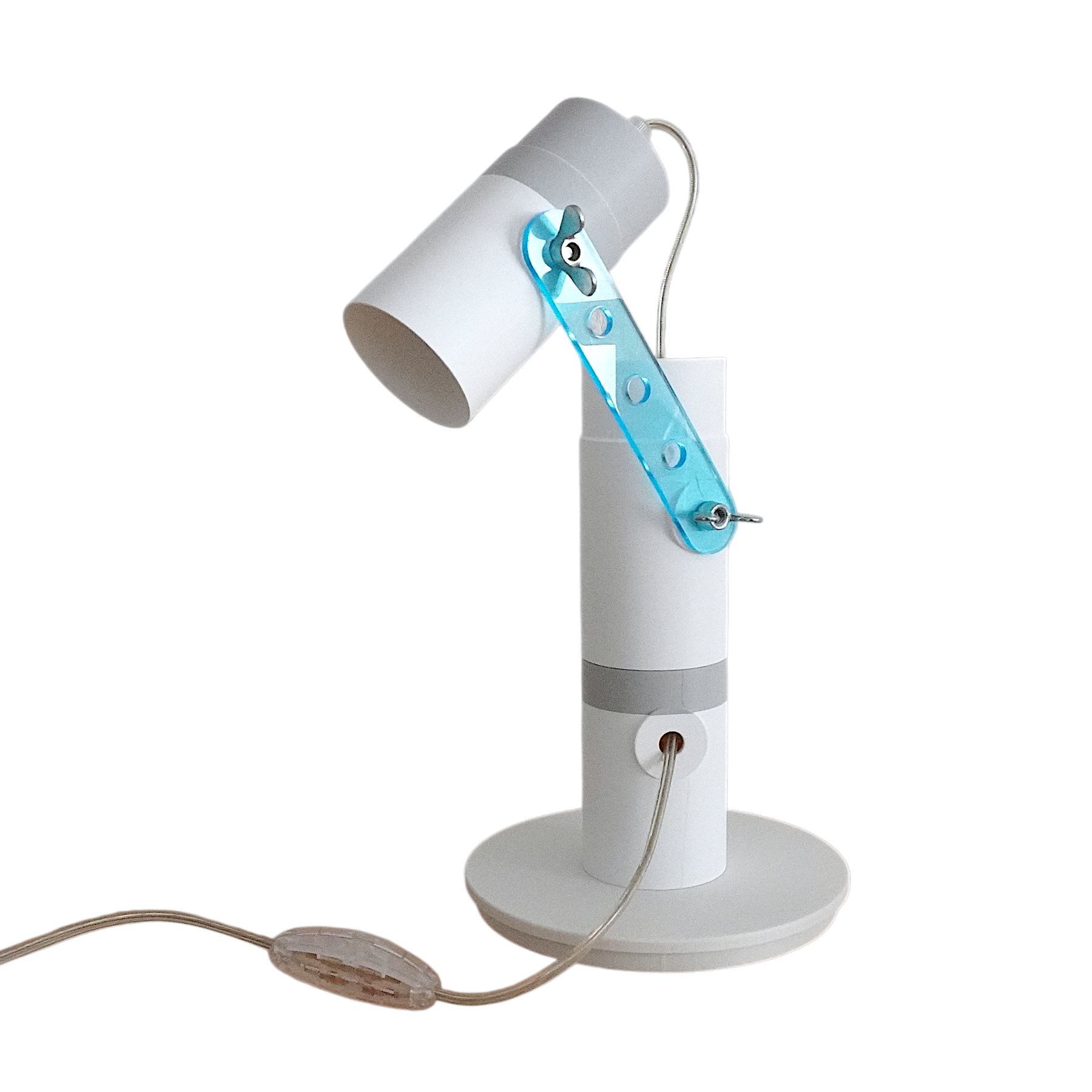

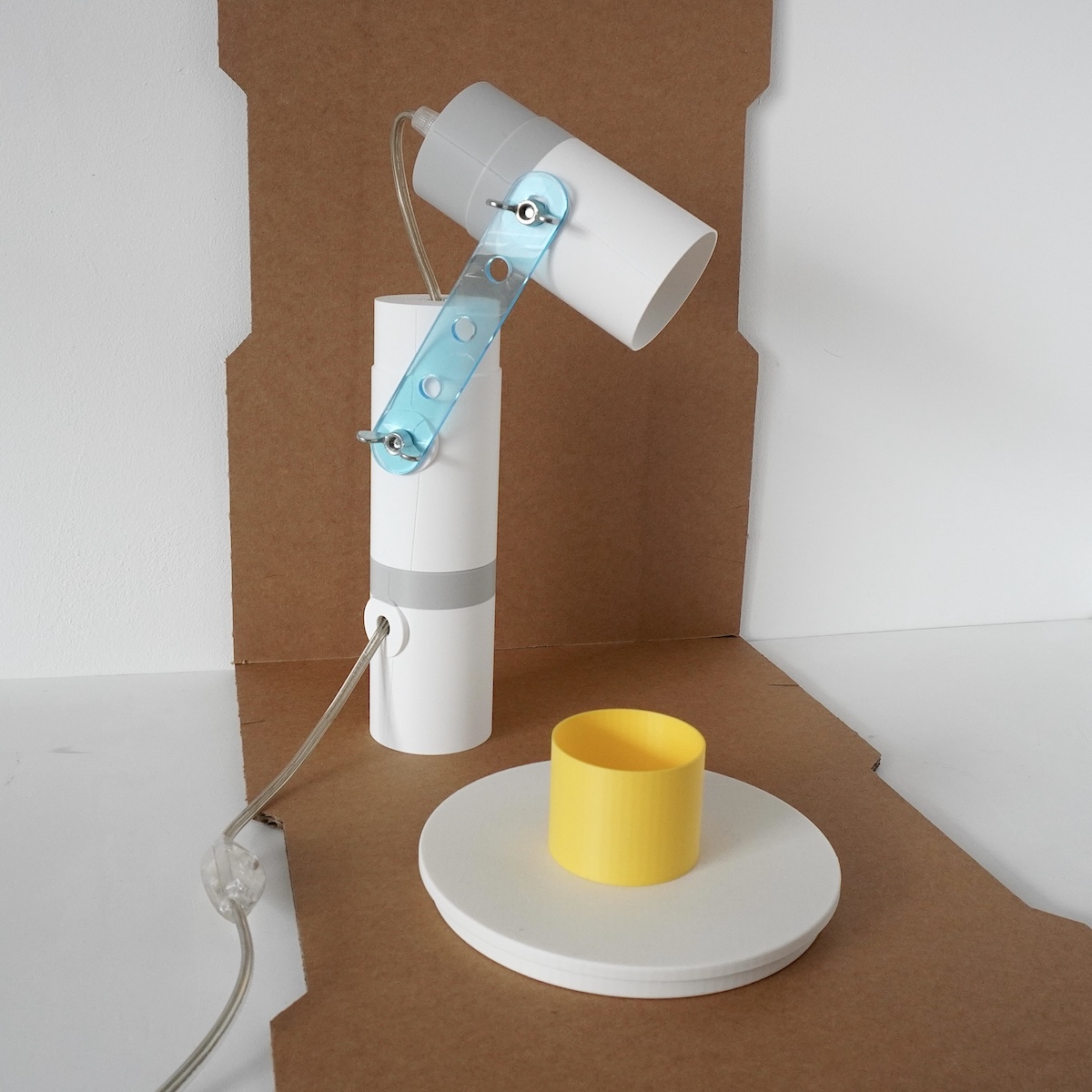

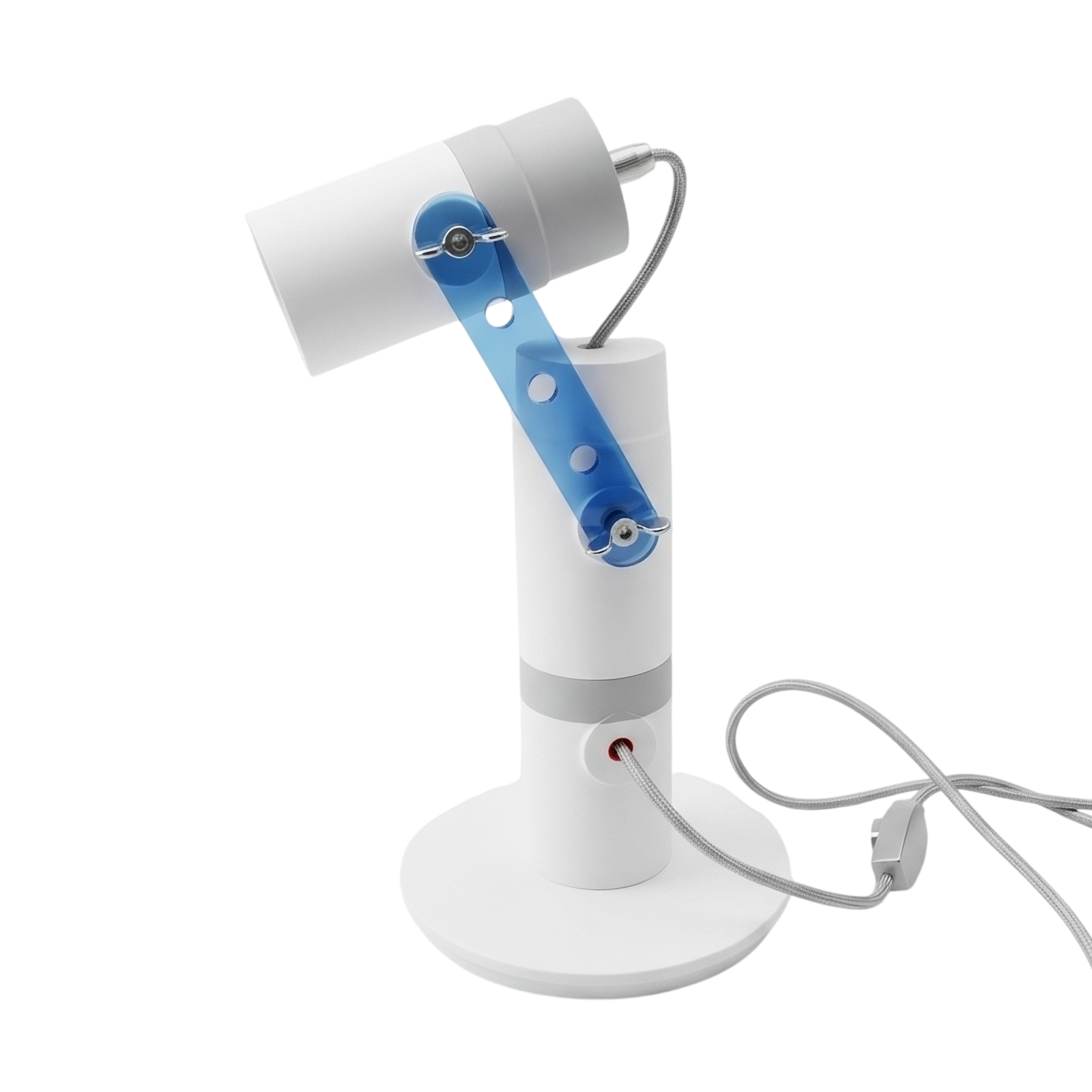

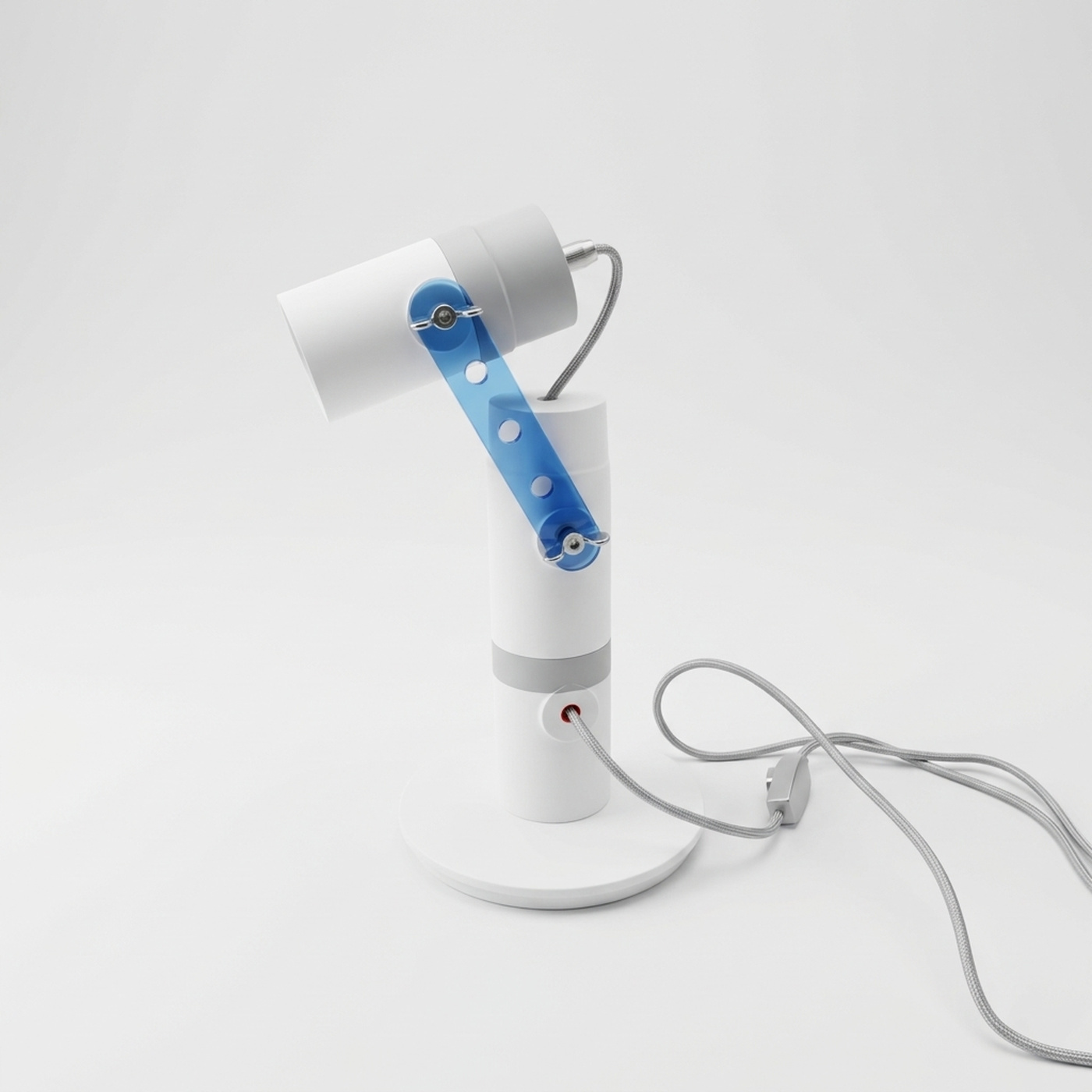

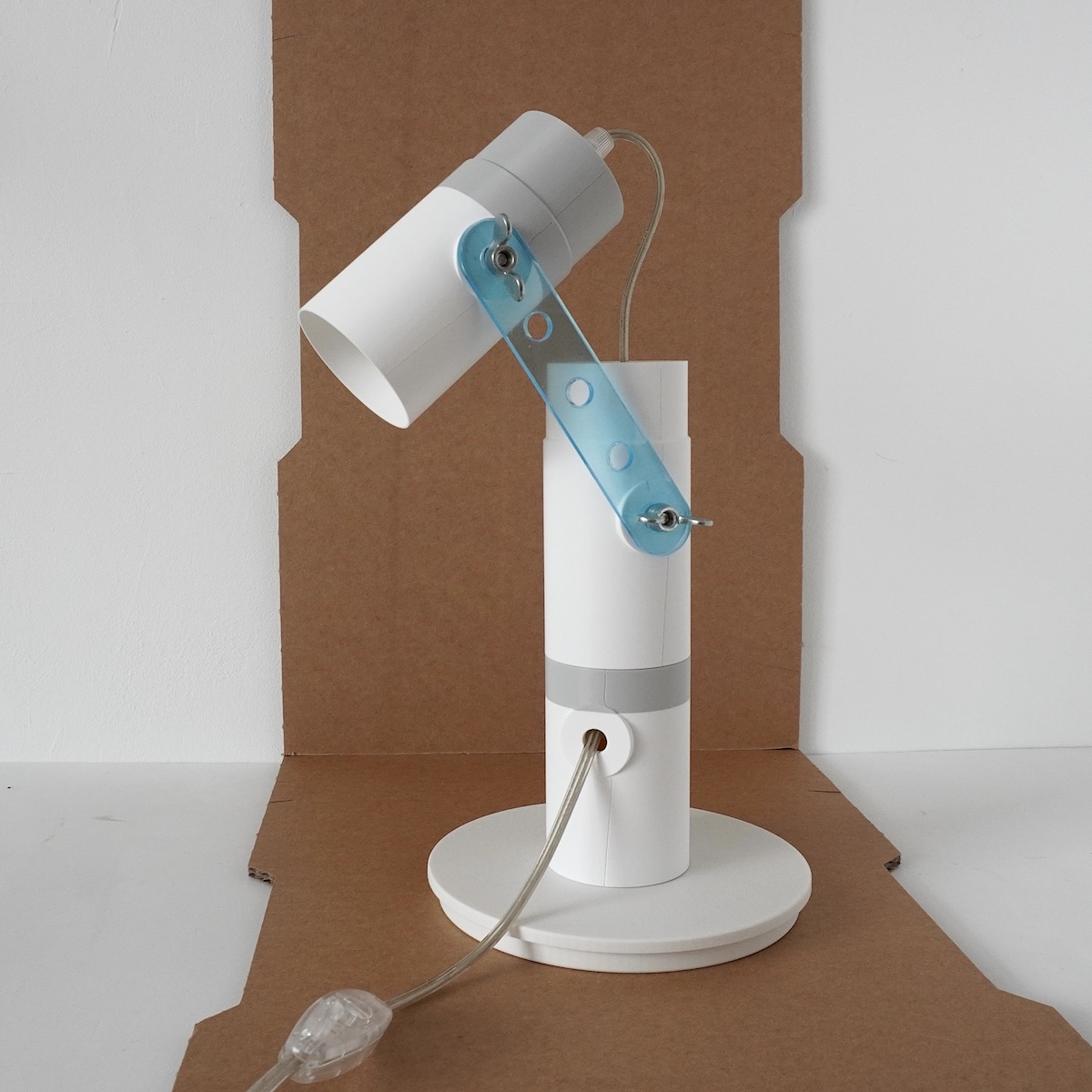

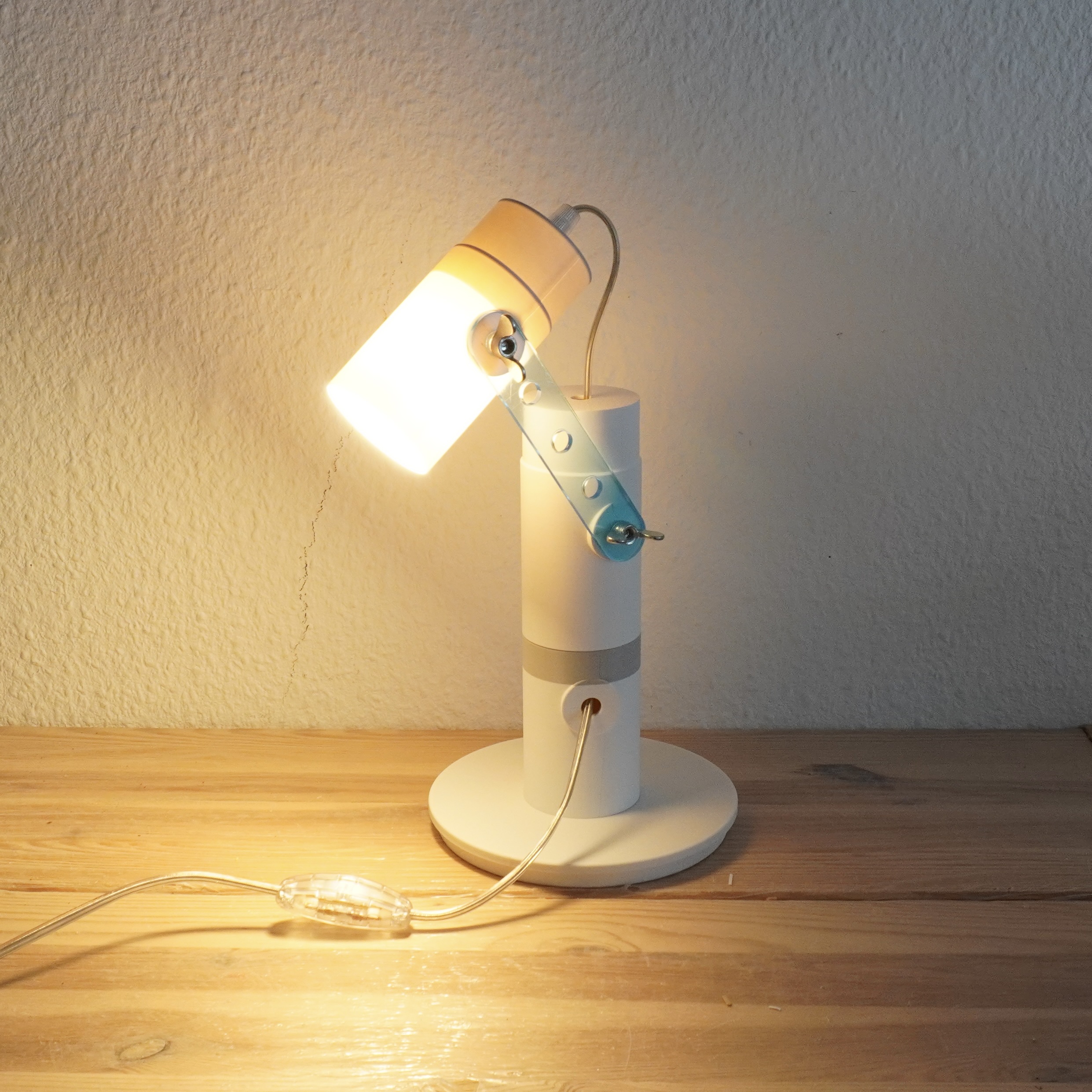

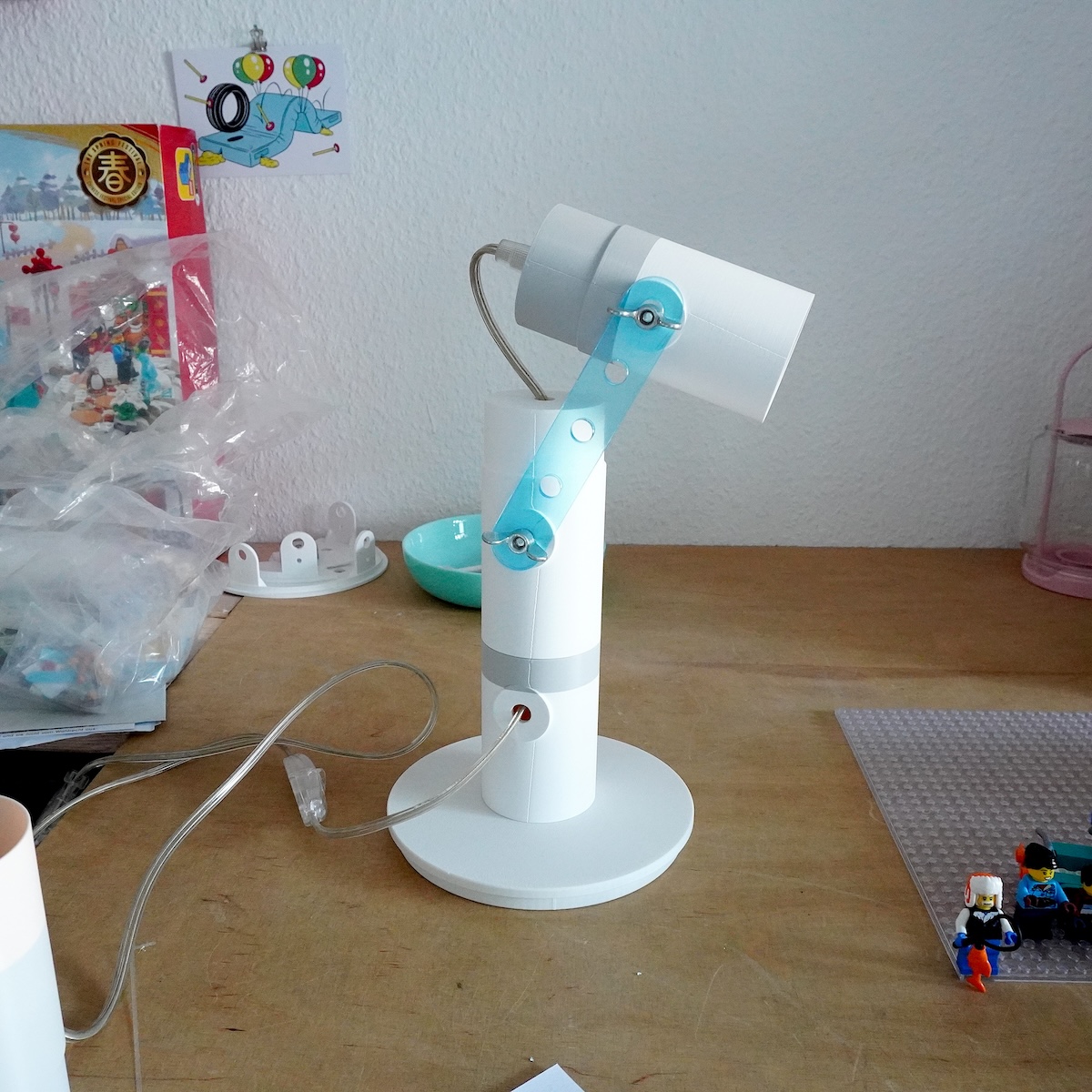

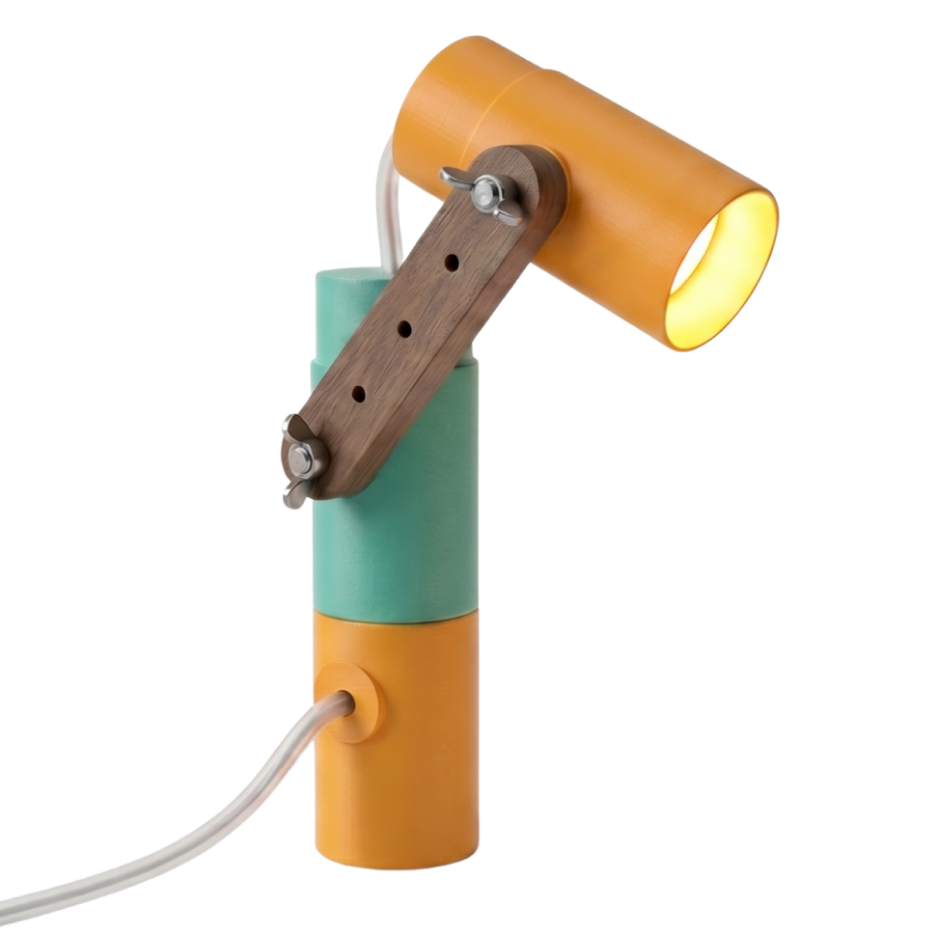

‘Duo Light‘ Duo Light is flexible and fun and helps you to discover ideas for sustainable prosperity.
By Elle Nutter
Status: Physical functional prototype.
