Parts

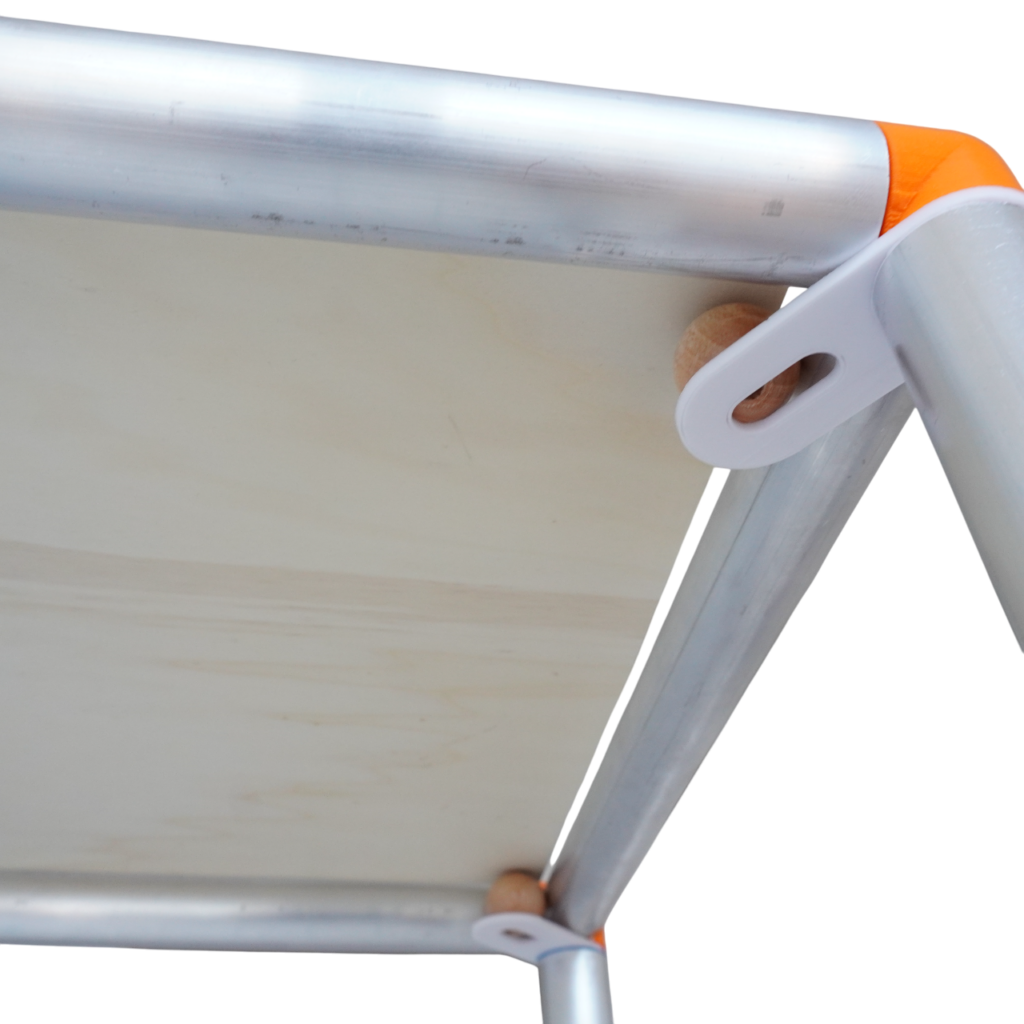

147.2 – Board 690x330x16mm
147.1 – Board 690x330x16mm

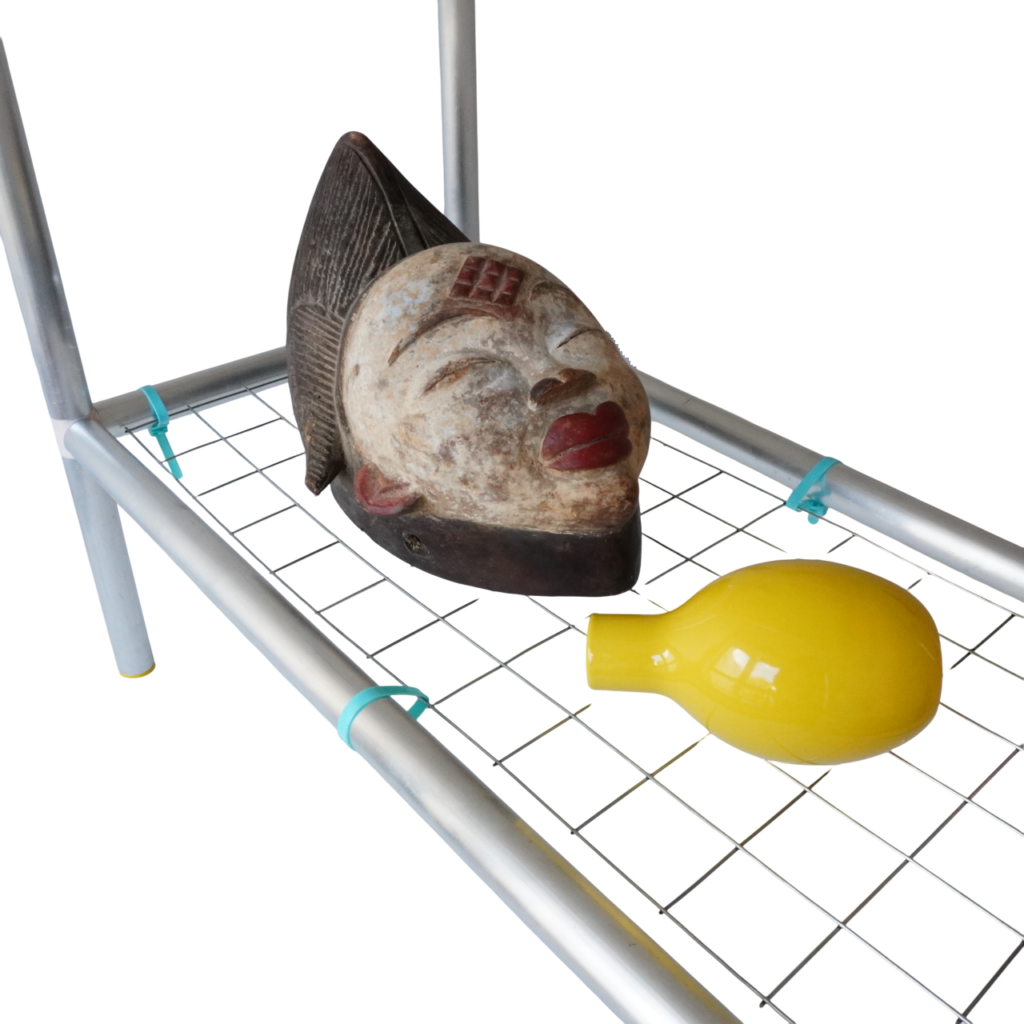

144.2 – Wire mesh, not bendable, 690x300mm
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
114.2 – 3 corner bracket modified Round +

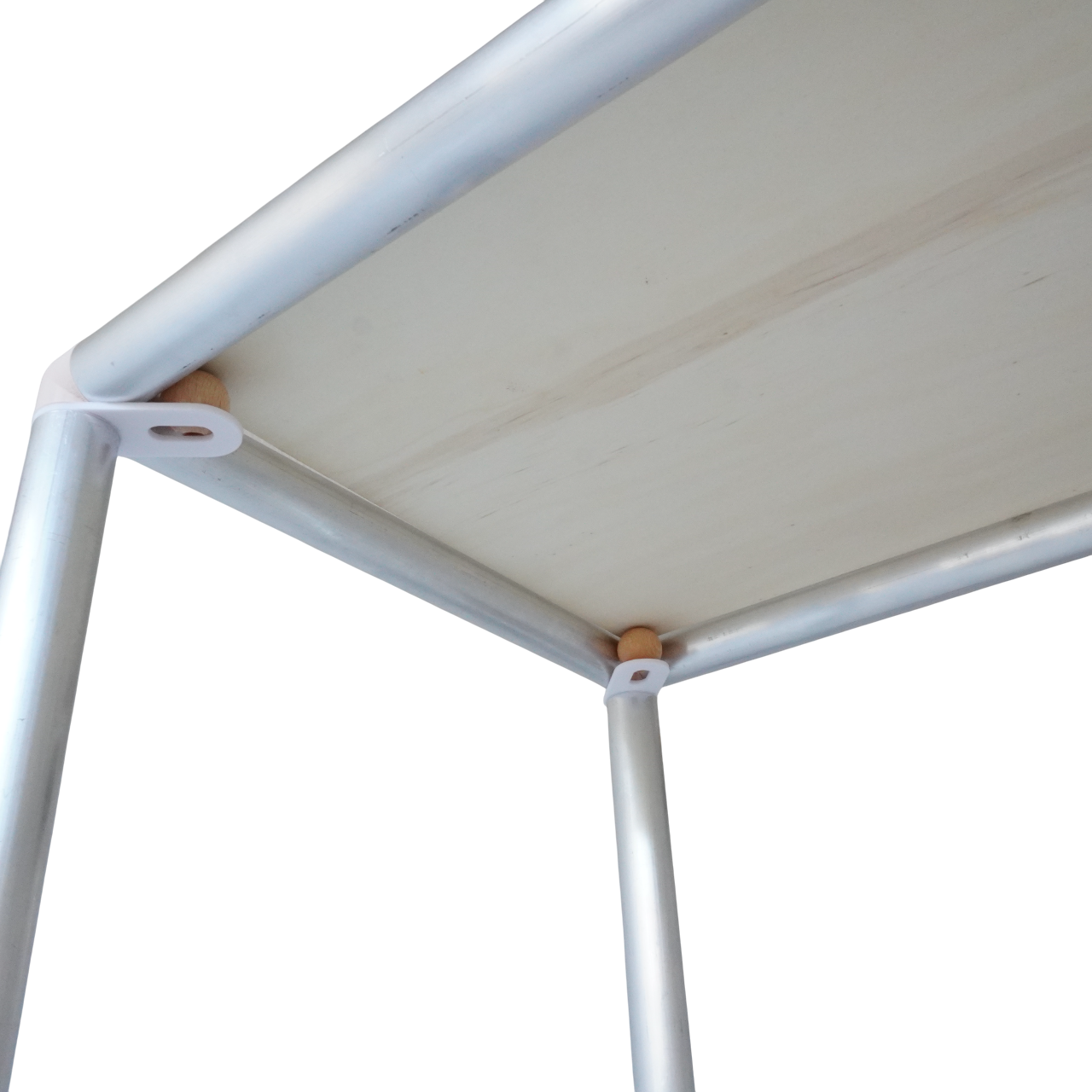

101.3 – Flexible bead ⌀ ~16mm, ⌀ 2mm hole
101.2 – Bead ⌀ ~16mm, ⌀ 6mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole

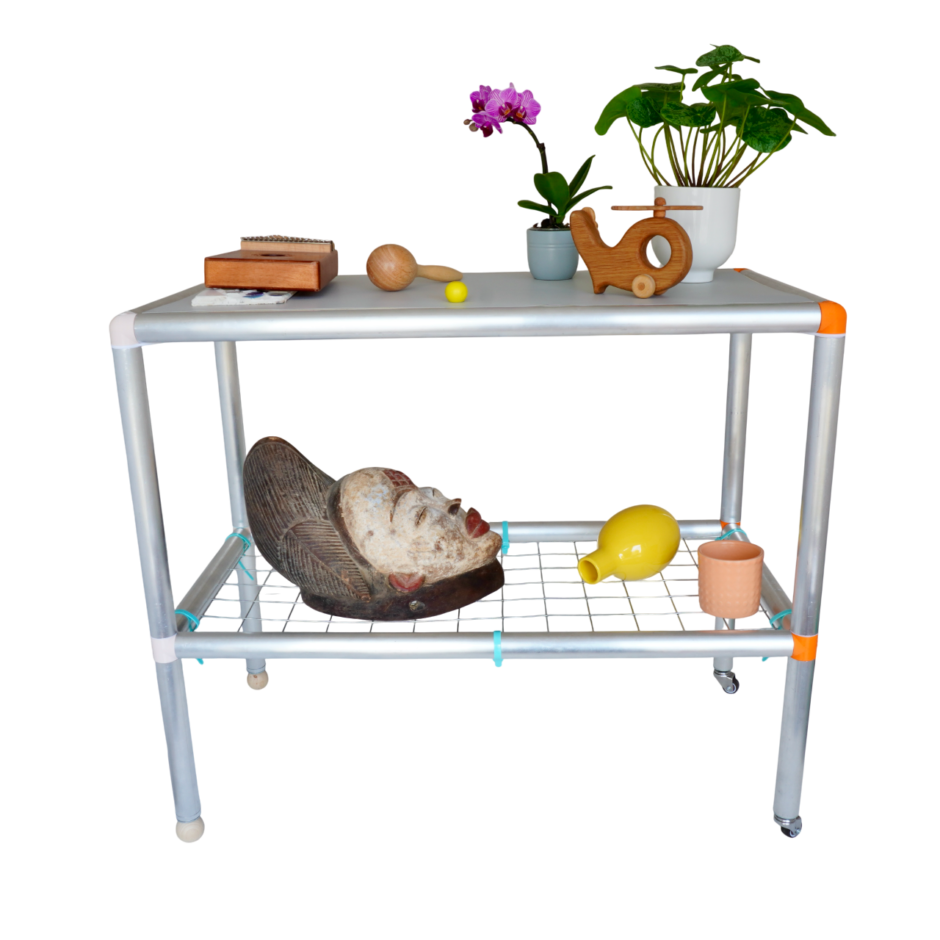

099.2 – wheel with break, M6 thread
099.1 – wheel, M6 thread
095.7 – 690mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
087.1 – M6 washer 20mm
082.1 – M6 bolt 50mm
072.1 – Spacer ~15mm high

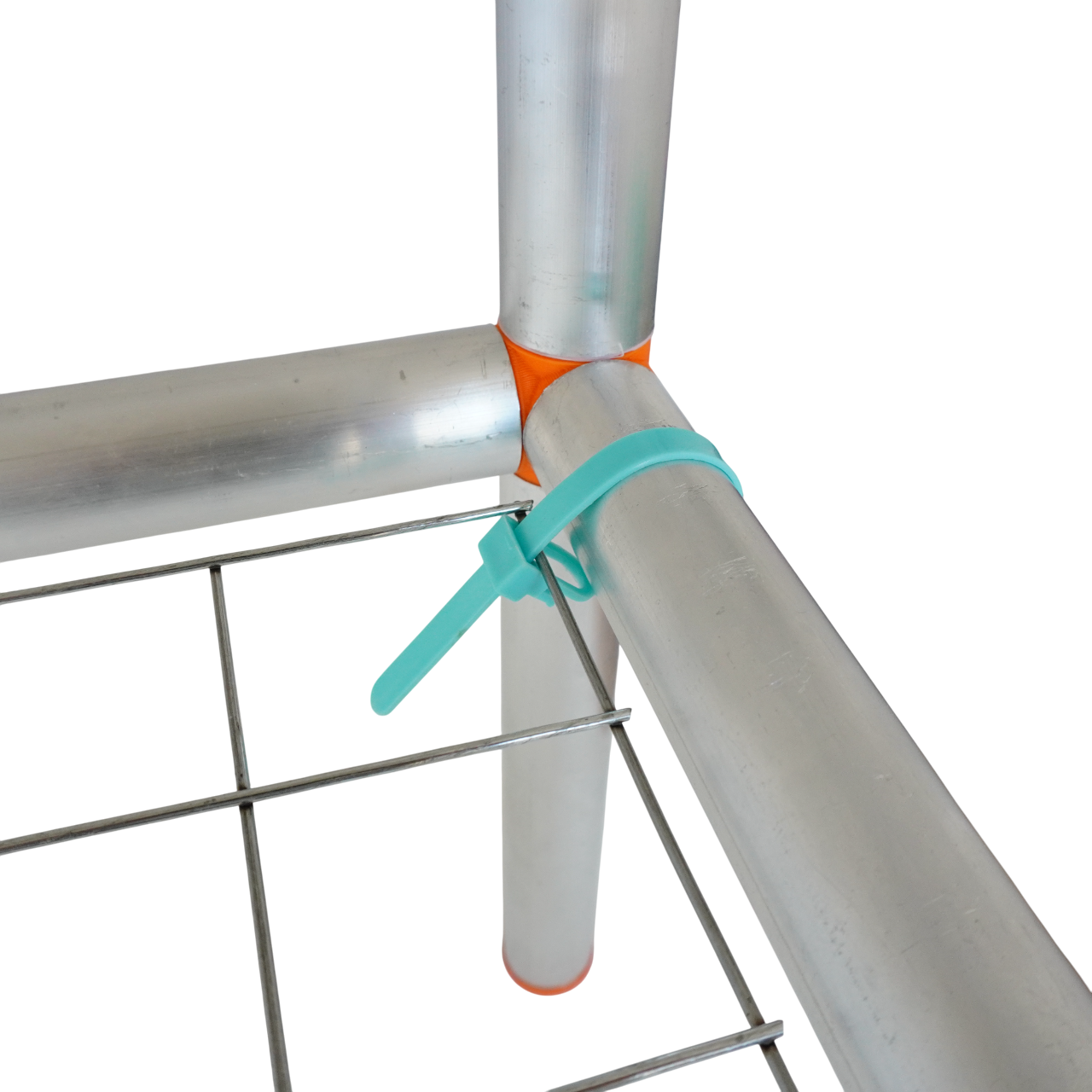

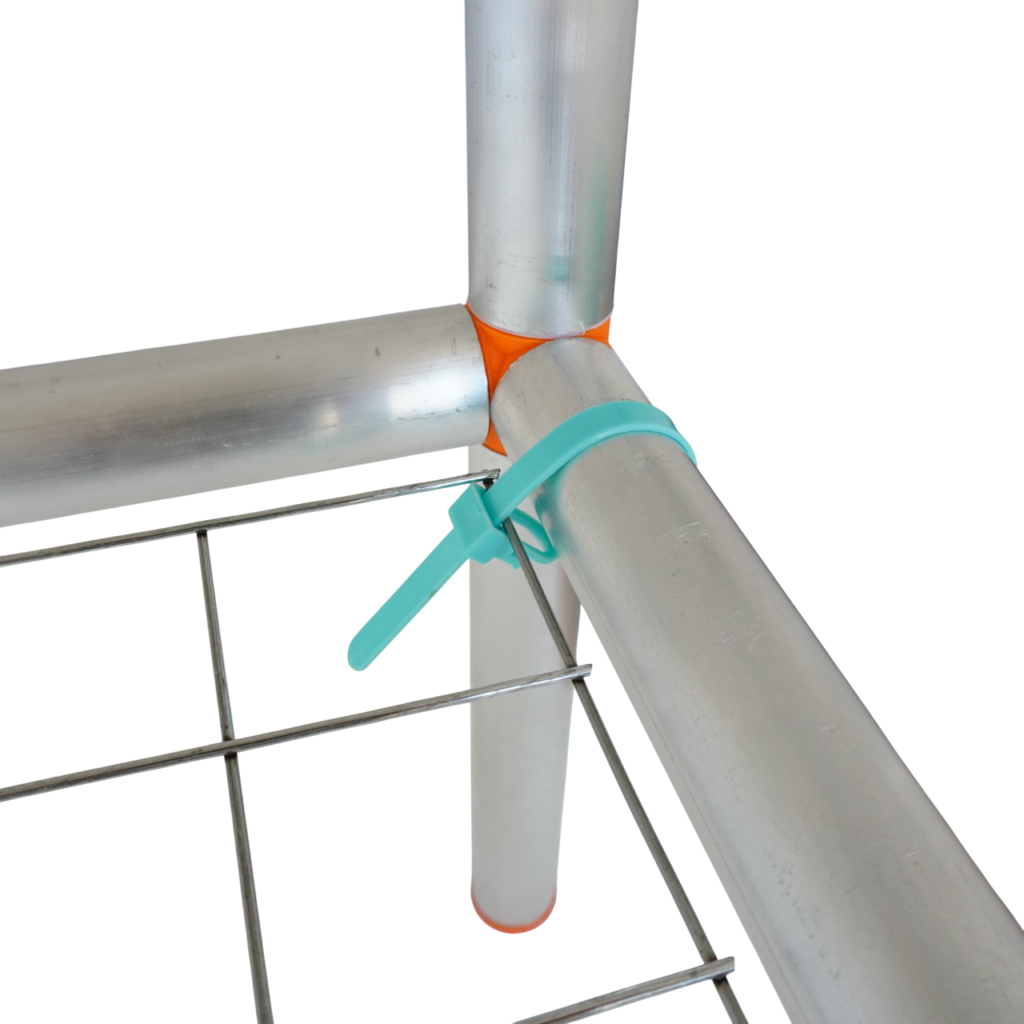

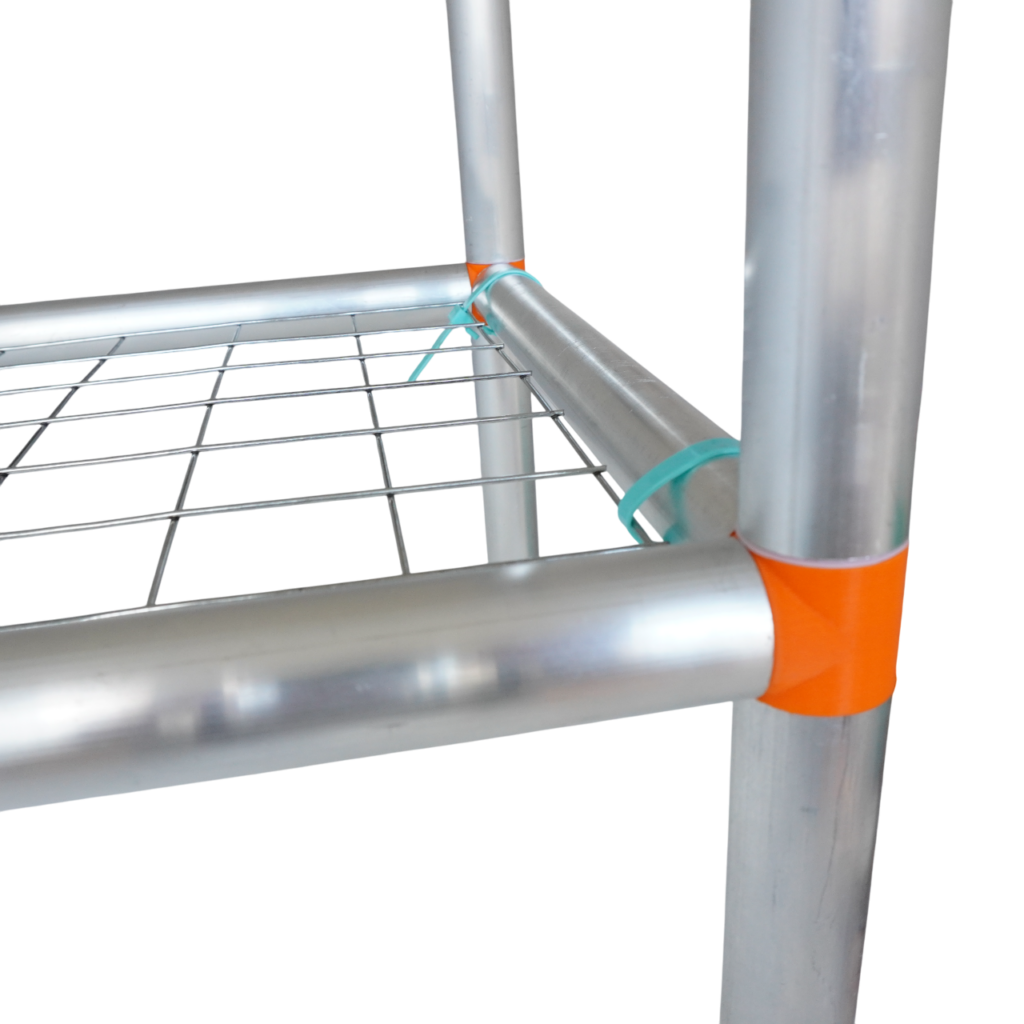

035.1 – Reusable cable tie 150mm
LL .nd32_
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
Buy from
📍 A LOCAL CRAFT BUSINESS
- You can order this set as a local make ✔️
💚 BUILD IN A WORKSHOP
- Make this set from scratch. Create or book a workshop.
🛒 OFF THE SHELF
- No manufacturer yet. Sign up for updates. | Become a seller.
Set info

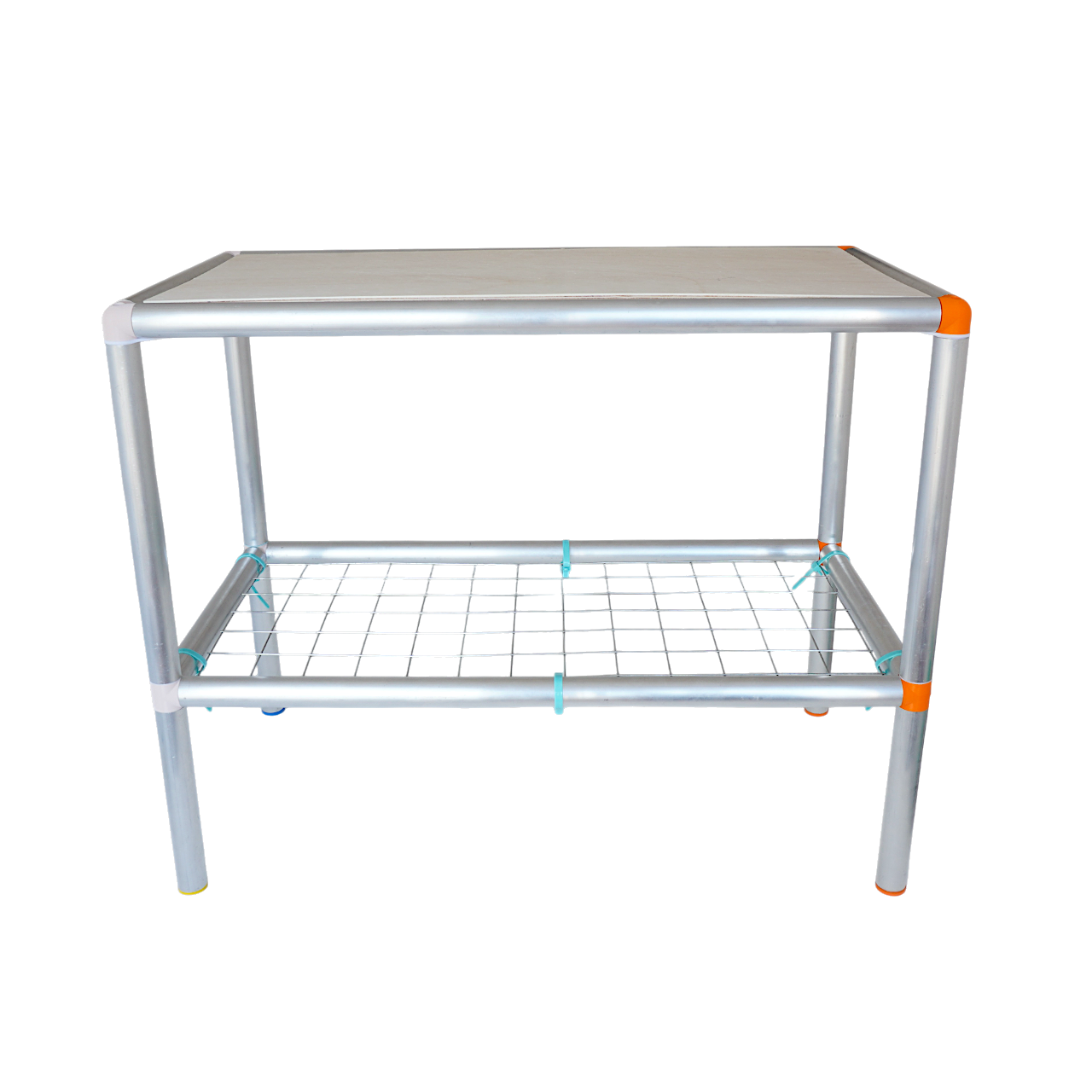

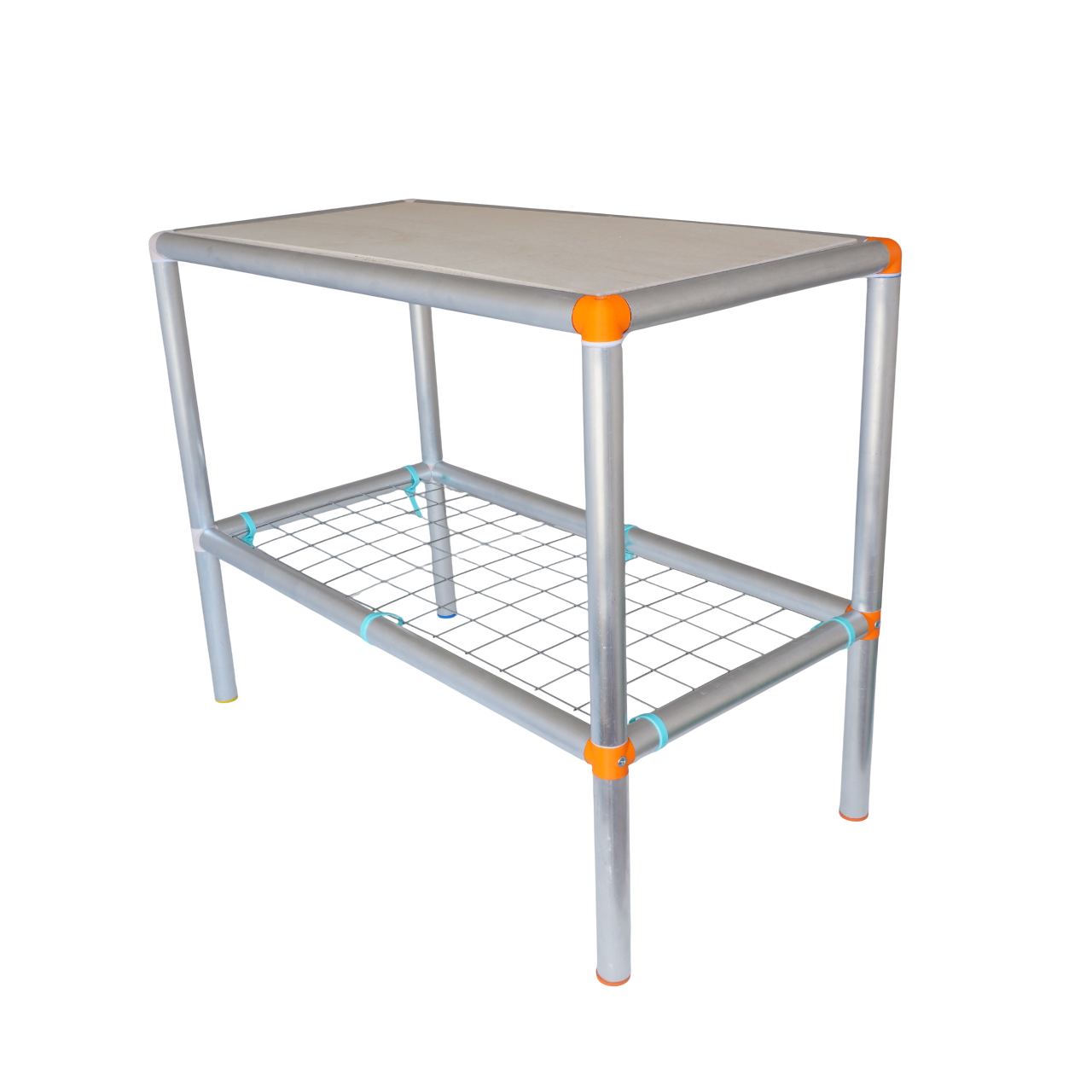

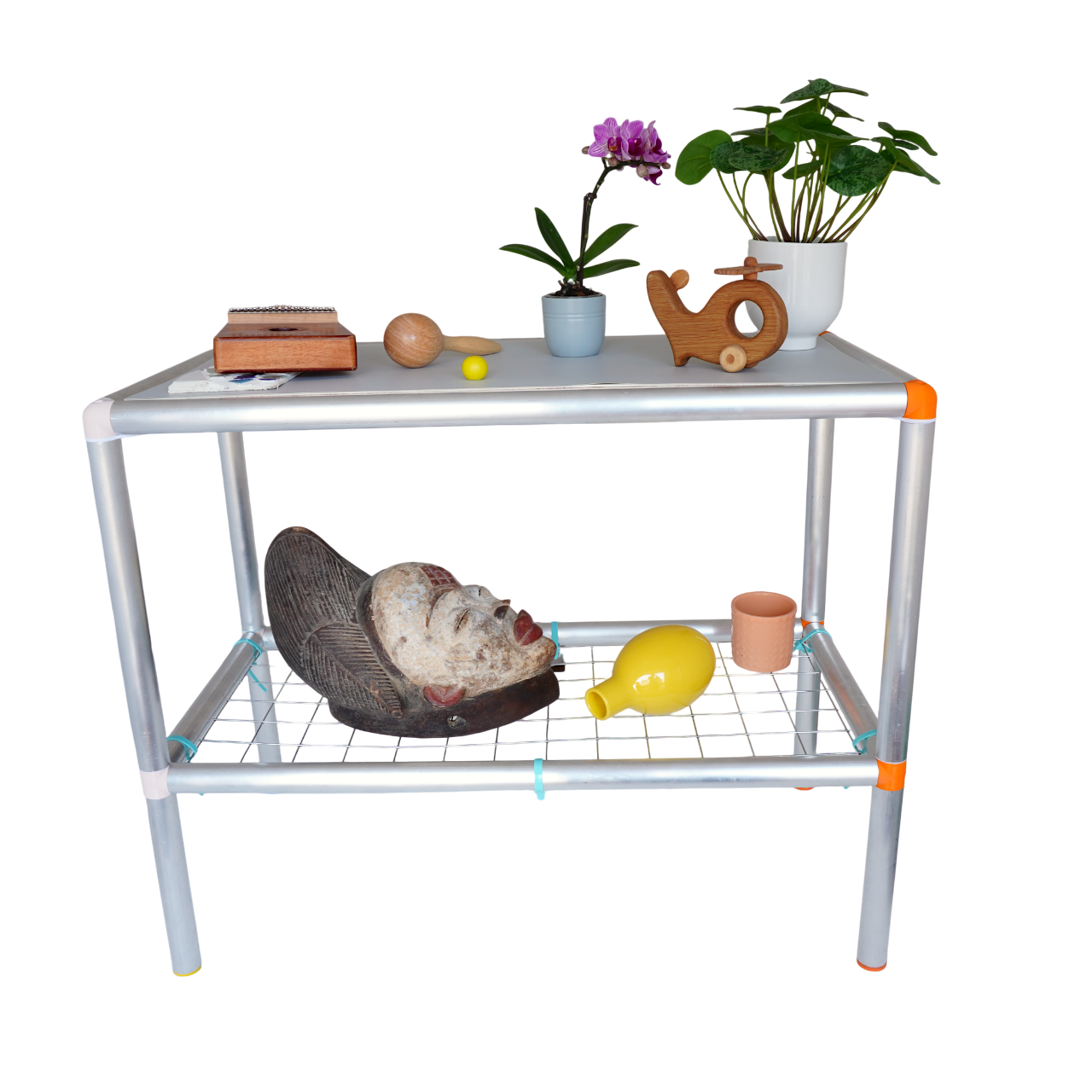

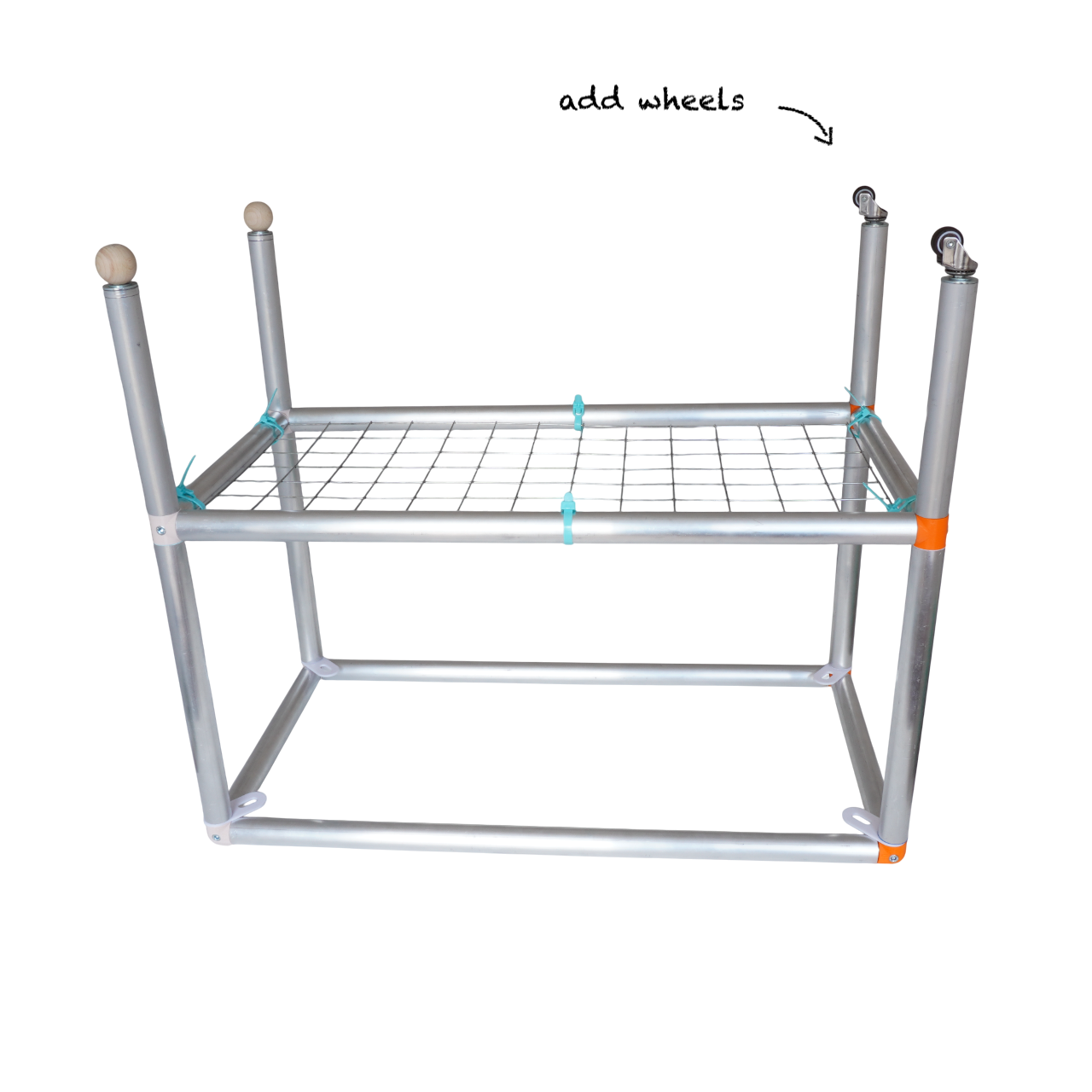

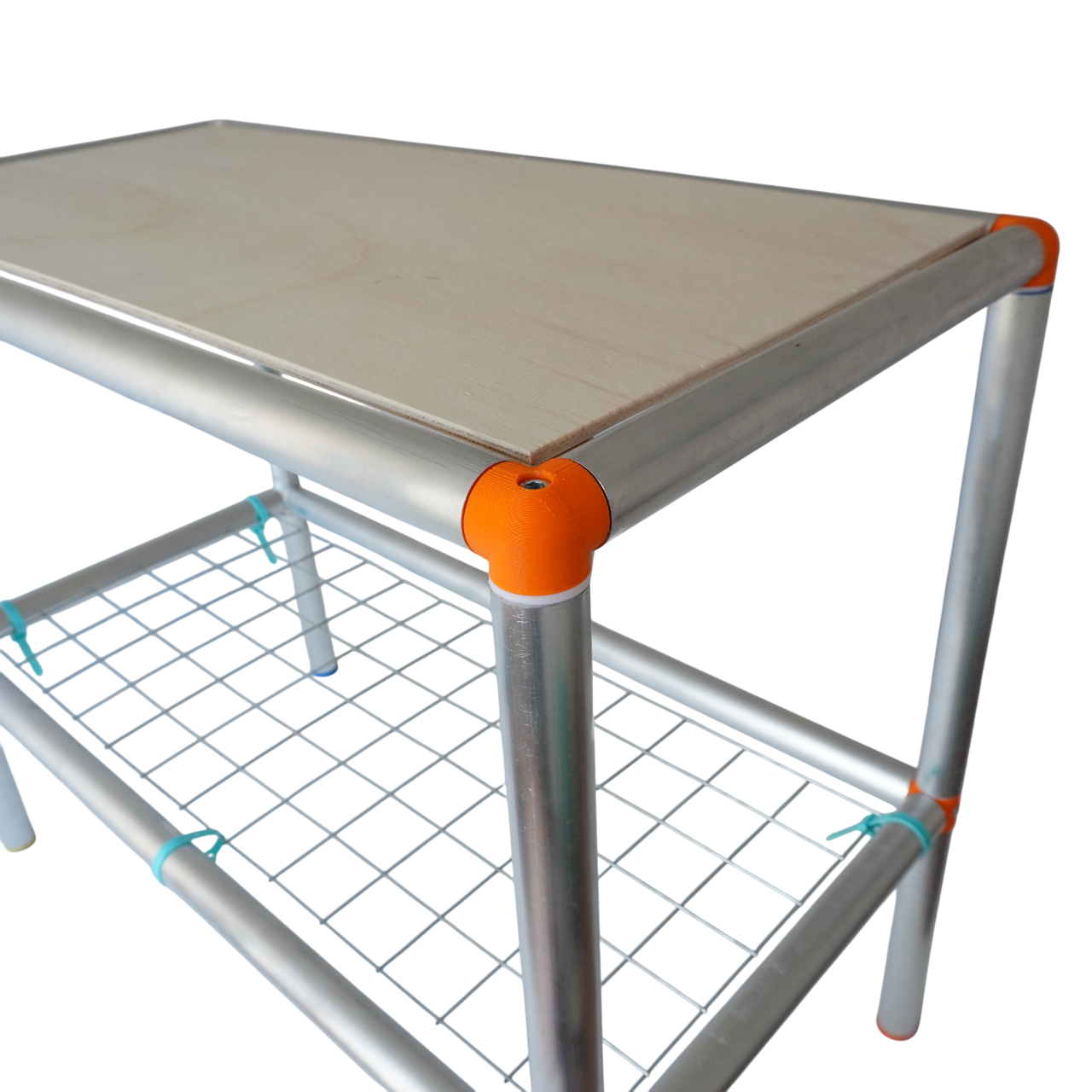

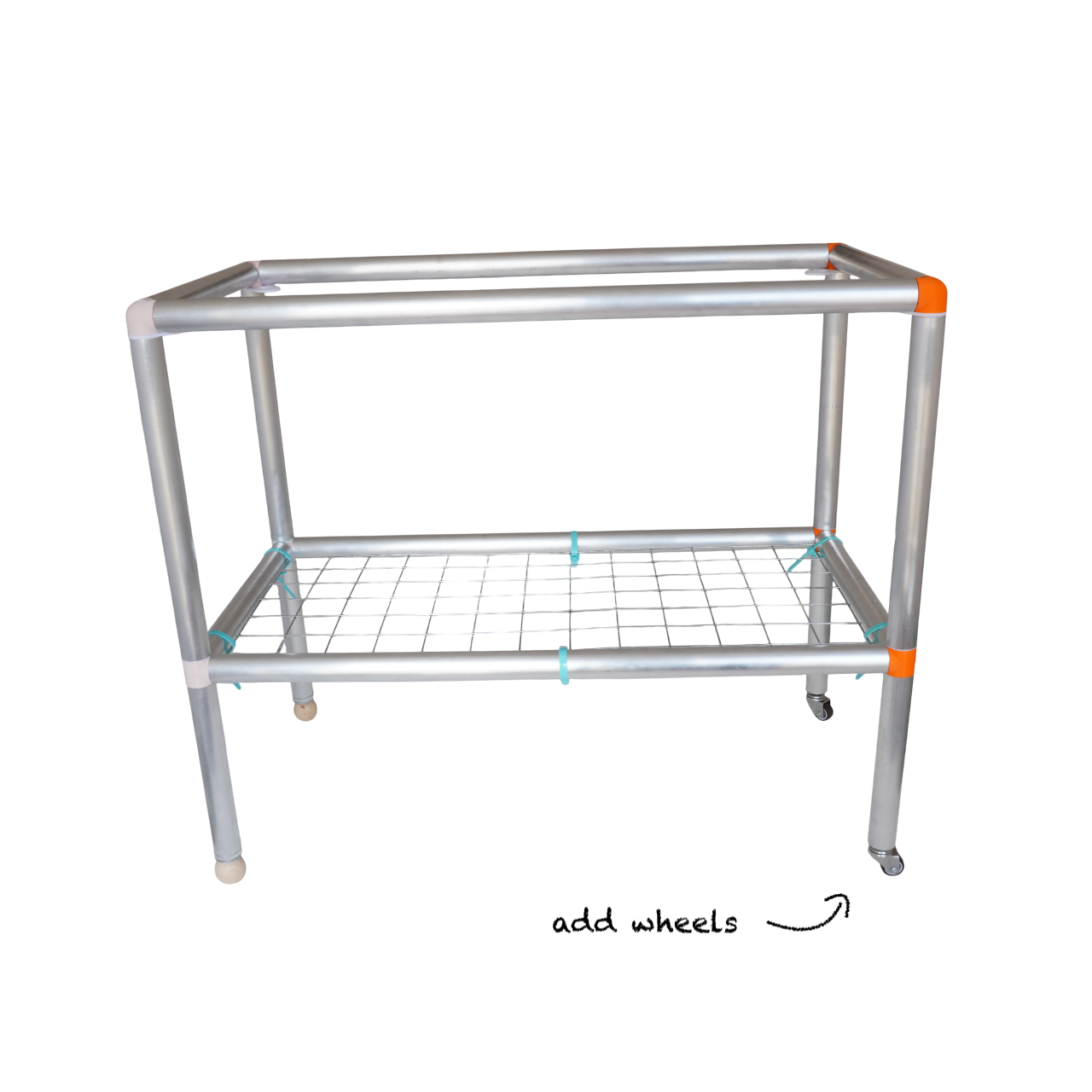

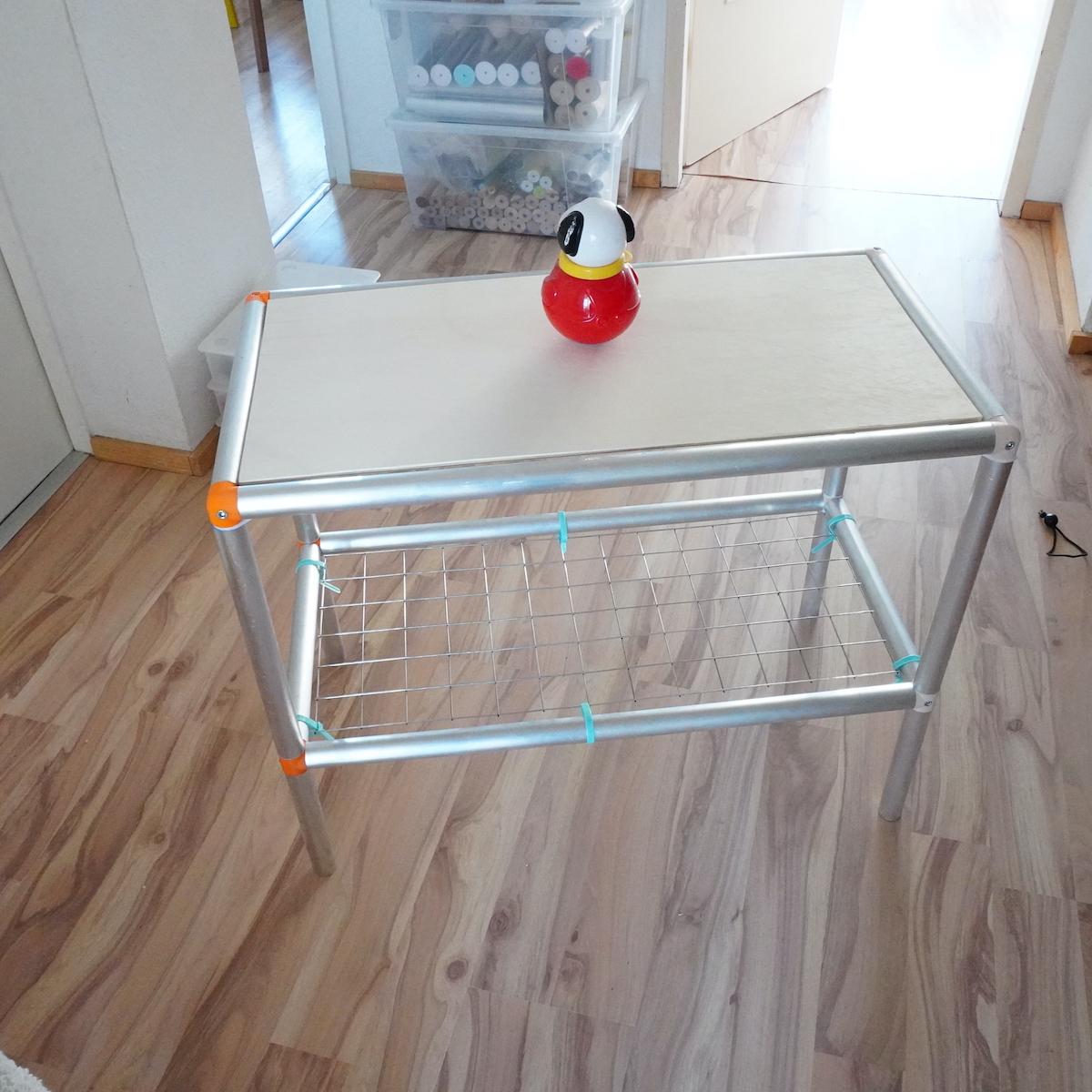

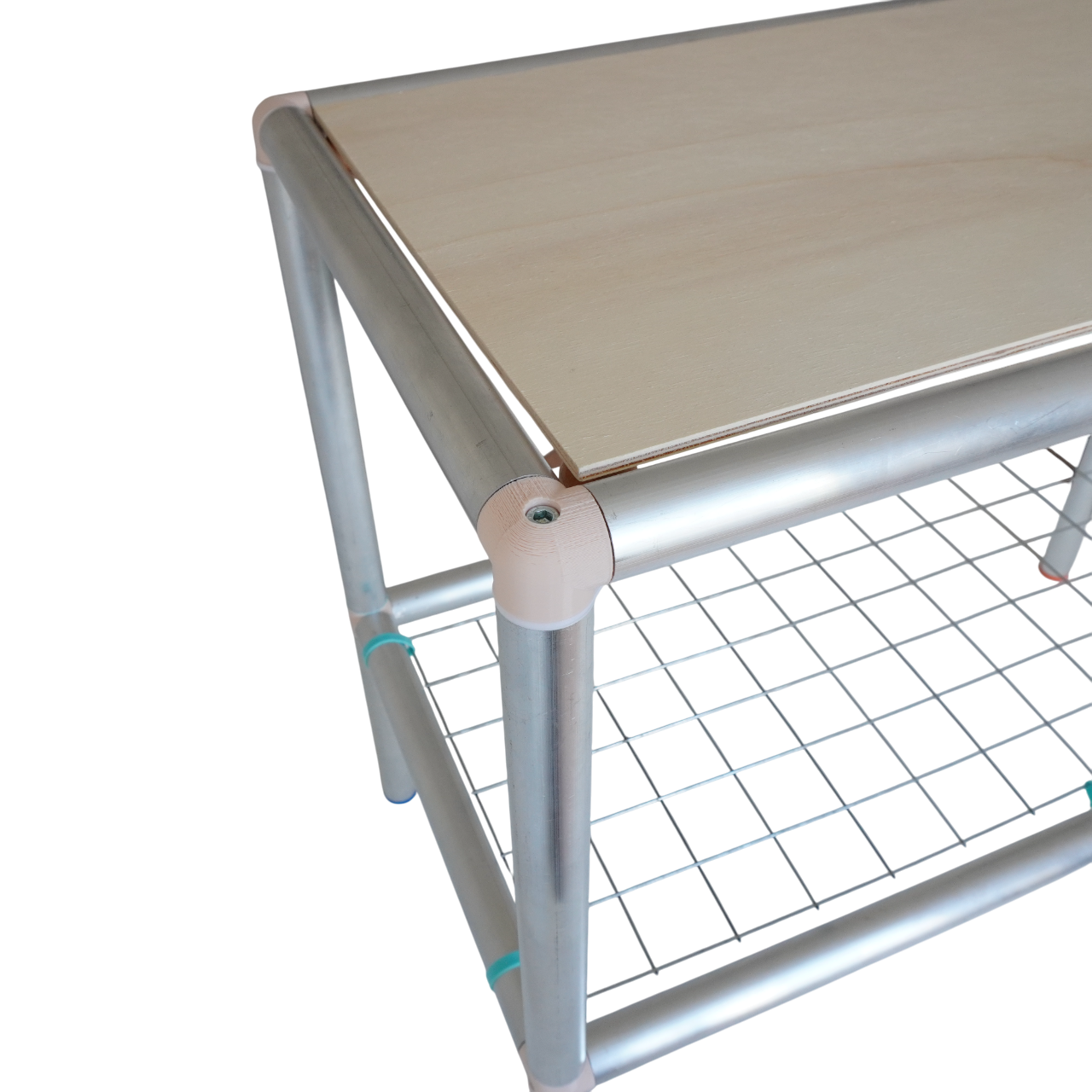

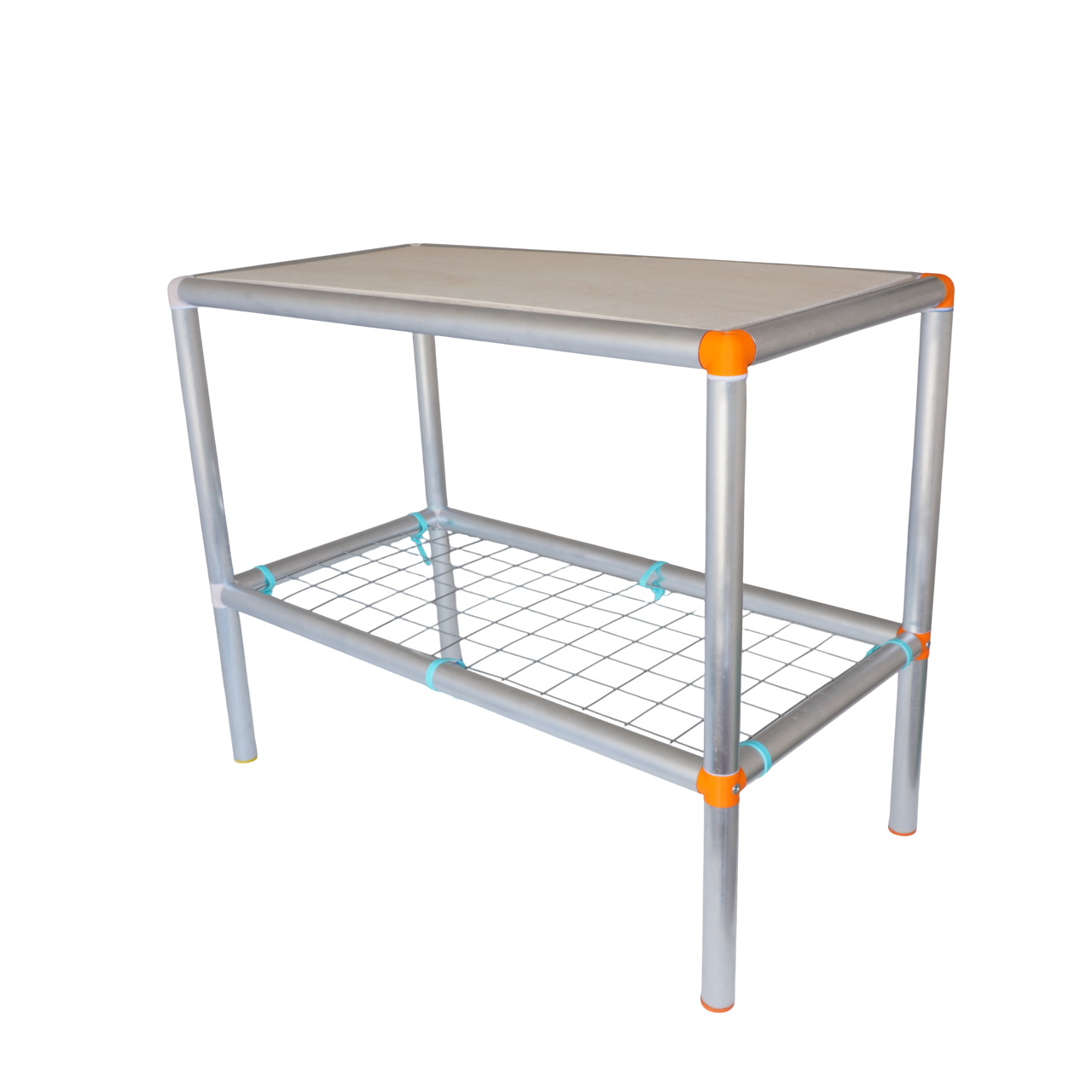

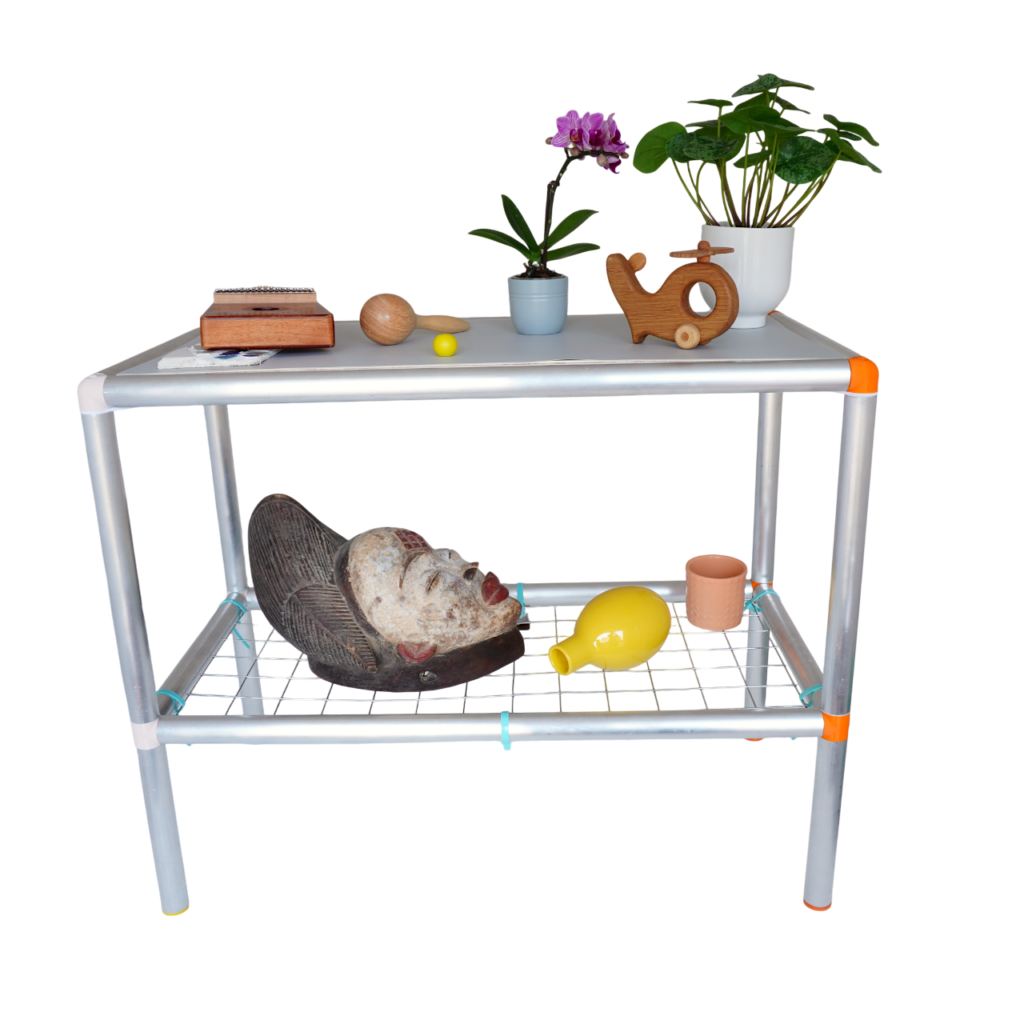

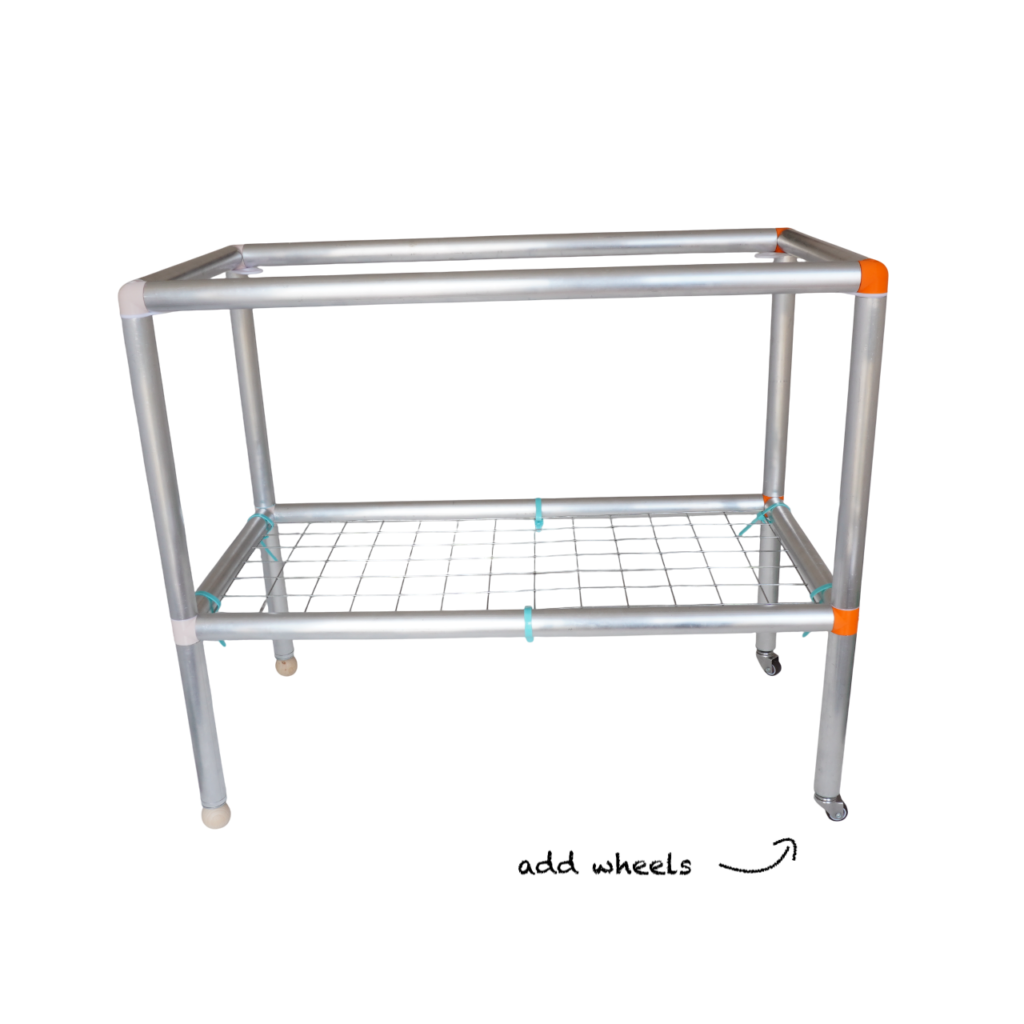

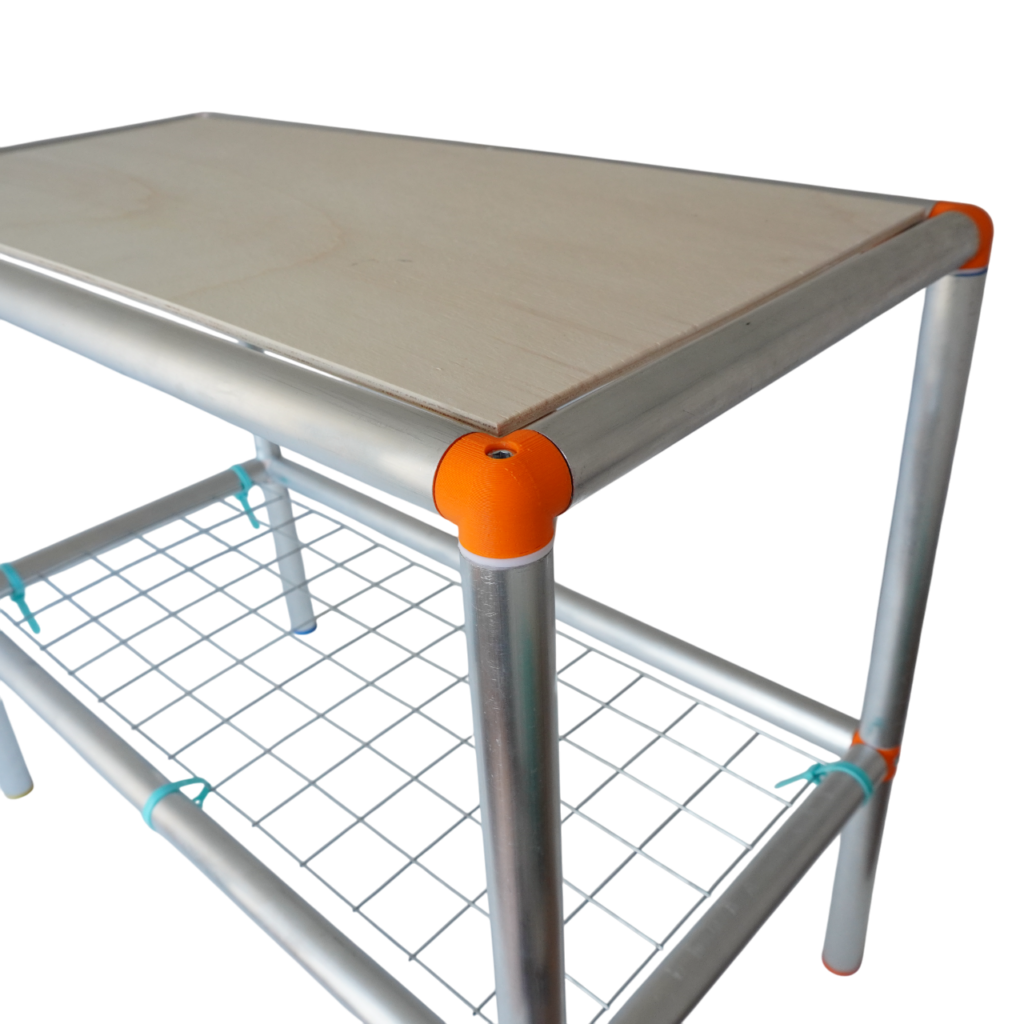

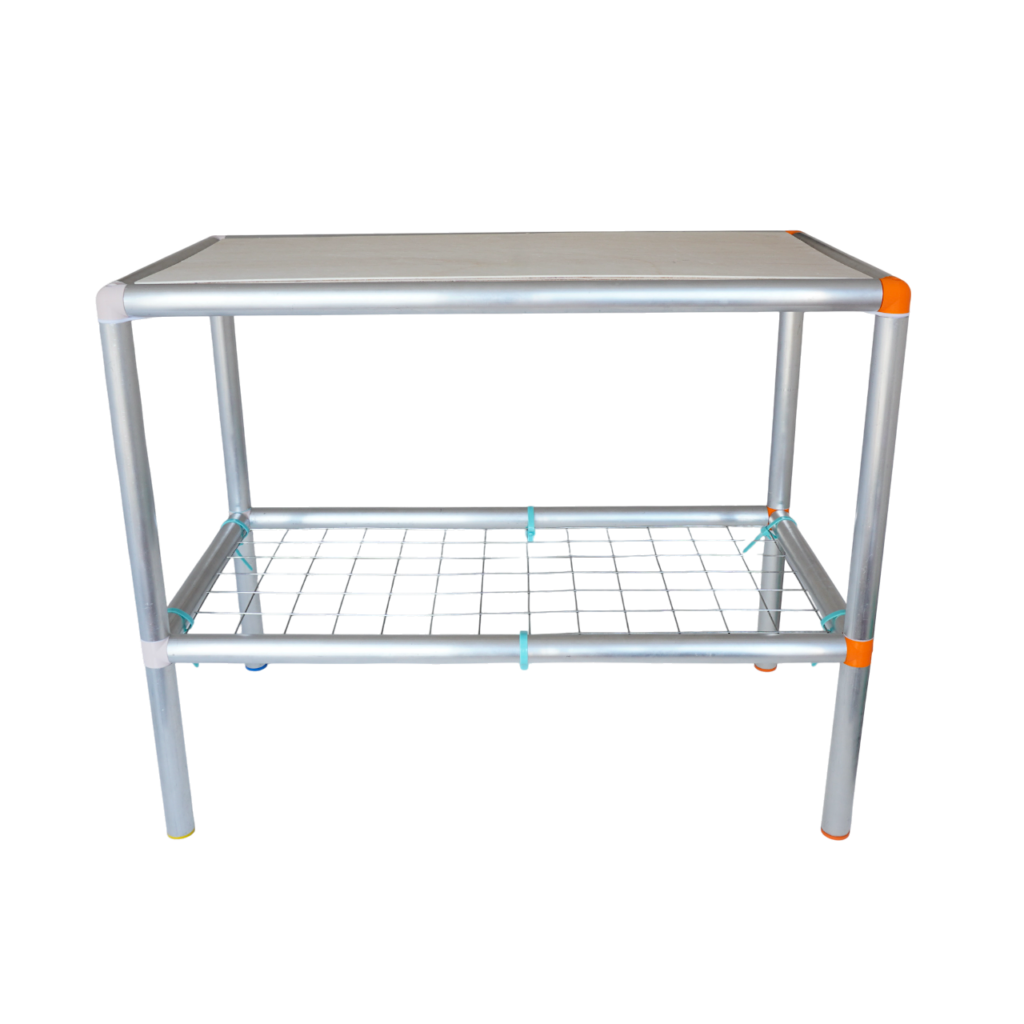

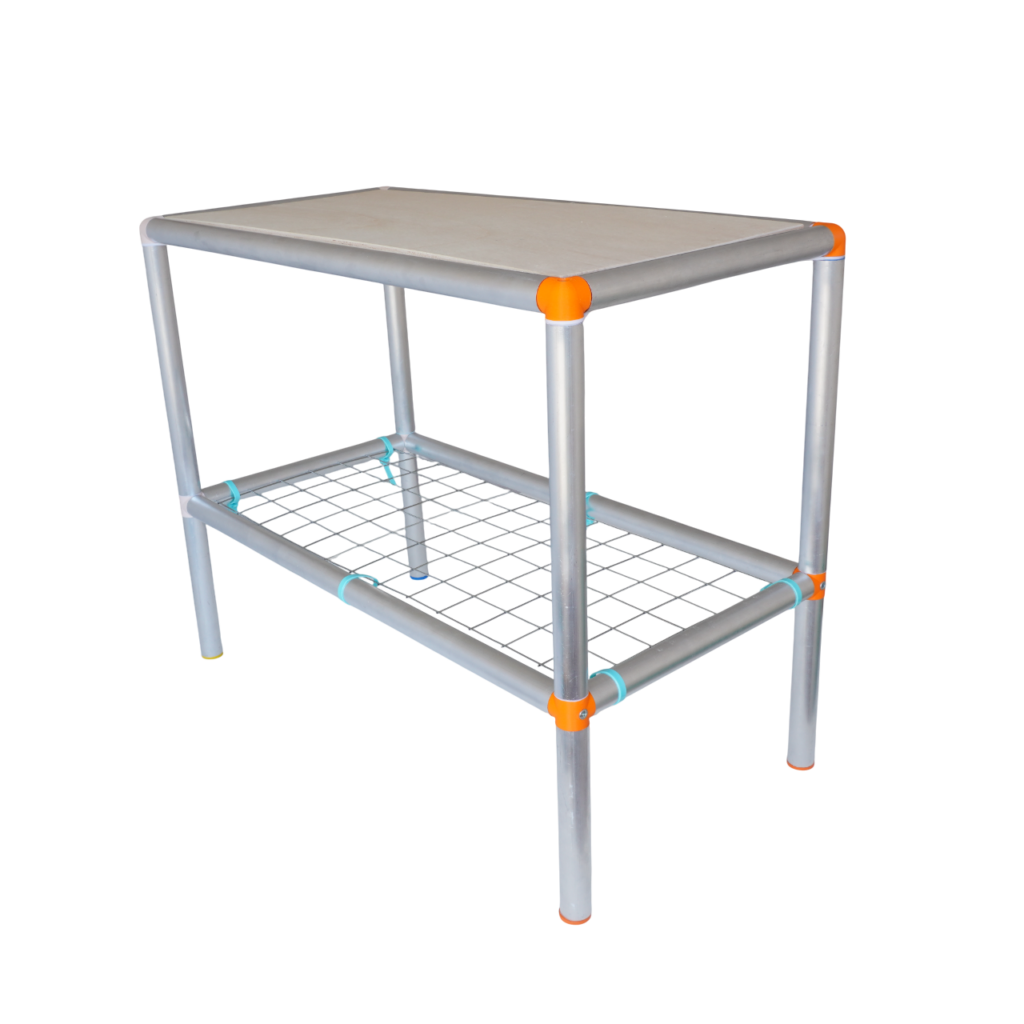

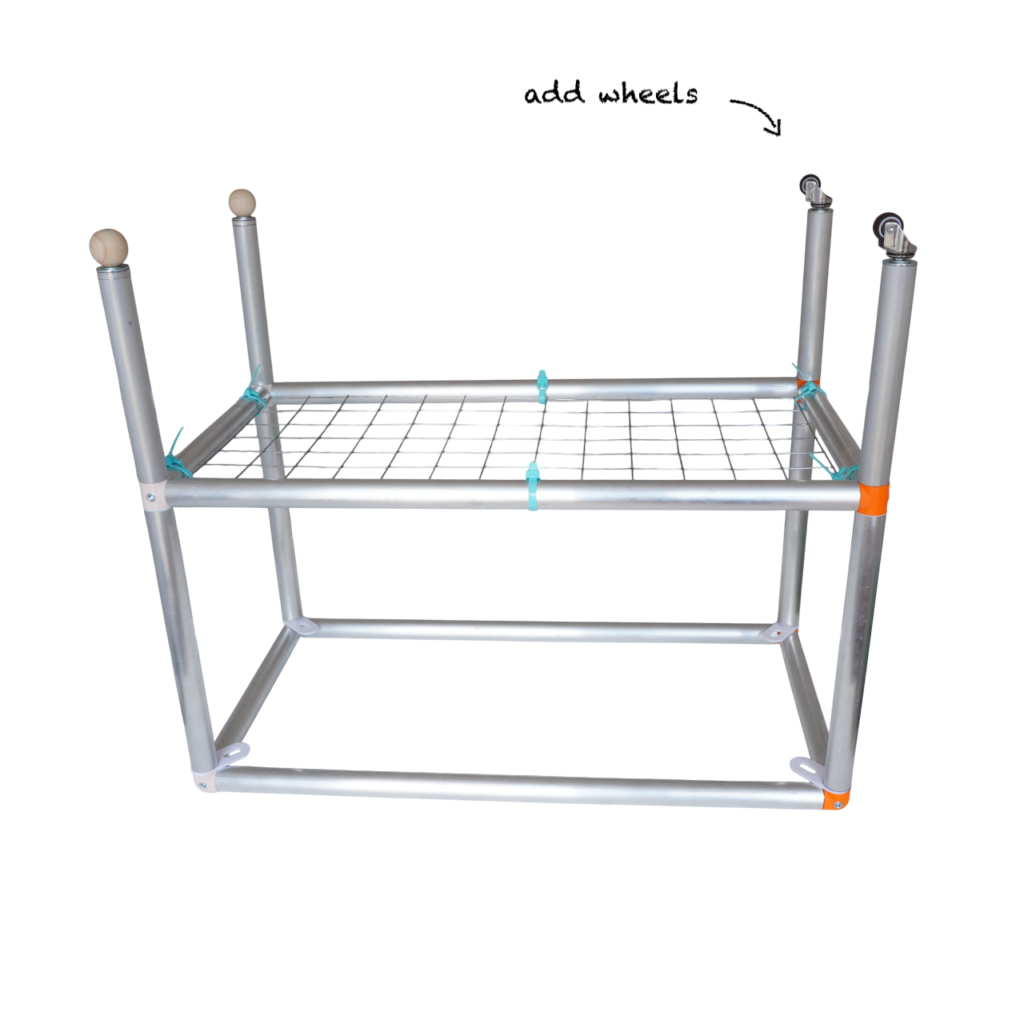

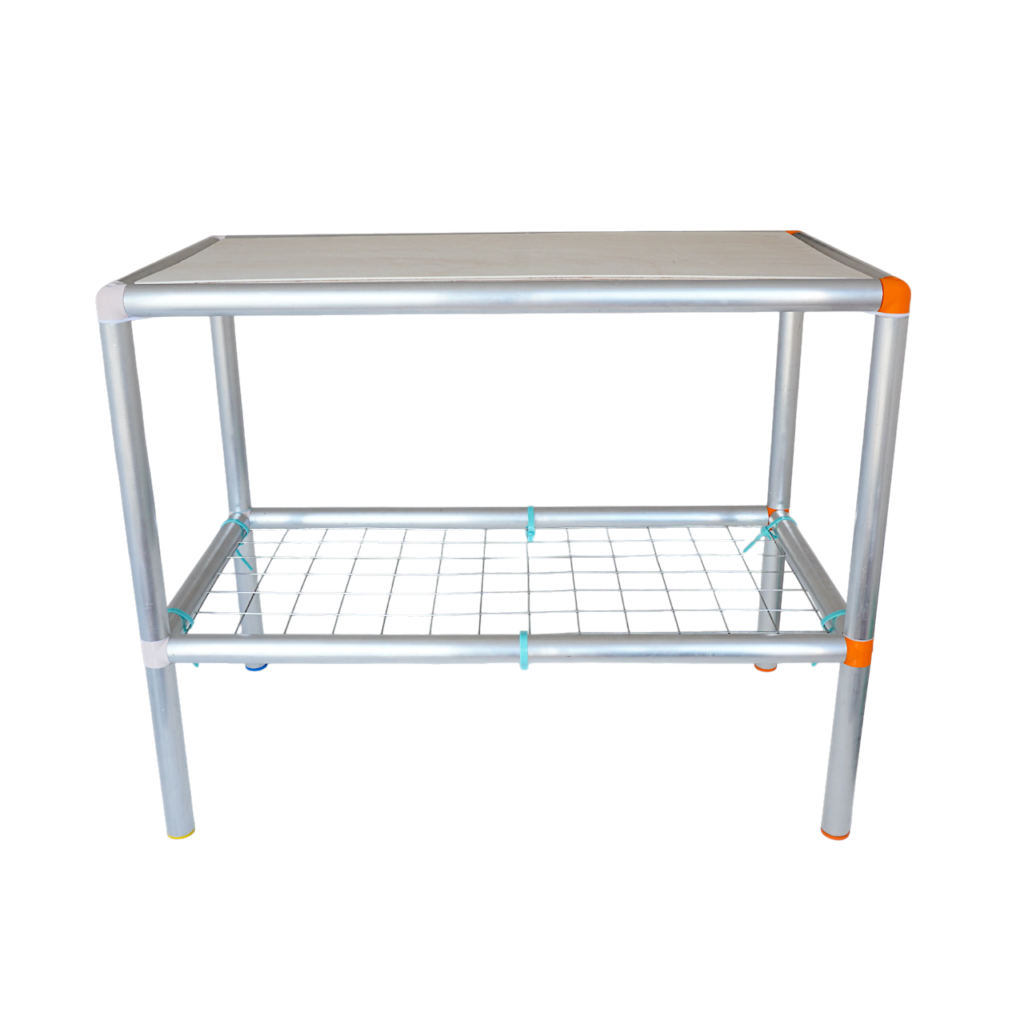

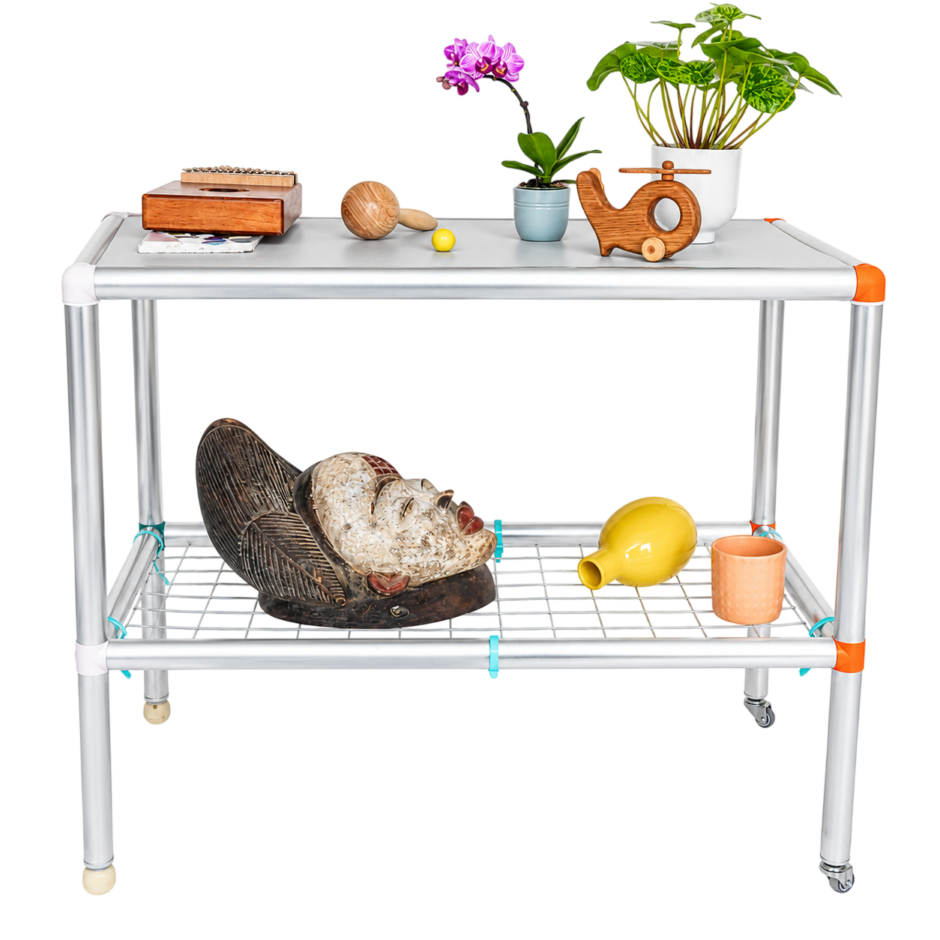

‘LL‘ is a multipurpose shelf that you can put on wheels and use as a battering ram in the battle for a n3w sustainable world.
ヽ(✿◠‿◠)ノ︵┻━┻
Set No #064
Set stats What does this mean?
- 1 prototype
- 0 makes
- 1 products
Context info
- This is a Node World set
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- Disclaimer
Assembly instructions 🔨🪛
- No instructions were created for this set. It should be possible to figure out the assembly just from the parts. If you get stuck, please reach out to Ikego.World for additional help.
This set is part of Ikegos Node World. A subsystem within Ikego.
