Set #093
Parts list
Parts appearing in this set
Duo Brick System

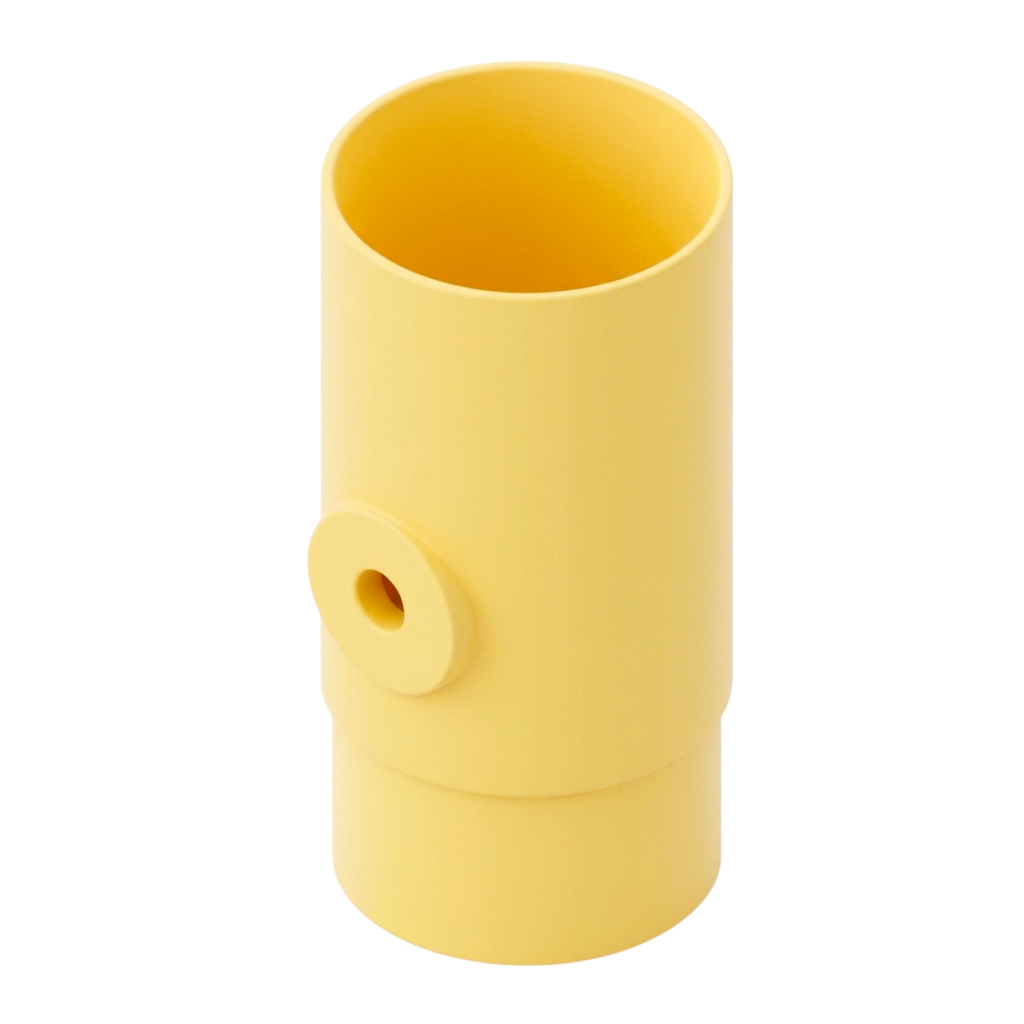

150.1 – Duo 90x60mm
149.1 – Spring Pin ⌀10mm+

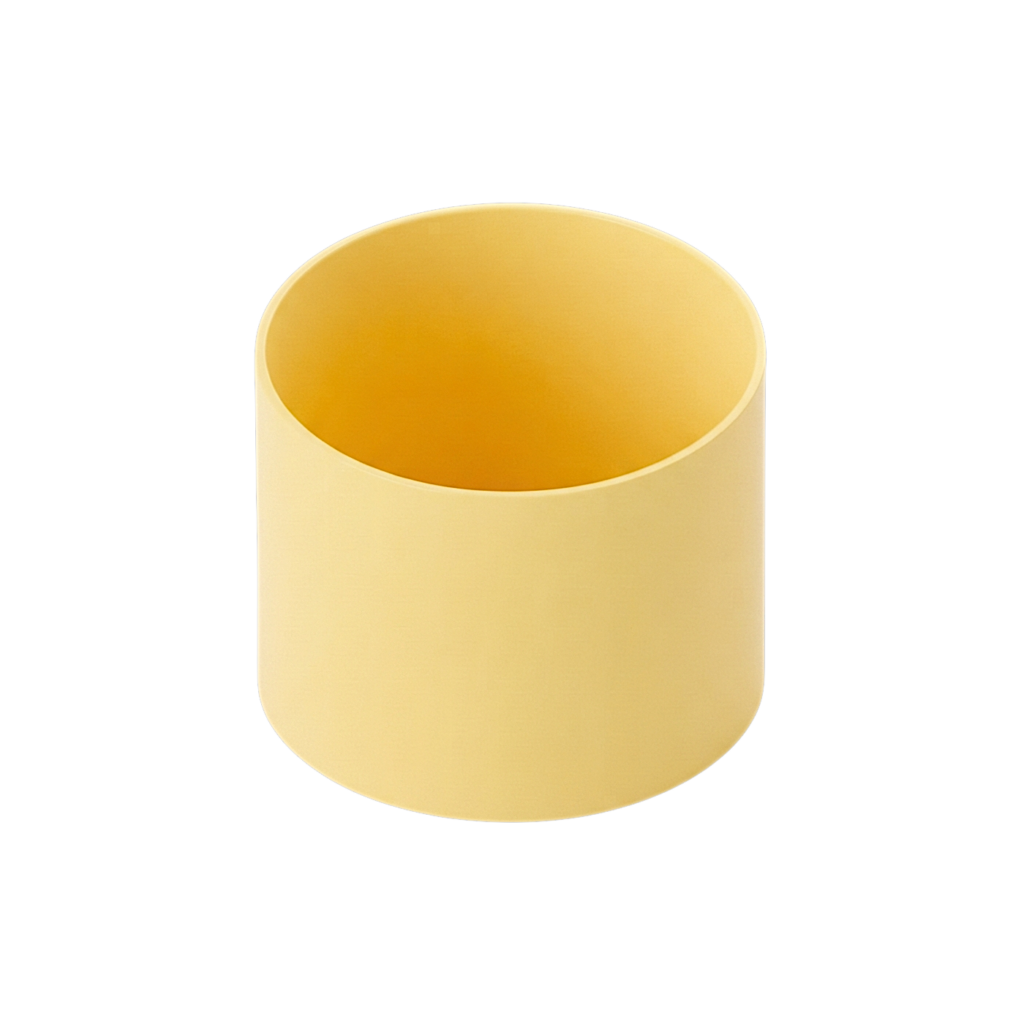

133.1 – “Duo cup”, 30mm high
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
089.1 – M6 nut
088.1 – M6 wing nut
043.1 – Plastic nut & bolt ~30mm ⌀ 10mm
030.2 – M6 bolt 15mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

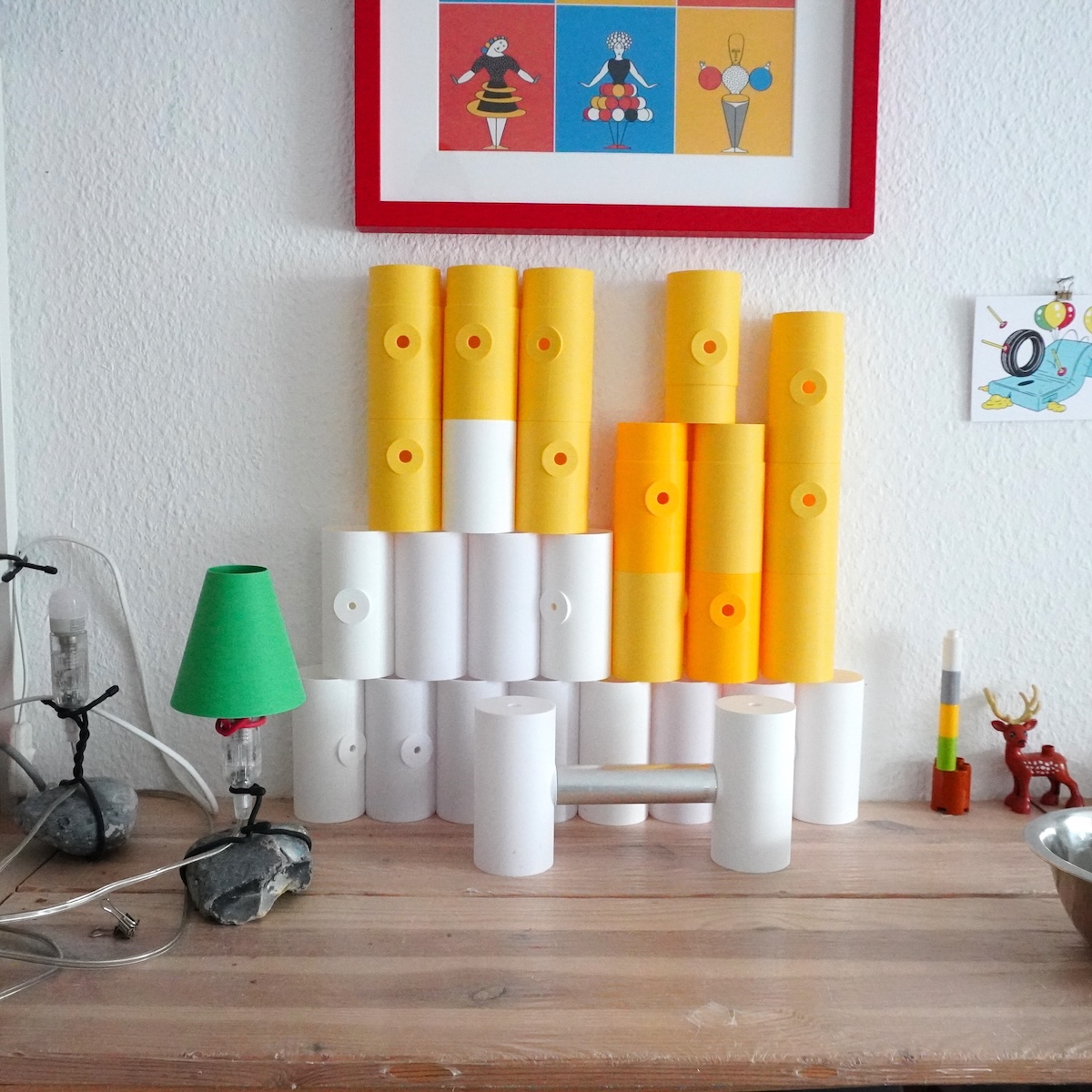

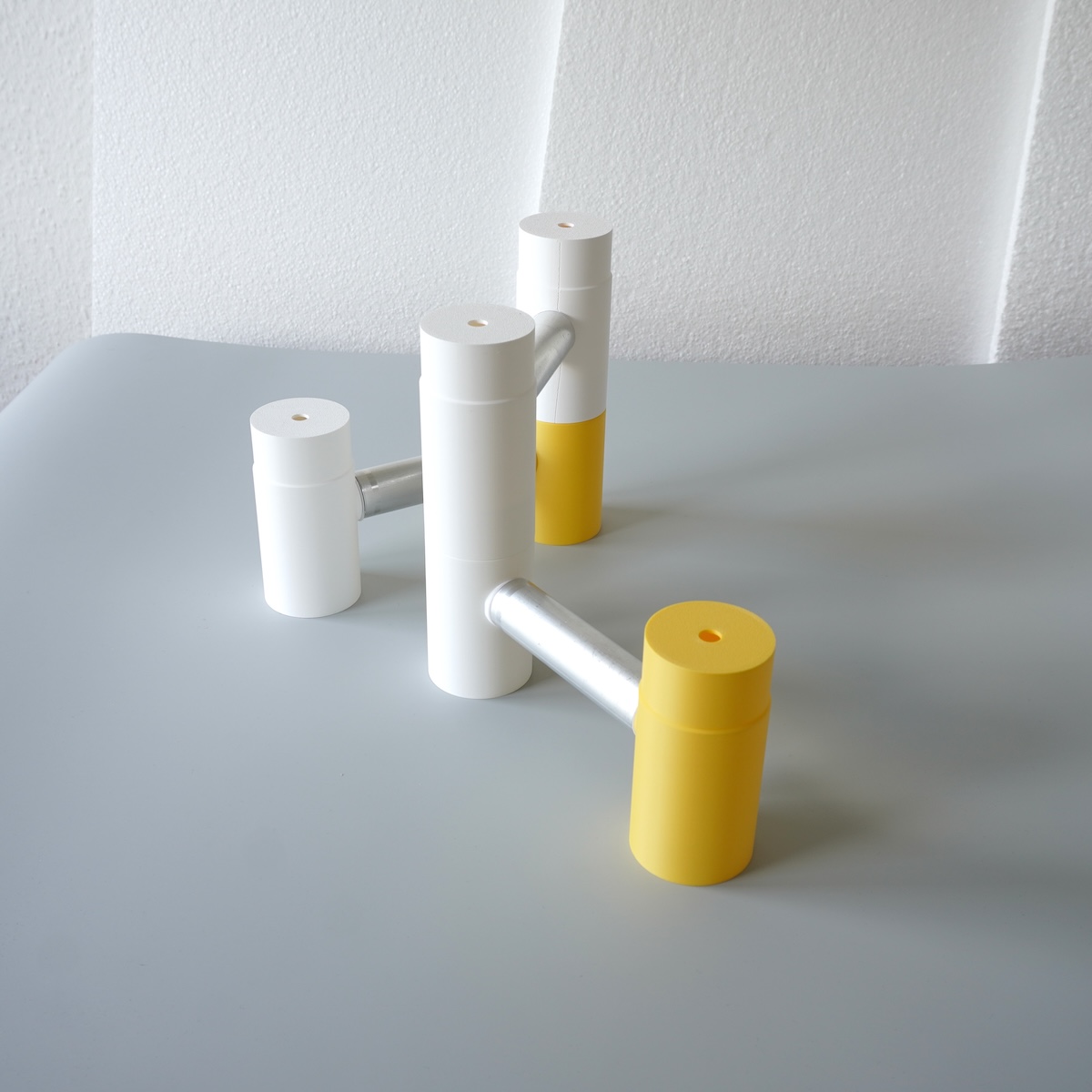

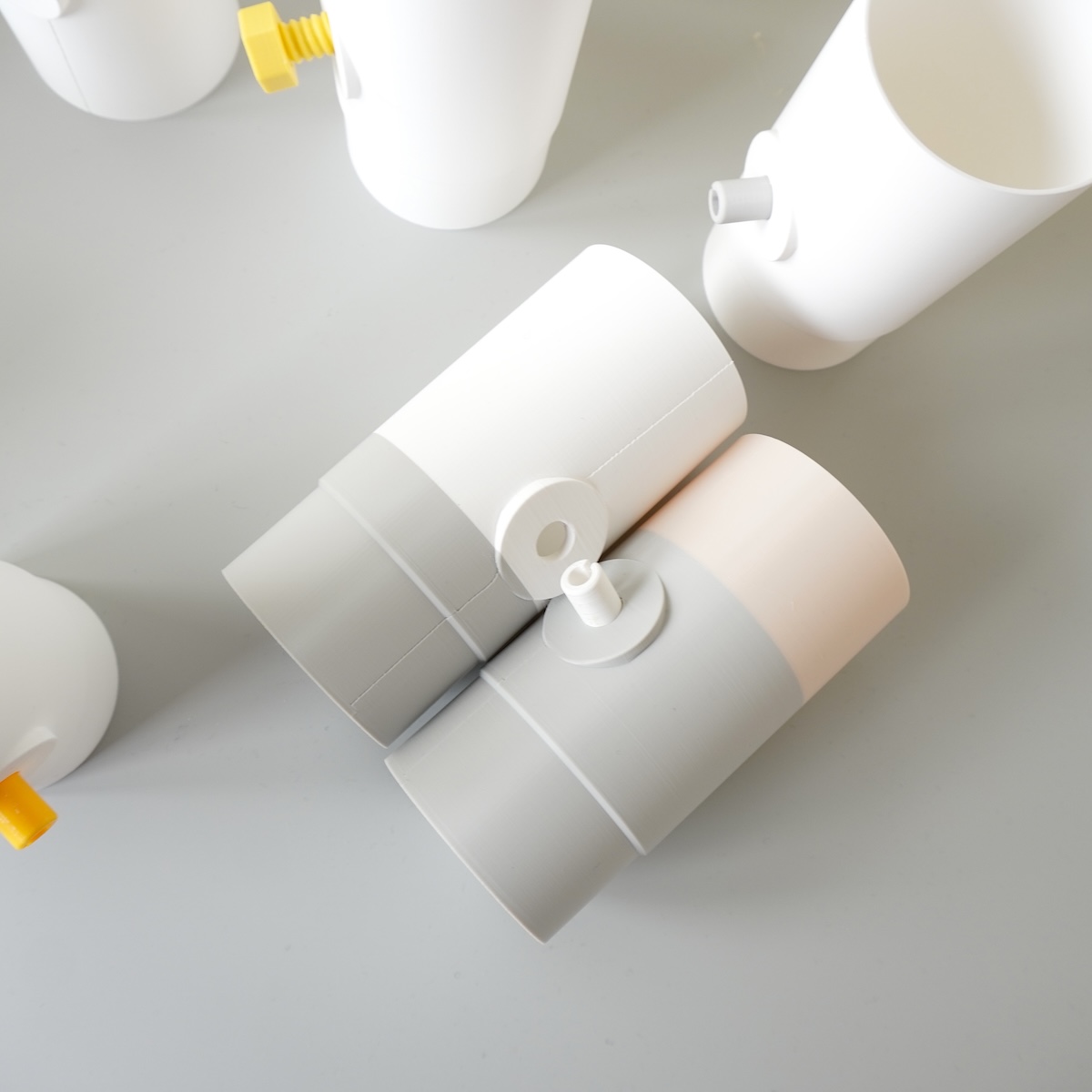

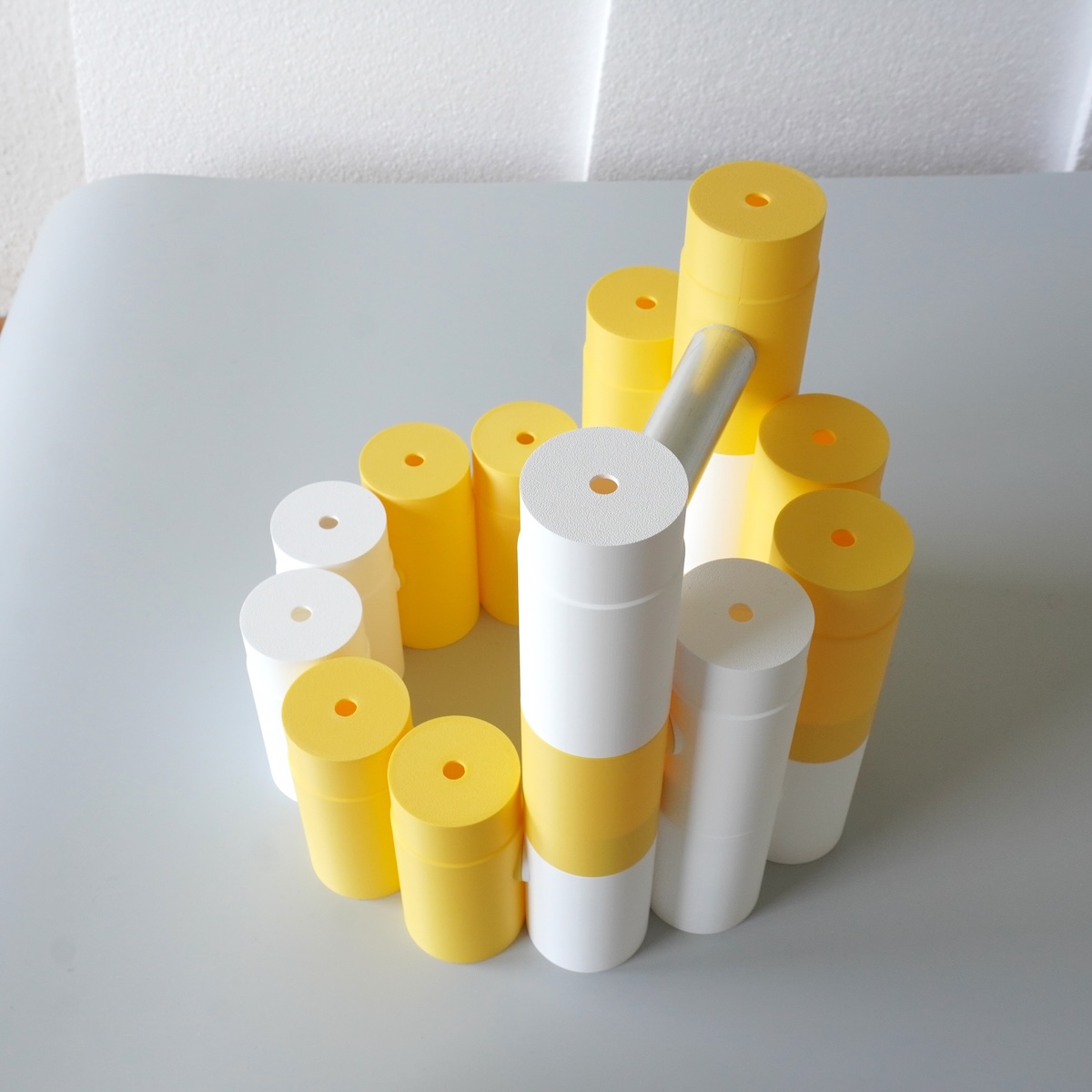

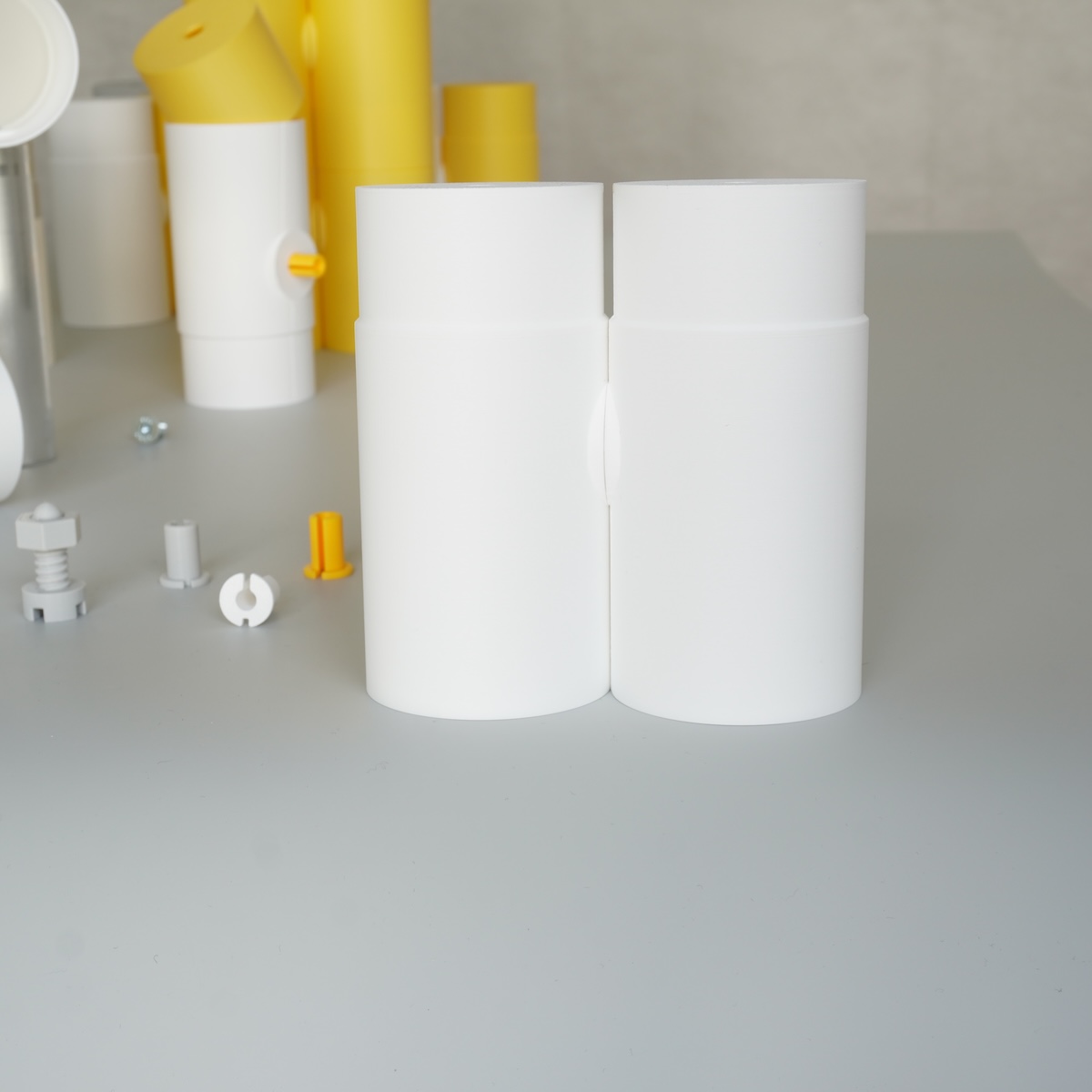

‘The Duo Brick System‘ is construction system you can use for play but also the assembly of other structures in your home or world of business.
By Elle Nutter
Status: Physical functional prototype.
Set info
Set No #093
Info

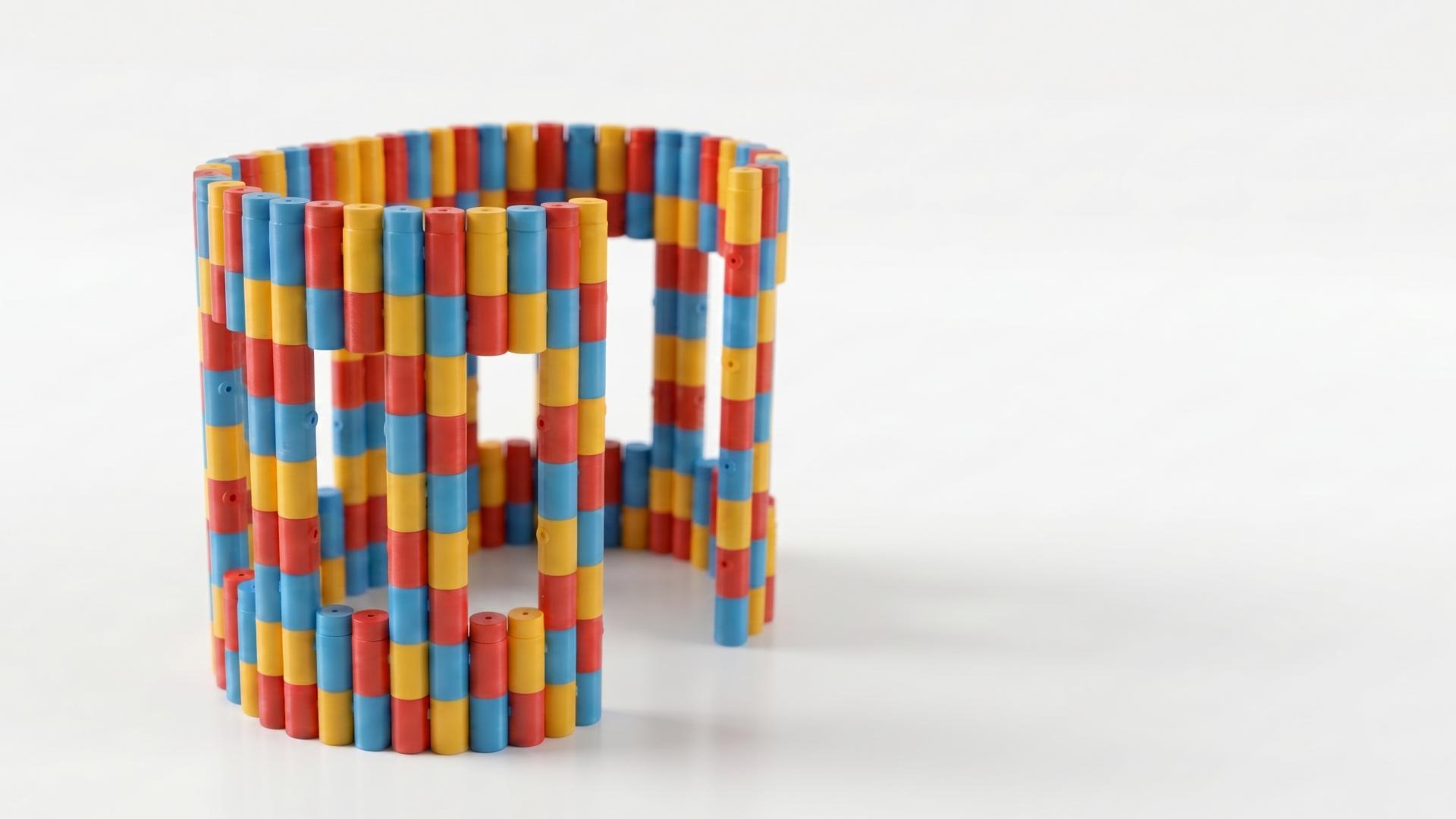

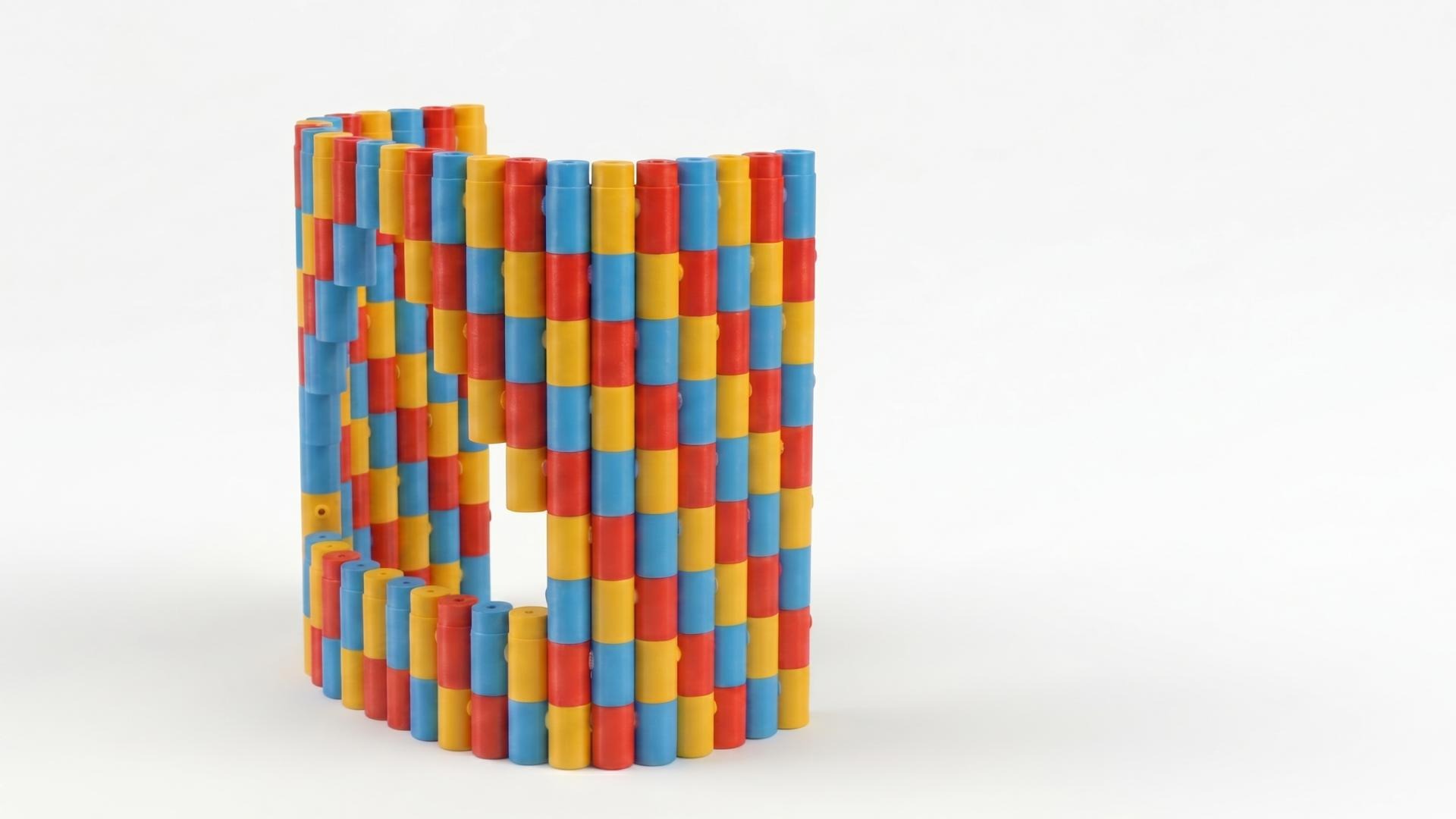

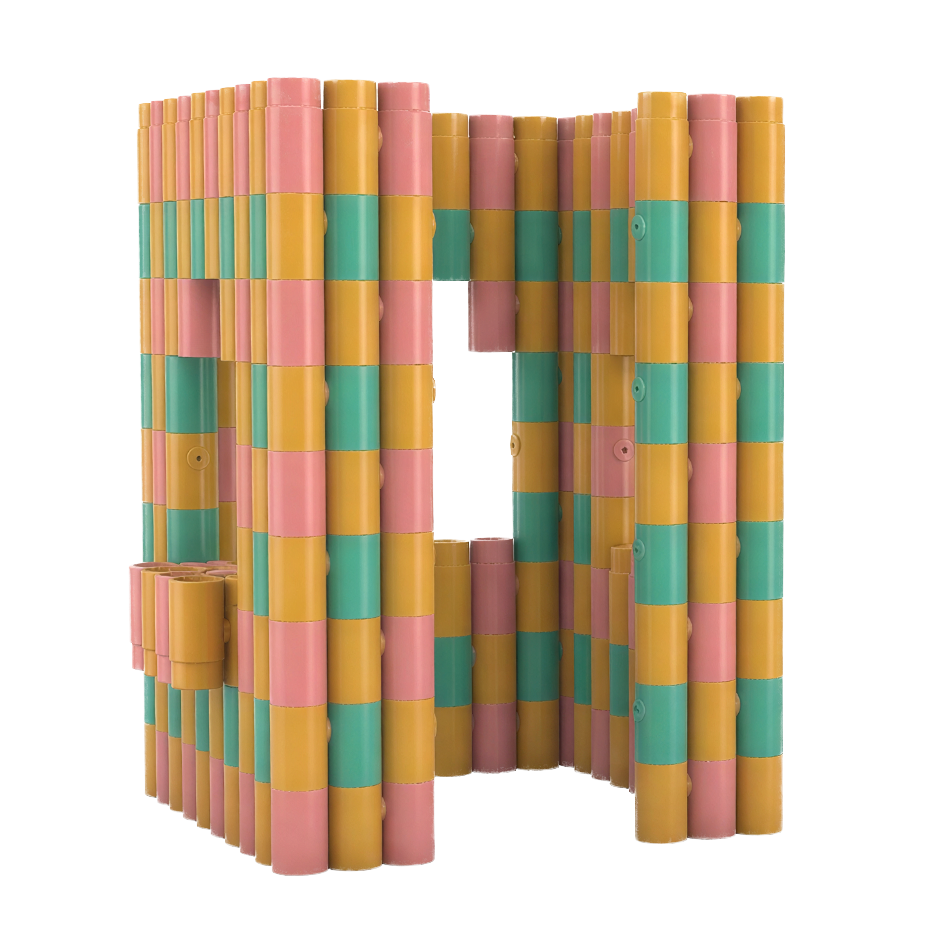

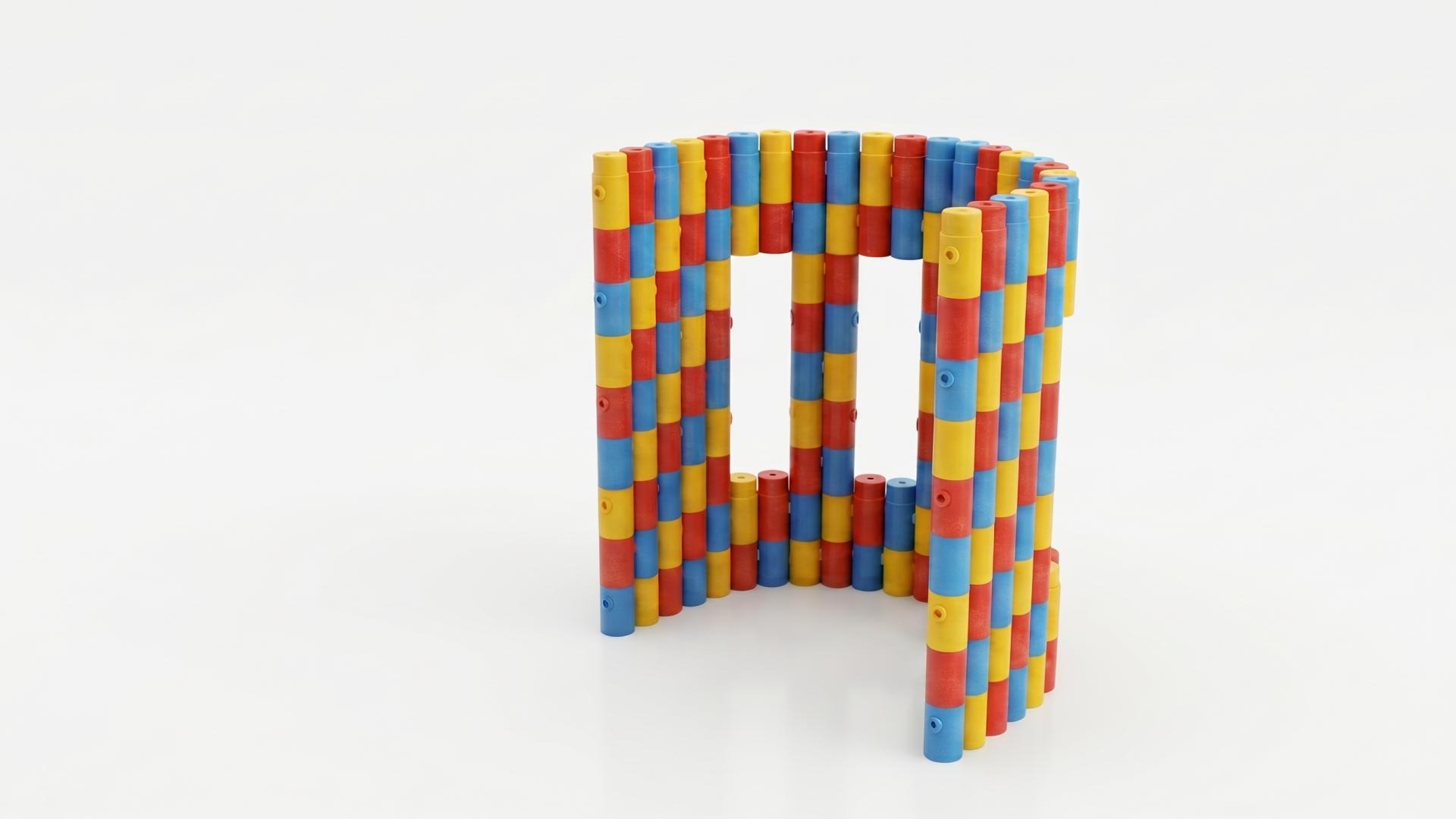

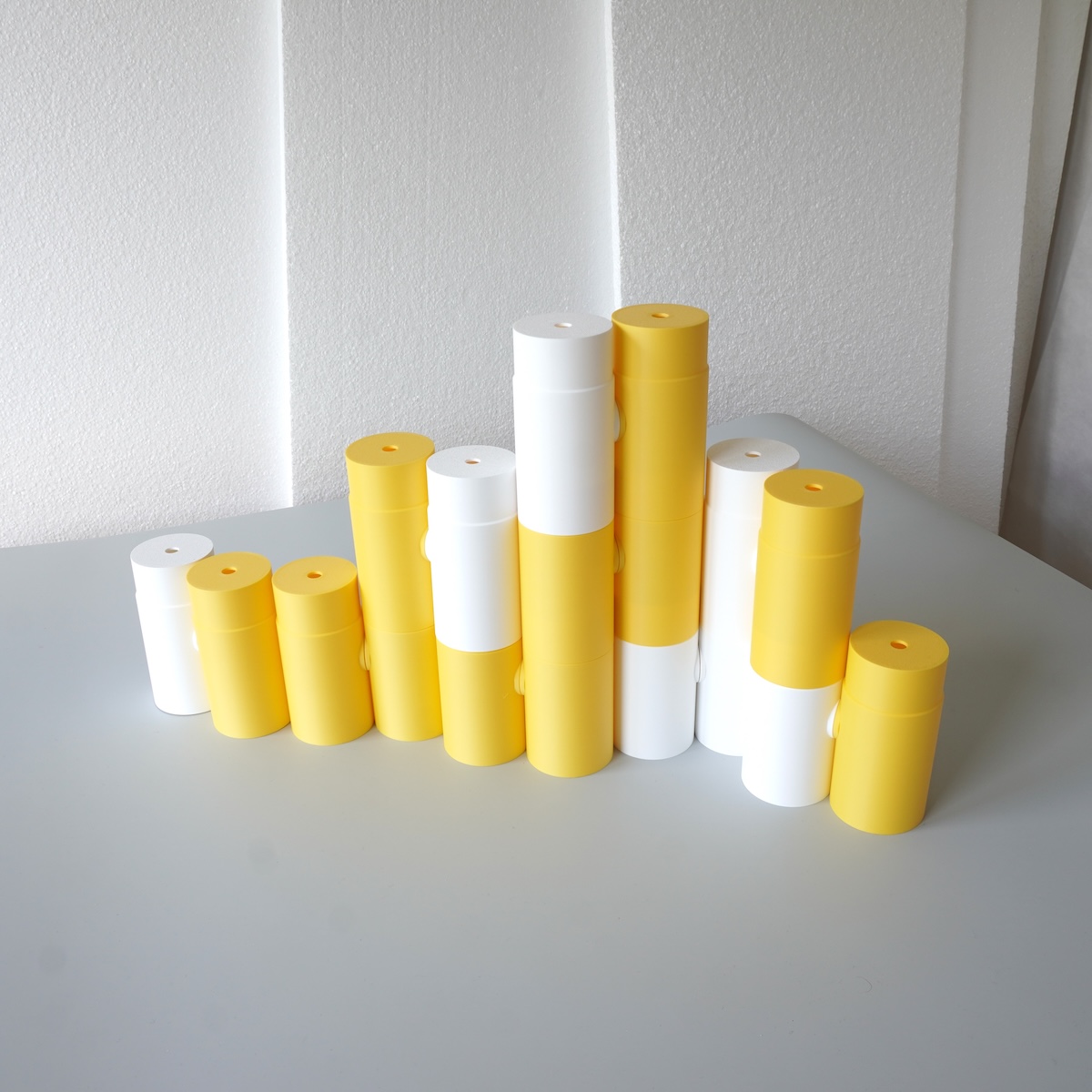

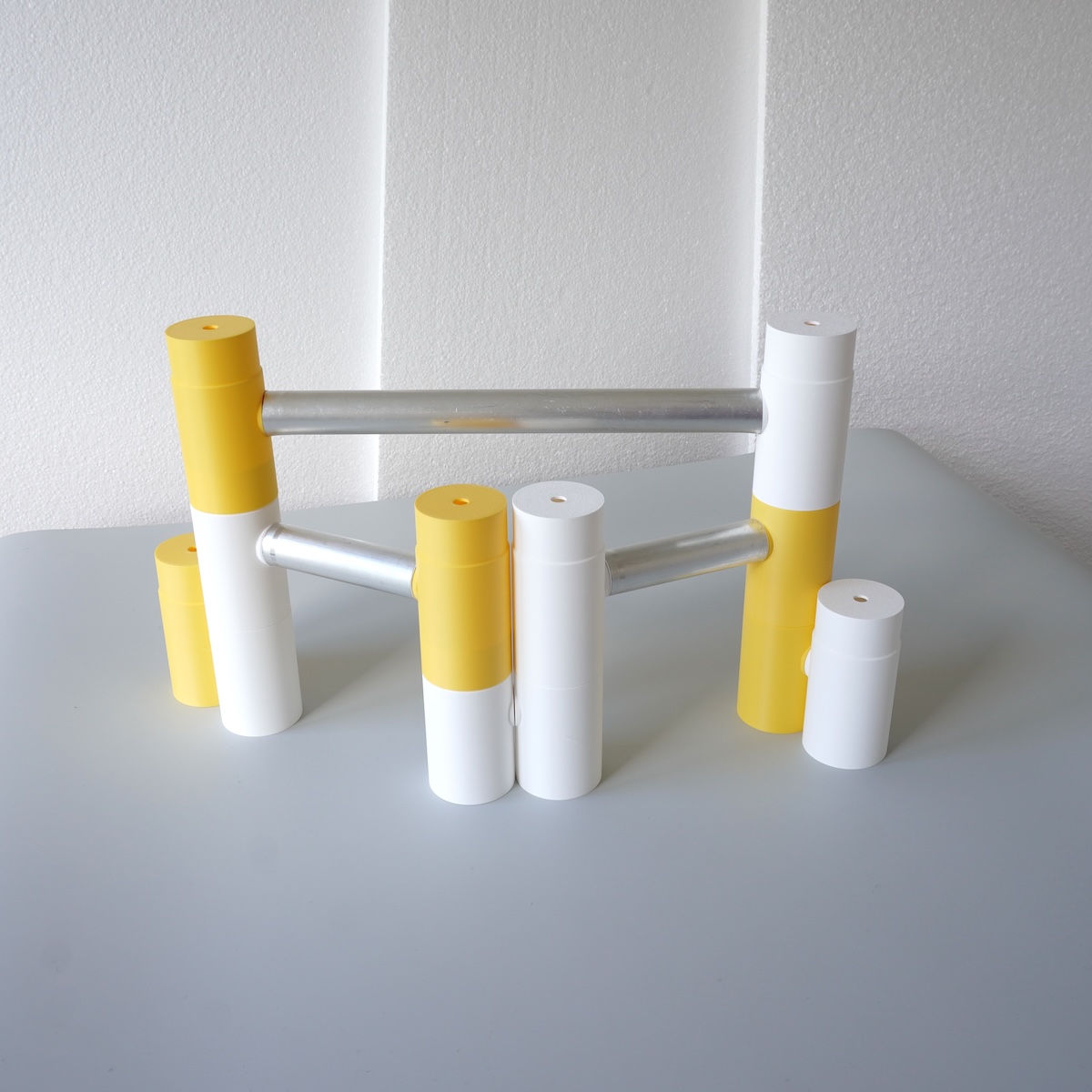

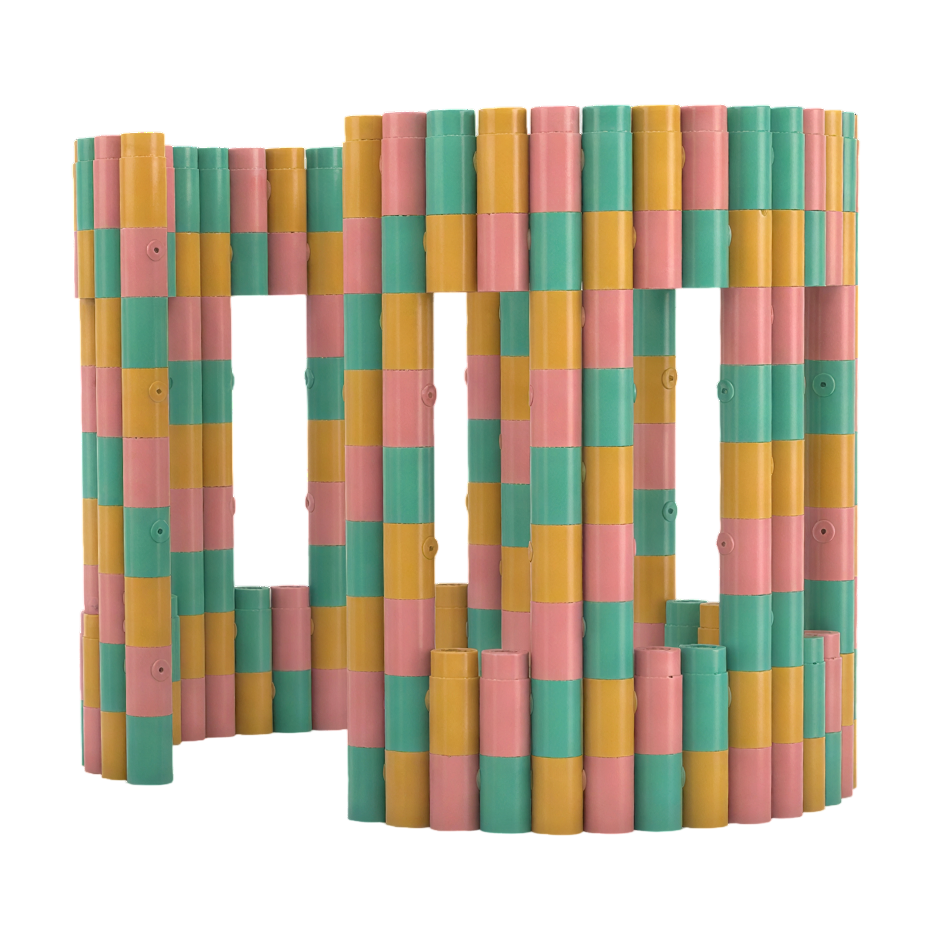

- The pictures above mostly present the Duo Brick System as a toy. However, you can easily imagine using it to build structures for more serious environments, including trade show booths, exhibition infrastructures, therapy rooms, and much more.
Meta info
- This set was shared via Email, thank you Elle
