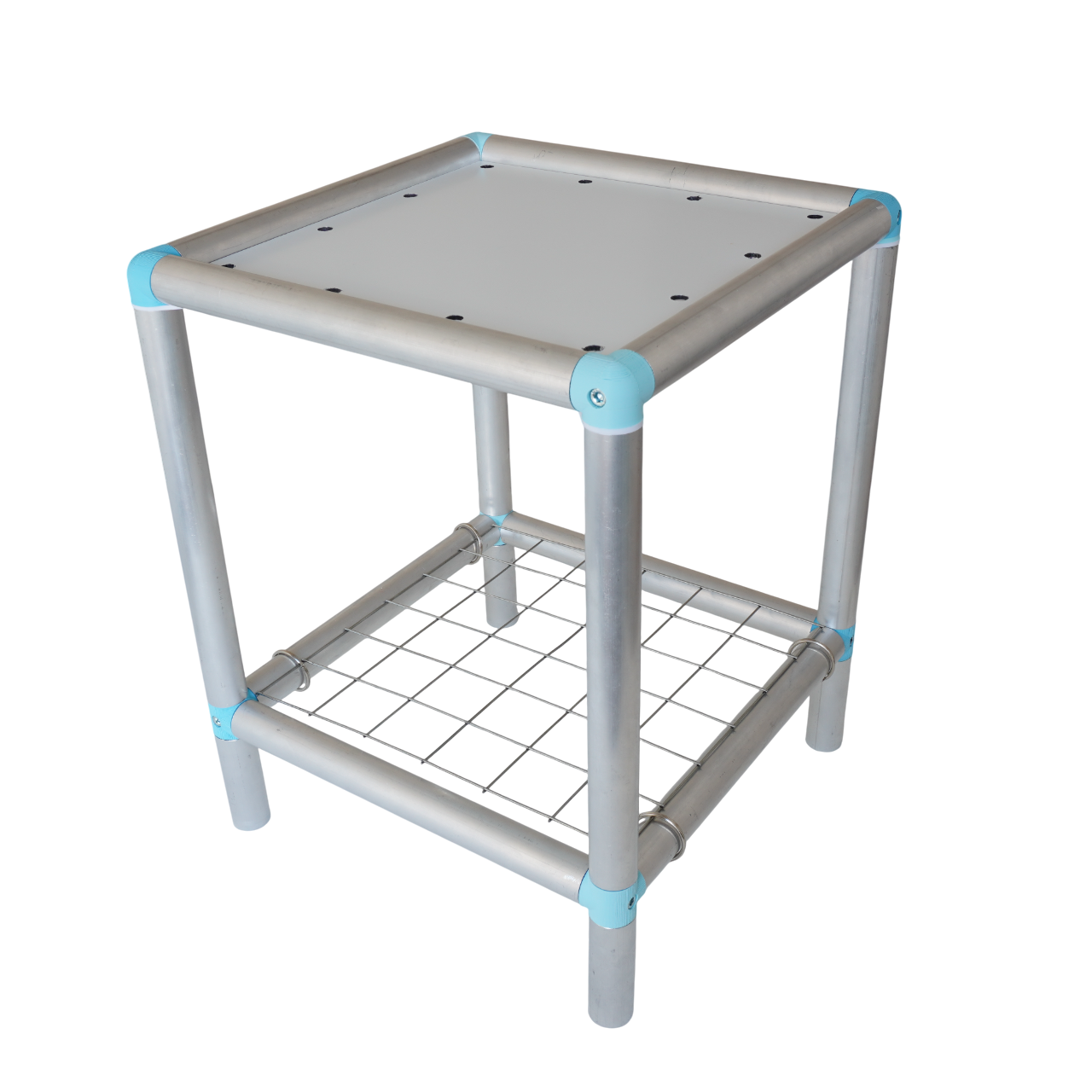

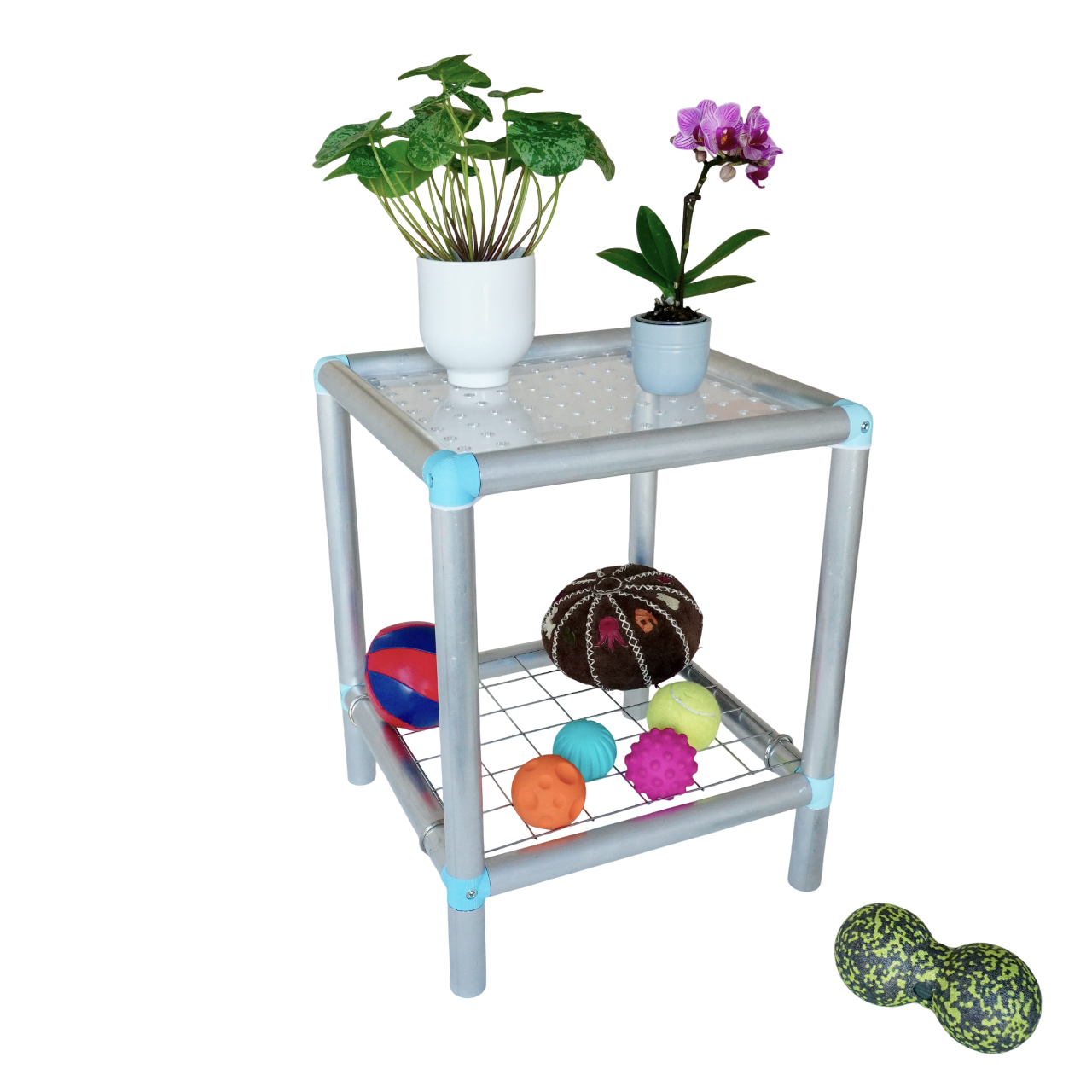

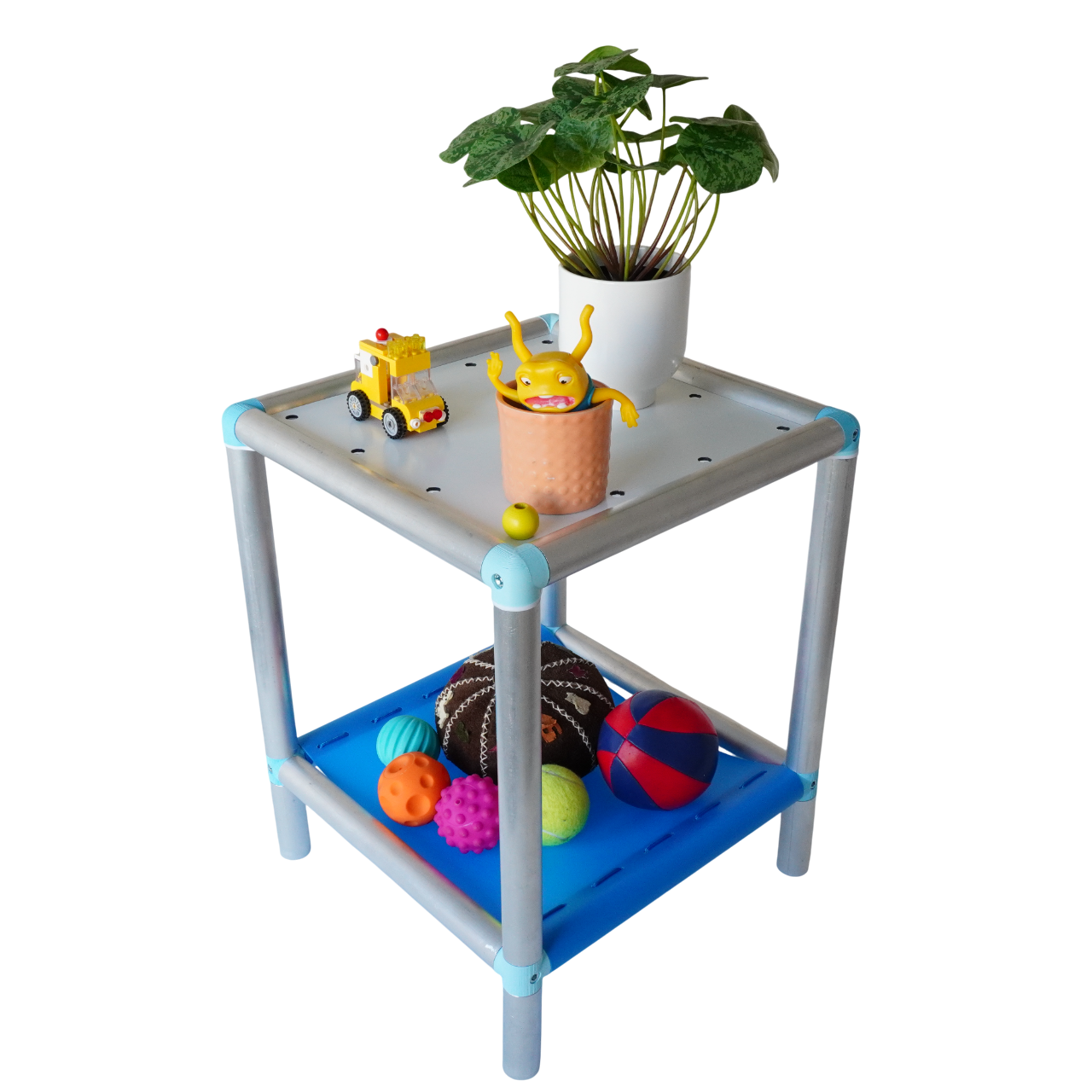

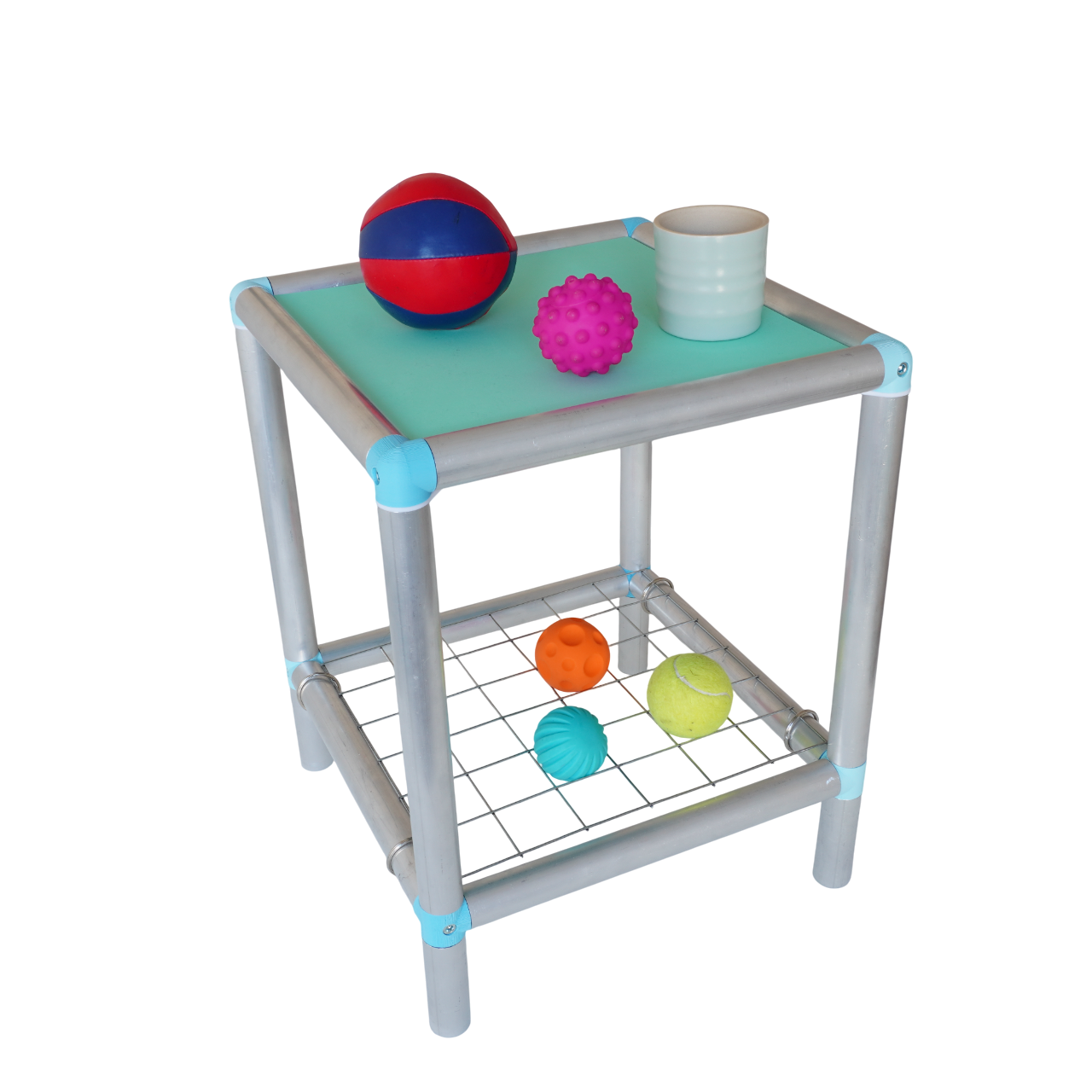

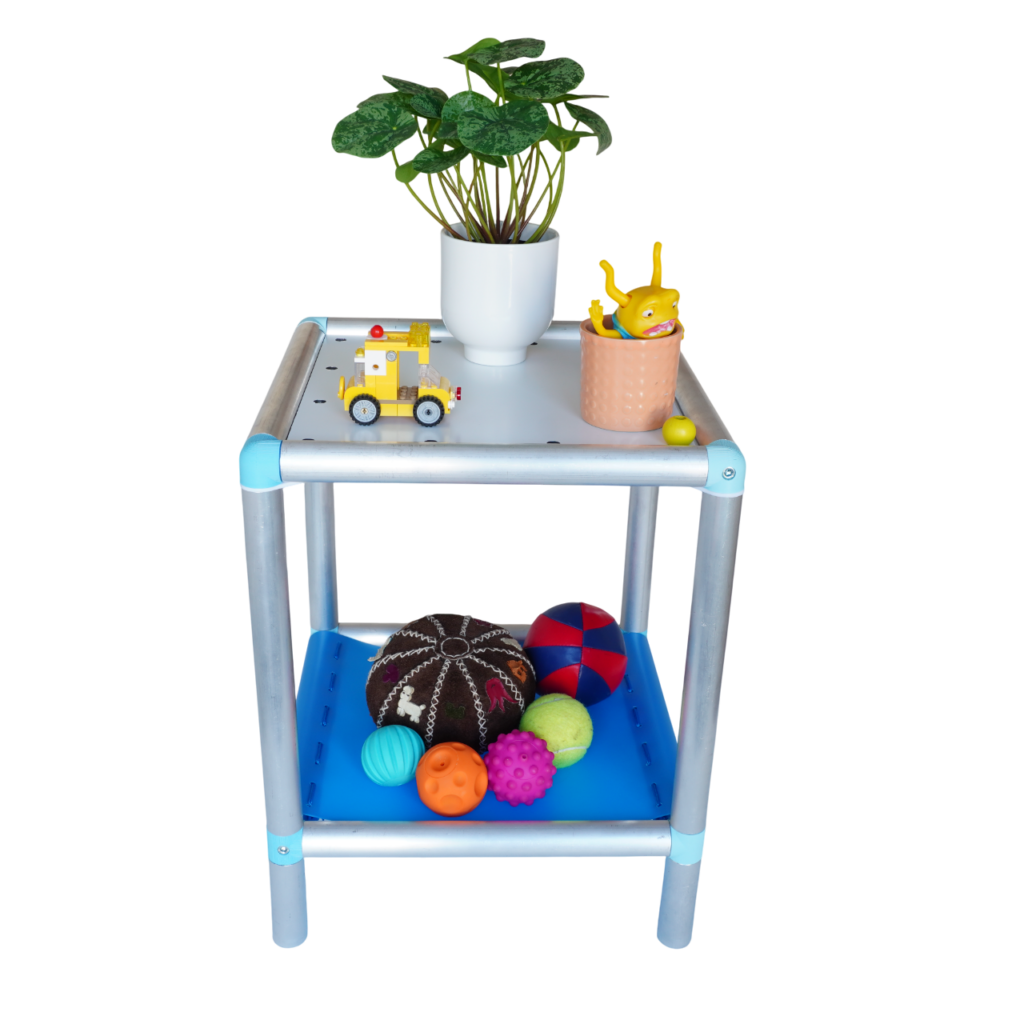

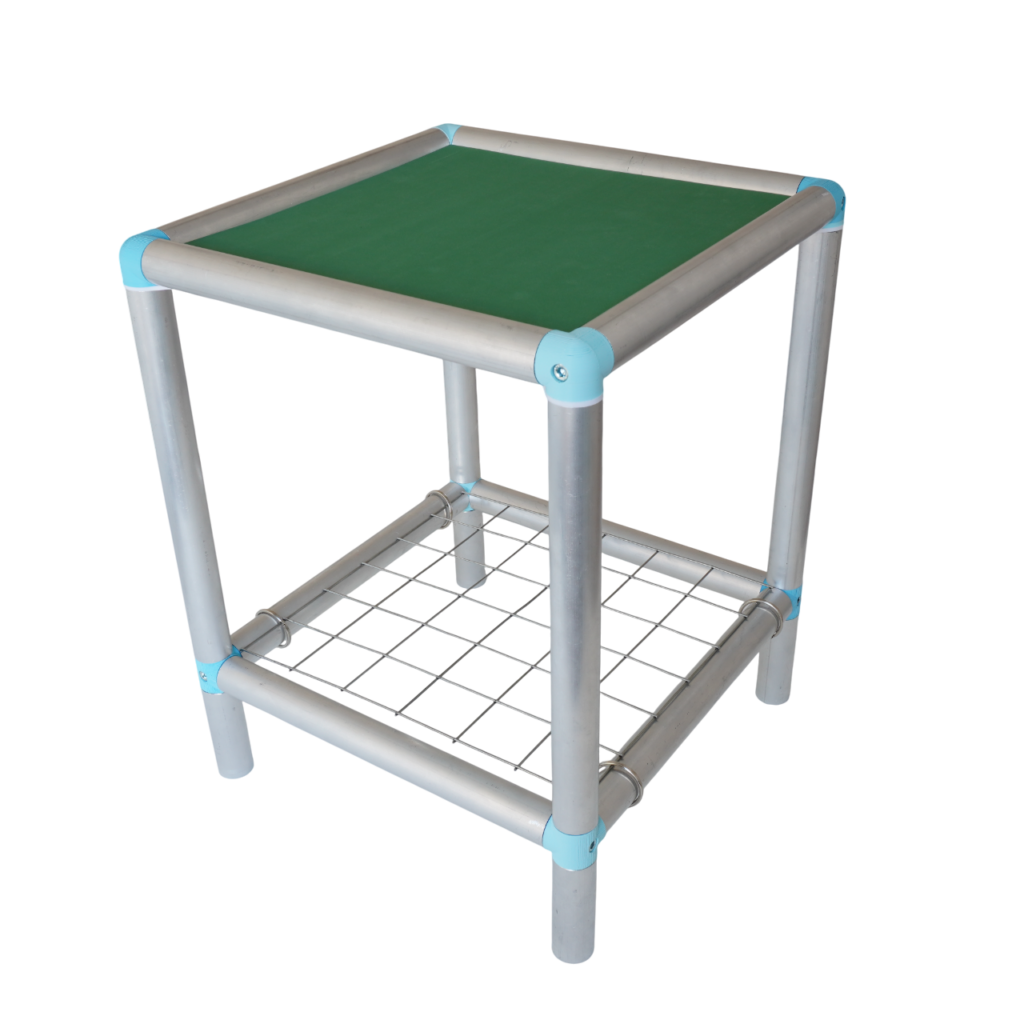

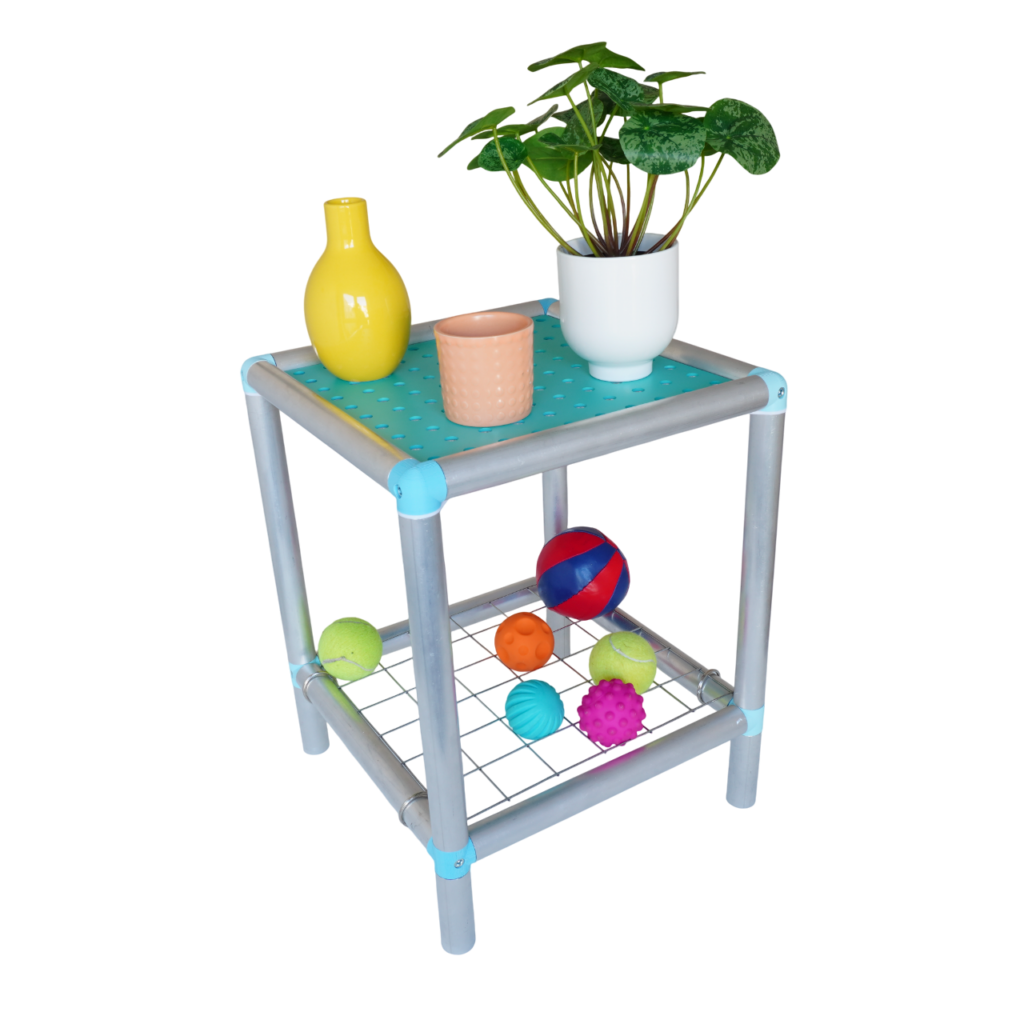

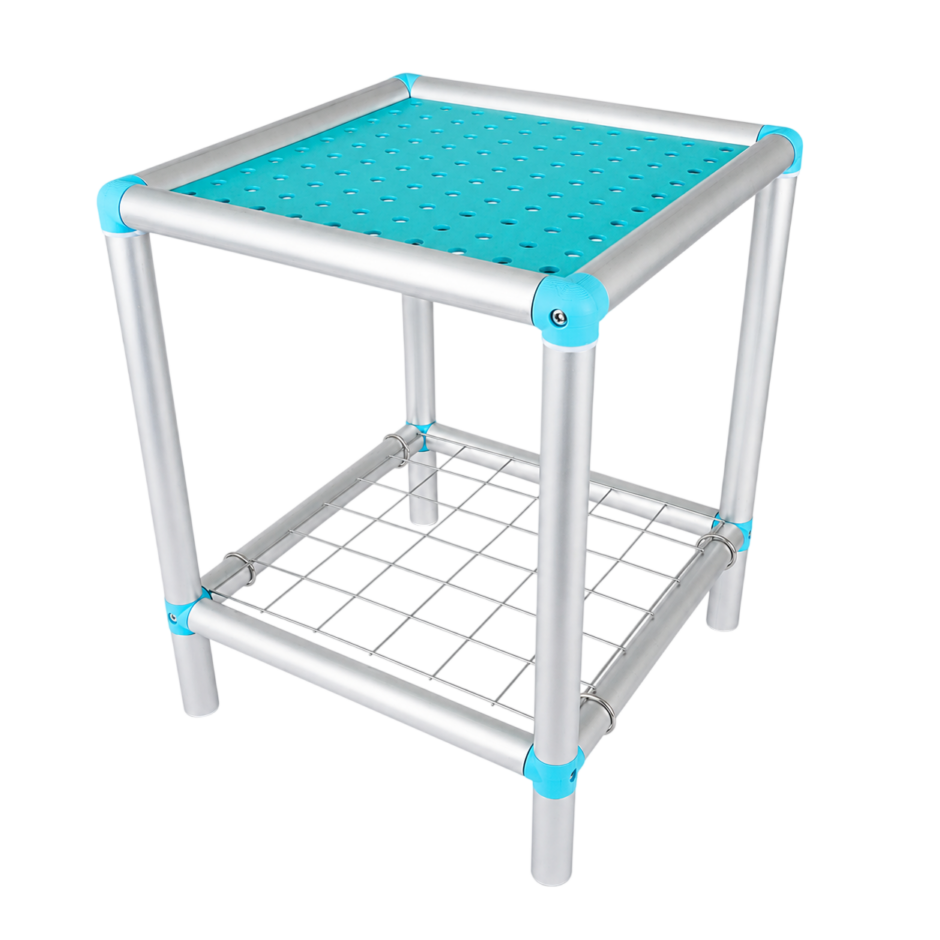

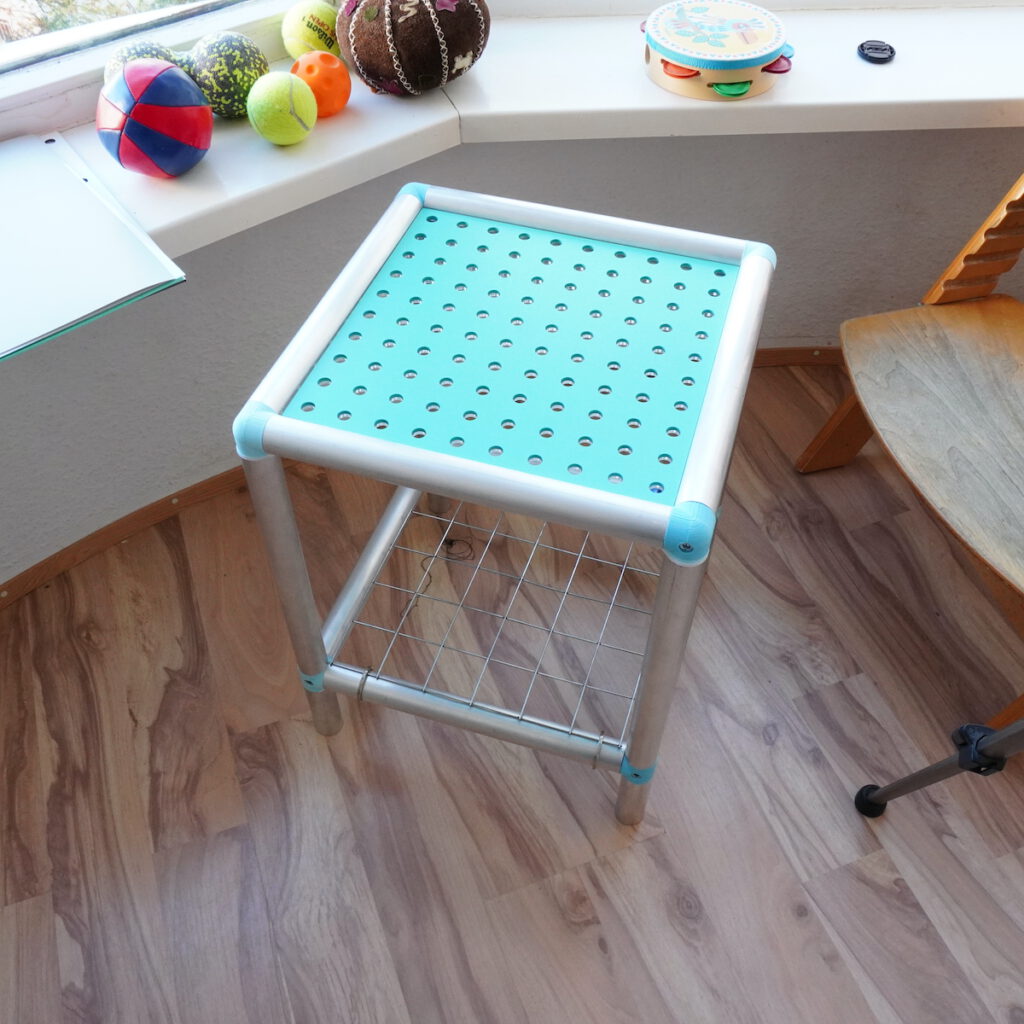

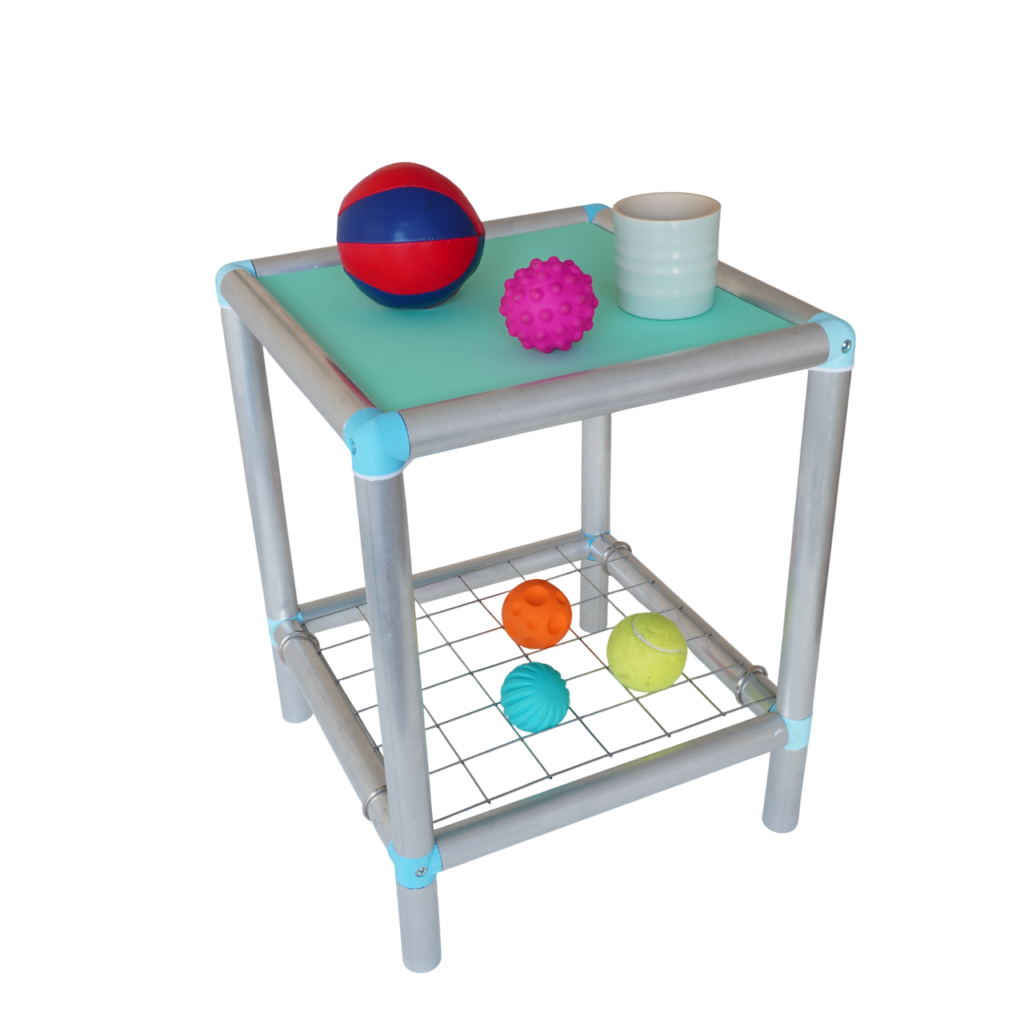

‘Babbole‘ is a small shelf that likes to sit quietly in the forest and watch wild animals roaming free.
A Node World set
By Lars Zimmermann
Status: Rough prototype/concept
Design info
Set stats What does this mean?
- 1 prototype
- 0 makes
- 1 products
Context info
- This is a Node World set
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- Disclaimer
Universal parts
Babbole .nd14_
146.1 – Key ring ⌀ 38mm
144.1 – Wire mesh, not bendable, 300x300mm
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
114.2 – 3 corner bracket modified Round +
102.3 – Board ~300x300x16mm
102.2 – Board ~300x300x16mm – “Tetri Board”
102.1 – Board 300x300mm
101.3 – Flexible bead ⌀ ~16mm, ⌀ 2mm hole
101.2 – Bead ⌀ ~16mm, ⌀ 6mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
082.1 – M6 bolt 50mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
