Set #087
Parts list
Parts appearing in this set
Caterpillar PS 🌱
155.1 – Tube 210mm, inner ⌀ 152mm

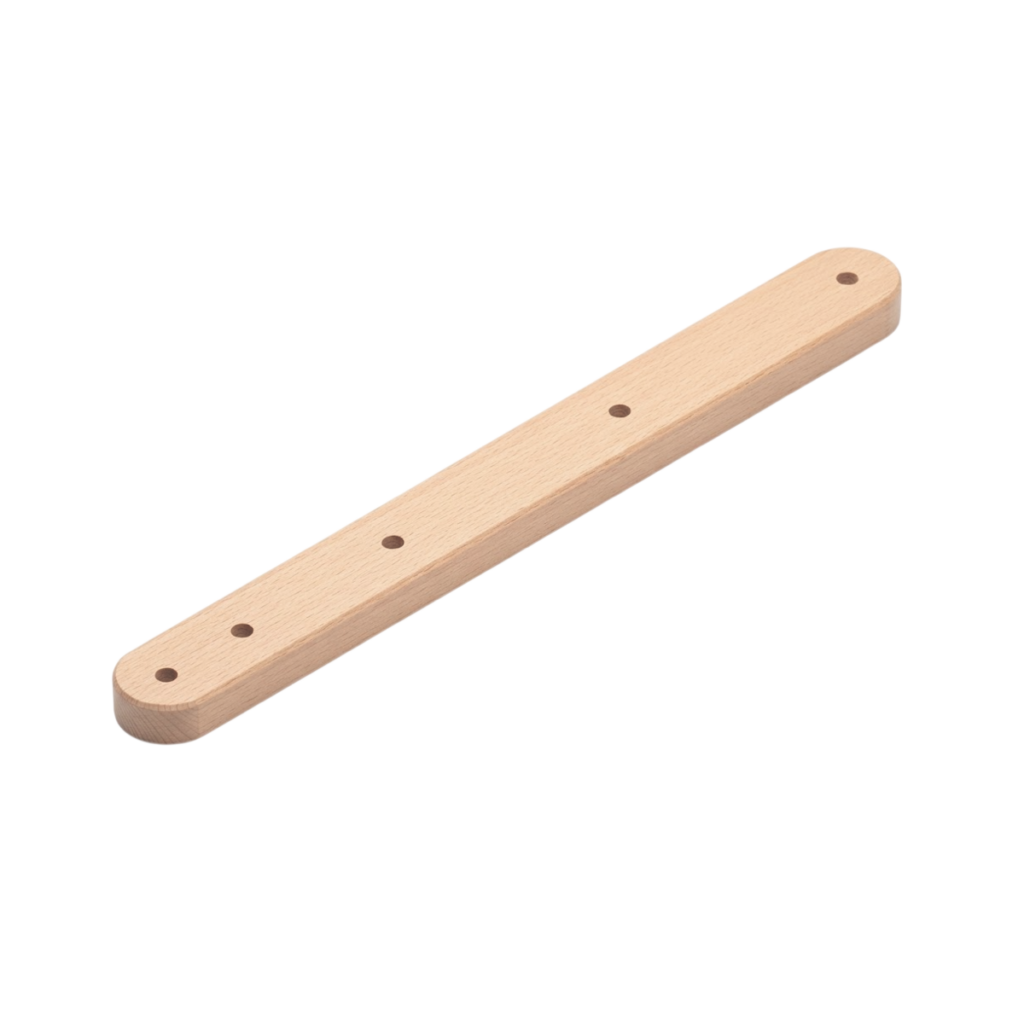

120.2 – Rail ~300mm, 5 holes
089.1 – M6 nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
051.2 – Domed washer for KG pipes, ⌀30mm
051.1 – Saddle washer for KG pipes, ⌀30mm
038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
019.1 – M4 nut
012.2 – Tube 300mm, inner ⌀ 152mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.

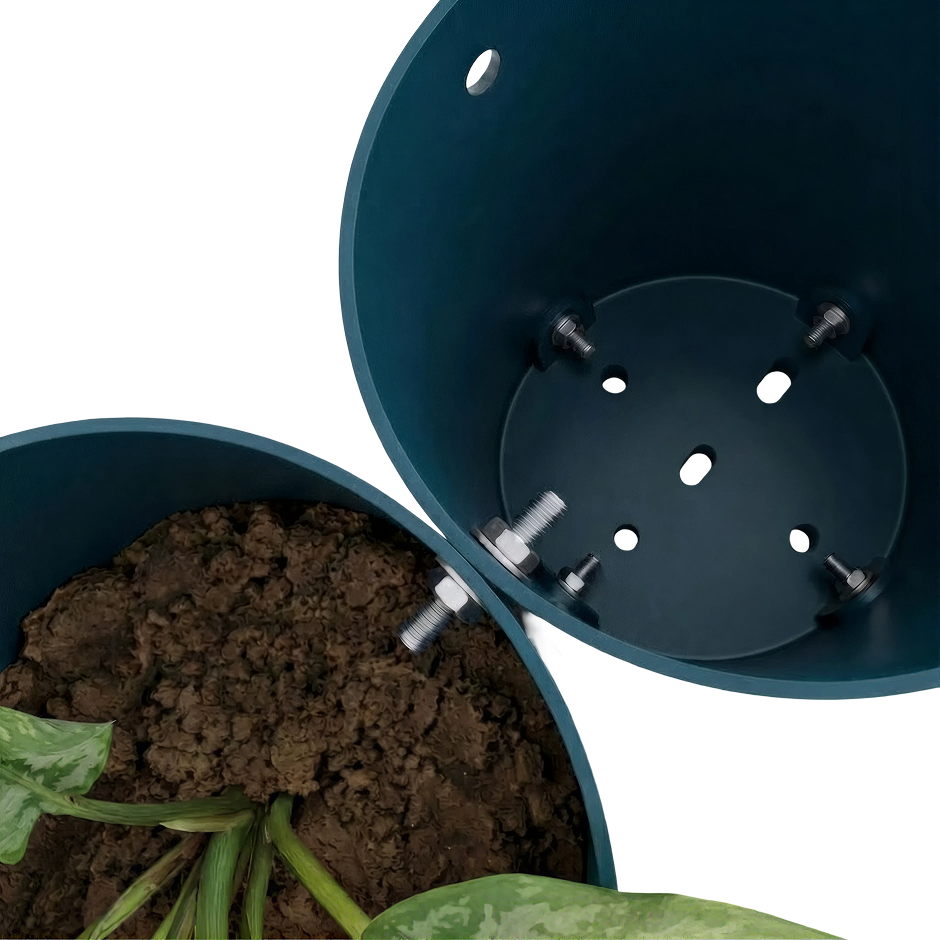

ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

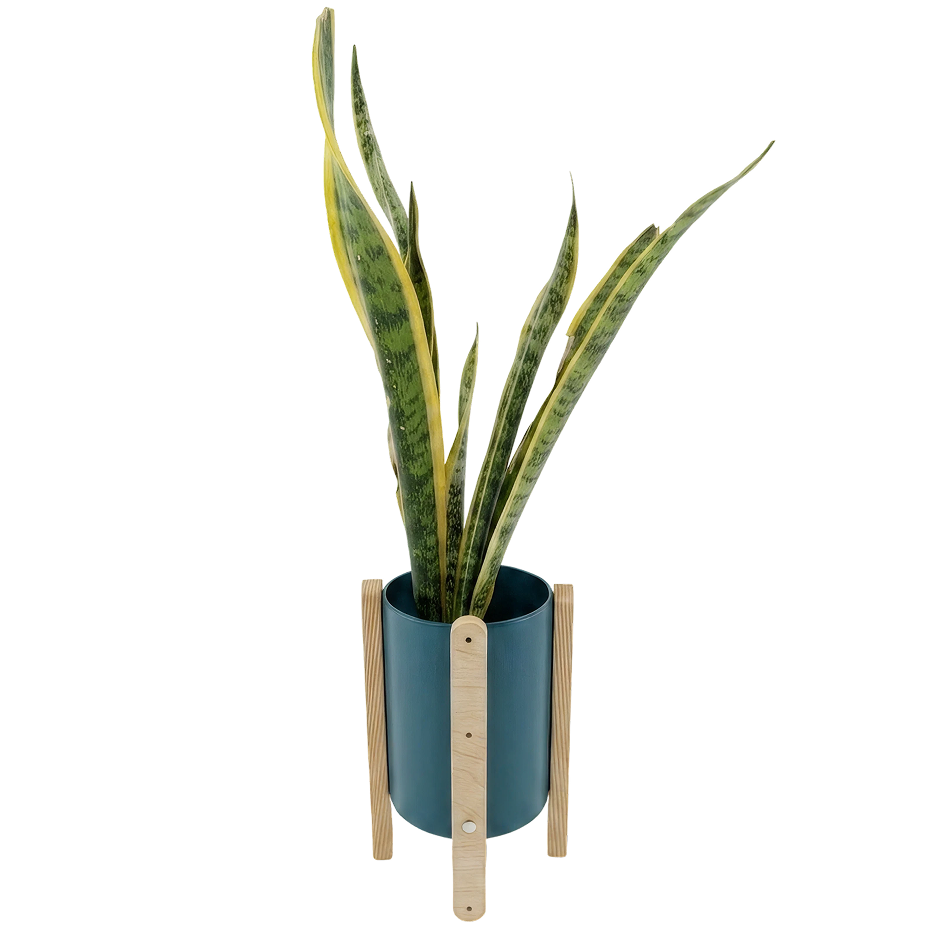

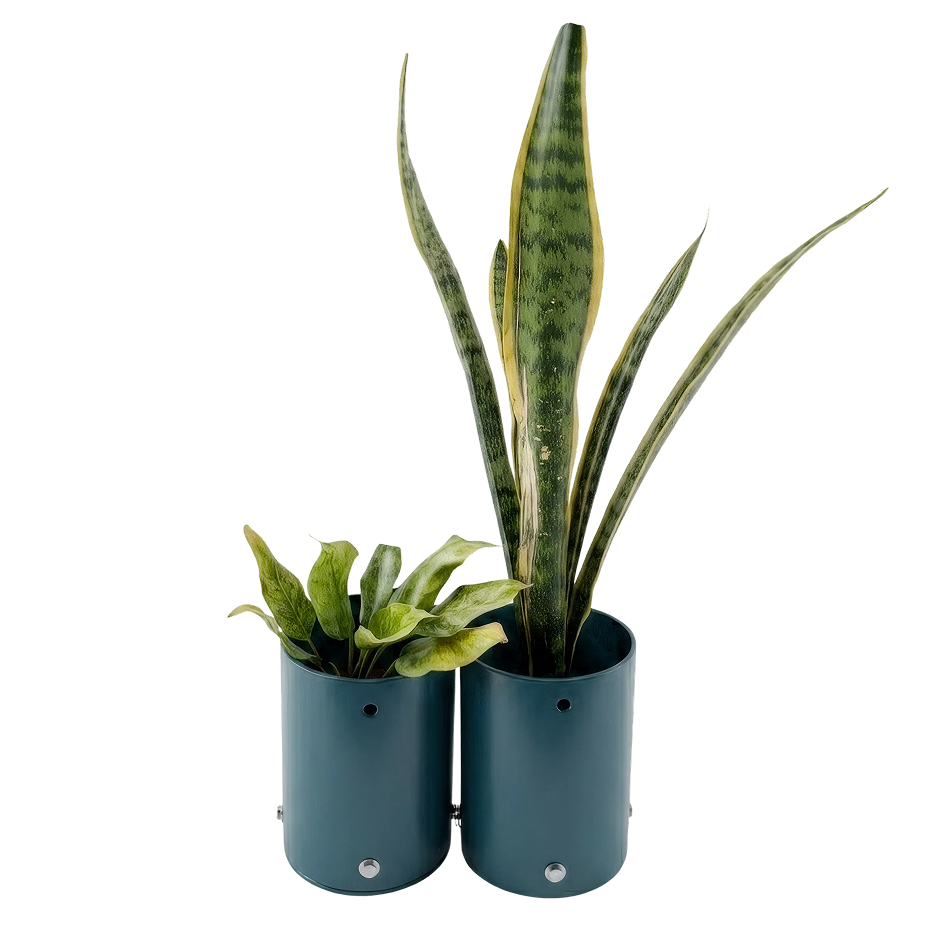

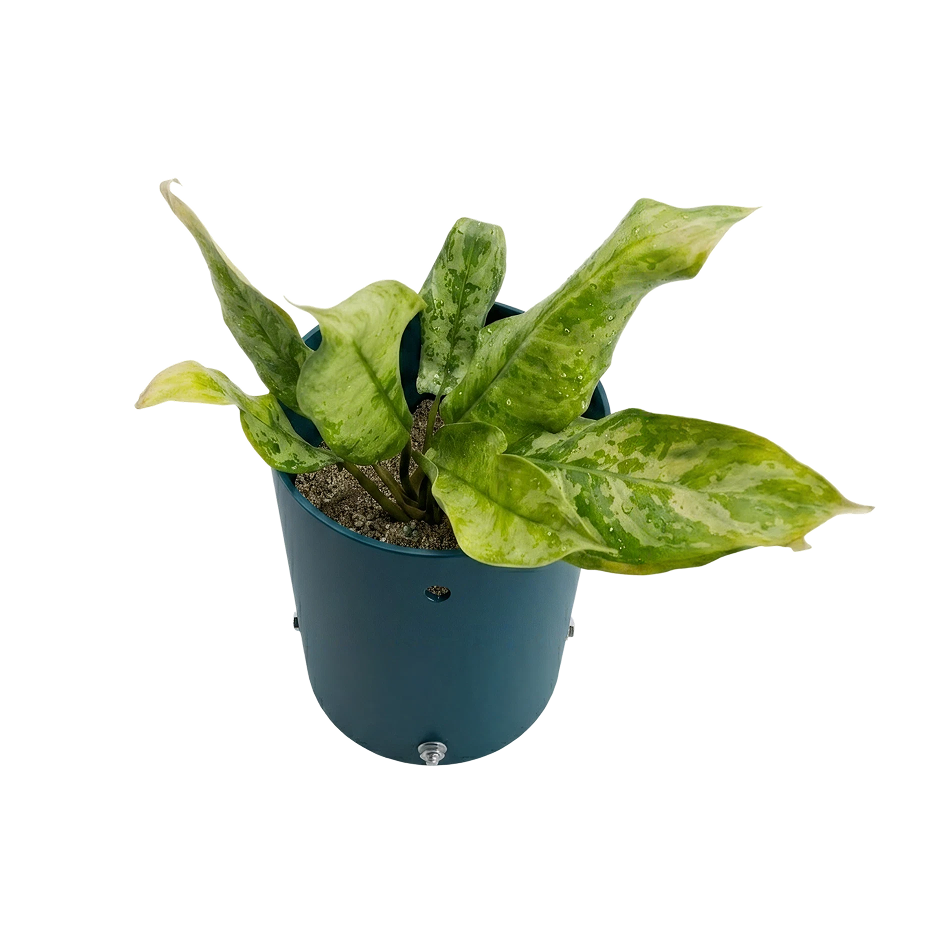

‘Caterpillar Planting System‘ lets you build worlds for plants because they have built the world we live in. Give back to 🌱
Status: Physical functional prototype.
Set info
Set No #087
Development status

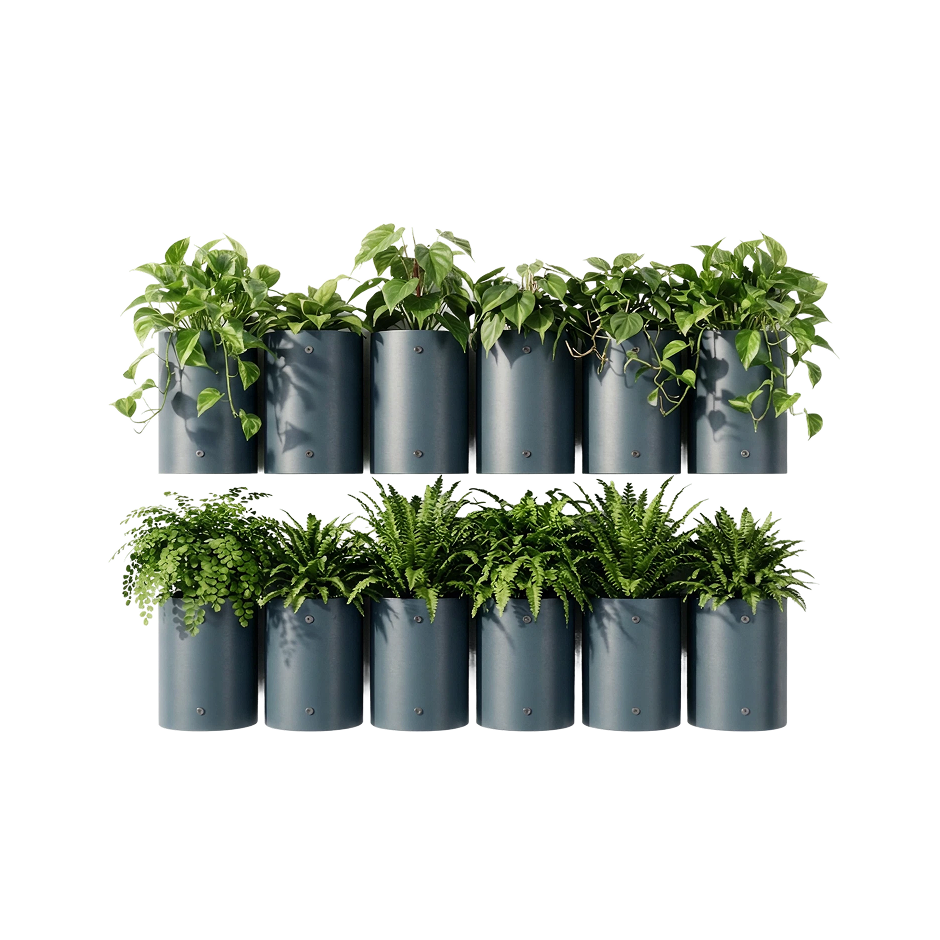

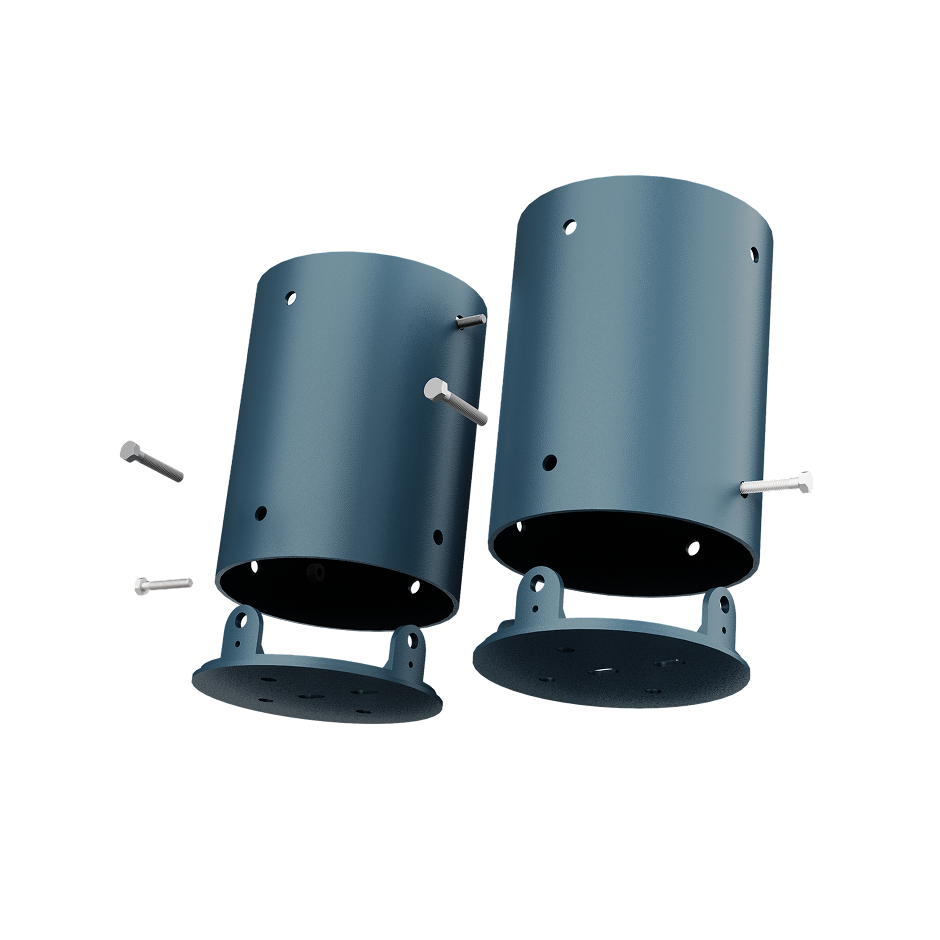

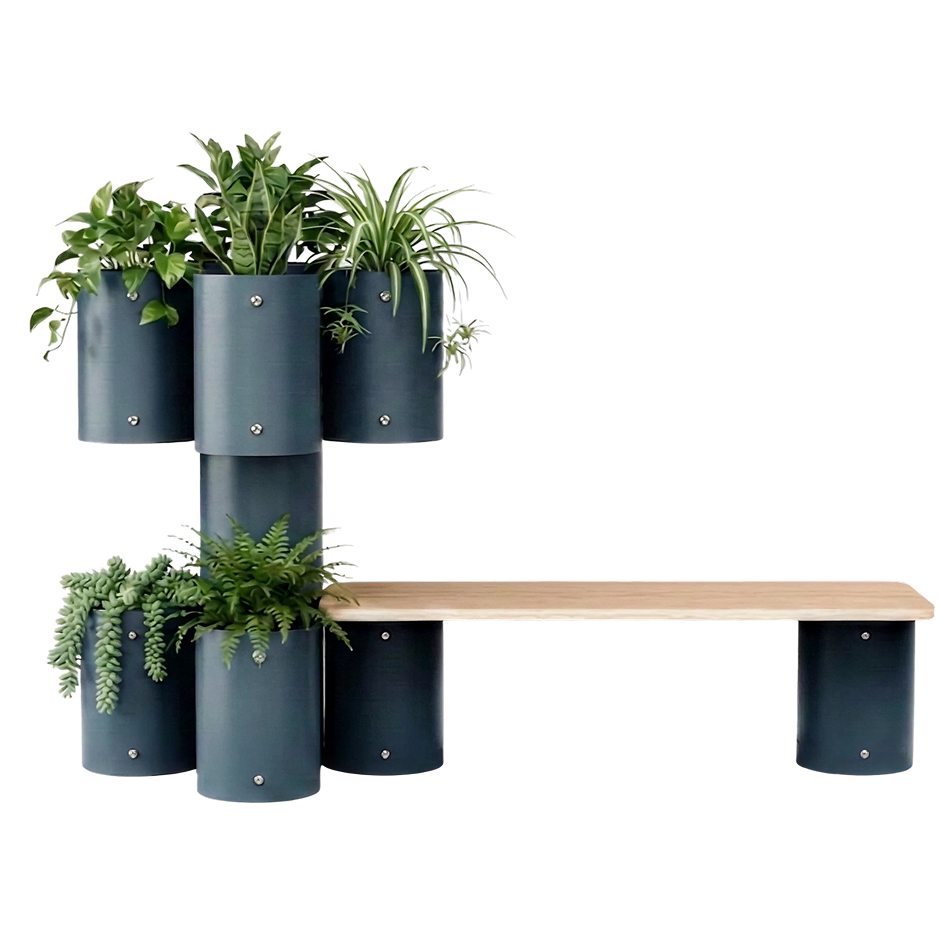

- As you can see in the pictures, not all of these ideas were built physically. Some ideas were just shared as a digital prototype.
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
Meta info
- This set was shared via Email, thank you Vageesha
