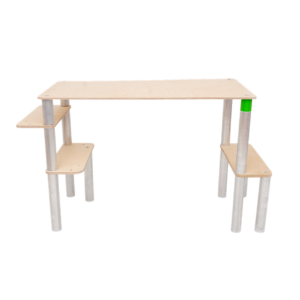

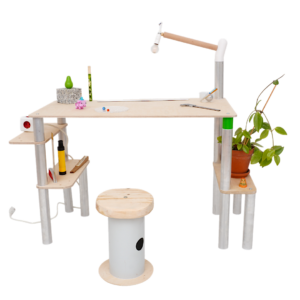

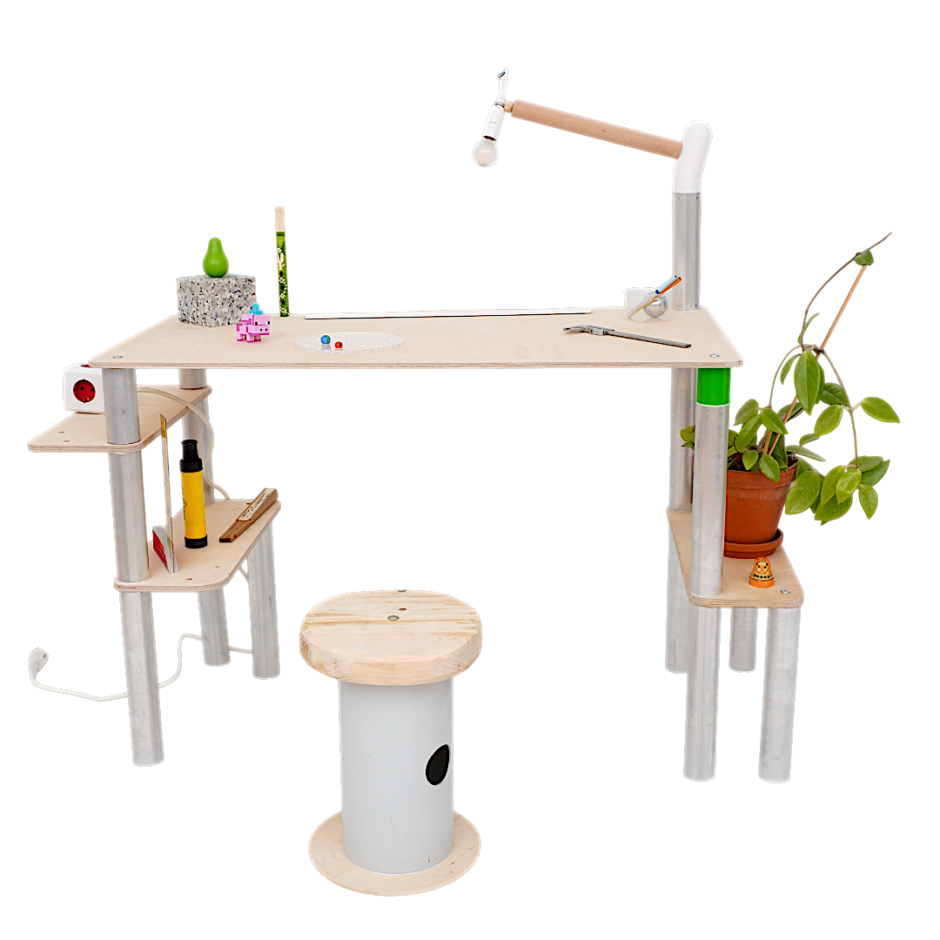

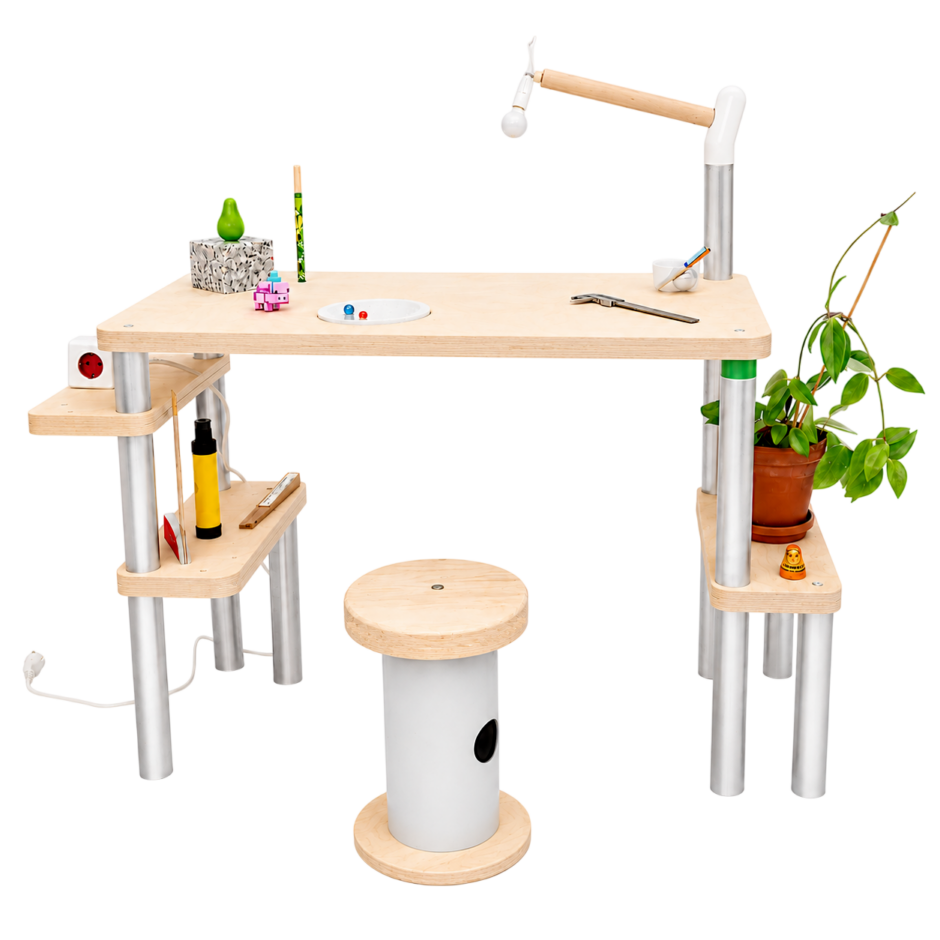

‘Table Konfigurator‘ is a collection of Ikego parts that can be put together in many different ways to form a table. Ready to play?
By BĂ©la Raketa
Status: Rough prototype/concept
Design info
Set stats: 2 prototypes, 0 makes, 0 products info
On parts and builds
- From the designers: âThe table top in our prototype was a bit thin. The table would probably benefit from a thicker topâ.Â
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- All makes shown in this post were created by the designer. â Add your make.
- Disclaimer
Universal parts
in this set
Table Konfigurator
129.5 – Rod, M6 insert threads, 210mm, â ~50mm
129.4 – Rod, M6 insert threads, 300mm, â ~50mm
129.3 – Rod, M6 insert threads, 120mm, â ~50mm
129.2 – Rod, M6 insert threads, 90mm, â ~50mm

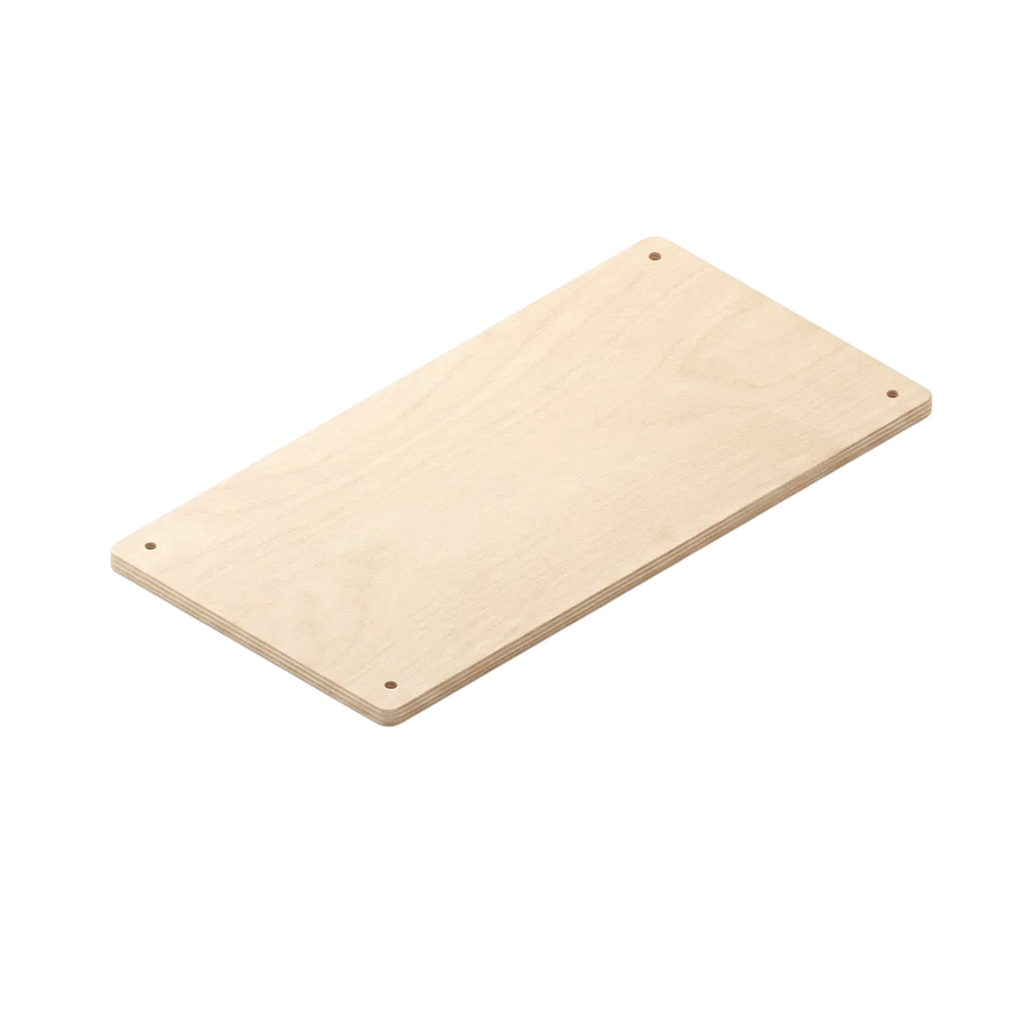

128.1 – Board ~990x510x21mm
119.1 – Spacer, 60mm high, â ~50mm

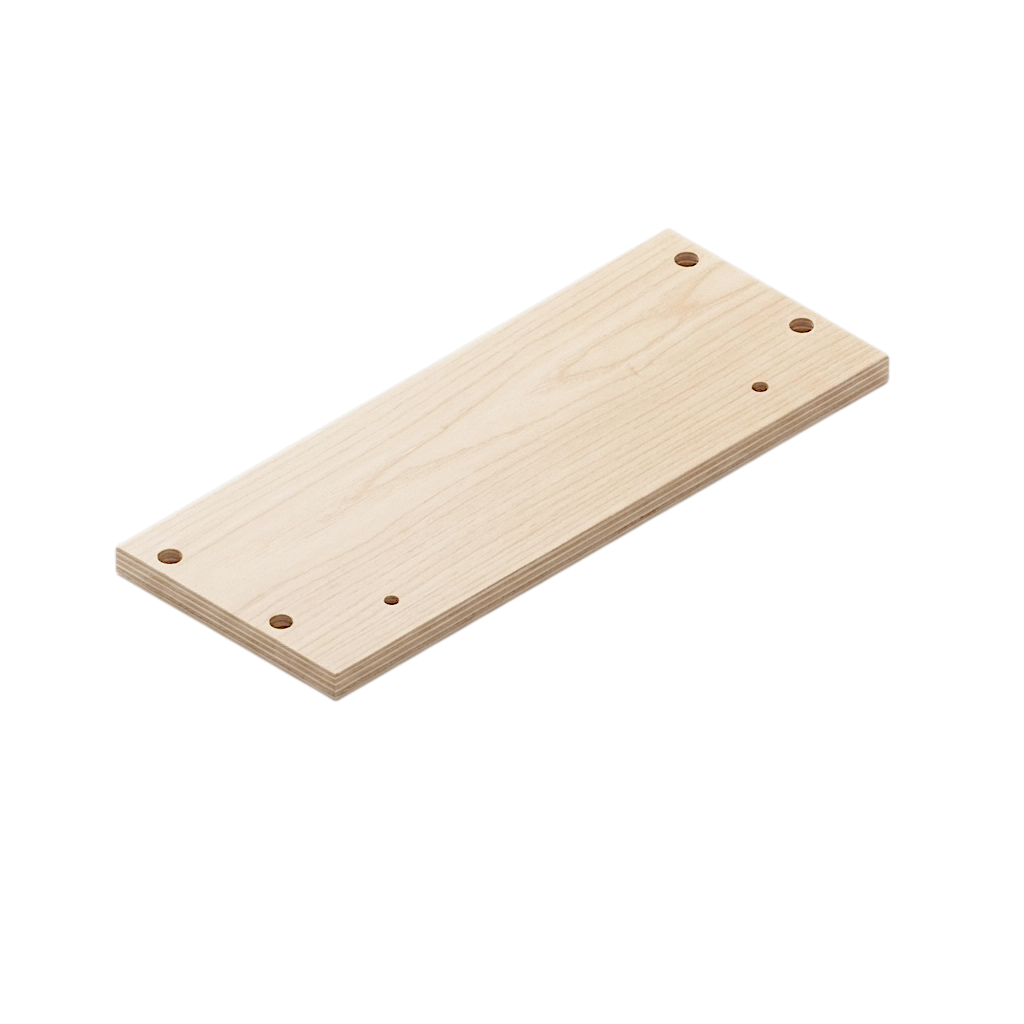

110.1 â “Marii board” 450x180mm
095.5 â 210mm rod with M6 insert threads, â ~30mm, “elephant rod”
094.2 â M6 threaded rod 80mm
093.1 – “Elephant board” 180x480mm
082.3 – M6 bolt 90mm
082.1 â M6 bolt 50mm
030.1 – M6 bolt ~30mm
004.1 – Washer disk â 40mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
