Set #092
Parts list
Parts appearing in this set
Pippo • Collection
156.1 – M6-M4 Rail Adapter/Nut Holder
155.1 – Tube 210mm, inner ⌀ 152mm

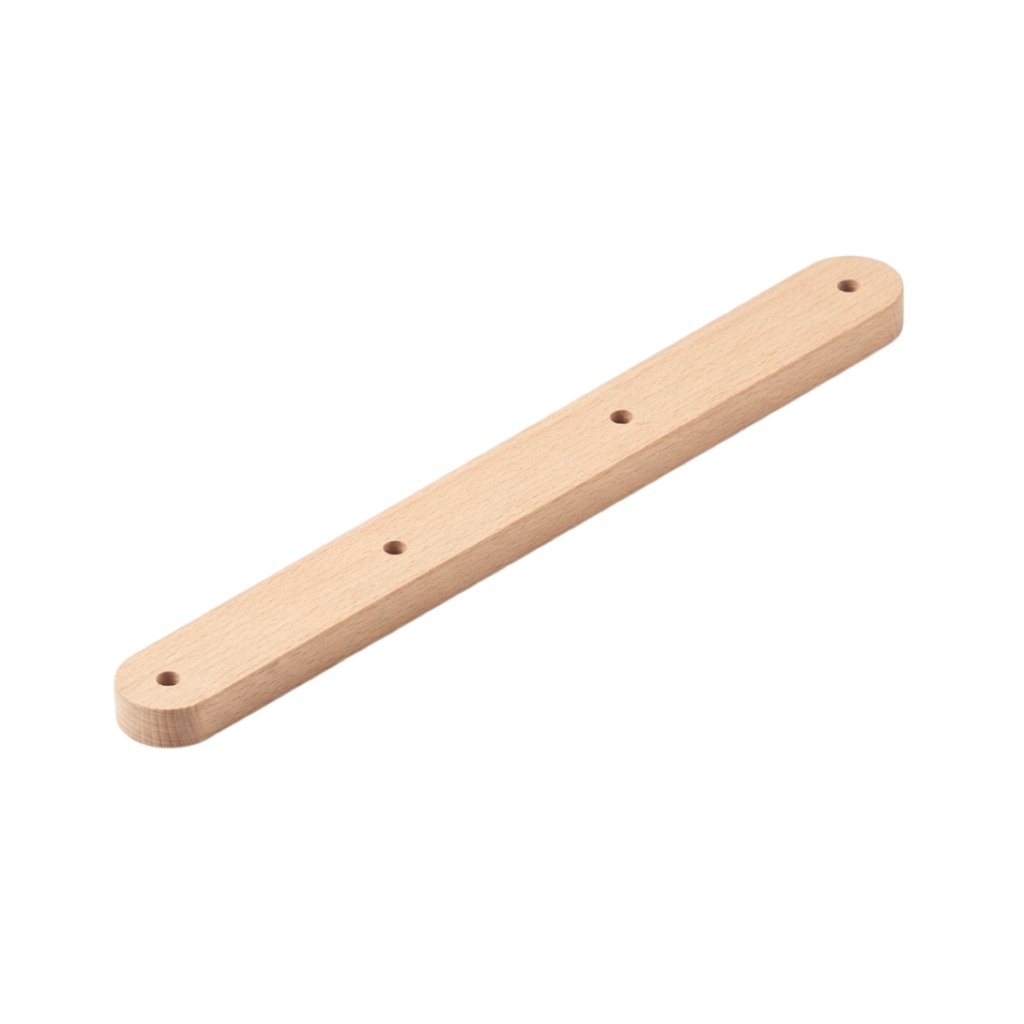

120.1 – Rail ~300mm
089.1 – M6 nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
051.2 – Domed washer for KG pipes, ⌀30mm
048.2 – Tube 60mm ⌀152mm

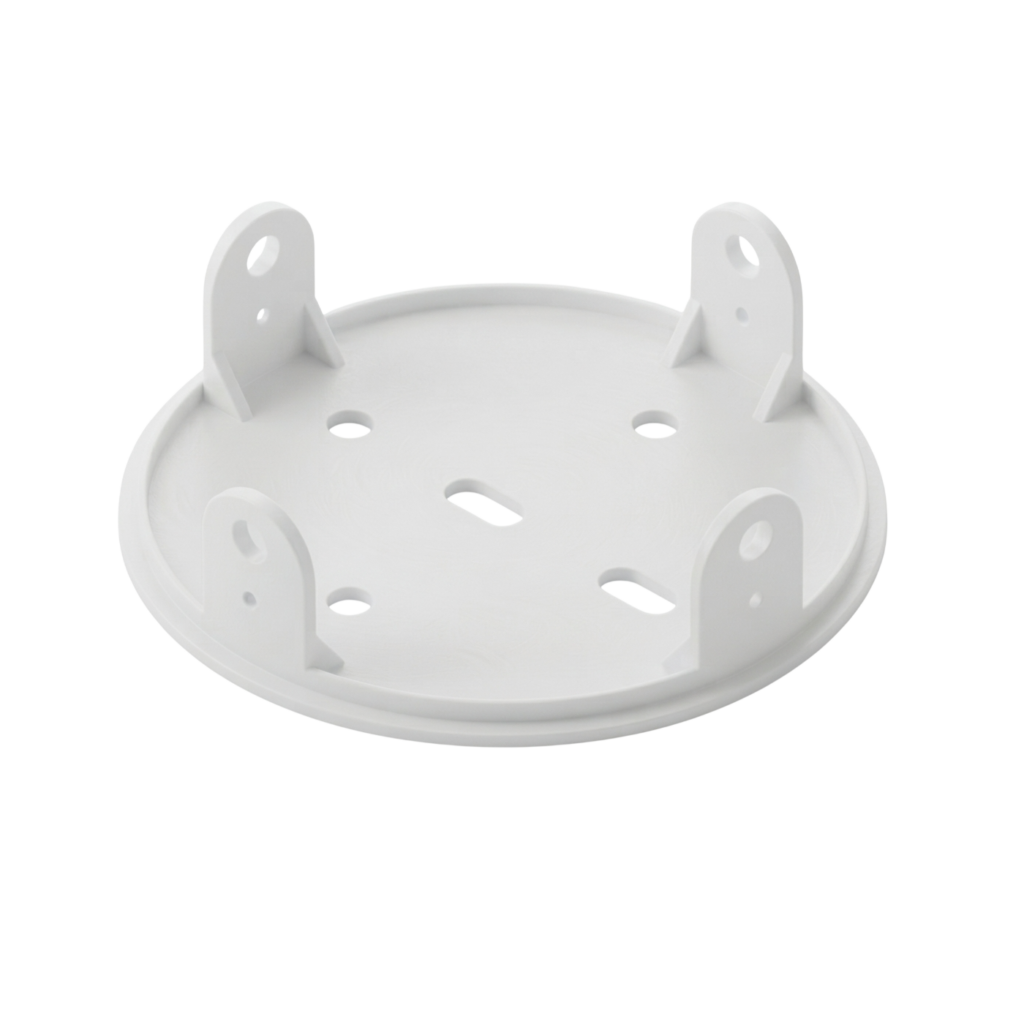

038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
019.1 – M4 nut
012.2 – Tube 300mm, inner ⌀ 152mm
003.1 – Disk ⌀ 270mm
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.

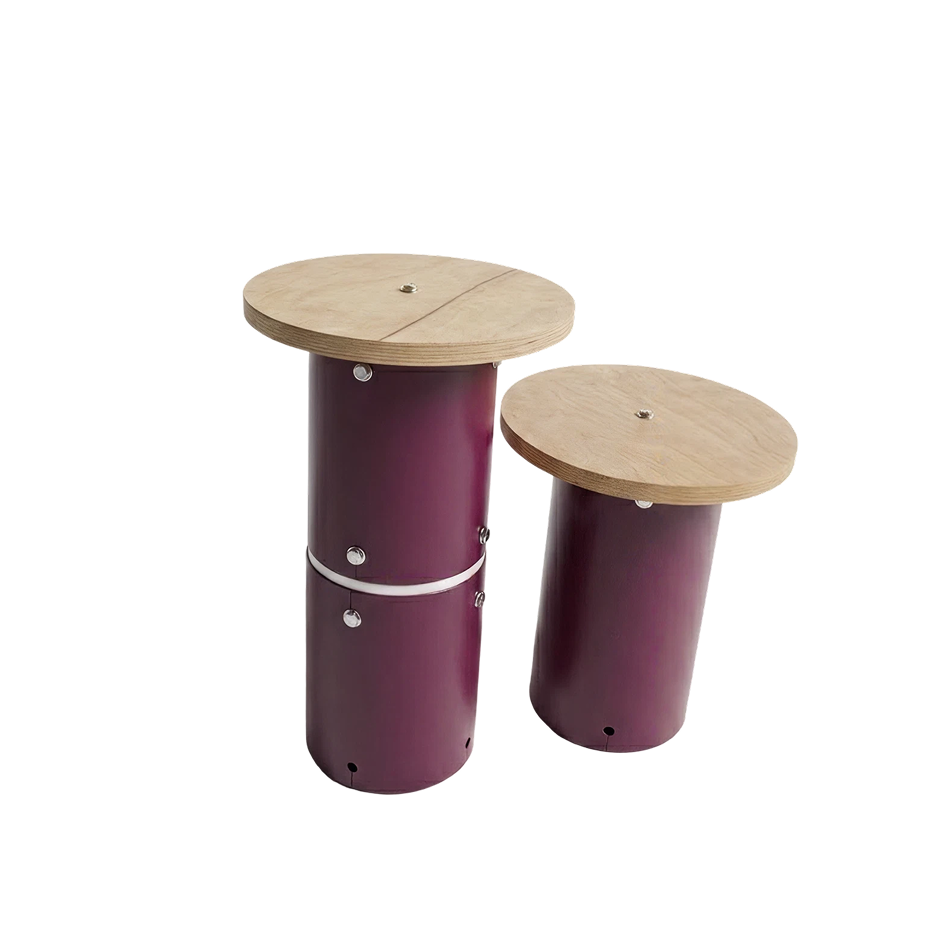

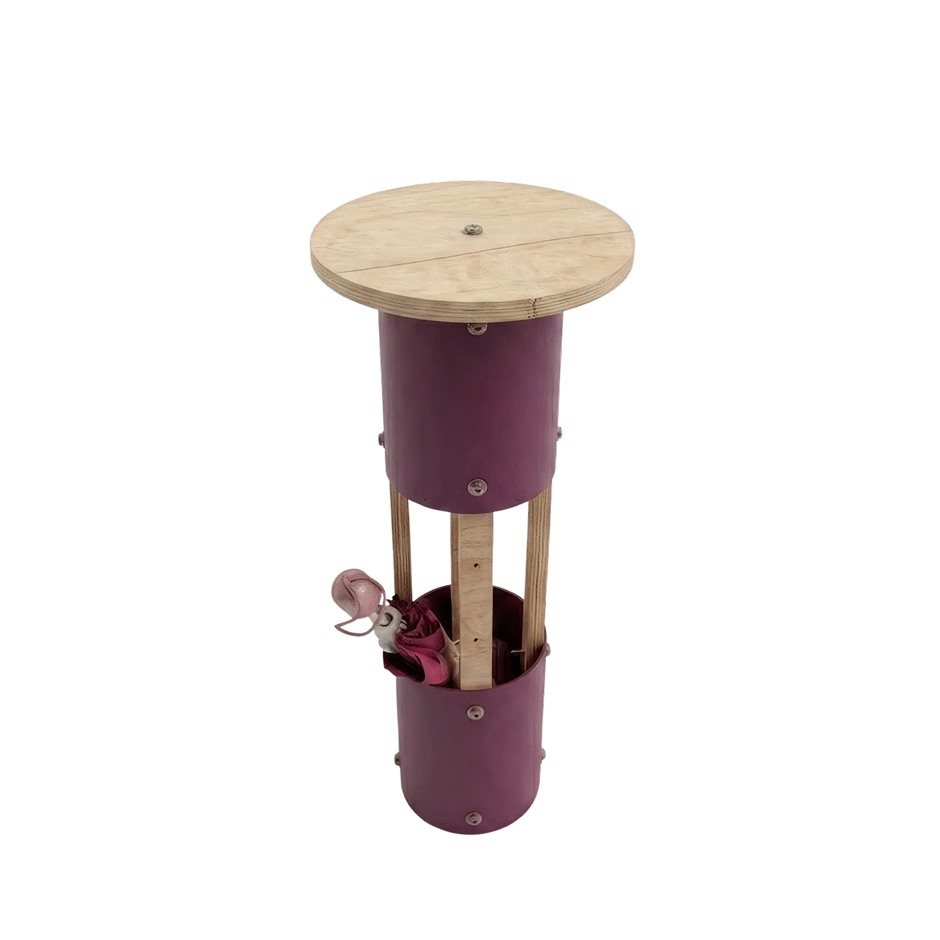

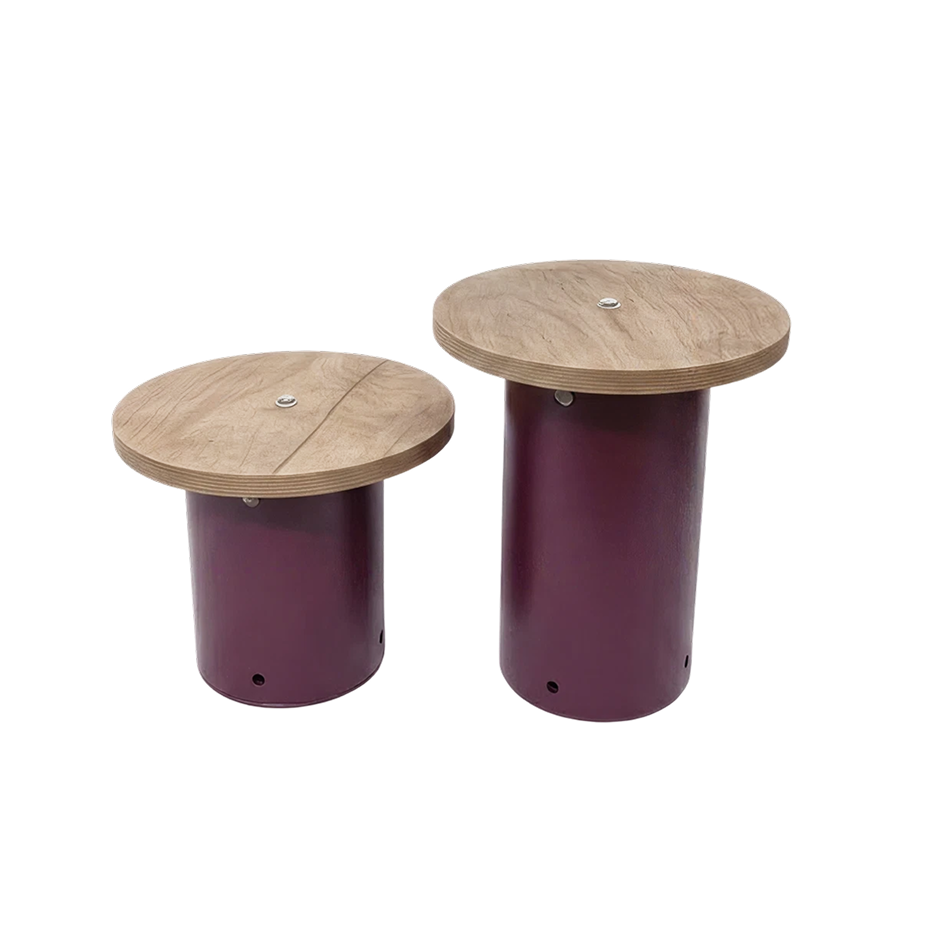

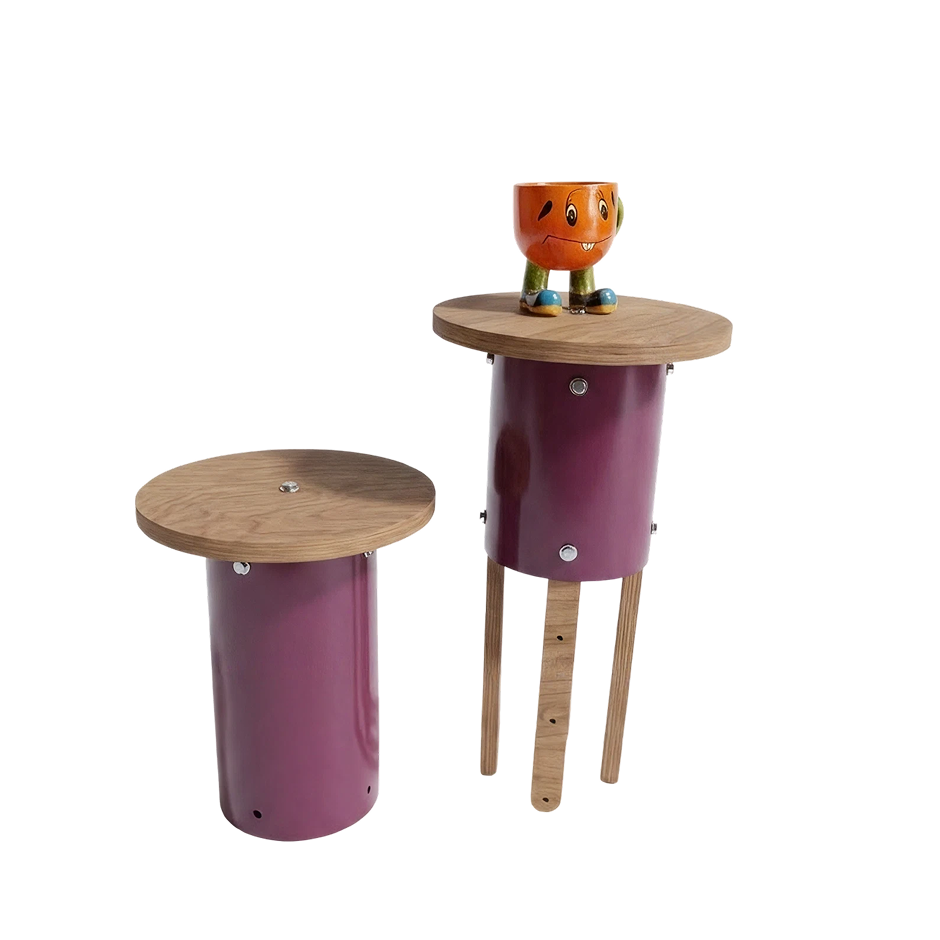

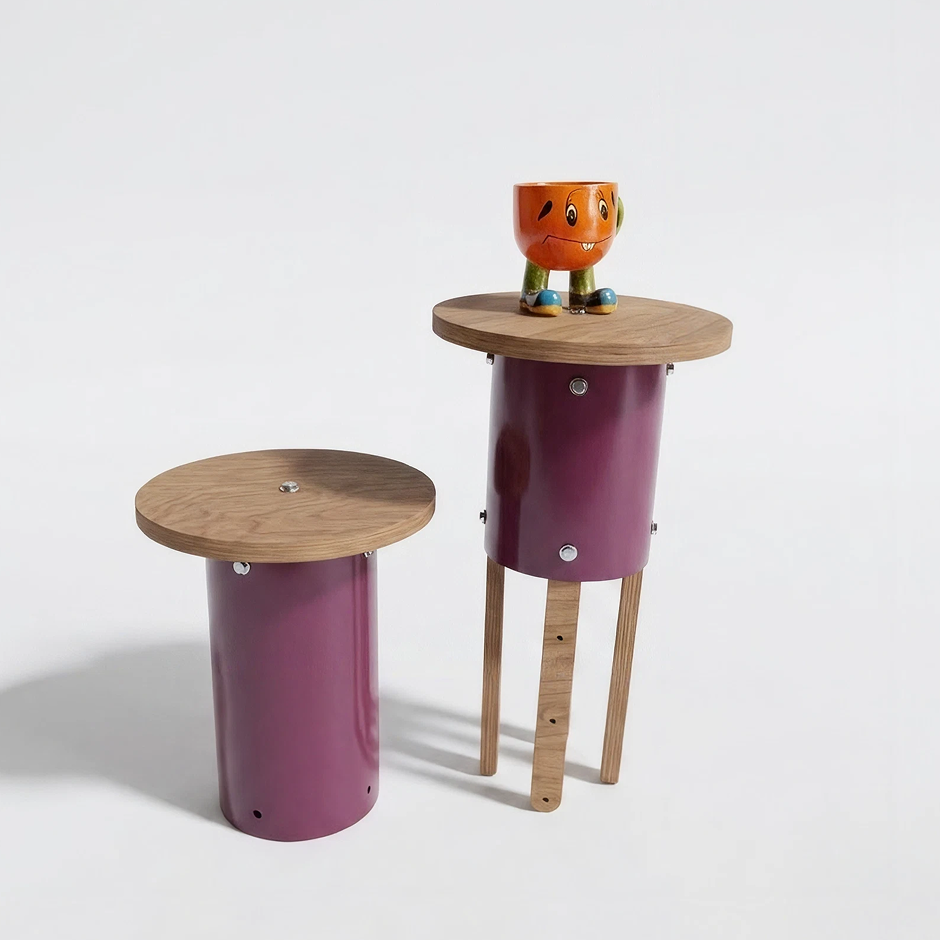

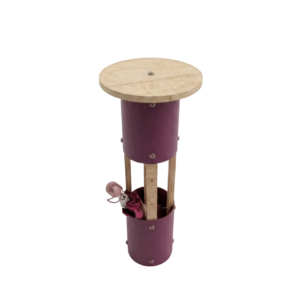

‘Pippo‘ is a collaborative side table collection built around the ⌀160mm tubes of the system. Ship in a table; help grow the collection.
Status: Physical functional prototype.
Set info
Set No #092
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
