Set No #079
Parts list
Parts appearing in this set
150.1 – Duo 90x60mm

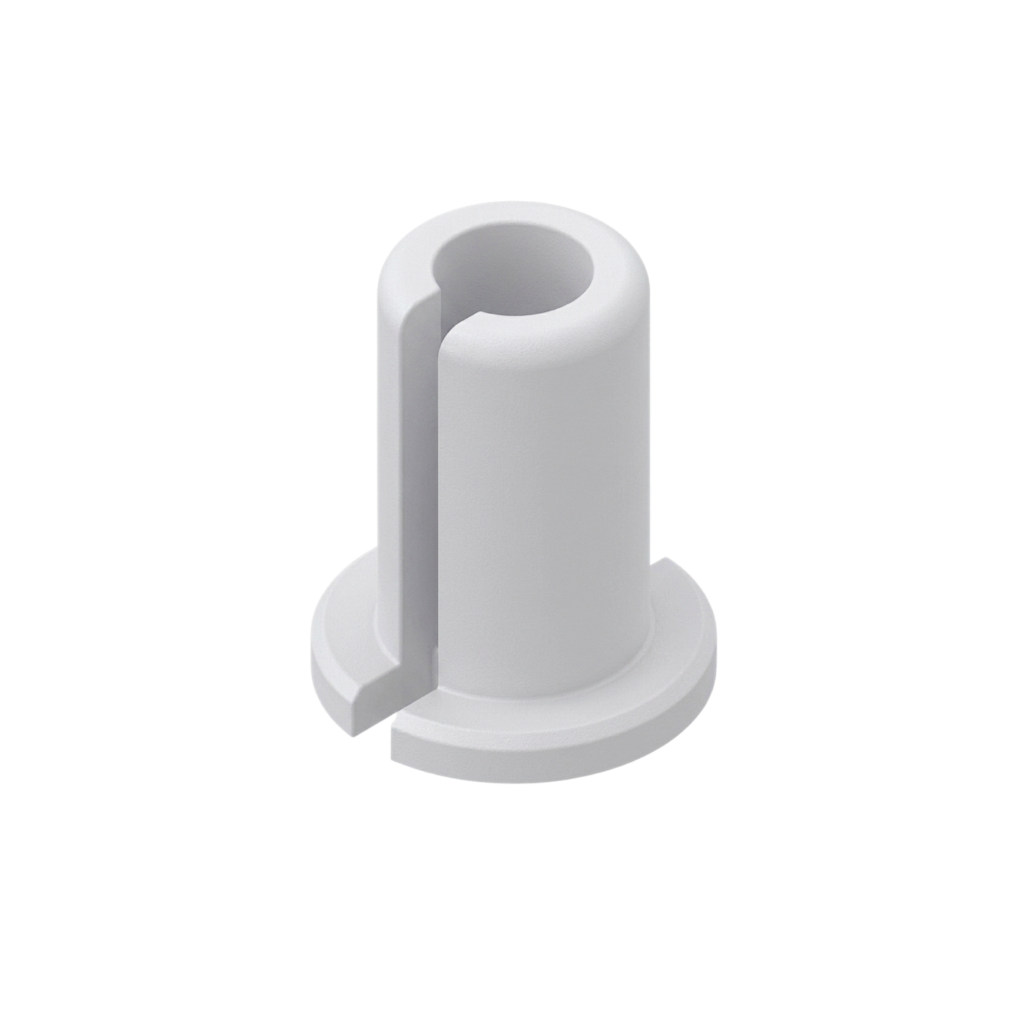

149.1 – Spring Pin ⌀10mm+
148.1 – M6-M4/wood screw Adapter, ⌀30mm
145.1 – Hinge/corner bracket, ⌀ 30mm, 6mm holes and insert thread
142.2 – Board 330x330mm, ⌀10mm holes

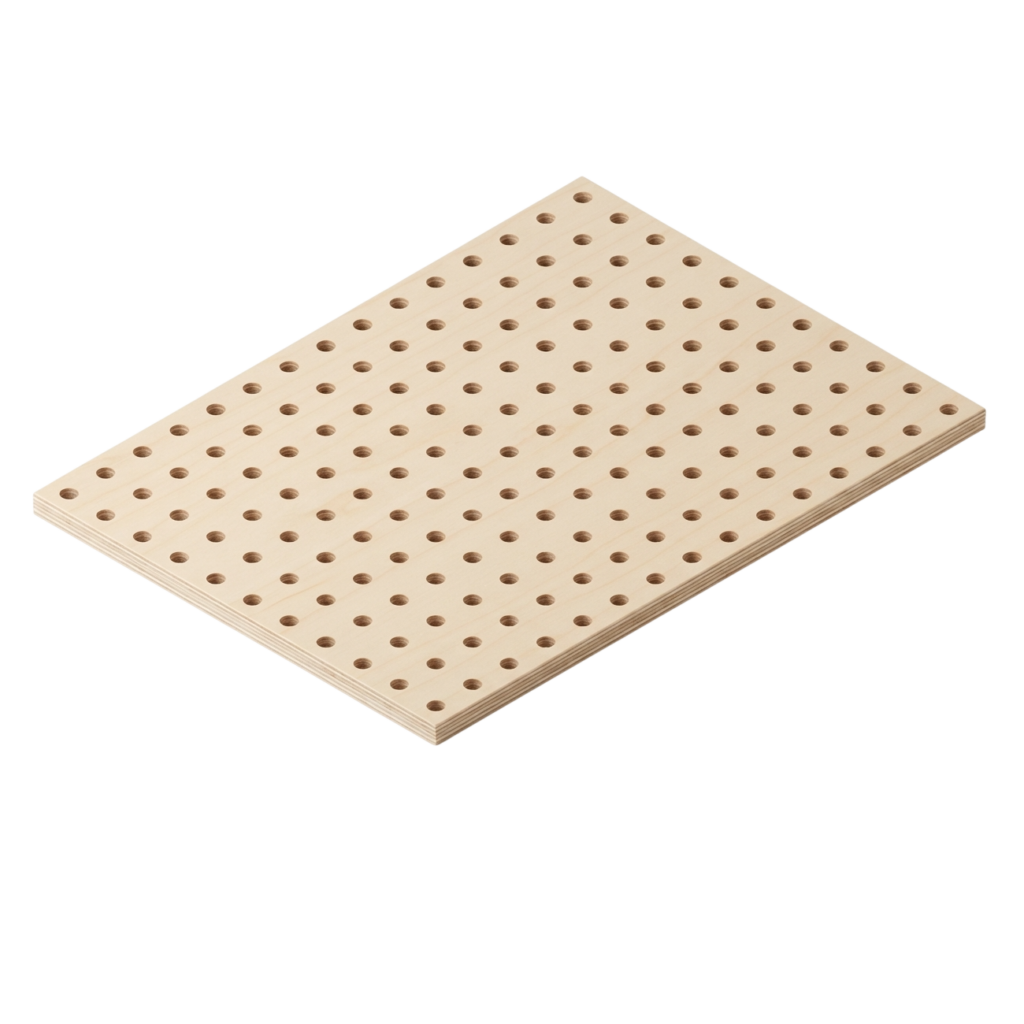

140.1 – Board 450x330mm, ⌀10mm holes
102.2 – Board ~300x300x16mm – “Tetri Board”
101.3 – Flexible bead ⌀ ~16mm, ⌀ 2mm hole
101.2 – Bead ⌀ ~16mm, ⌀ 6mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
089.1 – M6 nut
088.1 – M6 wing nut
086.2 – M4 bolt 50mm
086.1 – M4 countersunk bolt 20mm
077.1 – M6 eye bolt ~40mm
072.1 – Spacer ~15mm high
069.1 – M4 washer 15mm
068.2 – M4 ringbolt 40mm
062.1 – Clockwork
055.1 – Rubber band 300mm
043.1 – Plastic nut & bolt ~30mm ⌀ 10mm
039.1 – Carabiner 40mm
035.1 – Reusable cable tie 150mm

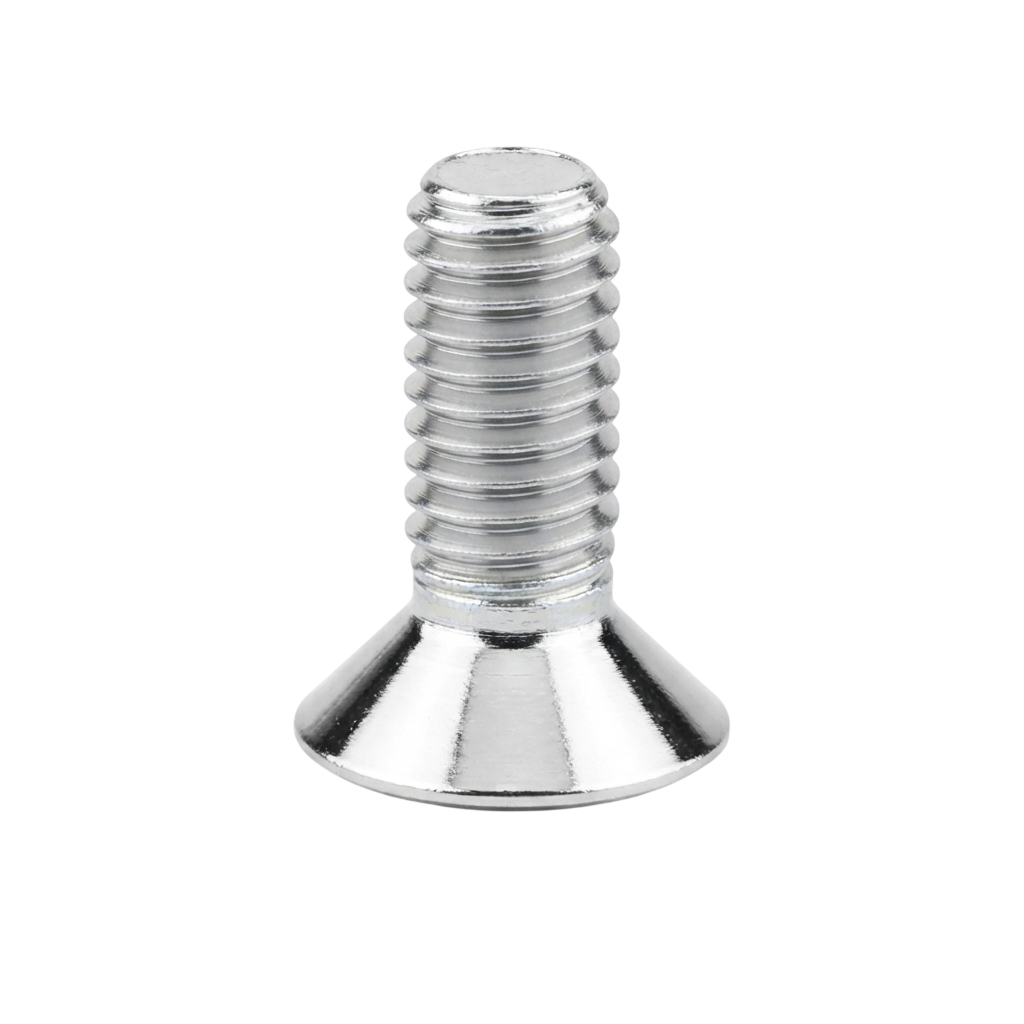

030.2 – M6 bolt 15mm
027.1 – Rubber band ring ~150mm
025.1 – M4 hook ~40mm
023.1 – Loop clip
020.1 – M4 bolt 4-9mm
019.1 – M4 nut
018.3 – Bungee cord, ⌀ 3mm, ~1000mm
018.1 – String 2000-2500mm
014.1 – Hook small
013.1 – E14 bulb holder
010.1 – Cable with plug and switch
008.1 – Plastic threaded rod & bolts ⌀ 10mm
006.1 – Wire 500 mm long, 2mm thick
004.1 – Washer disk ⌀ 40mm

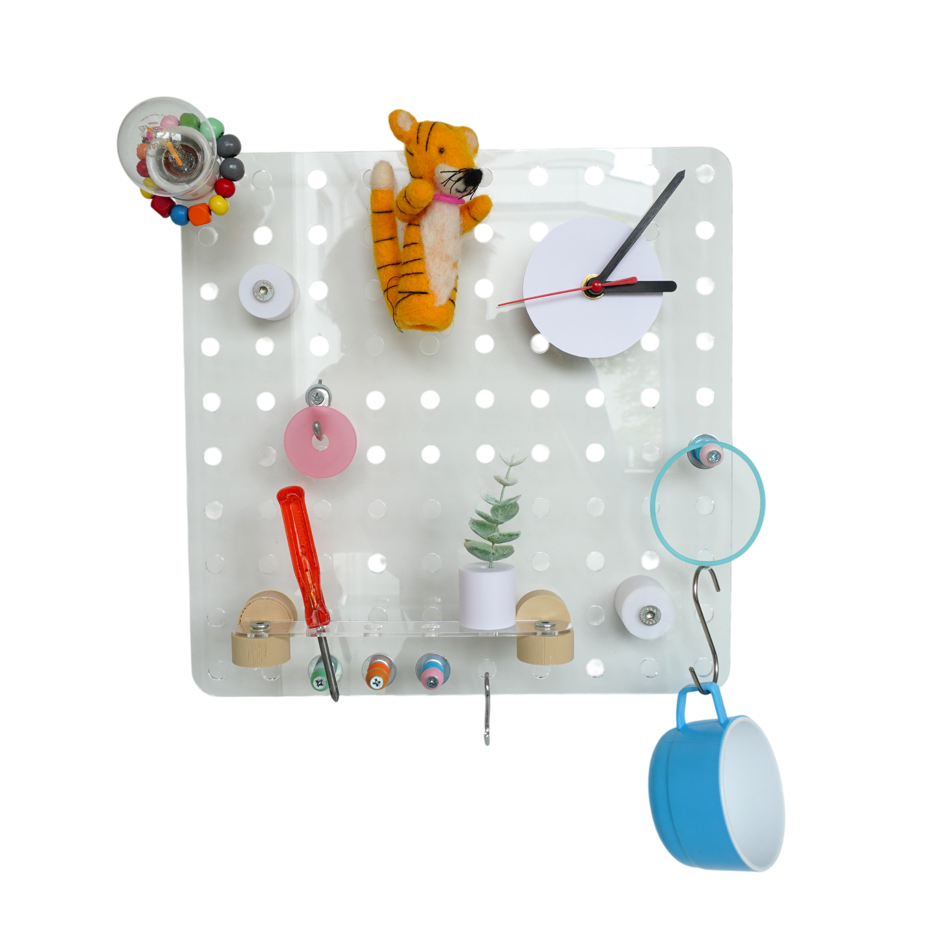

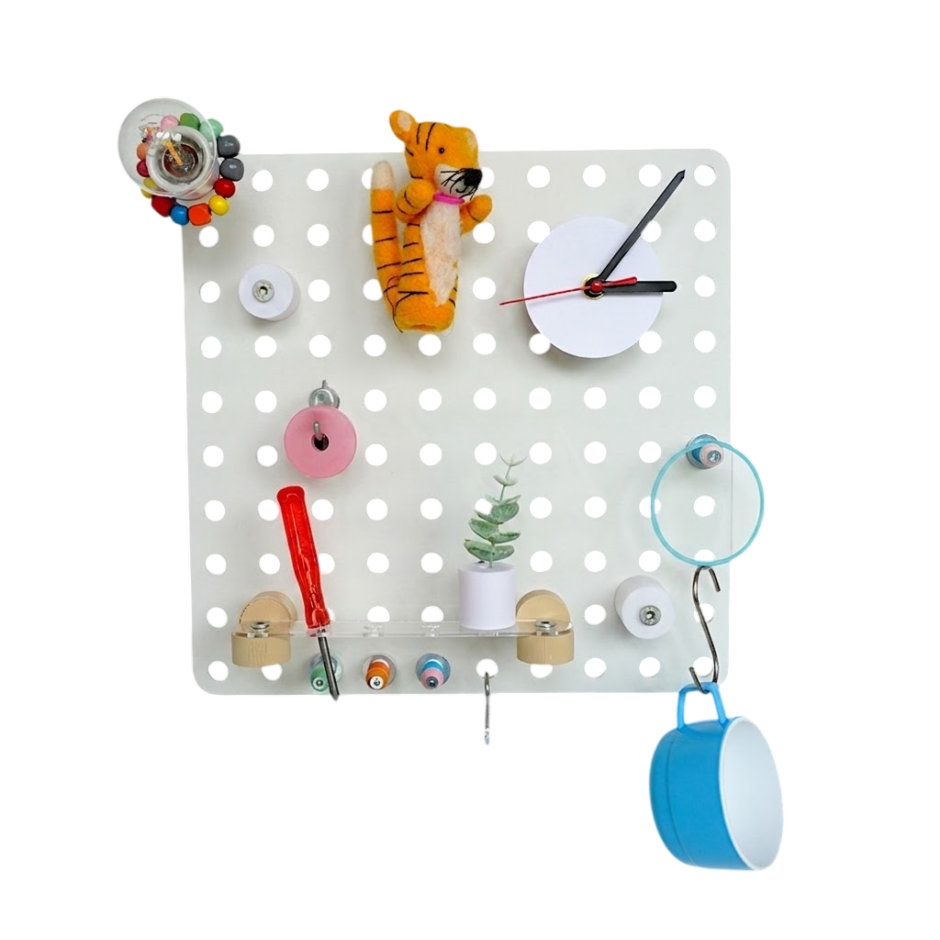

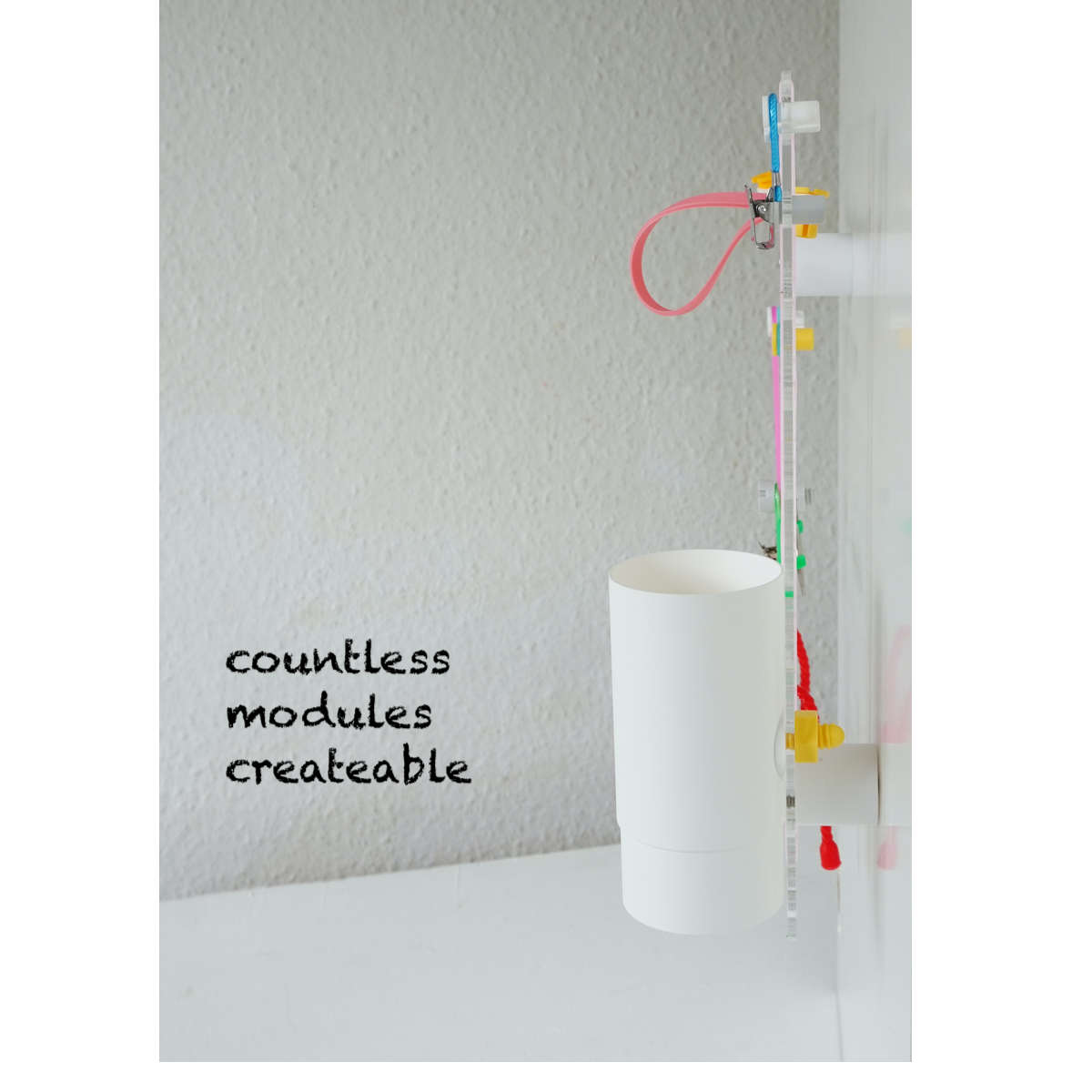

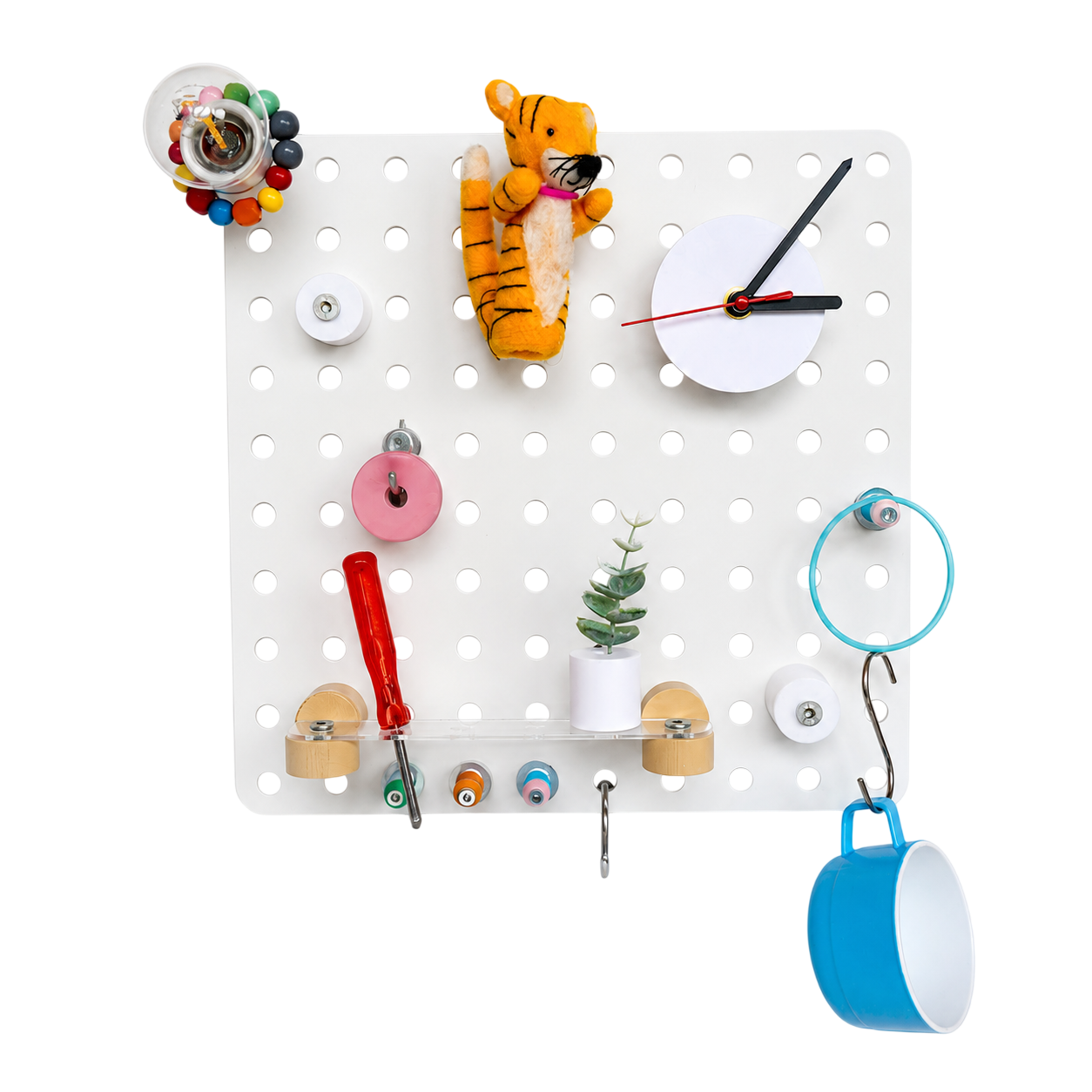

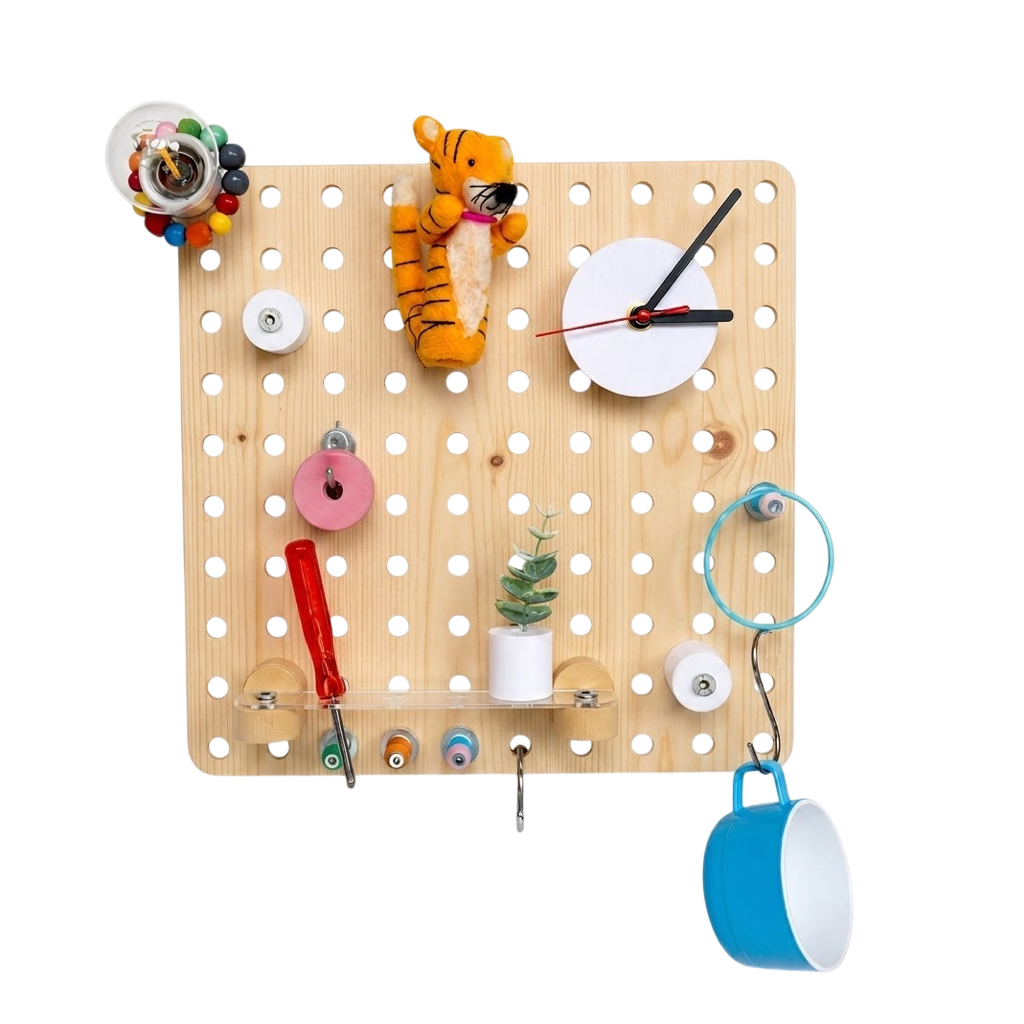

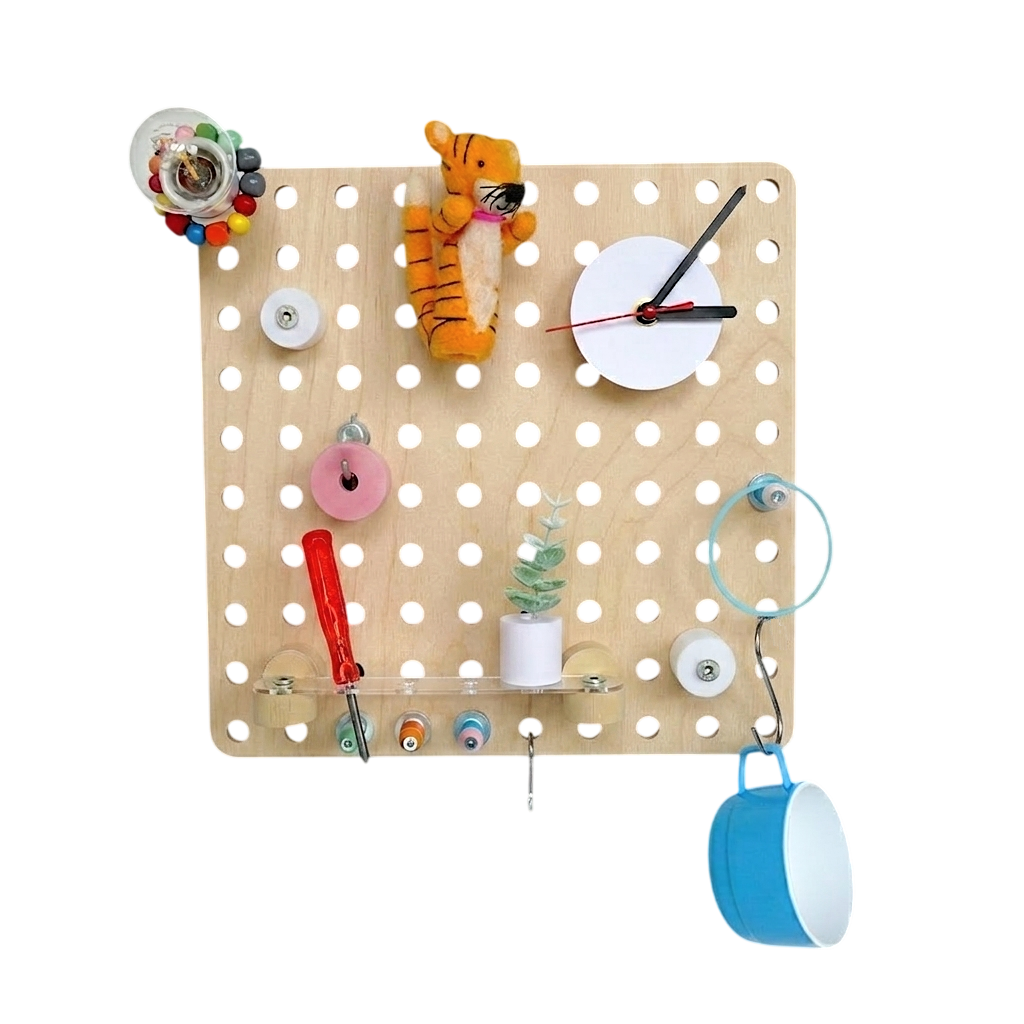

Tetri Wall Organizer
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
'Tetri Wall Organizer‘ adds things to your wall or any Tetri-Board in use.
By Béla Raketa
Set info
Set No #079
On parts & builds
- With a little bit of imagination, you can attach almost any part from the Ikego parts catalog and create a working solution.
Meta info
- All makes shown in this post were created by Mifactori.
- Disclaimer

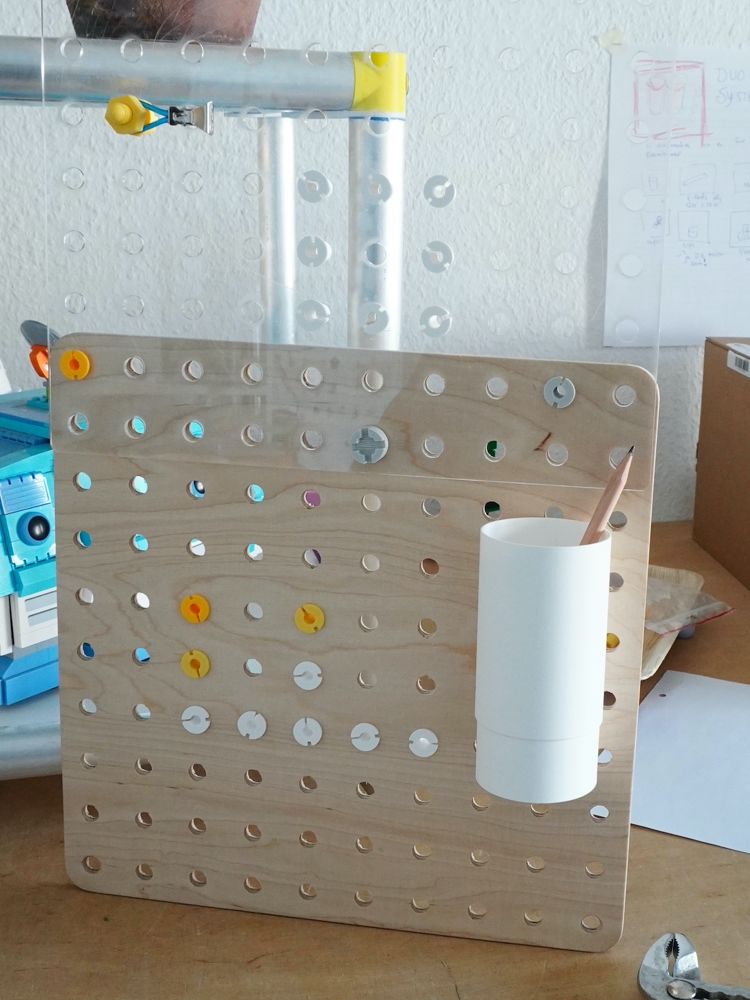

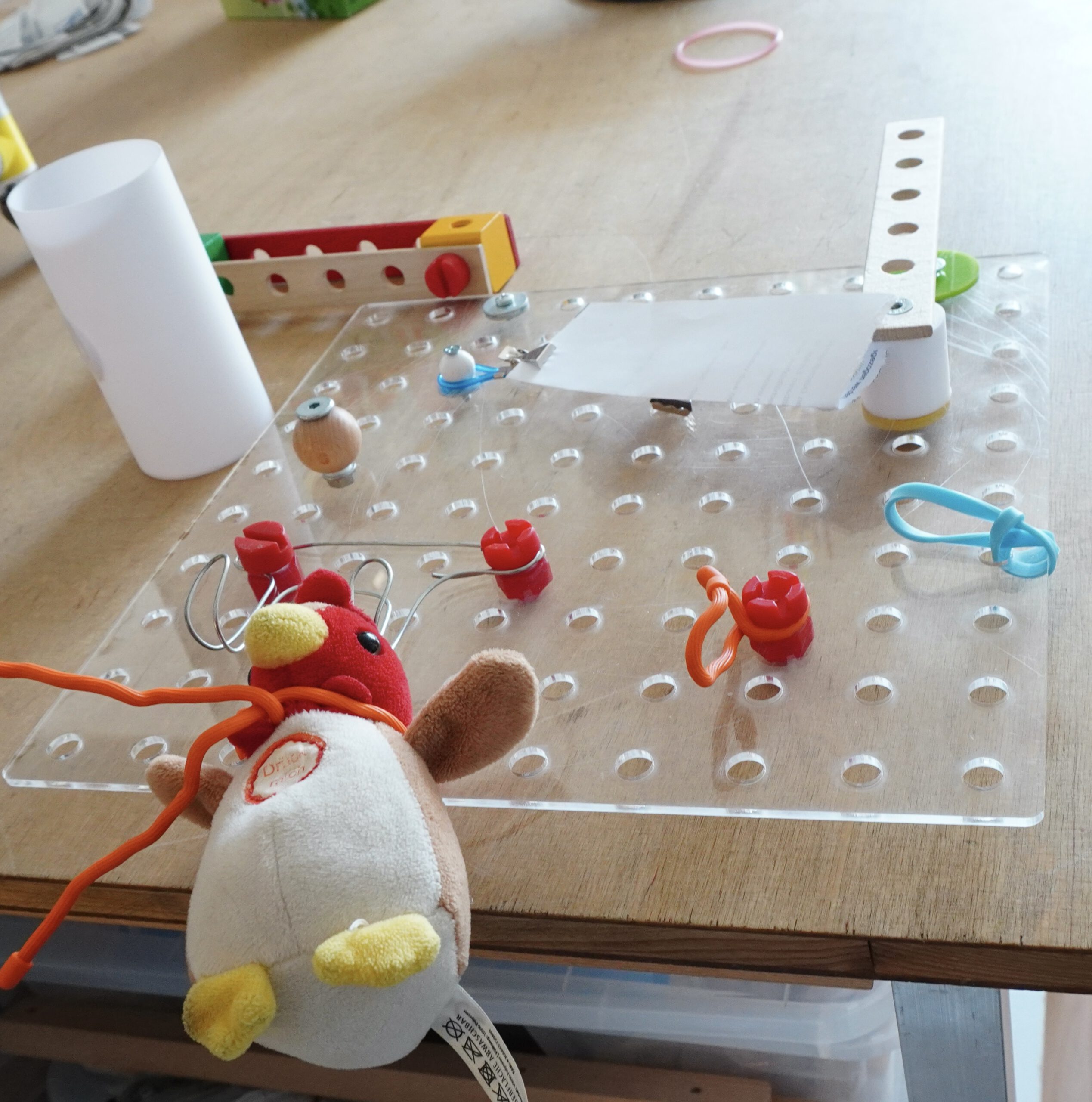

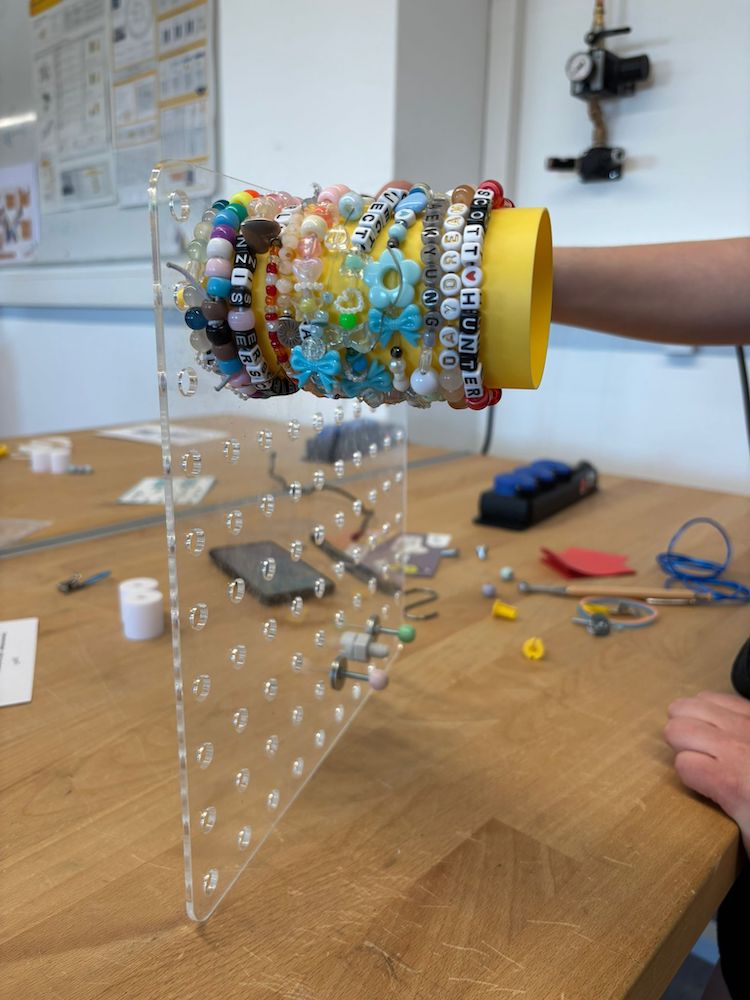

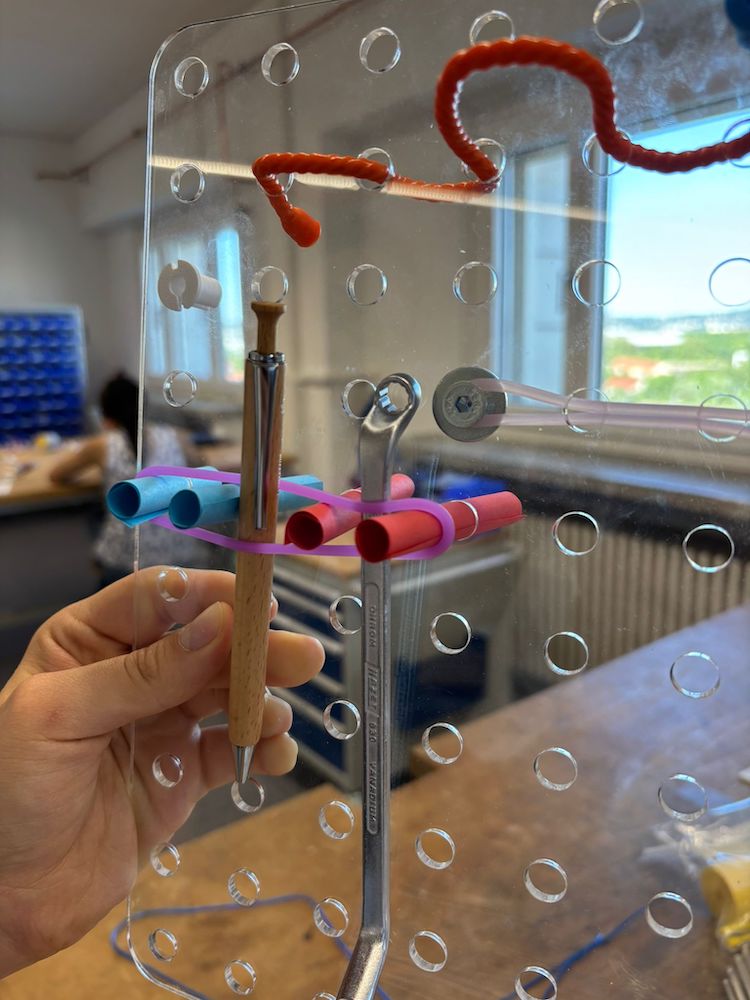

Ideas sent in by users:
Share your use case. Send it in.
'Tetri Wall Organizer' adds things to your wall or any Tetri-Board in use.
by Béla Raketa
Status: Physical functional prototype.
