‘Flappy Chair‘ is a modular chair that doesn’t like that we are all forced to pay a hidden tax to Mark Zuckerberg.
By Arlie Lambright & Lars Zimmermann
Status: Rough prototype/concept
Make it for others
All parts in this set are open source and the set itself can be made and sold by anyone. Make it and sell it in your store. Co-invent the circular design revolution with us. Learn more.
Scroll down ↓ for the parts list.
Design info
Set stats What does this mean?
- 2 prototypes
- 0 makes
- 0 products
Context info
- This chair is part of the “Flappy World“
On parts and builds

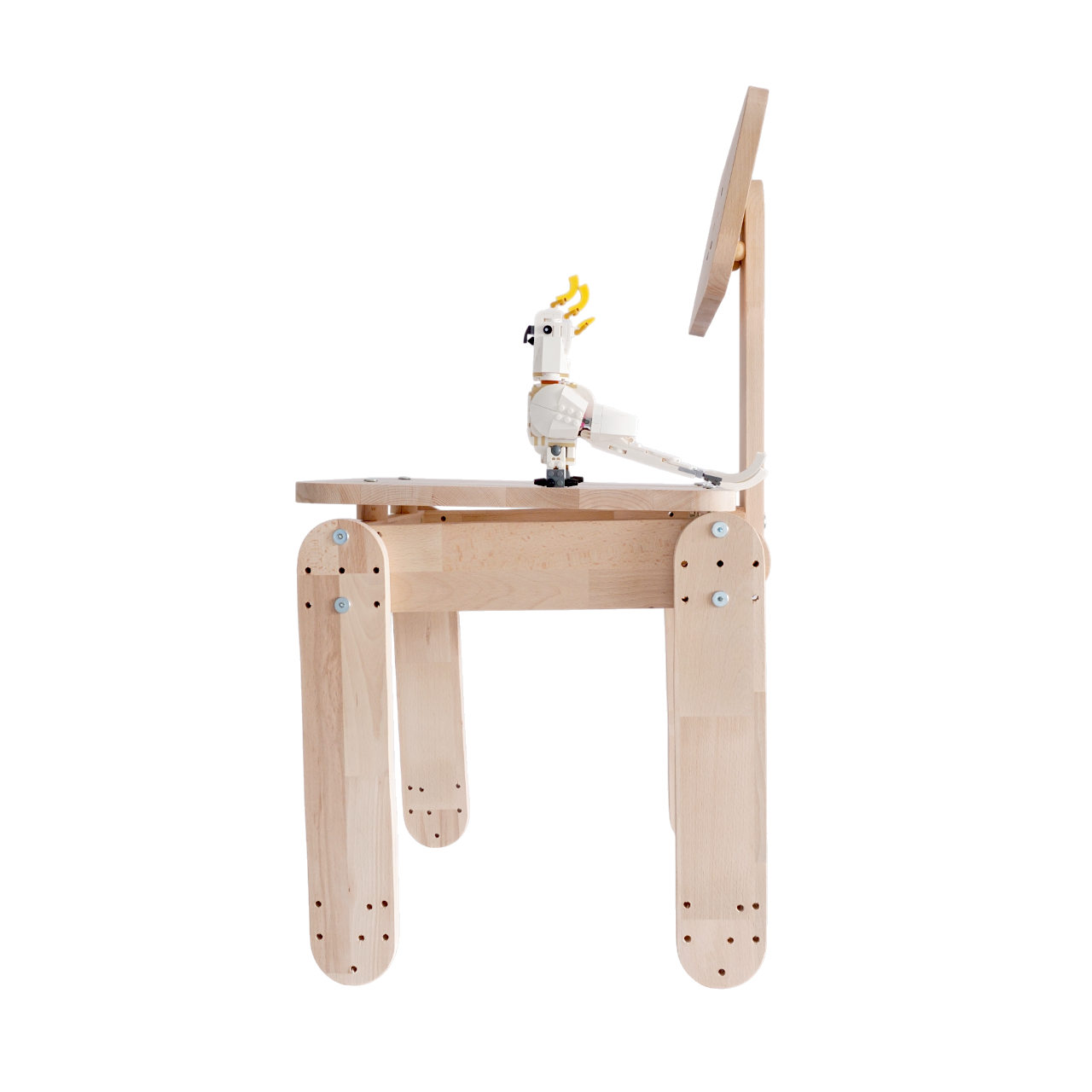

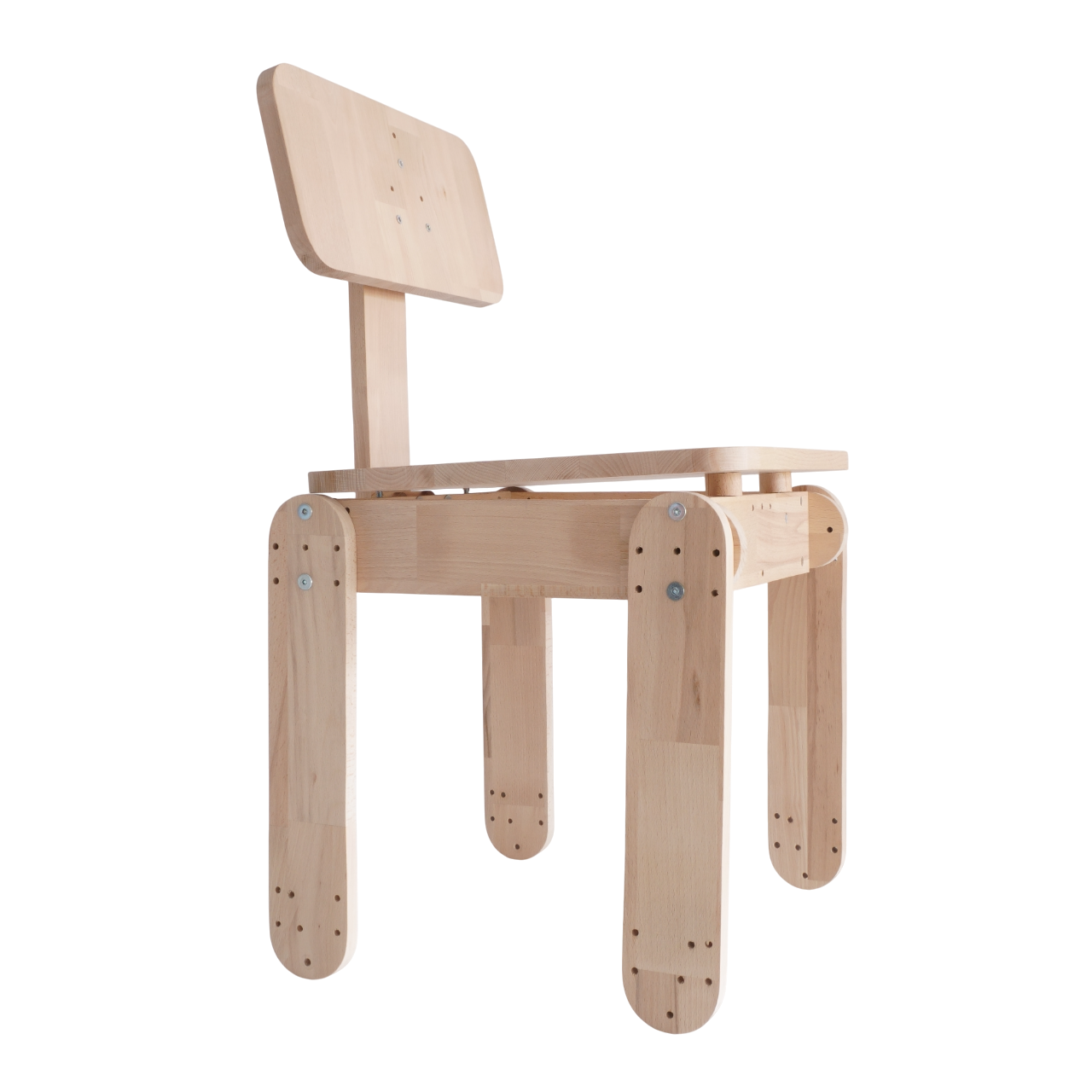

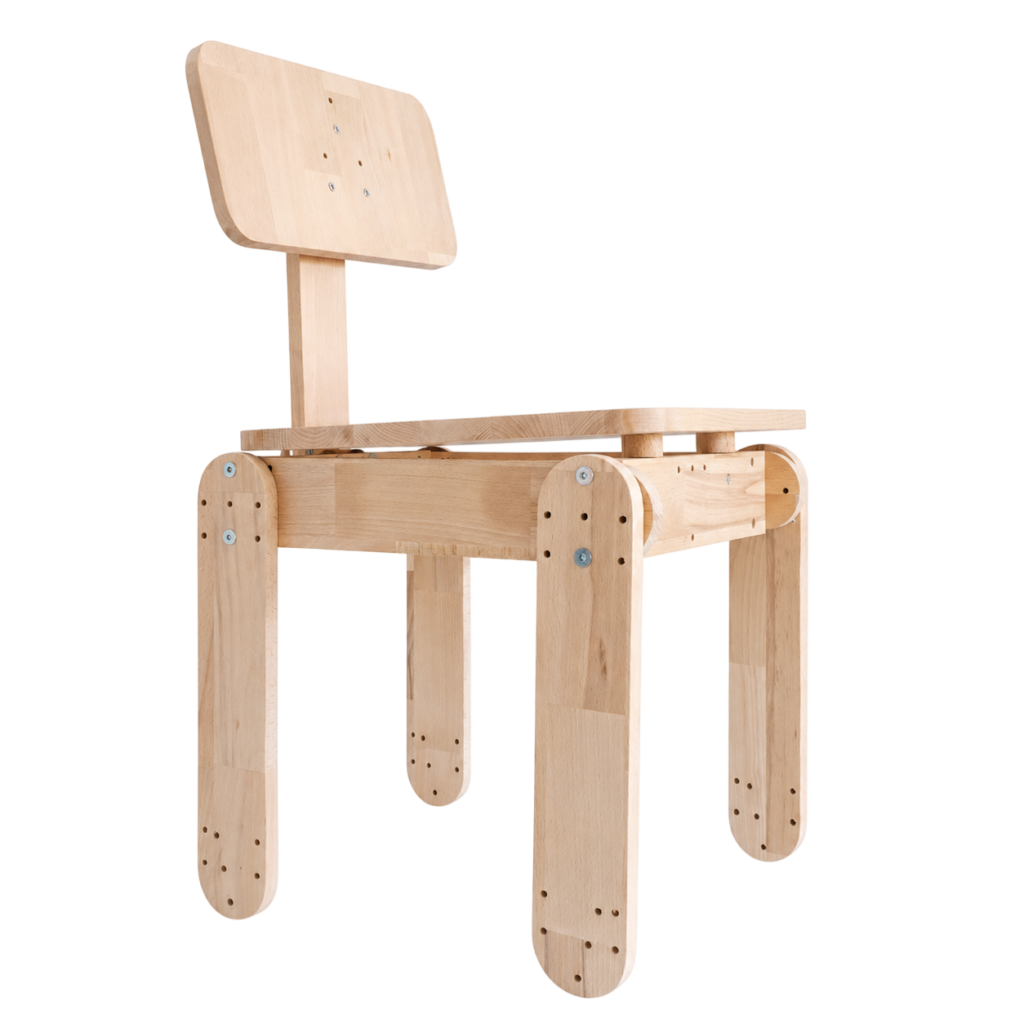

- The pictures show two different versions of the chair. One with a straight and one with a tilted backleg.
- This prototype has straight boards for the seat and backrest. In a commercial version, appropriate curves would be incorporated into the seat and backrest to ensure seating comfort.
- The spacers under the seat are 20 mm high in this prototype.
- As you can see in the pictures, you can also bend the rear legs and thus slightly increase the seat angle and the leaning angle.
- More construction details can be seen in these pictures:
Meta info
- Please visit the original post by the designer Post 2 | Post 1 to find even more information. Initial post backup pdf
- Disclaimer
Universal parts
Flappy Chair
127.1 – “Flappy beam” 360x80x18mm
126.1 – “Flap” board ~420x80x18mm
101.3 – Flexible bead ⌀ ~16mm, ⌀ 2mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
091.1 – M4 rivet nut
086.2 – M4 bolt 50mm
086.1 – M4 countersunk bolt 20mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm

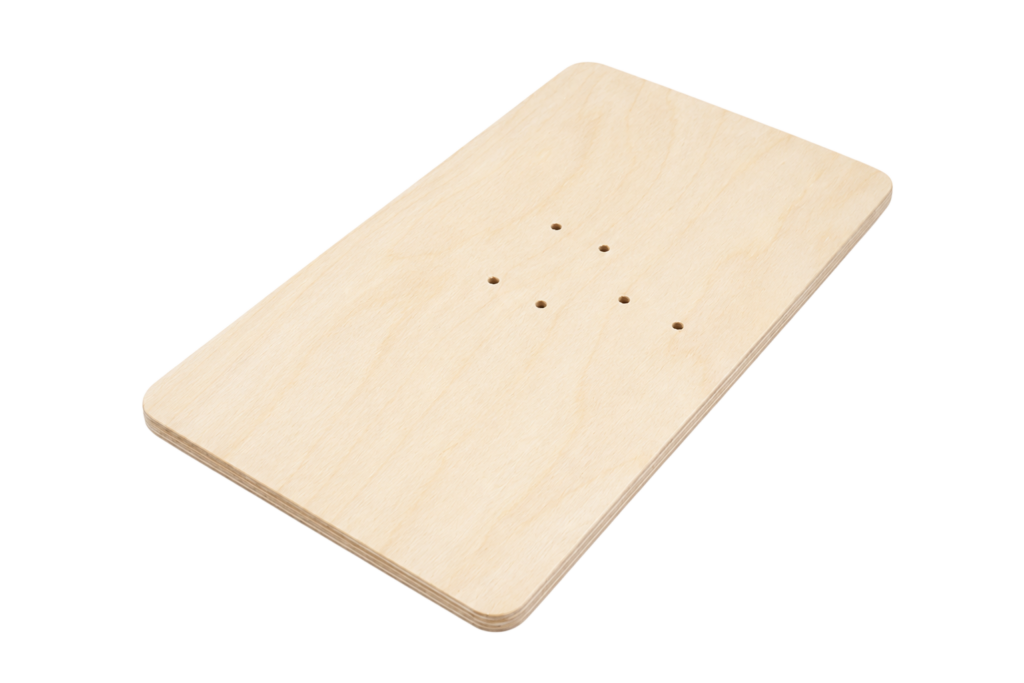

081.2 – Board ~210x390mm
080.3 – Board ~390x390mm
072.1 – Spacer ~15mm high
029.1 – M6 round nut
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
