Set #090

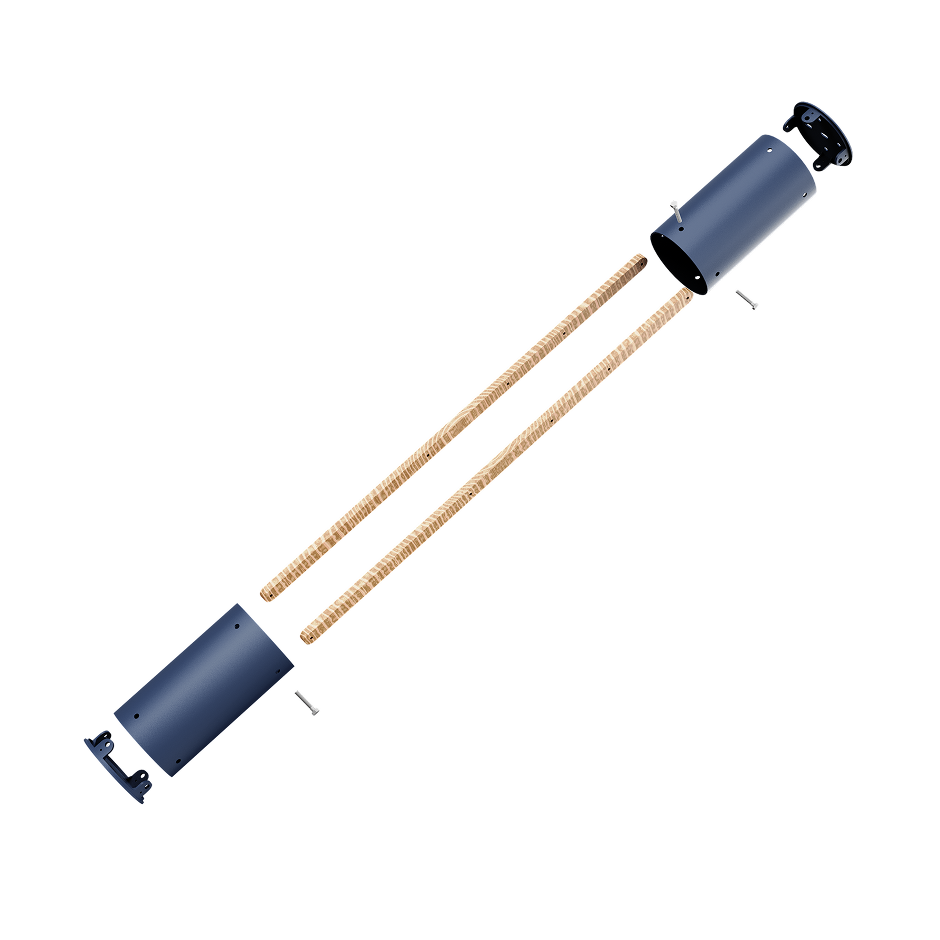

Parts list
Parts appearing in this set

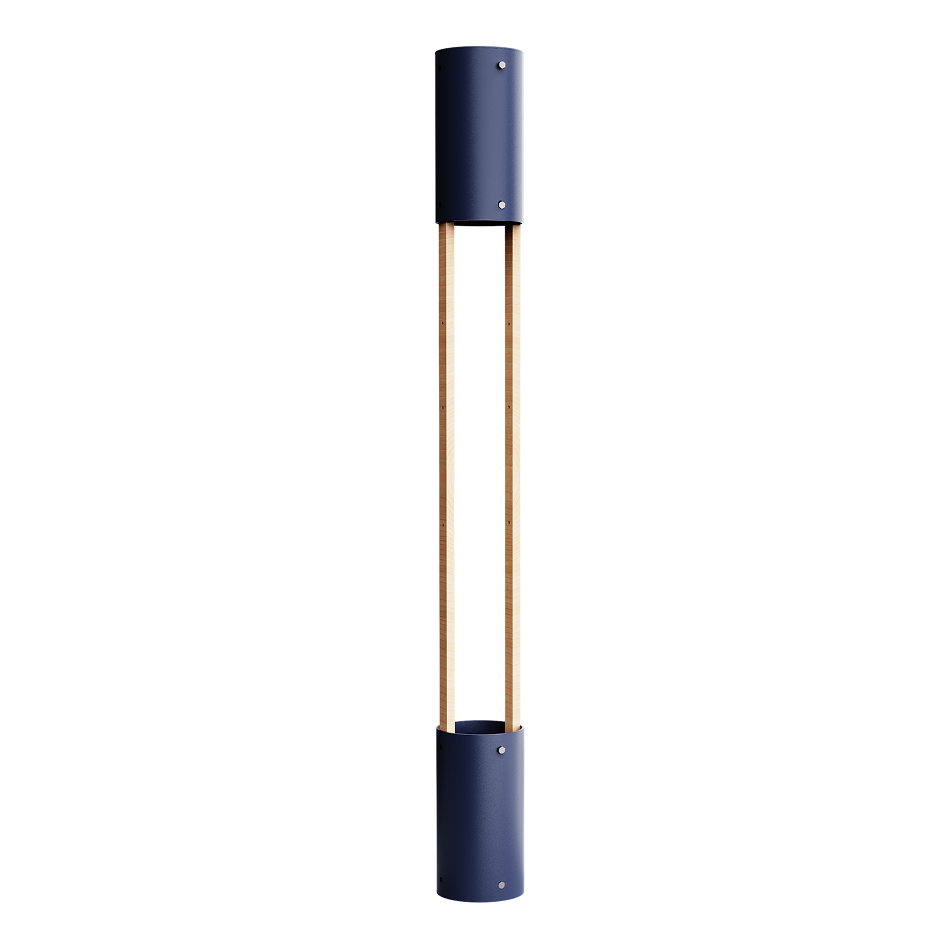

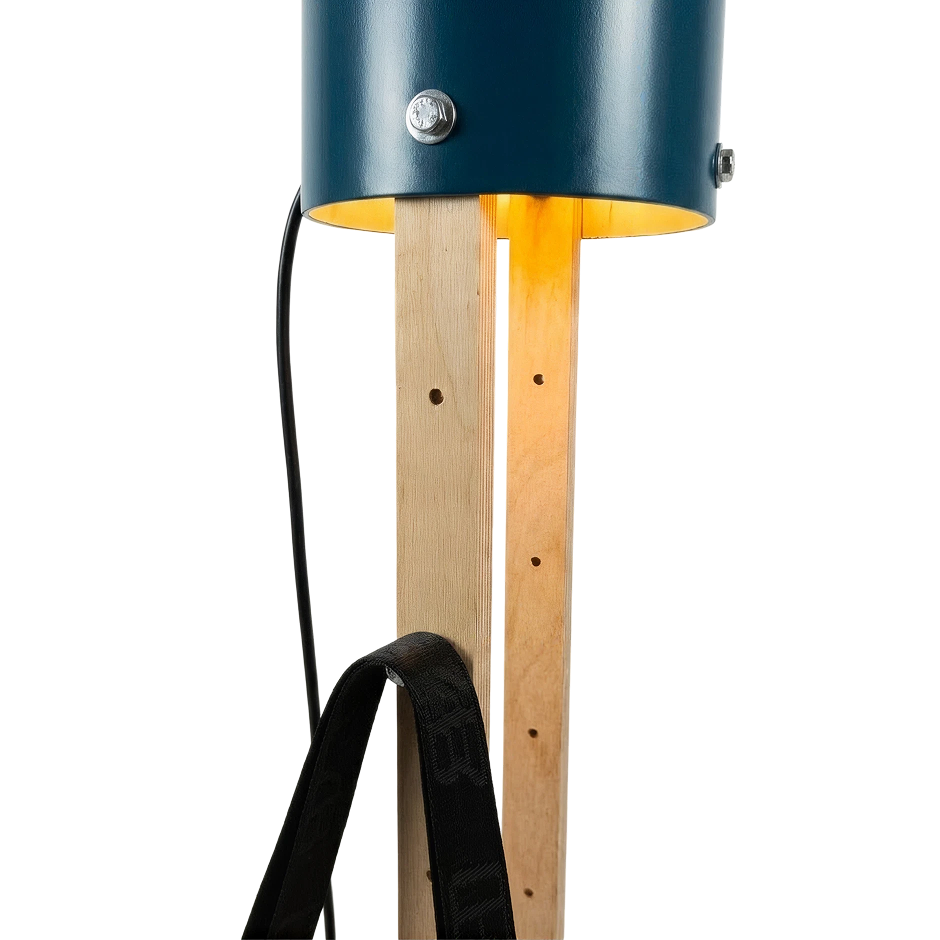

Multi Lamp
155.1 – Tube 210mm, inner ⌀ 152mm
153.1 – Rail ~1020x30x16mm
089.1 – M6 nut
087.1 – M6 washer 20mm
085.1 – Thread insert M10
084.1 – Threaded cap M10
051.2 – Domed washer for KG pipes, ⌀30mm
048.2 – Tube 60mm ⌀152mm
038.2 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm

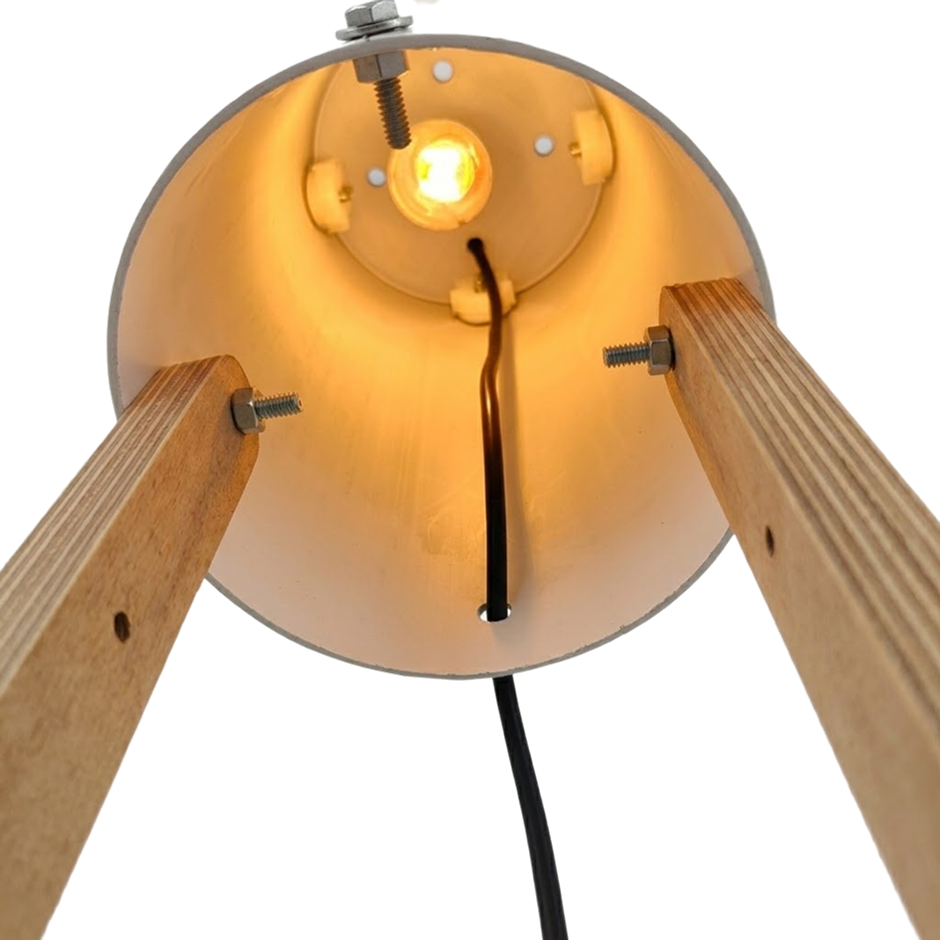

013.1 – E14 bulb holder
012.2 – Tube 300mm, inner ⌀ 152mm
010.1 – Cable with plug and switch

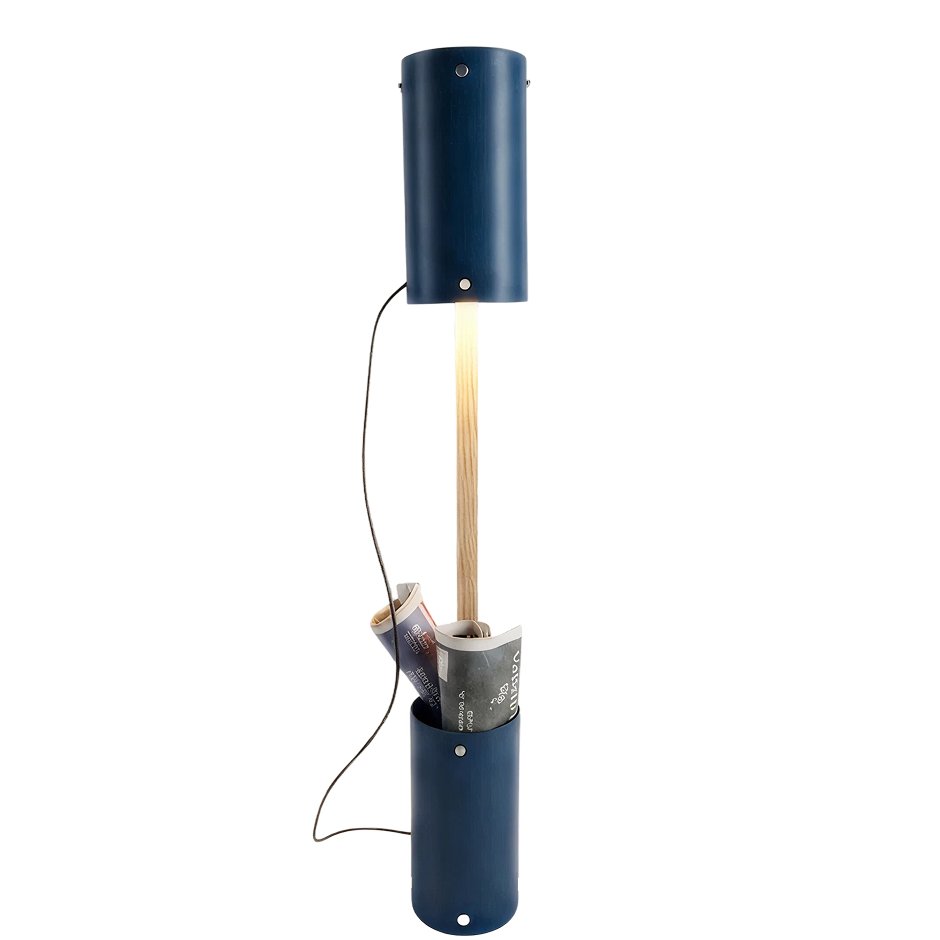

MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
ASSEMBLY+ There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
‘Multi Lamp‘ brings subtle light to your room and to the sustainable world 🌳 it helps you build.
STATUS: functional prototype.
Set info
Set No #090
Context Info
- This is a Pipe World Set working with the ⌀160mm tubes of the Ikego system.
Meta info
- This set was shared via Email, thank you Vageesha
