Set #084
Parts list
Parts appearing in this set
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
114.2 – 3 corner bracket modified Round +

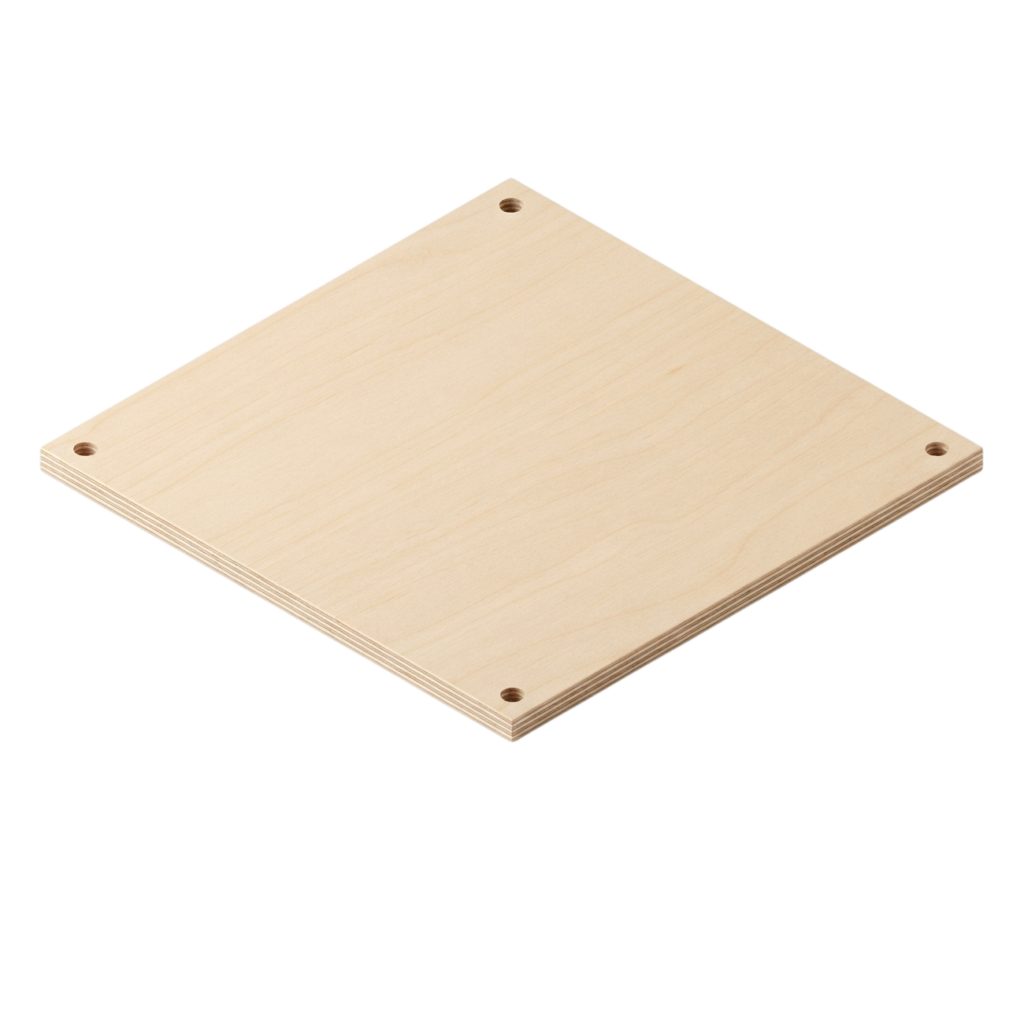

102.4 – Board 300x300x16mm, 4 ⌀10mm holes
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
088.2 – M6 sleeve nut ~16mm
088.1 – M6 wing nut
087.1 – M6 washer 20mm
082.1 – M6 bolt 50mm
030.2 – M6 bolt 15mm

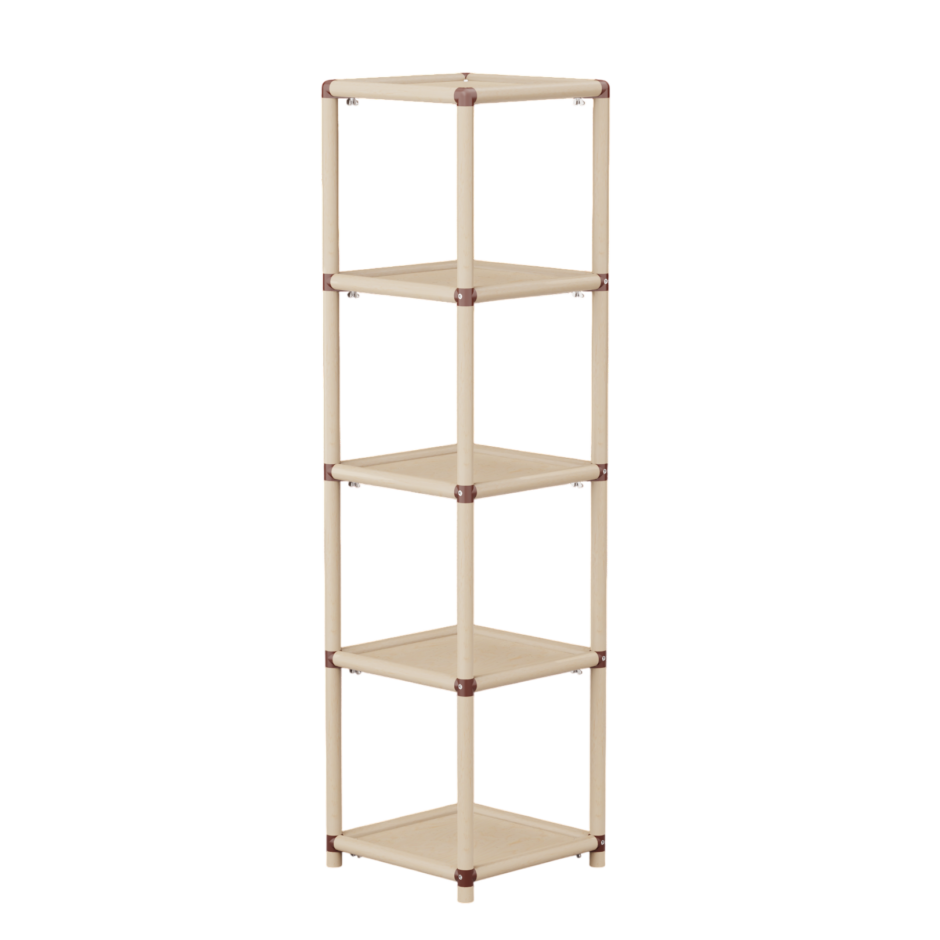

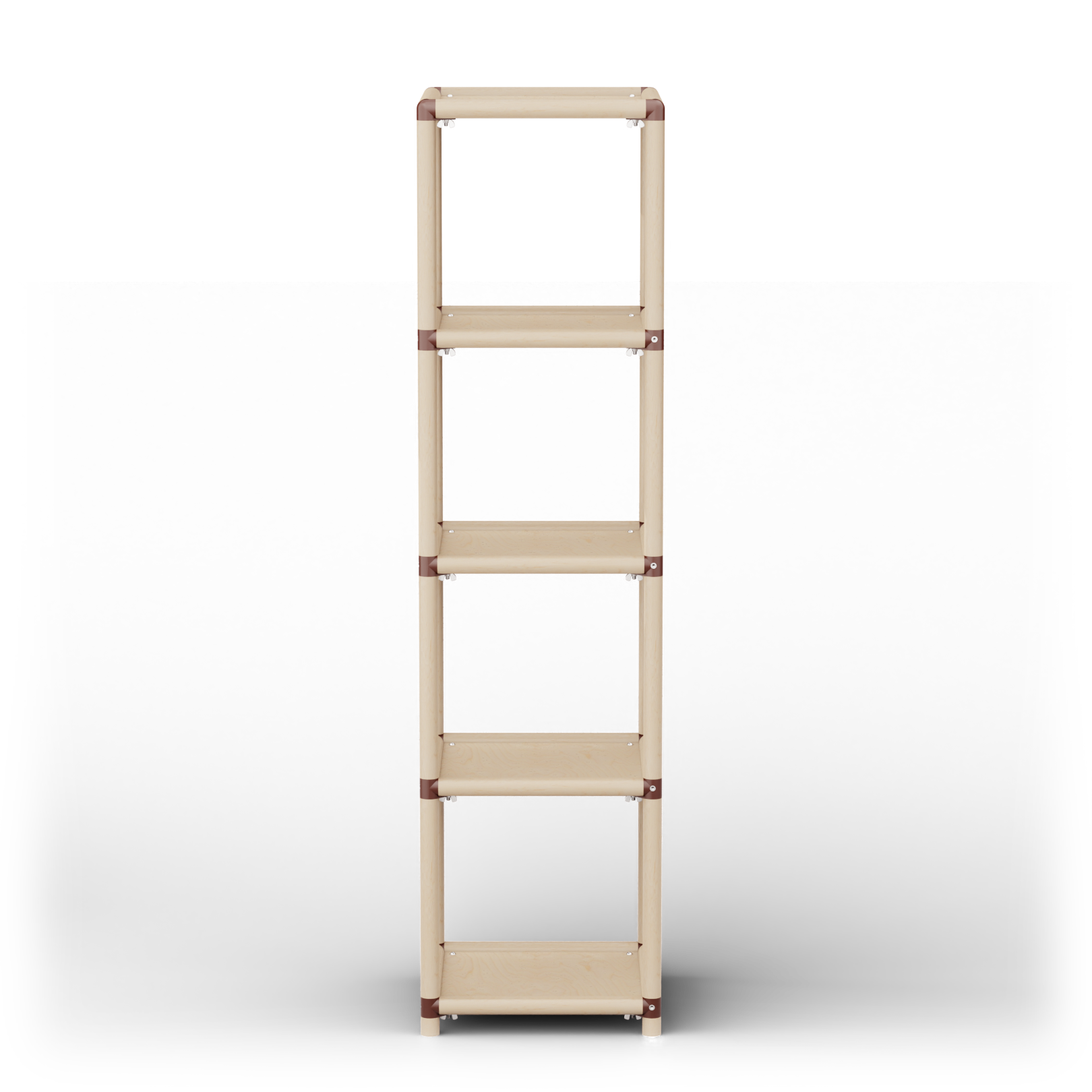

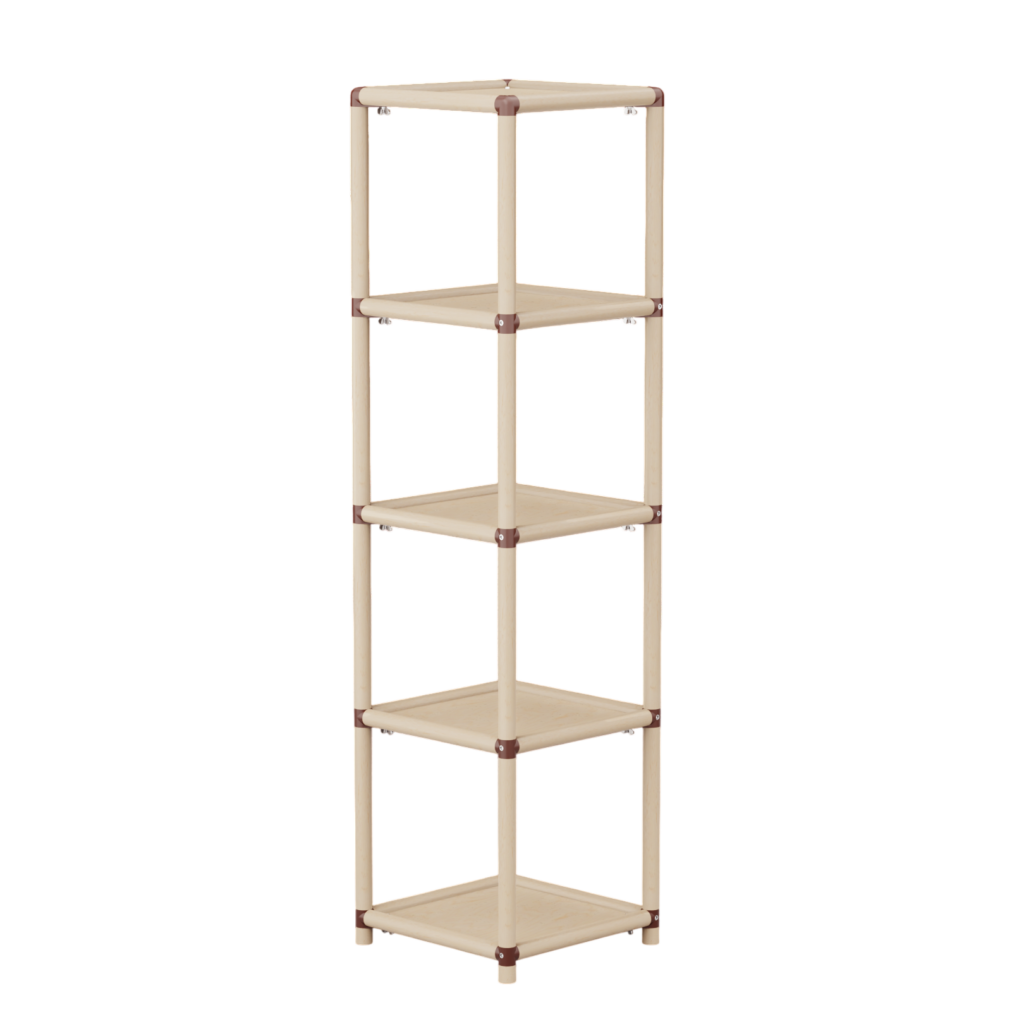

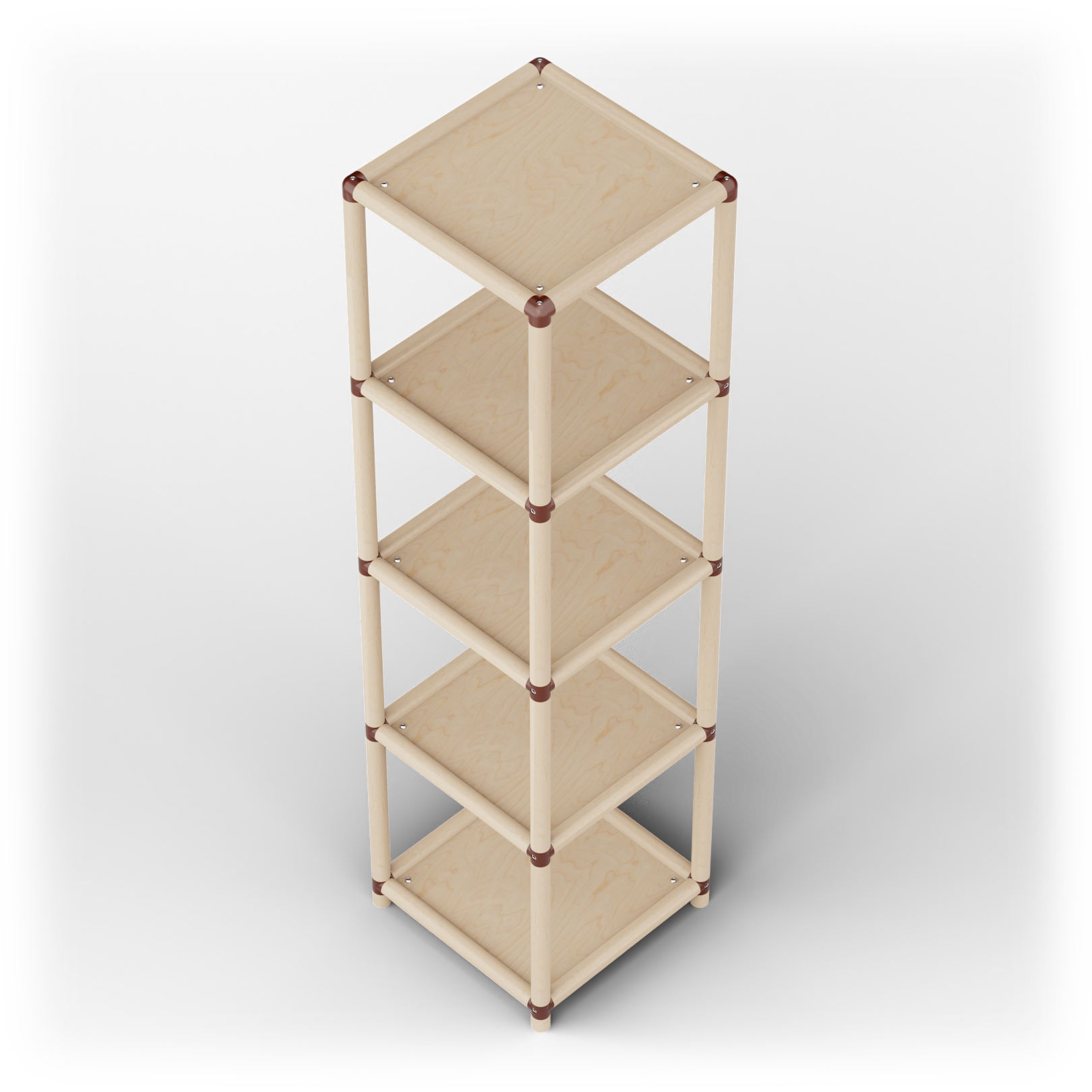

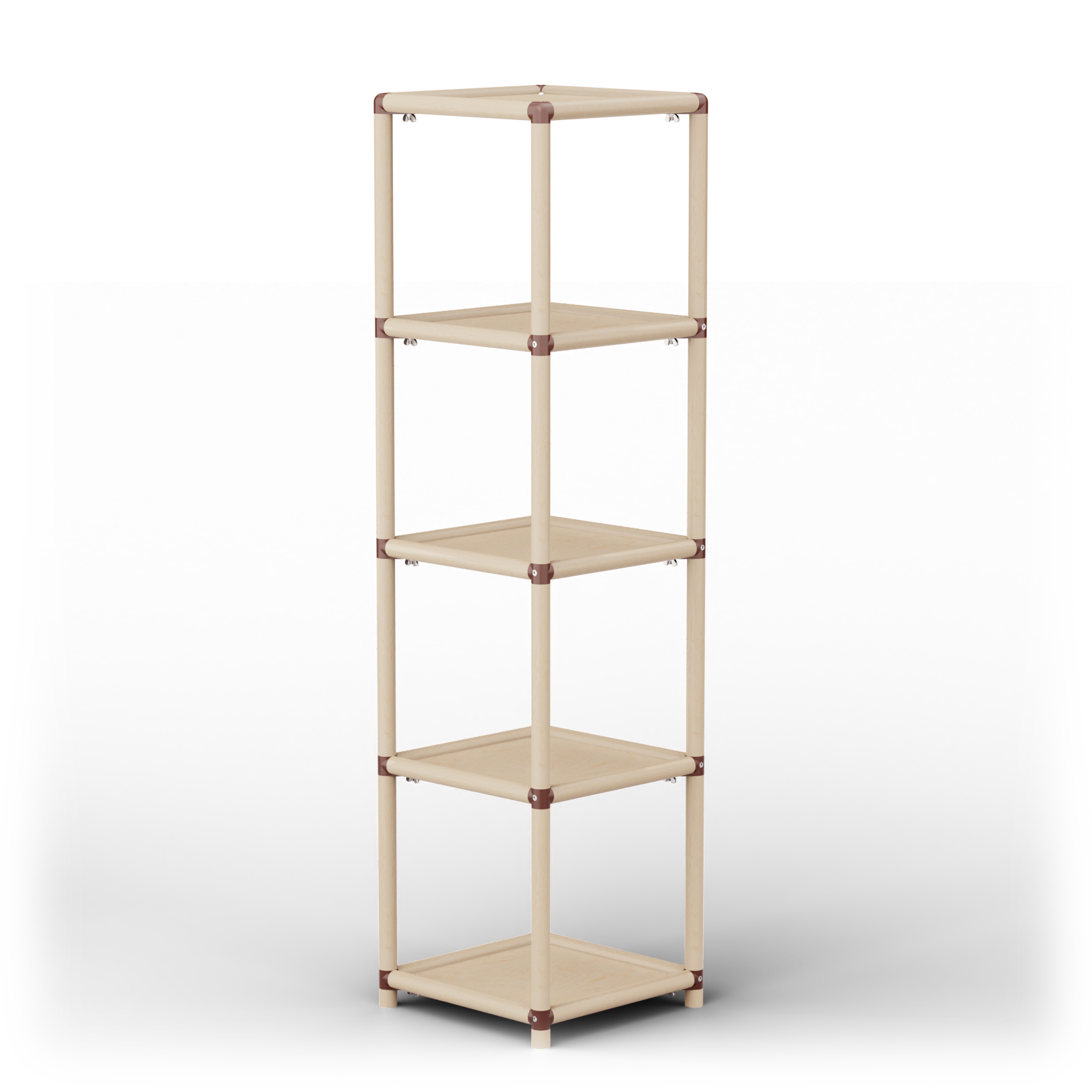

Regal gross
MODEL+ This set has more than one model. Not all parts in the list are required to assemble each version.
This set is part of Ikegos Node World. A subsystem within Ikego.
●
