Set #080
Parts list
Parts appearing in this set
152.2 – Node Ring 2 connections for ⌀30mm rods, ⌀50mm
142.6 – Board 330x330mm, ⌀10mm holes
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
114.2 – 3 corner bracket modified Round +
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
089.1 – M6 nut
088.2 – M6 sleeve nut ~16mm
082.1 – M6 bolt 50mm
072.1 – Spacer ~15mm high
030.2 – M6 bolt 15mm

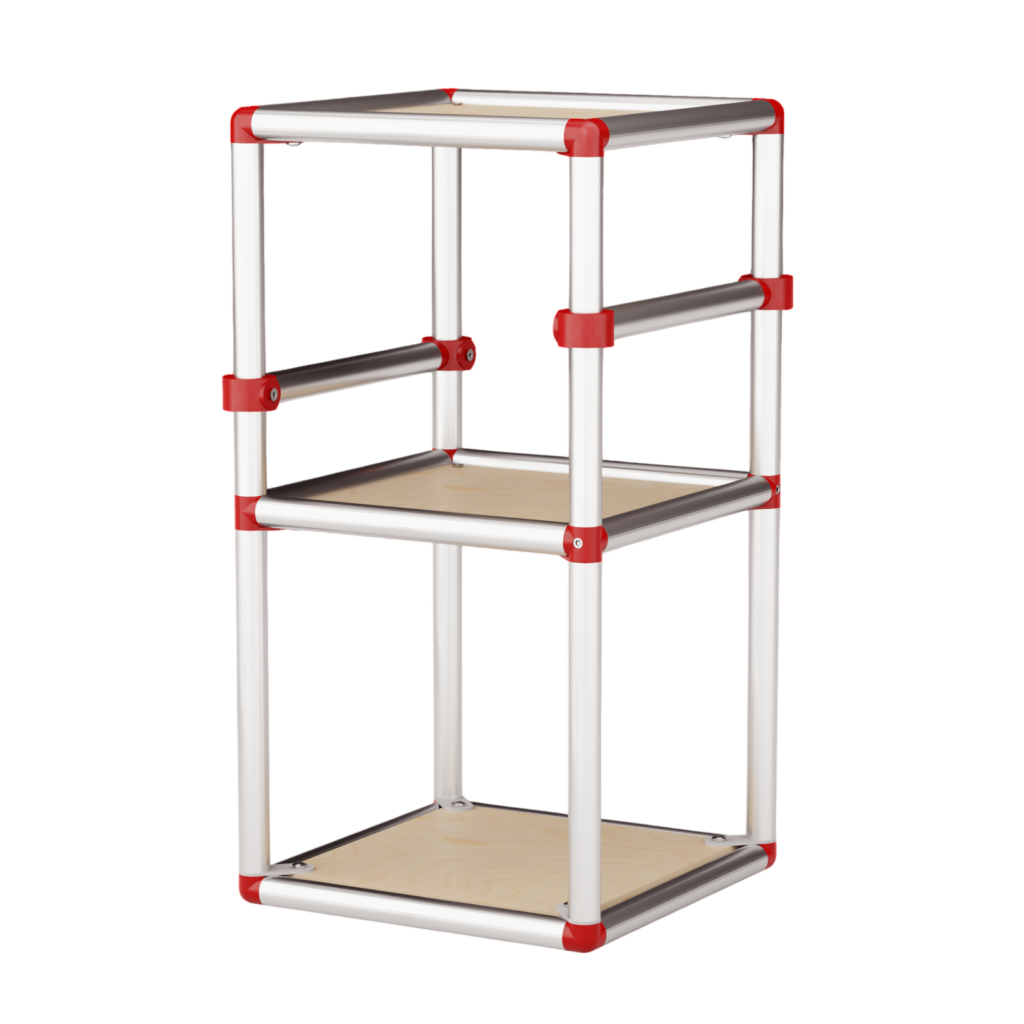

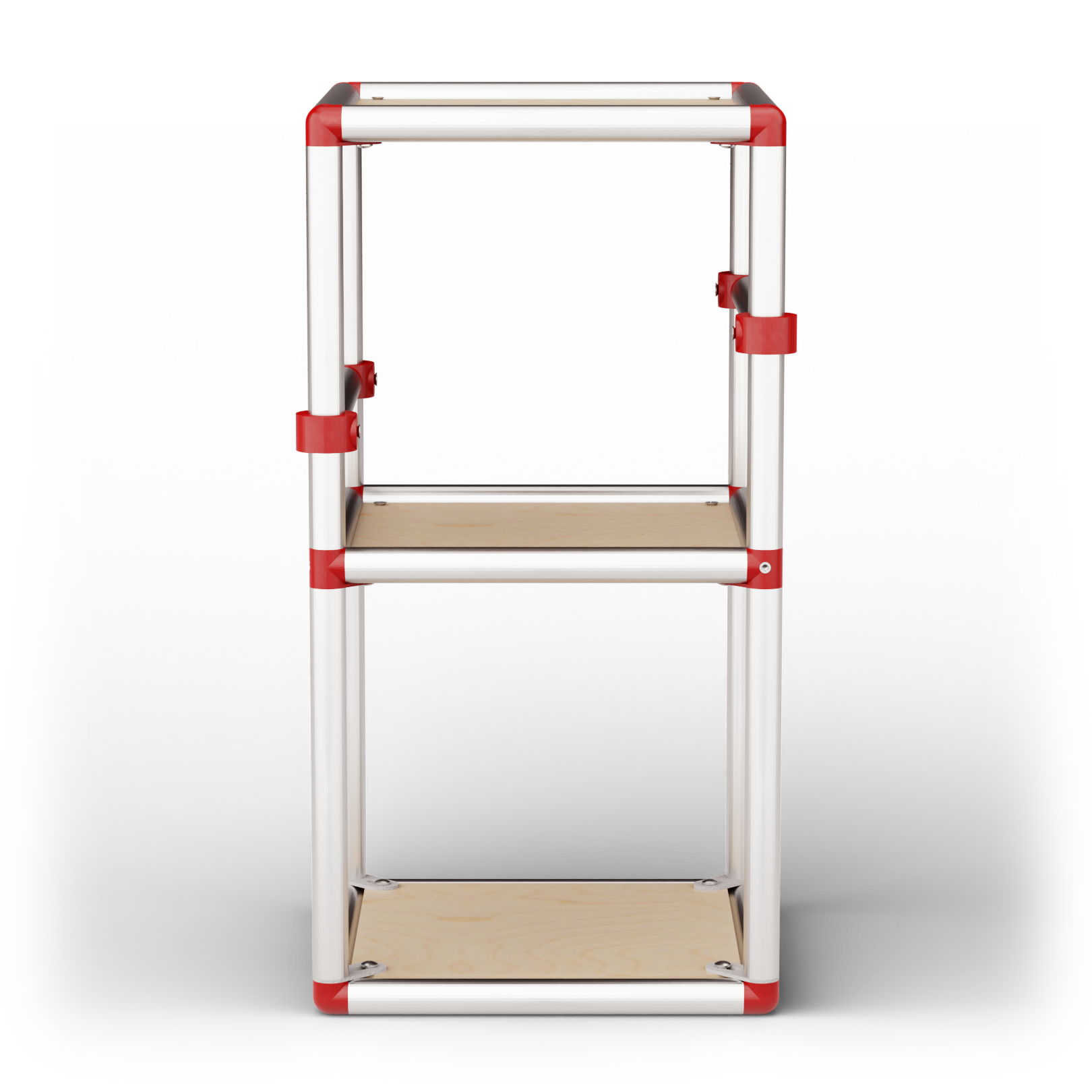

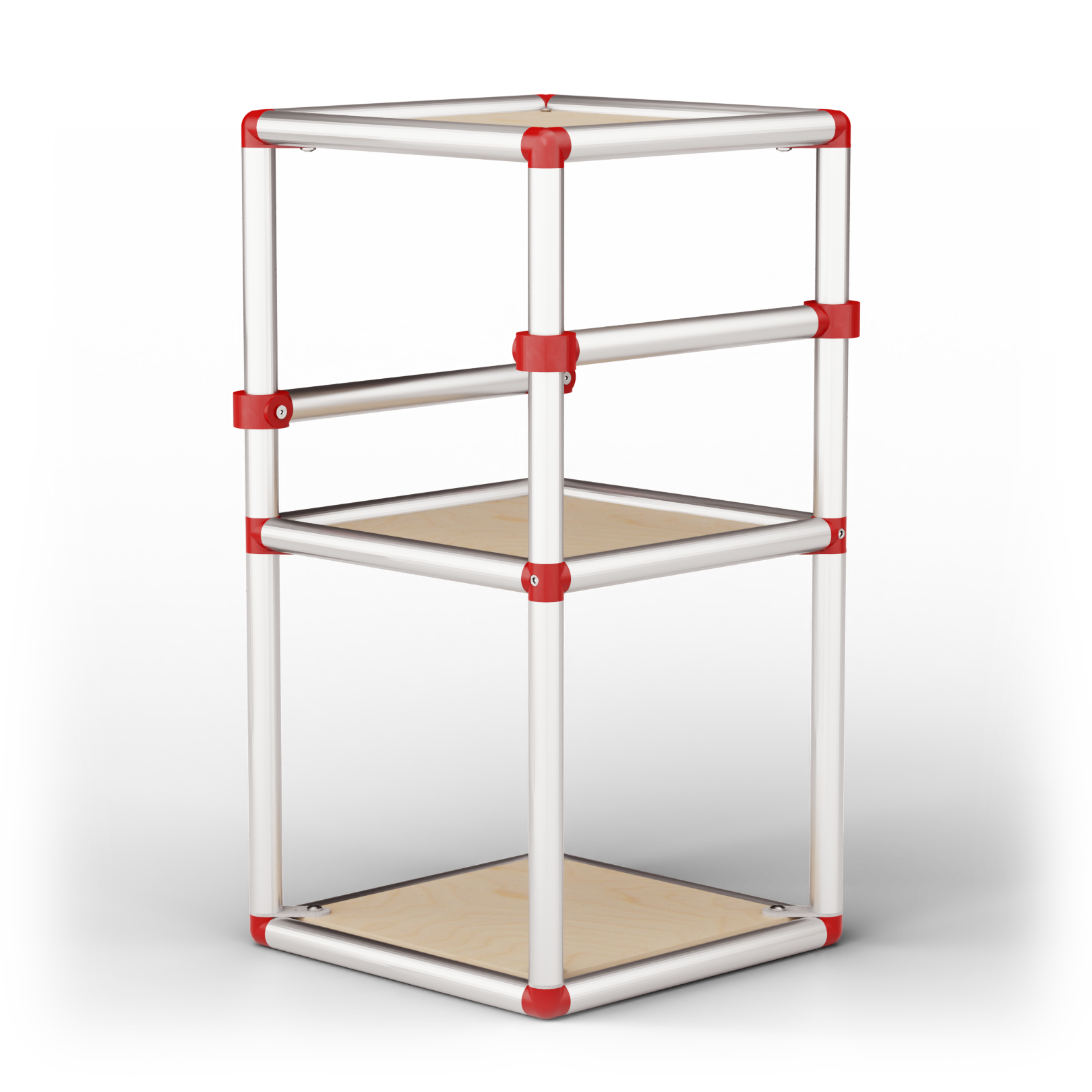

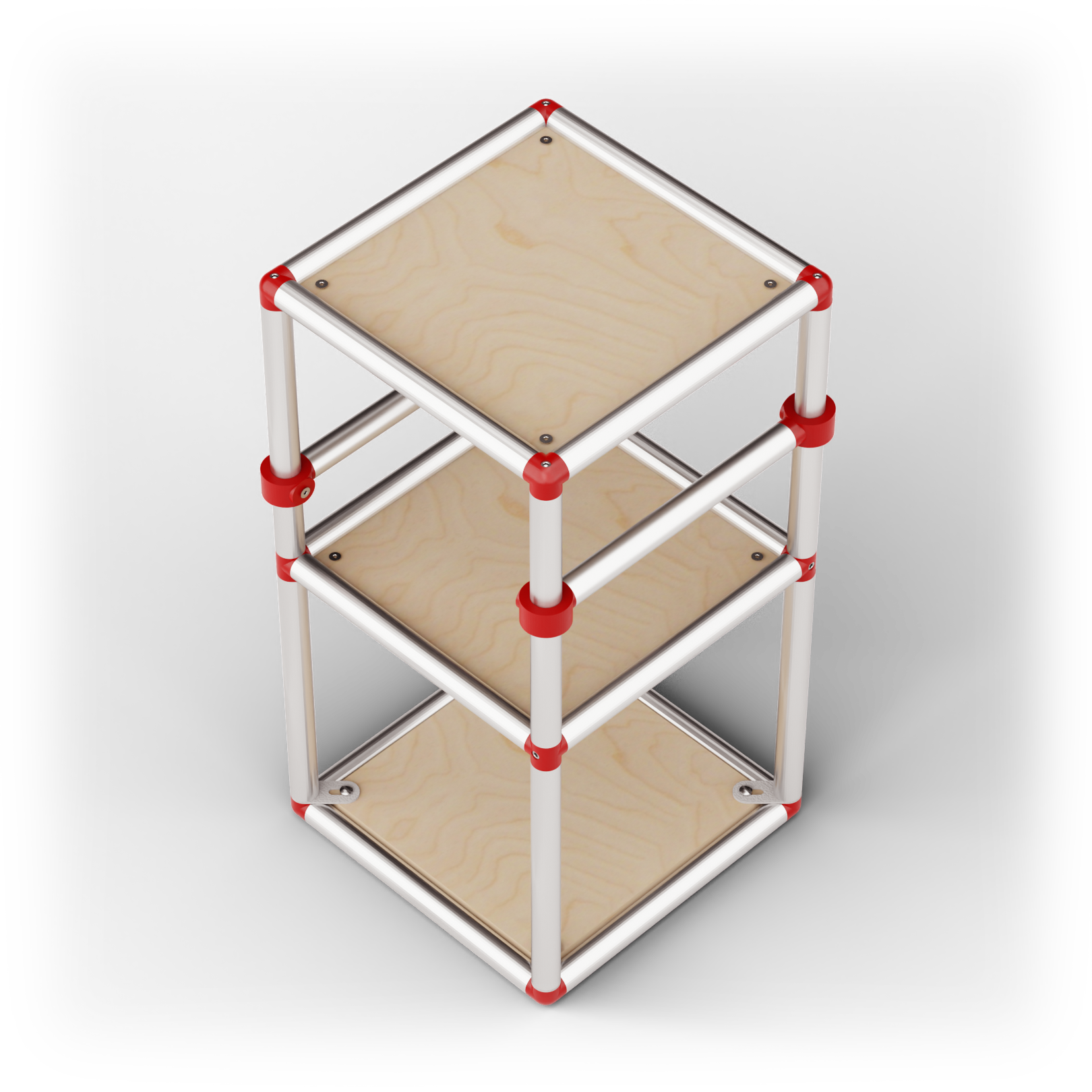

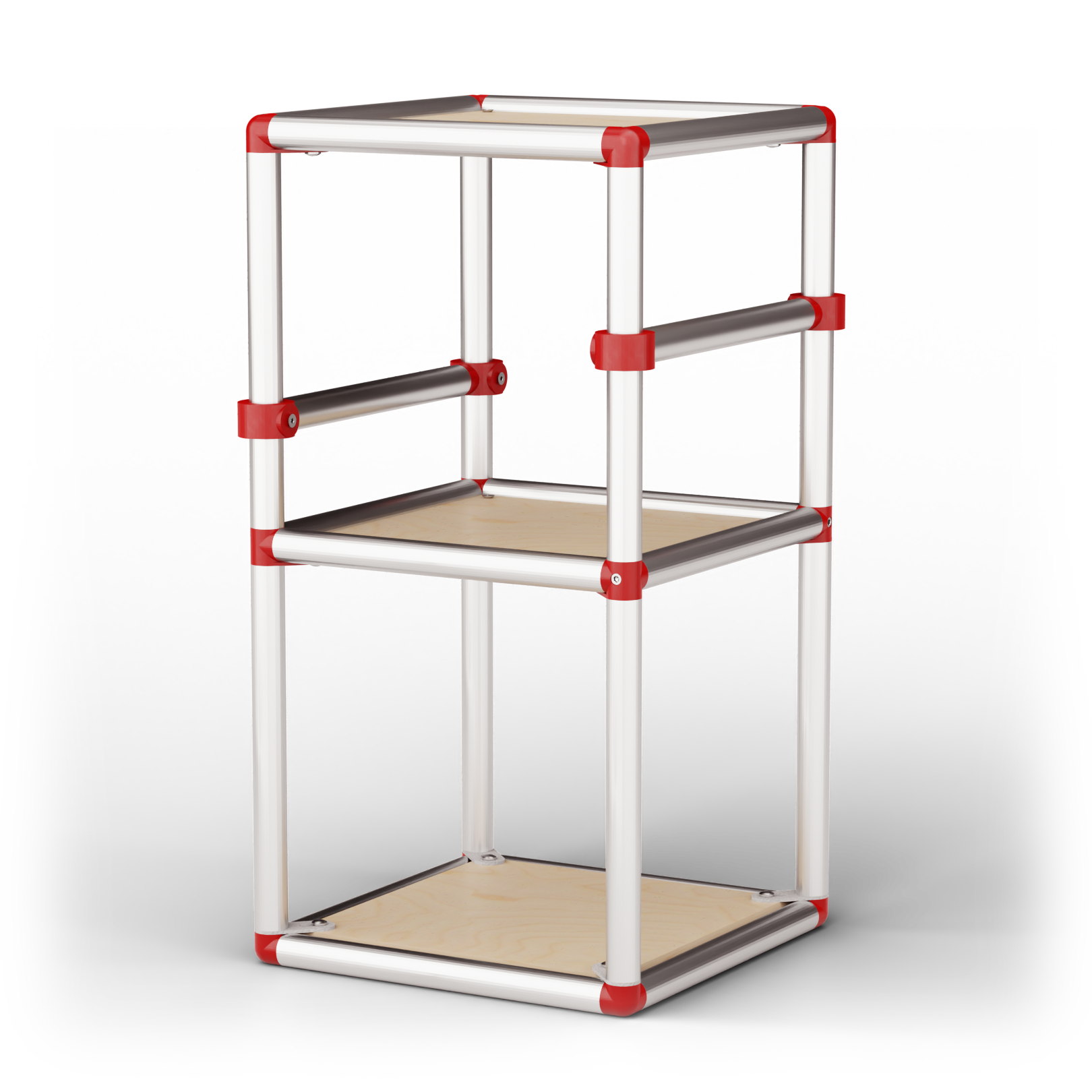

Regal klein .nd49_
‘Regal klein‘ is a small shelf with supports for the books to which you give your attention.
Status: Digital Prototype.
Set info
Set No #080
Context Info
- This is a Node World set
Meta info
- This set was shared via Email
- Disclaimer
This set is part of Ikegos Node World. A subsystem within Ikego.
●
