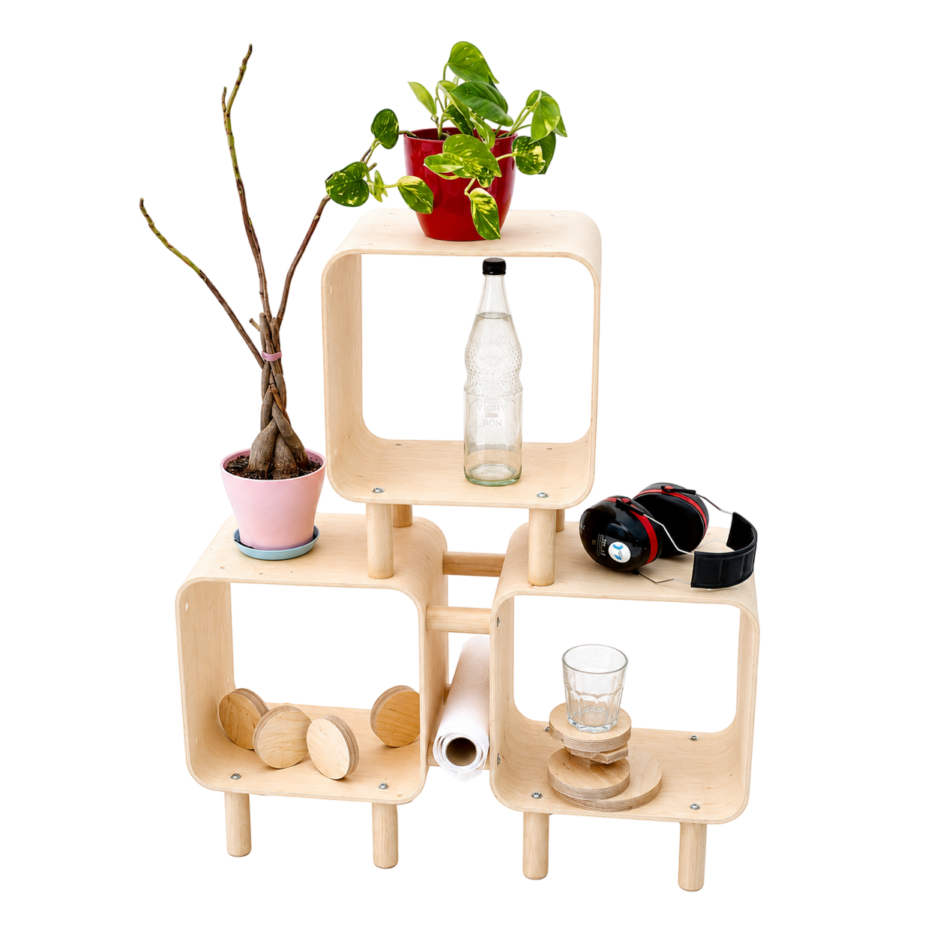

‘Vito 1st‘ are simple shelving sets introducing the VITO box part to the Ikego part collection.
By Max Cuppens
Status: Rough prototype/concept
Design info
Set stats: 4 prototypes, 0 makes, 0 products
On parts & builds
- The images show a 3d printed VITO box. Of course you can build the box differently.Â
Meta info
- Visit the â original post by the designer for more pics and infos. (op-backup.pdf)Â
- Disclaimer
Universal parts
Vito 1st
098.1 â VITO box
097.1 â board 240x300mm

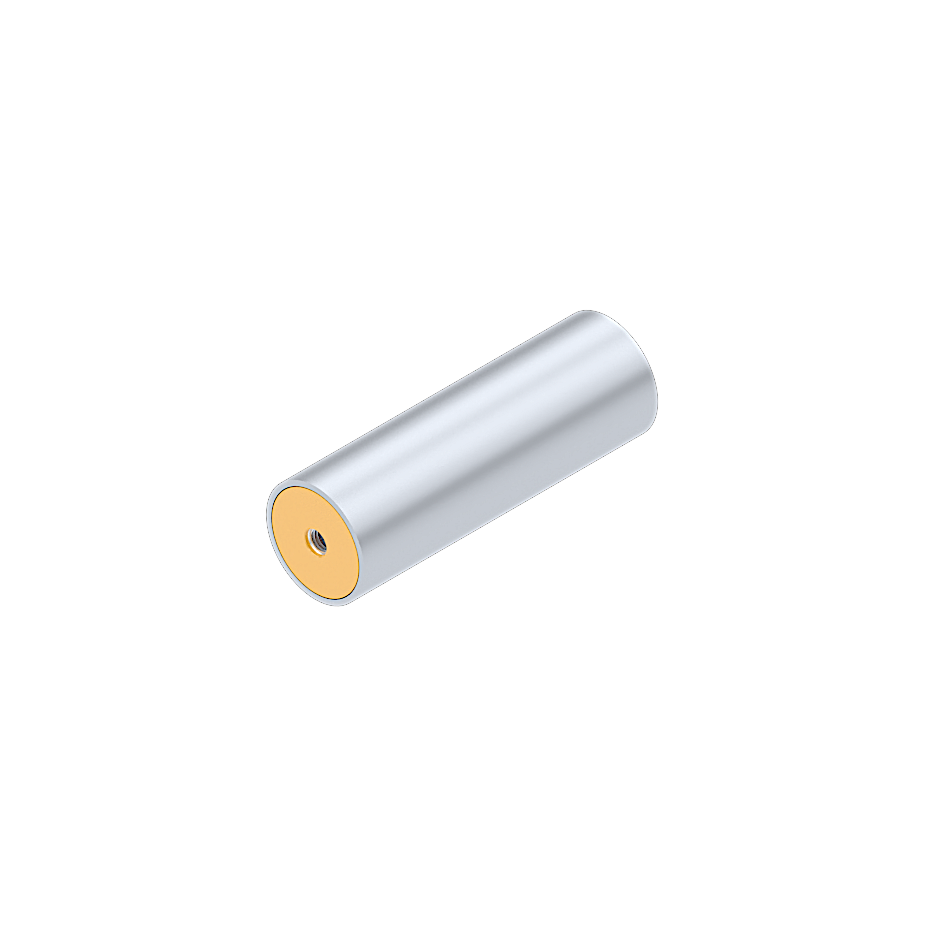

095.3 – 120mm rod with M6 insert threads, â ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, â ~30mm, “elephant rod”
089.1 â M6 nut
088.1 â M6 wing nut
087.1 â M6 washer 20mm
072.1 – Spacer ~15mm high
030.1 – M6 bolt ~30mm
018.1 – String 2000-2500mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
